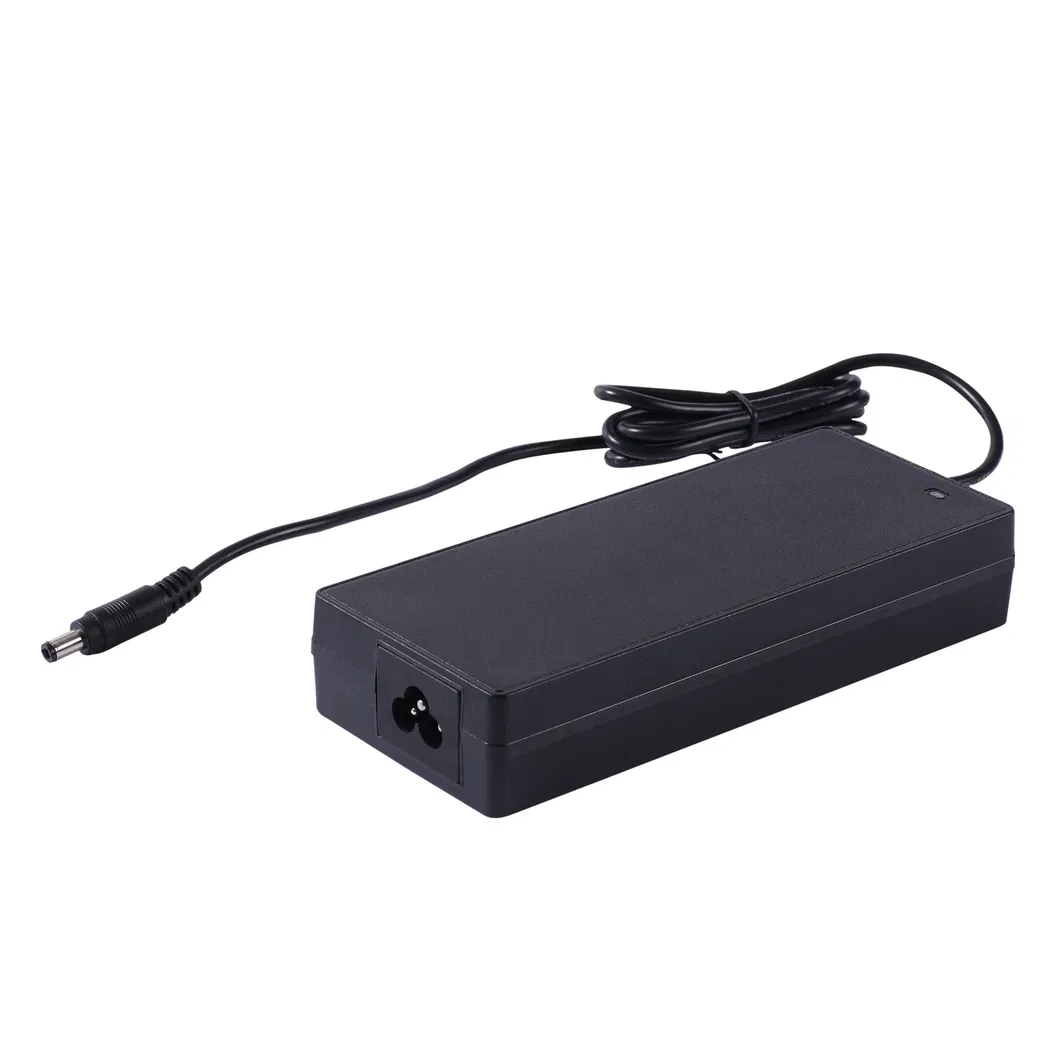

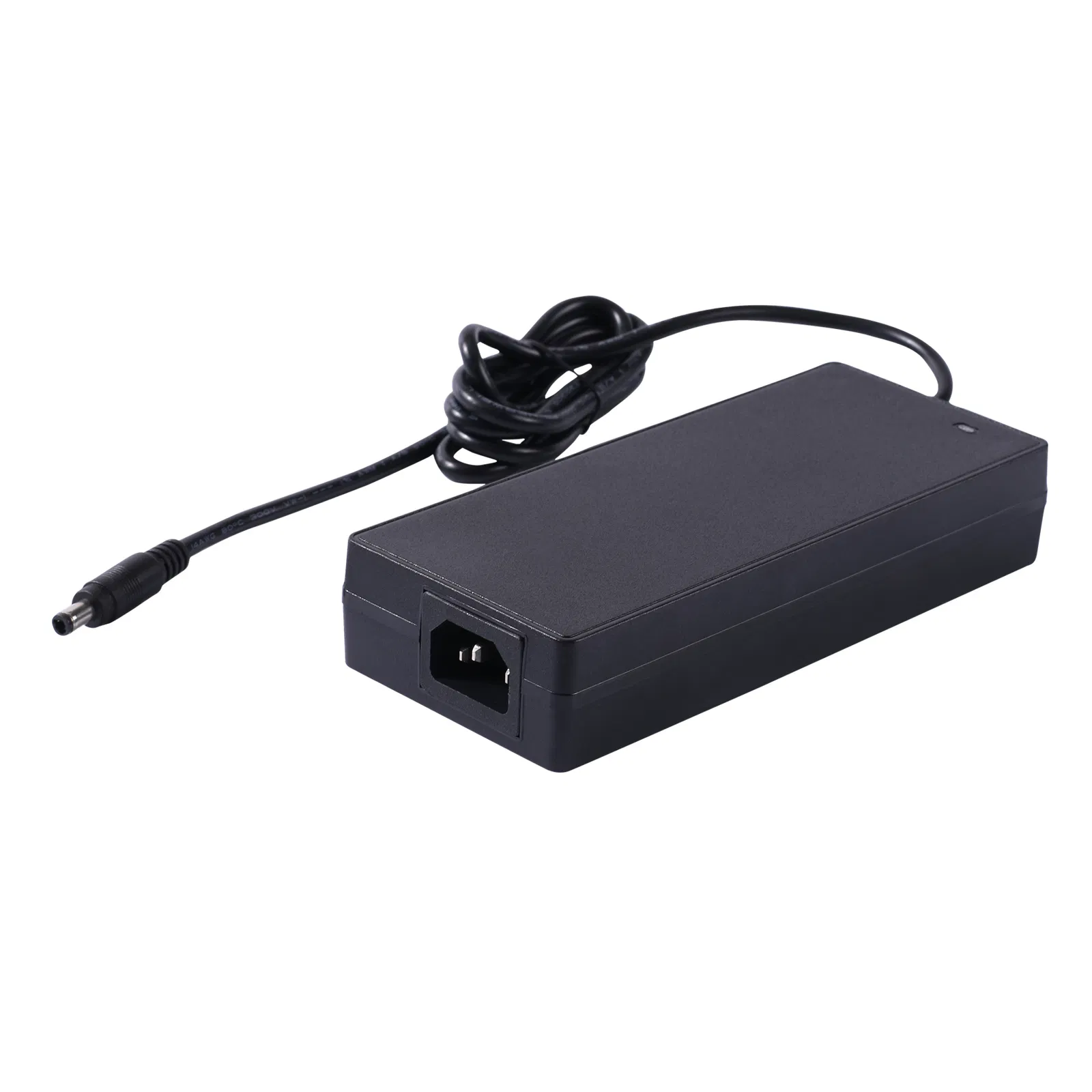

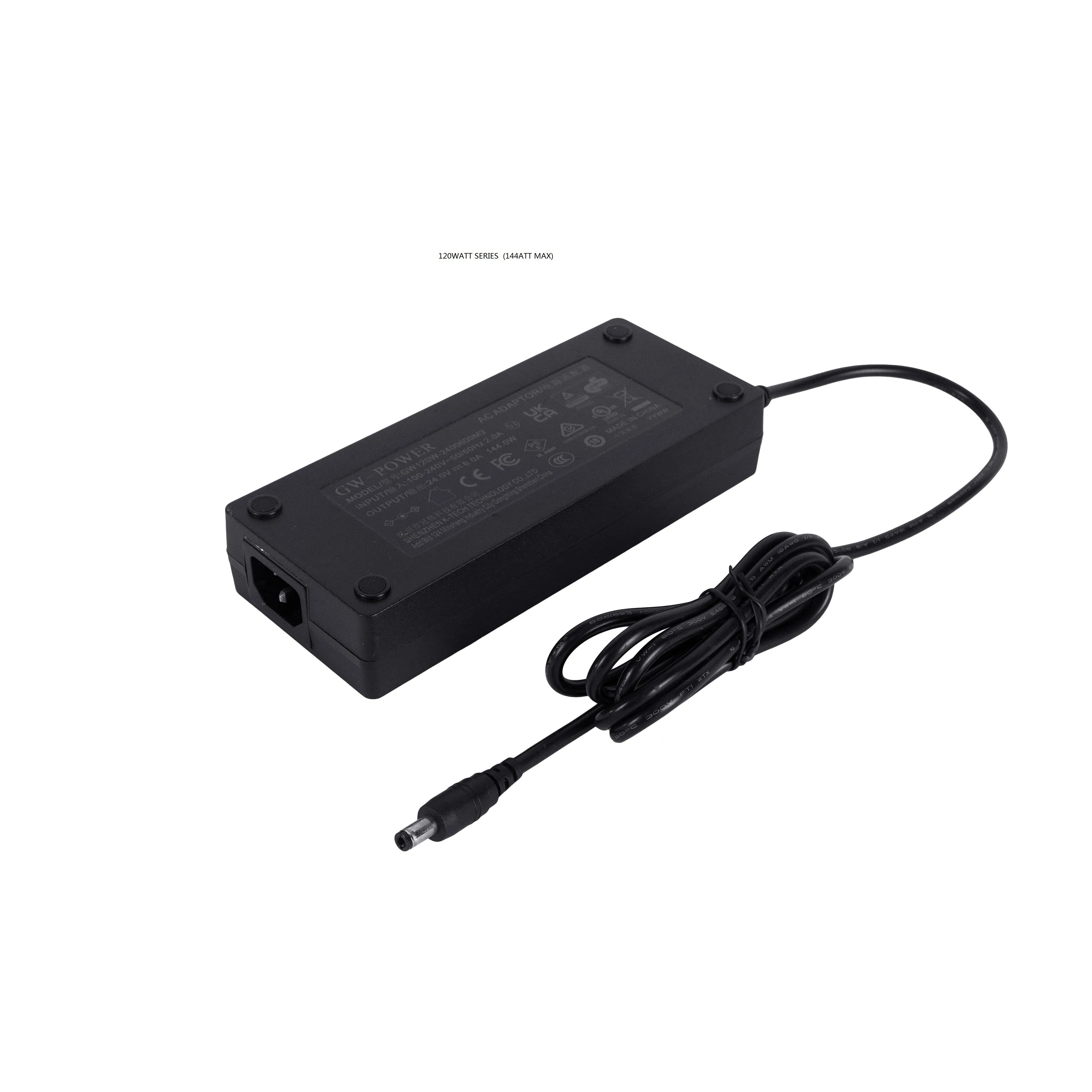

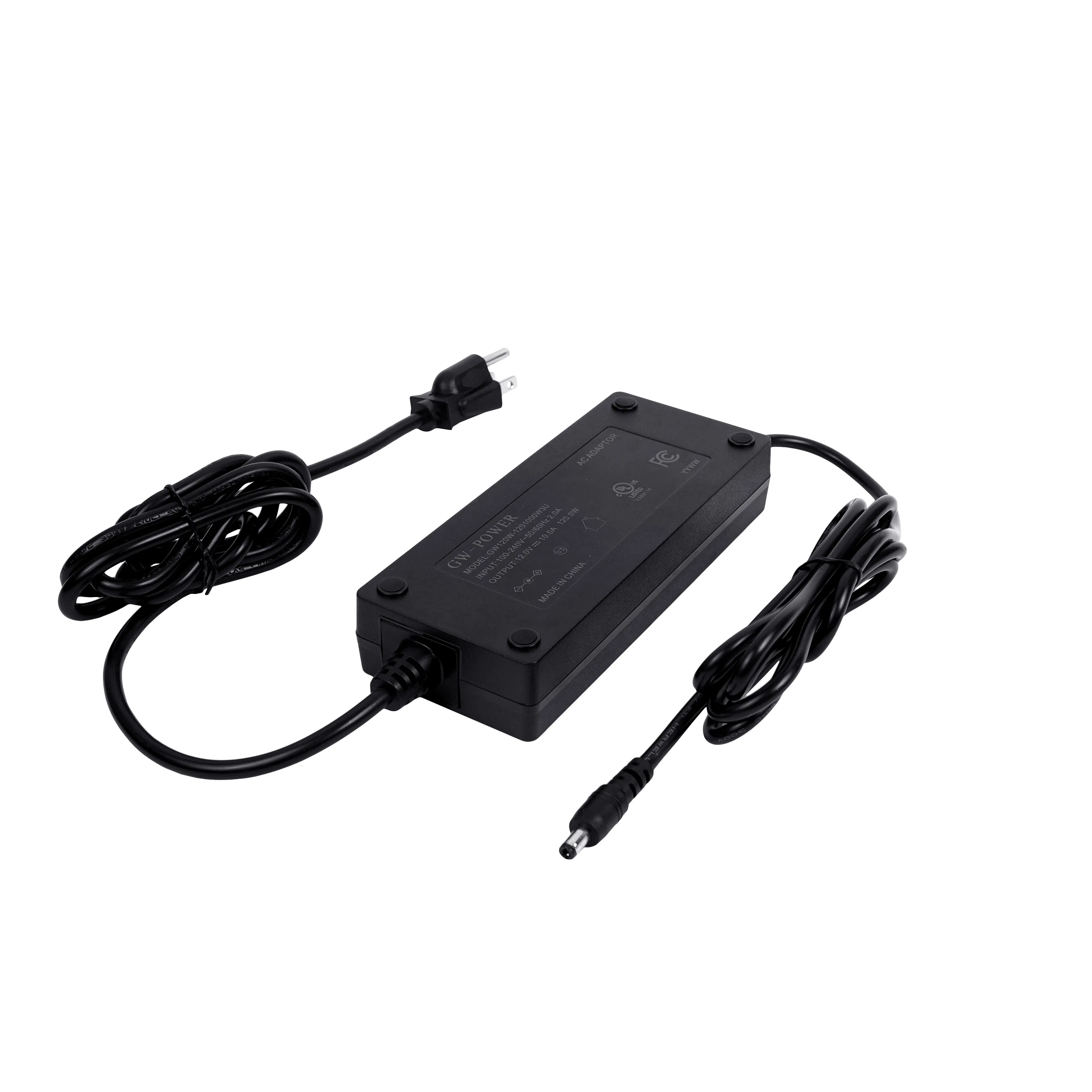

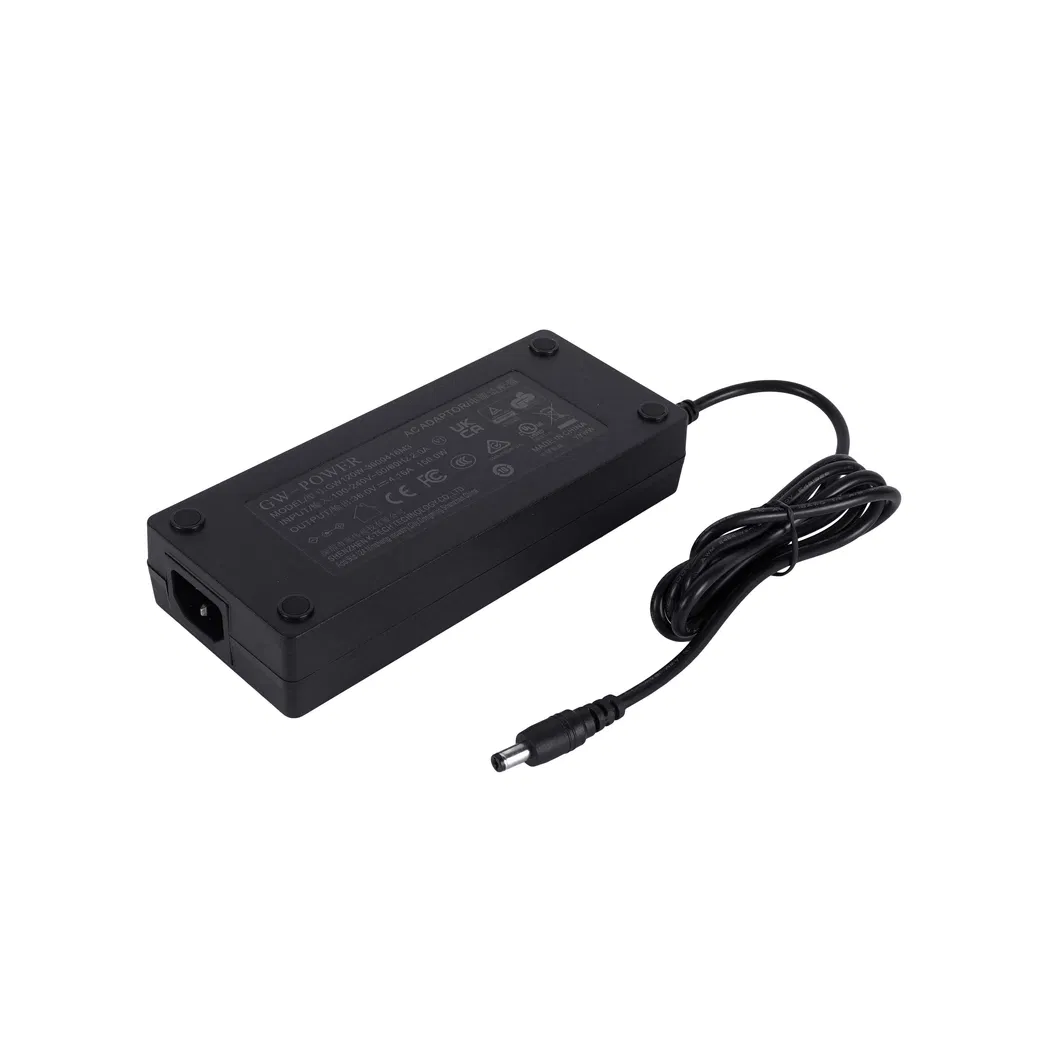

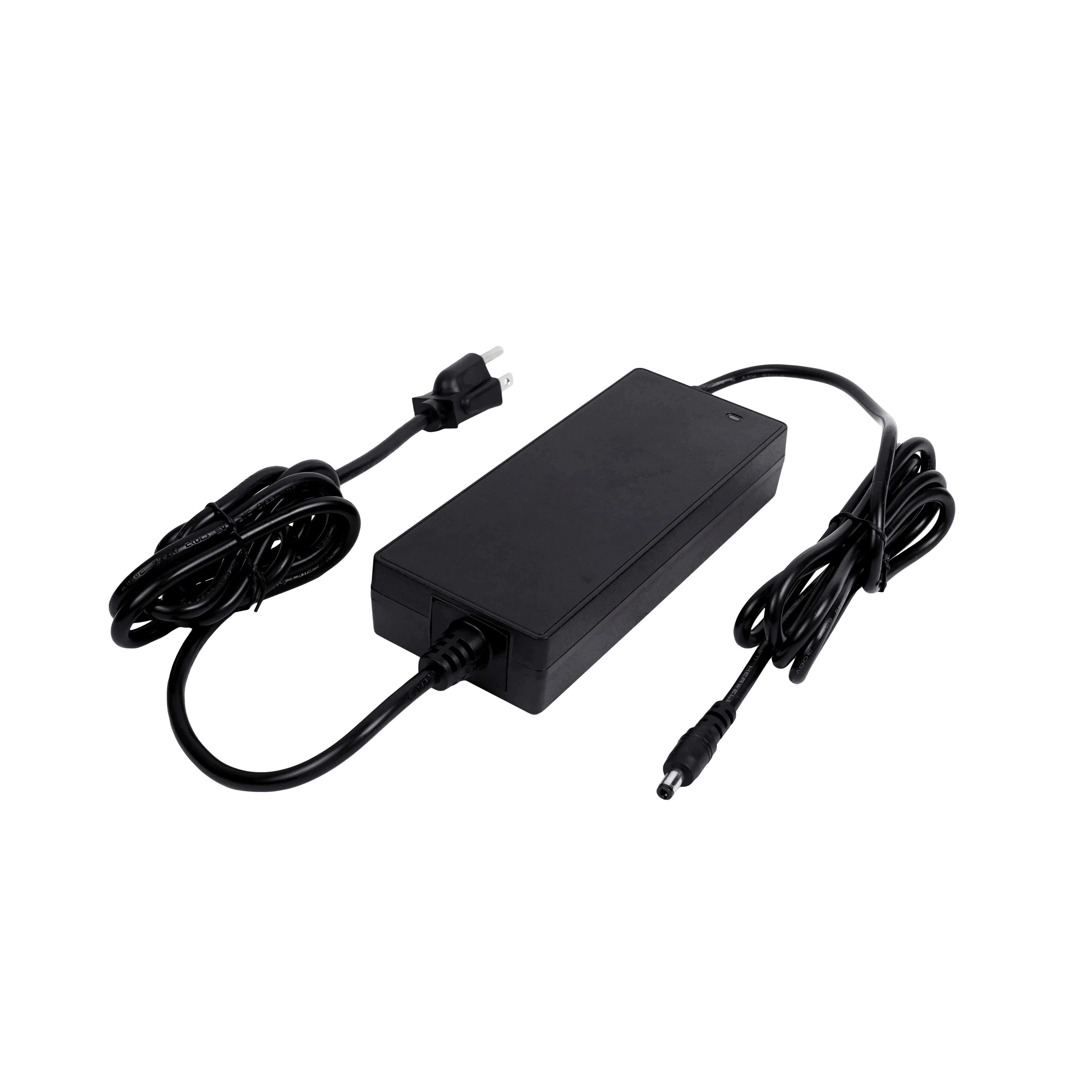

24V 6A Compact Power Adapter with 15kv Air Discharge Protection

1 / 5

24V 6A Compact Power Adapter with 15kv Air Discharge Protection

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

✨ Product Overview

Model NO.	GW120W-2400600M3	Certification	TUV, RoHS, ISO9001, CCC, GS CE UL FCC Ukca PSE
Internal Structure	On-Off Type	Power Source	Half-Bridge Type
Connection	Desktop	Protection	Ocp, Ovp, SCP, Olp, Uvlo
Efficiency	Level VI (88% and Above)	PFC	Installed (0.9min)
Size	171X72X31.6mm	Weight	574G

📘 General Introduction

This standardized external switch mode power supply adapter is designed for diverse indoor applications. Compliant with IEC62368 standard, this UL/CE approved level VI 144W 24V 6A tabletop supply offers an output range from 12V to 36V, with current options from 0.01Amp to 10Amp.

Active PFC (Power Factor Correction)
Universal Input (90-264Vac)
Low Ripple & Noise Cancellation
Supreme Safety (OCP, OVP, OLP, SCP, UVLO)
High Efficiency Level VI
MTTF > 50,000 Hours

⚠️ UL Listed Products: This product meets stringent safety requirements. Ensure device safety by avoiding inferior chargers.

🚀 Applications

Highly versatile replacement power accessory meeting standard 62368, suitable for:

Industrial Electronics Civil & Industrial Robots Drones 3D Printers NAS Storage Power Tools Medical Incubators Musical Instruments Digital Signage Astronomical Telescopes

📊 Technical Parameters

Input Characteristics

Rated Input Voltage	100-240Vac
Operating Range	90-264Vac
Rated Frequency	50/60Hz (+/- 3Hz)
Input Current	2.0 A Max.
No-load Power	Less than 0.21W

Output Requirements

DC Output Voltage	20.0V (Standard) / 24V 6A
Rating Load Current	4.0A - 6.0A
Rating Output Power	144.0W
Ripple & Noise	150mVp-p Max.
Line/Load Regulation	±5%

🛡️ Safety & Environmental

Certificate	Region	Standard
GS / CE	Europe	EN 62368-1
UL / FCC	USA	UL 62368-1 / PART15
CUL	Canada	CAN/CSA C22 2 NO.62368-1
UKCA	Britain	BS EN62368-1
PSE	Japan	J62368-1

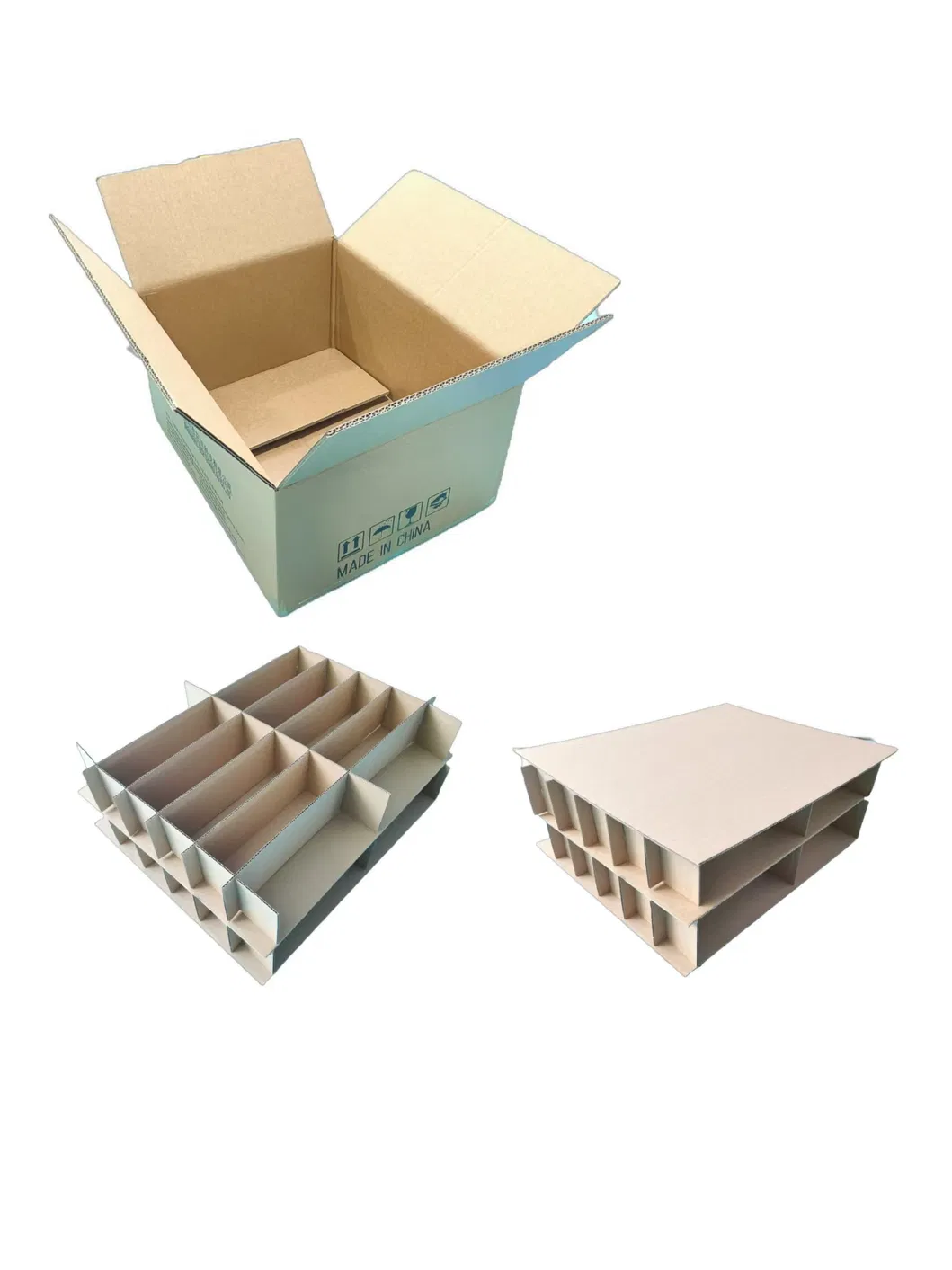

📦 Delivery & Packing

Standard Packing: 24pcs per carton (2 layers of 12).

Carton Size	490x405x180mm
Gross Weight	≈14.2kg
Material	PC Case, Brass AC Pins

🛠️ Customization Options

Voltage (VDC)	Current (Amp)	Max Power
12.0 - 17.9	0.01 - 10.0	120W
18.0 - 25.0	0.01 - 7.5	144W
25.1 - 29.9	0.01 - 5.5	144W
30.0 - 36.0	0.01 - 5.0	150W

Customizable elements: DC cable length, Connector type, Nameplate information, and AC inlet (C6/C14).

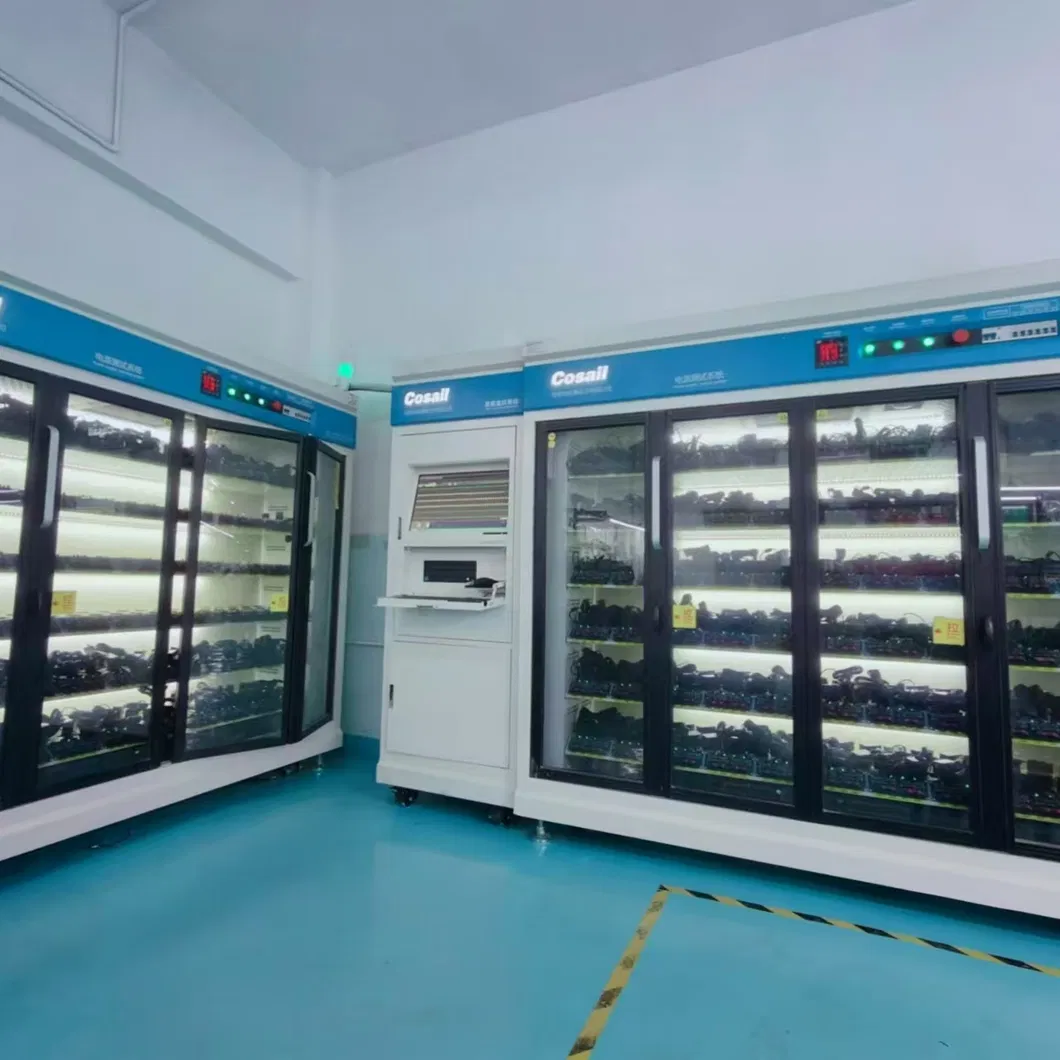

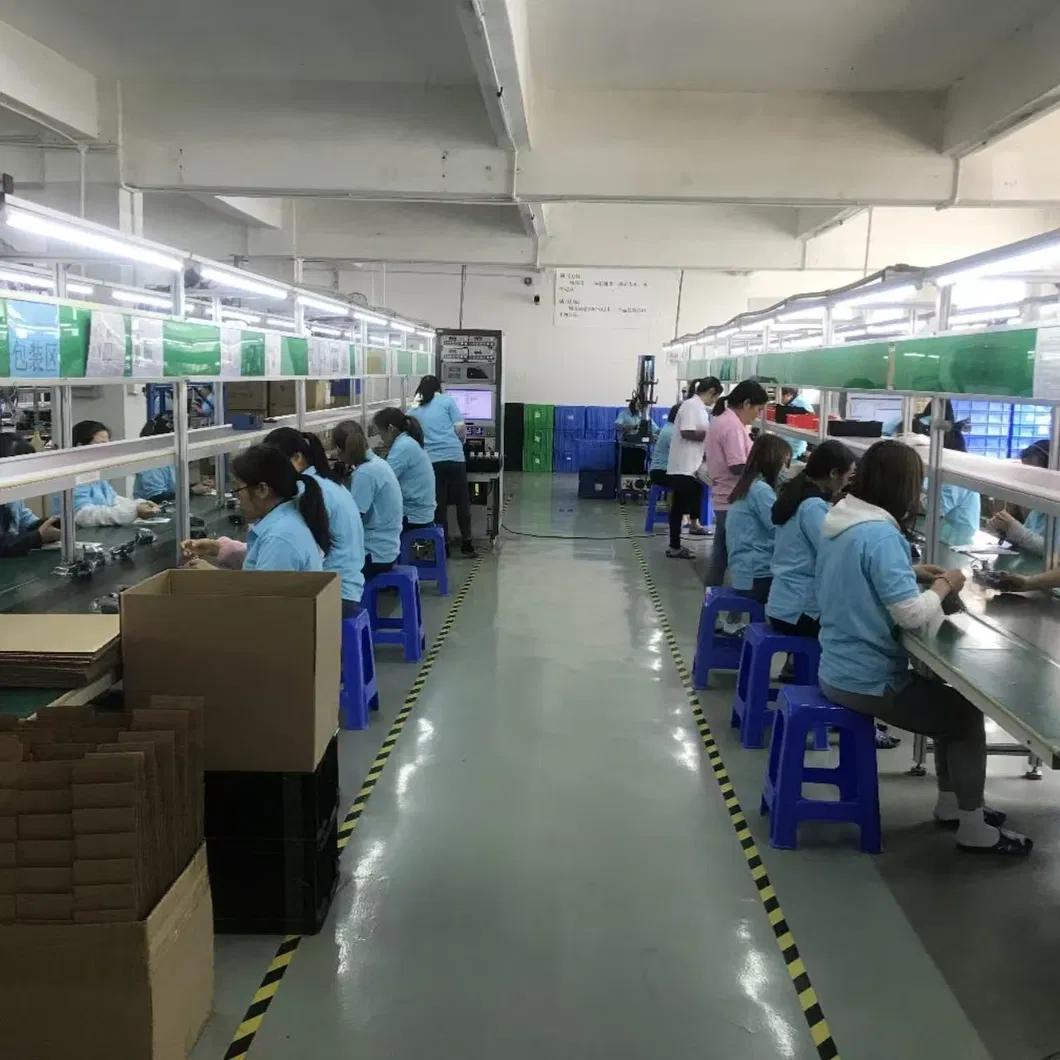

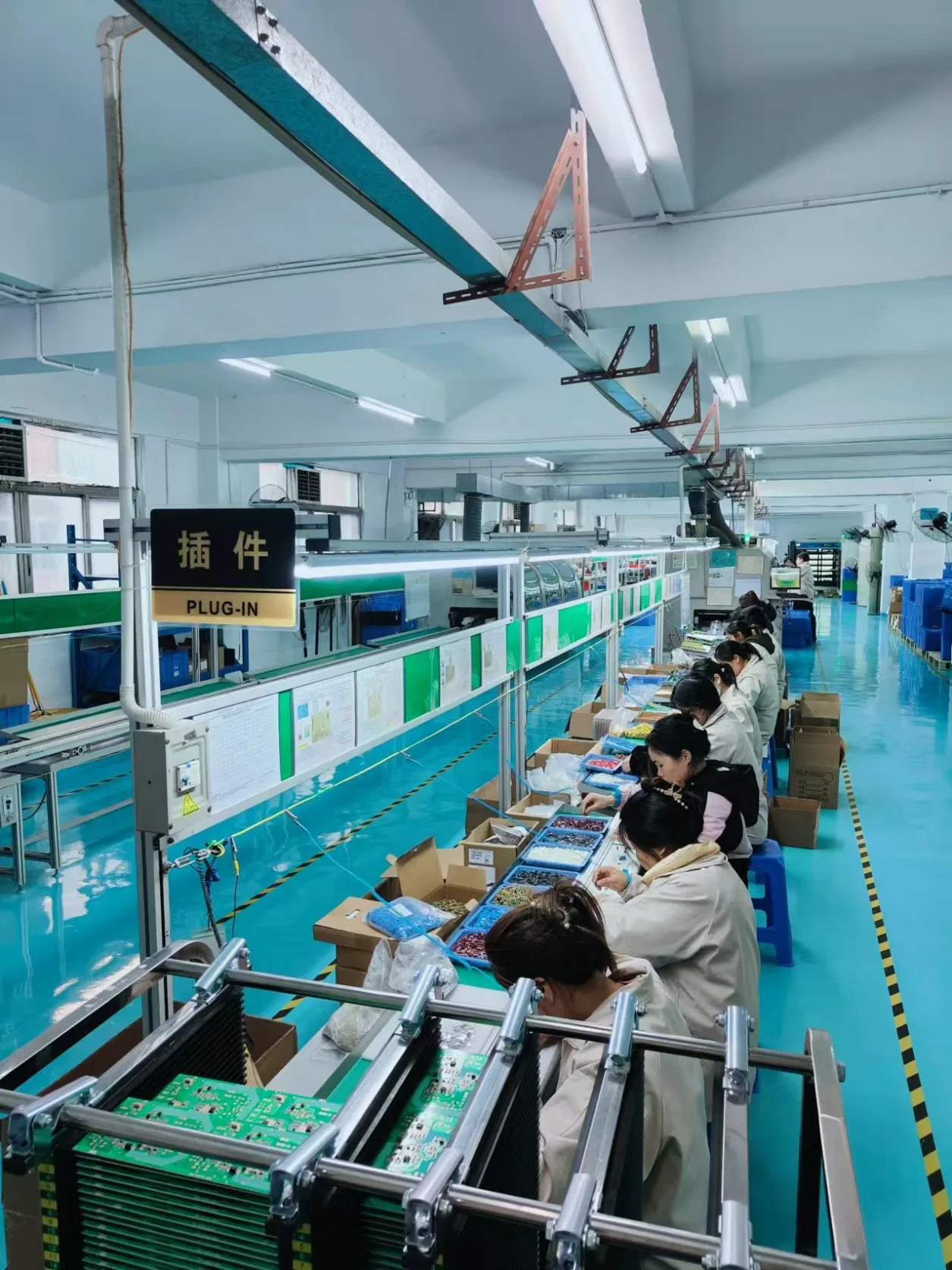

🏭 Manufacturing Excellence

❓ Frequently Asked Questions

Q1: What safety certifications does this power adapter hold? A: The adapter is fully certified by UL, cUL, FCC, CE, GS, UKCA, PSE, and CCC, ensuring compliance with international safety standards like EN/UL 62368-1.

Q2: Is the output voltage and current customizable? A: Yes, we offer customization for output voltages ranging from 12V to 36V and current from 0.01A up to 10A, depending on the total wattage requirement.

Q3: Does the unit include protection against power surges? A: Absolutely. It features comprehensive protection mechanisms including OCP (Over Current), OVP (Over Voltage), SCP (Short Circuit), OLP (Over Load), and UVLO.

Q4: What is the energy efficiency rating? A: This power supply meets Level VI efficiency standards of DOE and ERP, with an average efficiency of 88% and above.

Q5: What is the standard lead time and MOQ? A: The standard Minimum Order Quantity (MOQ) is 1000 pieces, with a lead time of approximately 30 working days.

Q6: Can it be used with Hi-Fi audio equipment? A: Yes, the design features low ripple and noise cancellation, making it friendly for sensitive Hi-Fi audio devices.
