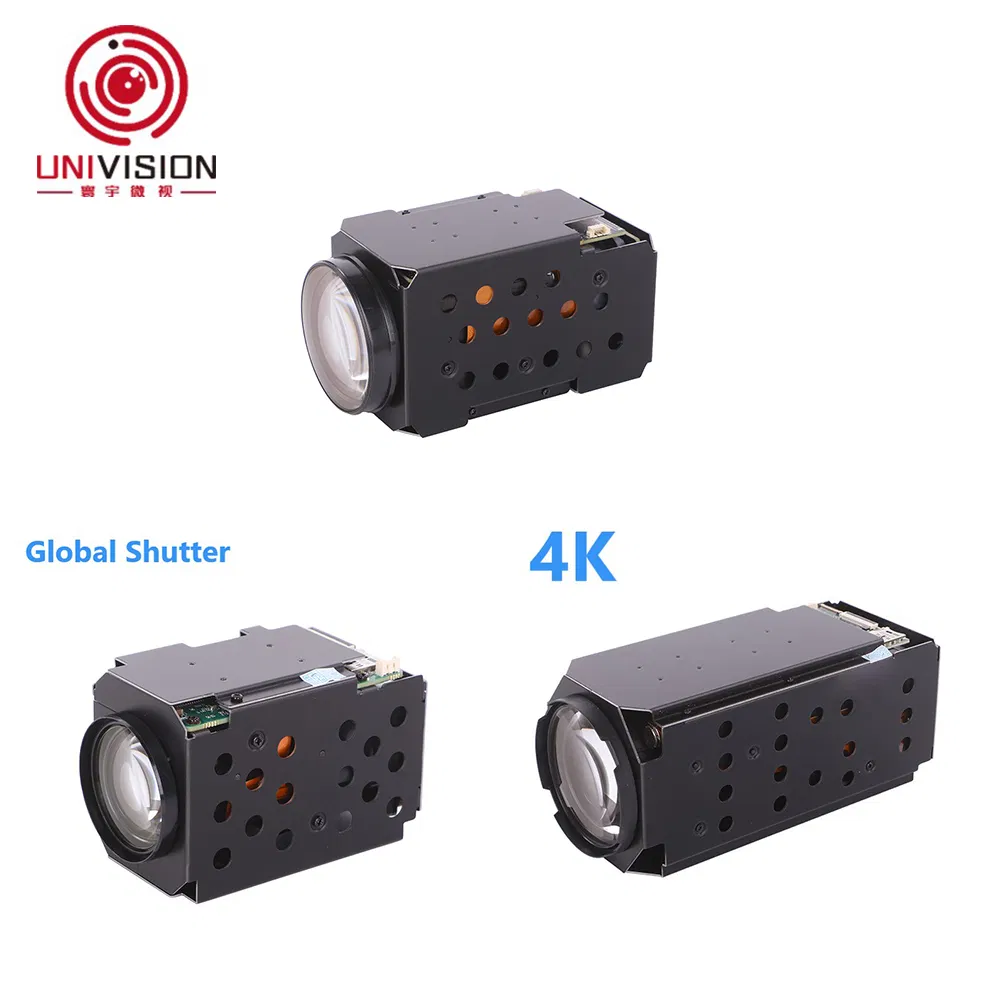

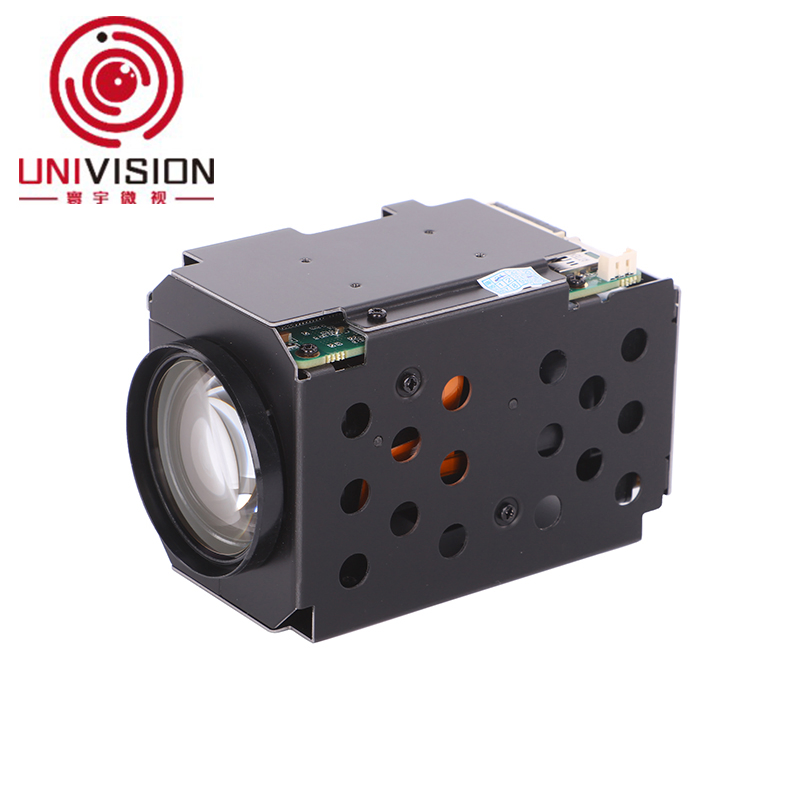

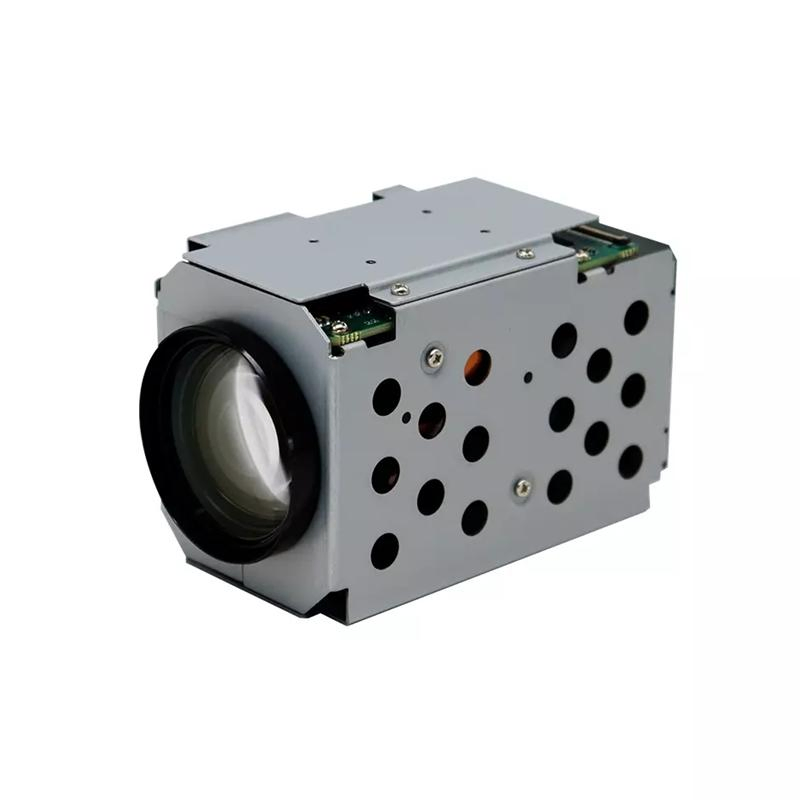

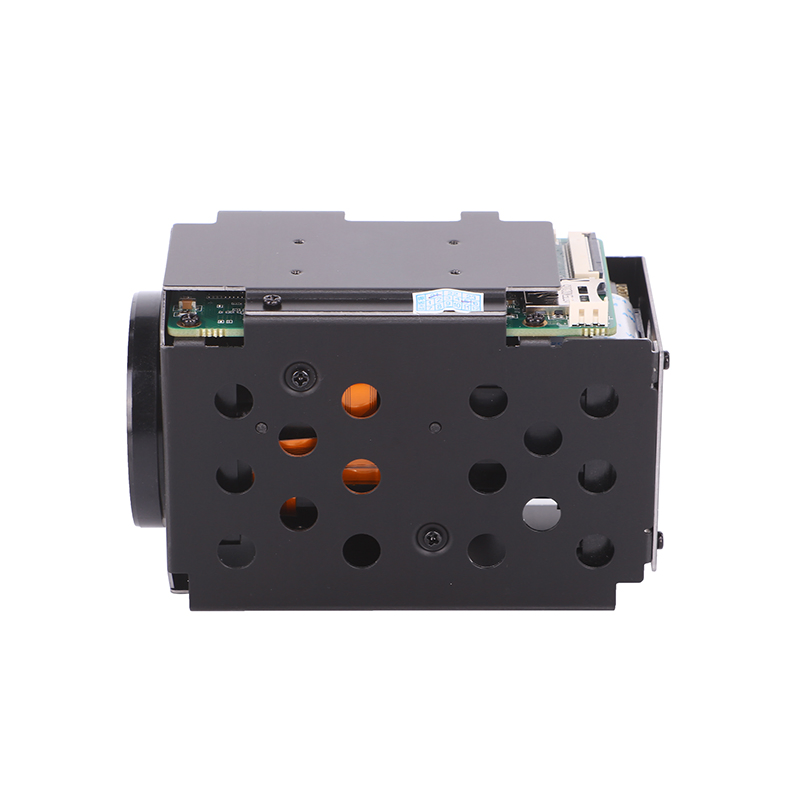

2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
1 / 5
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance
2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance

2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.UV-ZN2133
TypeCCTV Camera
SensorCMOS (1/2.8 Inch)
Resolution2MP (1080P)
Lens TypeAutofocus (4.8-158mm)
Zoom33x Optical Zoom
CertificationCE
Effective Distance≧30m
✨

Key Features

  • ✔Full HD 1920×1080 @ 30fps Live Image output.
  • ✔Advanced H.265/H.264/MJPEG compression with multi-level quality configuration.
  • ✔Starlight Low Illumination: 0.001 Lux (Color), 0.0005 Lux (B/W).
  • ✔Powerful 33x Optical Zoom and 16x Digital Zoom.
  • ✔Smart Detection: Area Intrusion, Cross-border, and Movement Detection.
  • ✔3-stream Technology for independent resolution and frame rate settings.
  • ✔24-hour monitoring with ICR Automatic Day/Night switching.
  • ✔Enhanced Image Quality: 120dB WDR, 3D DNR, HLC, and Electronic Image Stabilization.
  • ✔Supports 255 Presets and 8 Patrols.
  • ✔Storage: Supports up to 256GB Micro SD / SDHC / SDXC.
  • ✔Compact size and low power consumption, easy to integrate into PTZ units.
CCTV Camera Banner

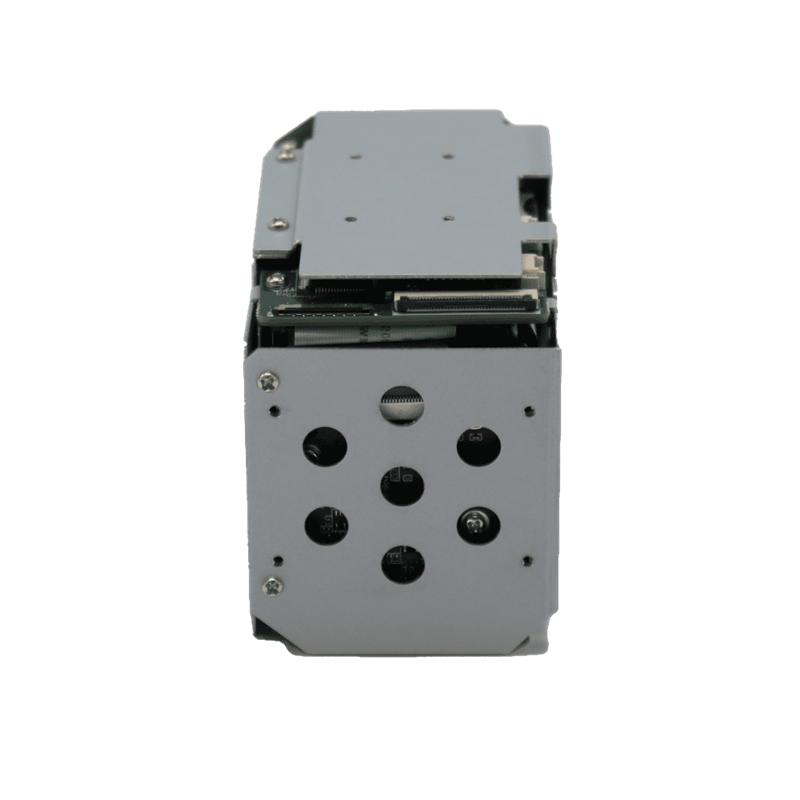

Camera Front View
Camera Detail
📊

Technical Specifications

Detailed Parameters
Camera Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux; B/W: 0.0005 Lux @ F1.5
Shutter Speed 1/25s to 1/100,000s
Digital Zoom 16x
Lens Focal Length 4.7-155mm, 33x Optical Zoom
Aperture Range F1.5-F4.0
Field of View 60.5-2.3° (Wide-Tele)
Video Compression H.265 / H.264 / MJPEG
Max Resolution 1920 × 1080
Frame Rate 50Hz: 25fps; 60Hz: 30fps
Network Protocols TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, ONVIF
Storage Micro SD up to 256GB, NAS support
General Power DC12V±25%, Max 4.5W (with IR)
Dimensions 97.5x61.5x50mm
Interface Diagram

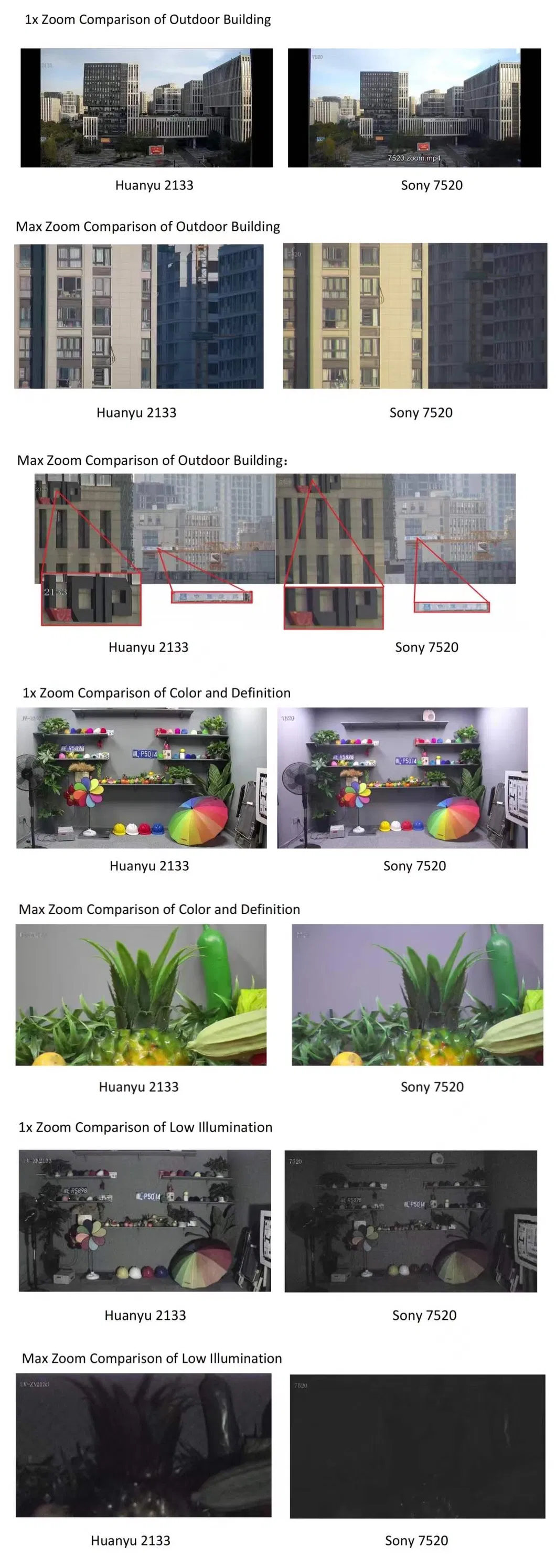

Performance Chart

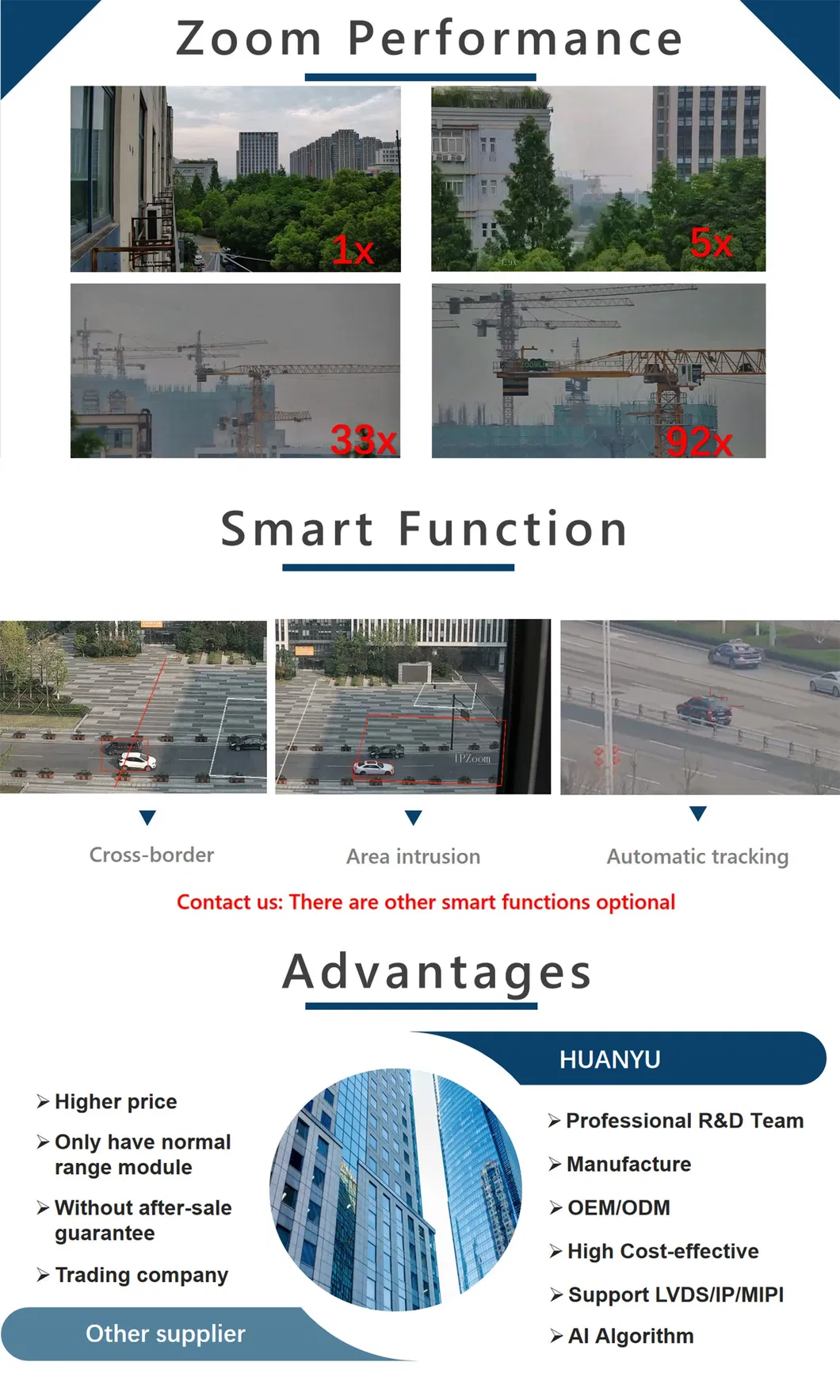

Application Scenario

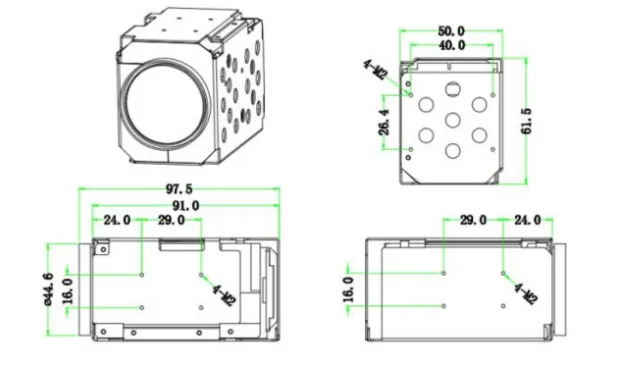

Product Dimensions
❓

Frequently Asked Questions

1. What is the maximum optical zoom of the UV-ZN2133?
The camera features a powerful 33x optical zoom, complemented by a 16x digital zoom for long-distance surveillance.
2. Does this camera support night vision in low light?
Yes, it uses Starlight technology, providing clear color images at 0.001 Lux and black-and-white images at 0.0005 Lux.
3. What are the smart detection features included?
It supports area intrusion detection, cross-border detection, movement detection, personnel gathering, and face detection.
4. Can I store video footage directly on the camera?
Yes, the camera supports local offline storage via Micro SD, SDHC, or SDXC cards with a capacity of up to 256GB.
5. Is the camera compatible with third-party systems?
Yes, it supports the ONVIF protocol (Profile S and Profile G), ensuring compatibility with various network video recorders and software.
6. What is the power requirement for this model?
The camera operates on a DC12V±25% power supply with a maximum power consumption of 4.5W when IR is active.
