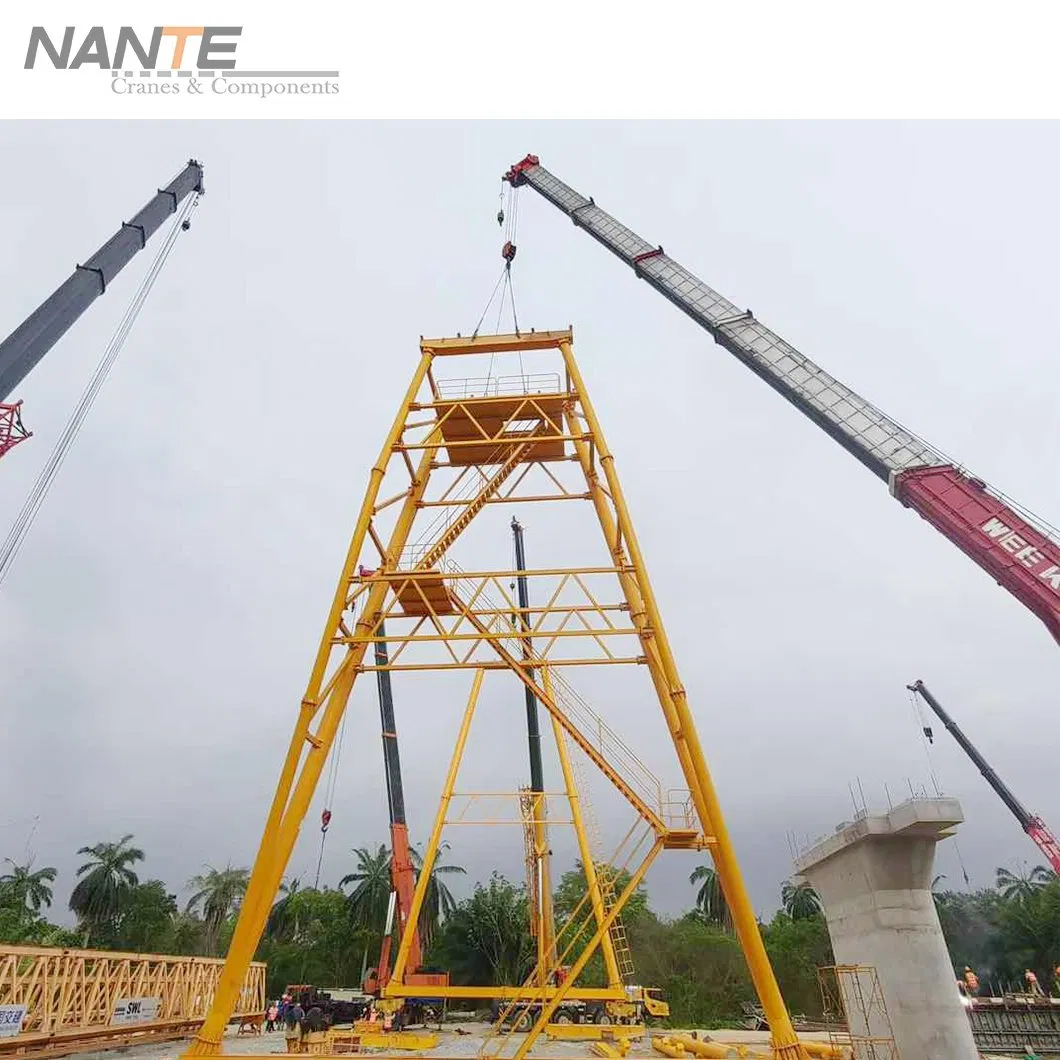

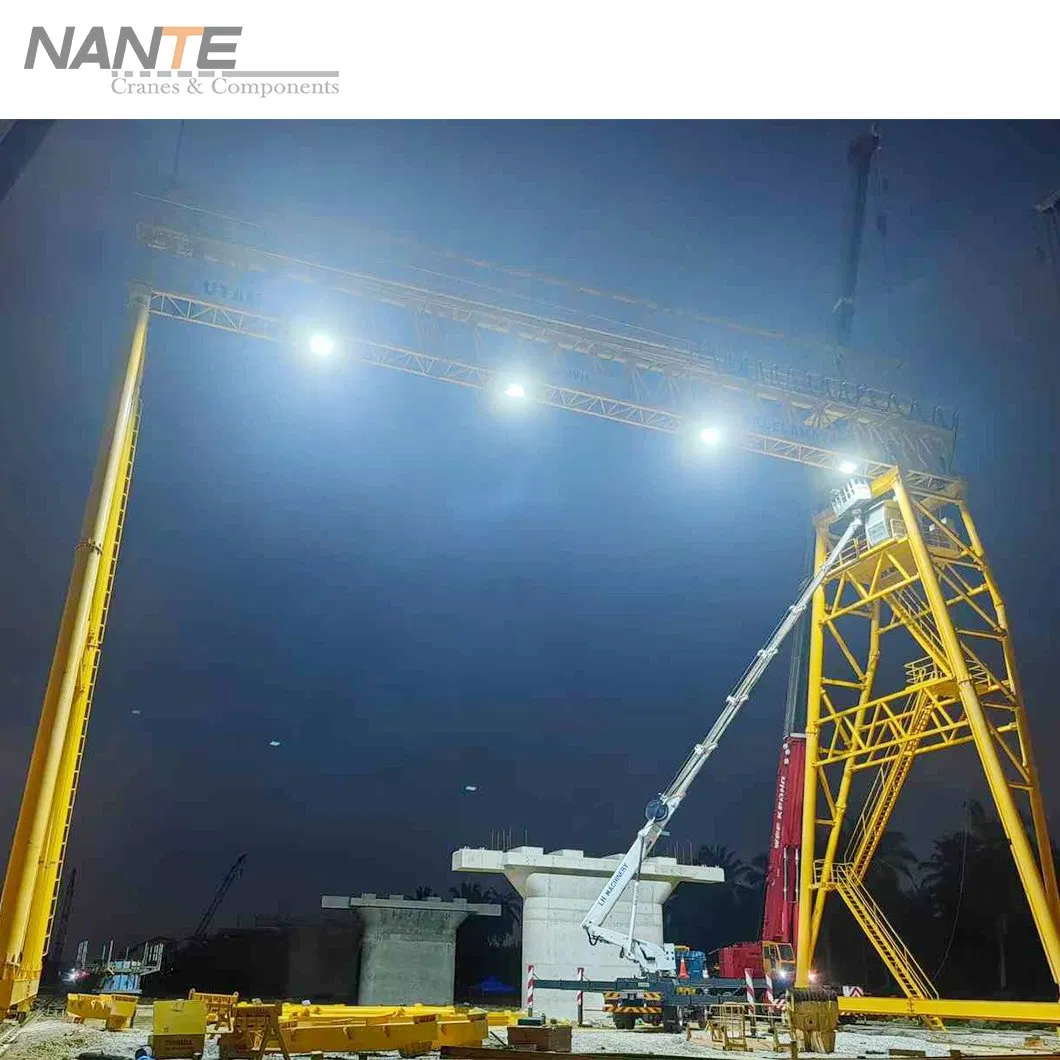

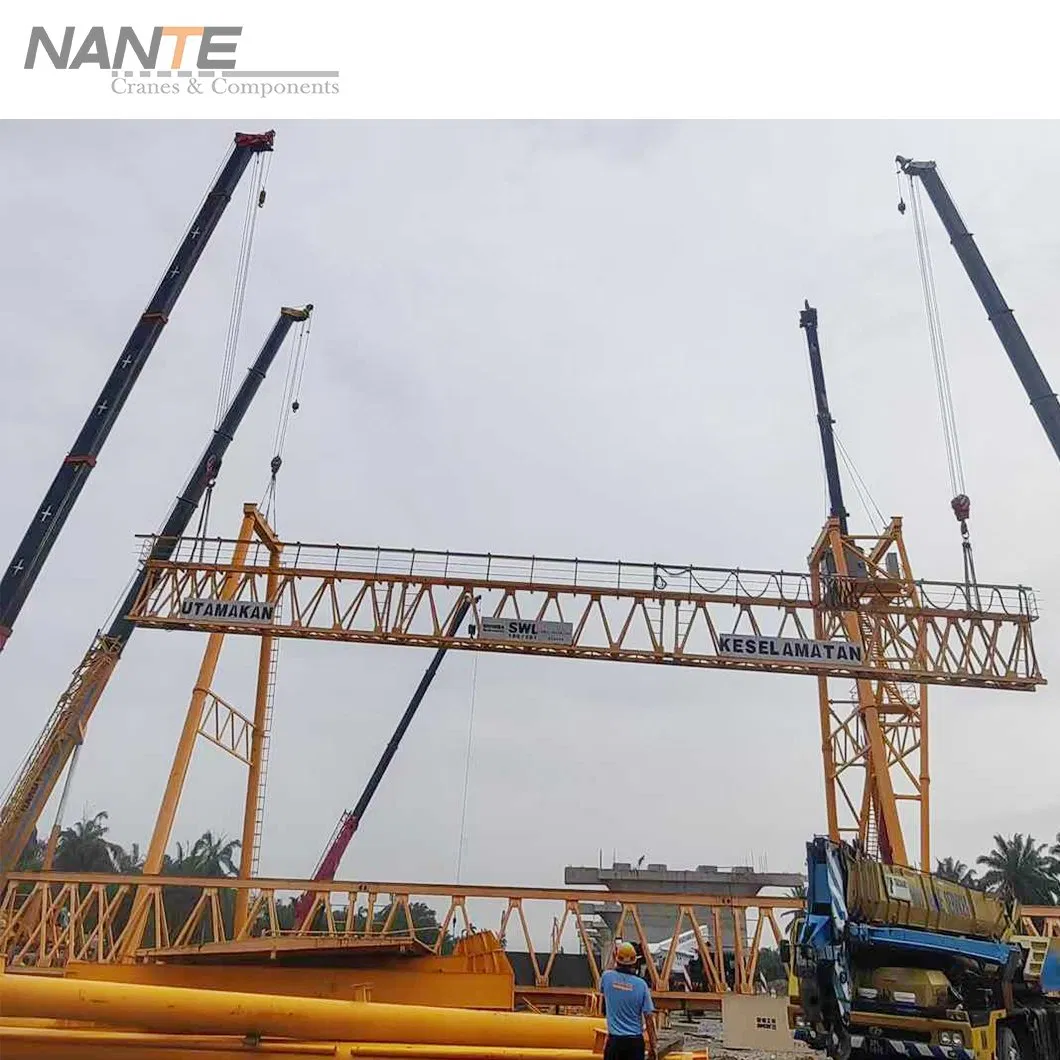

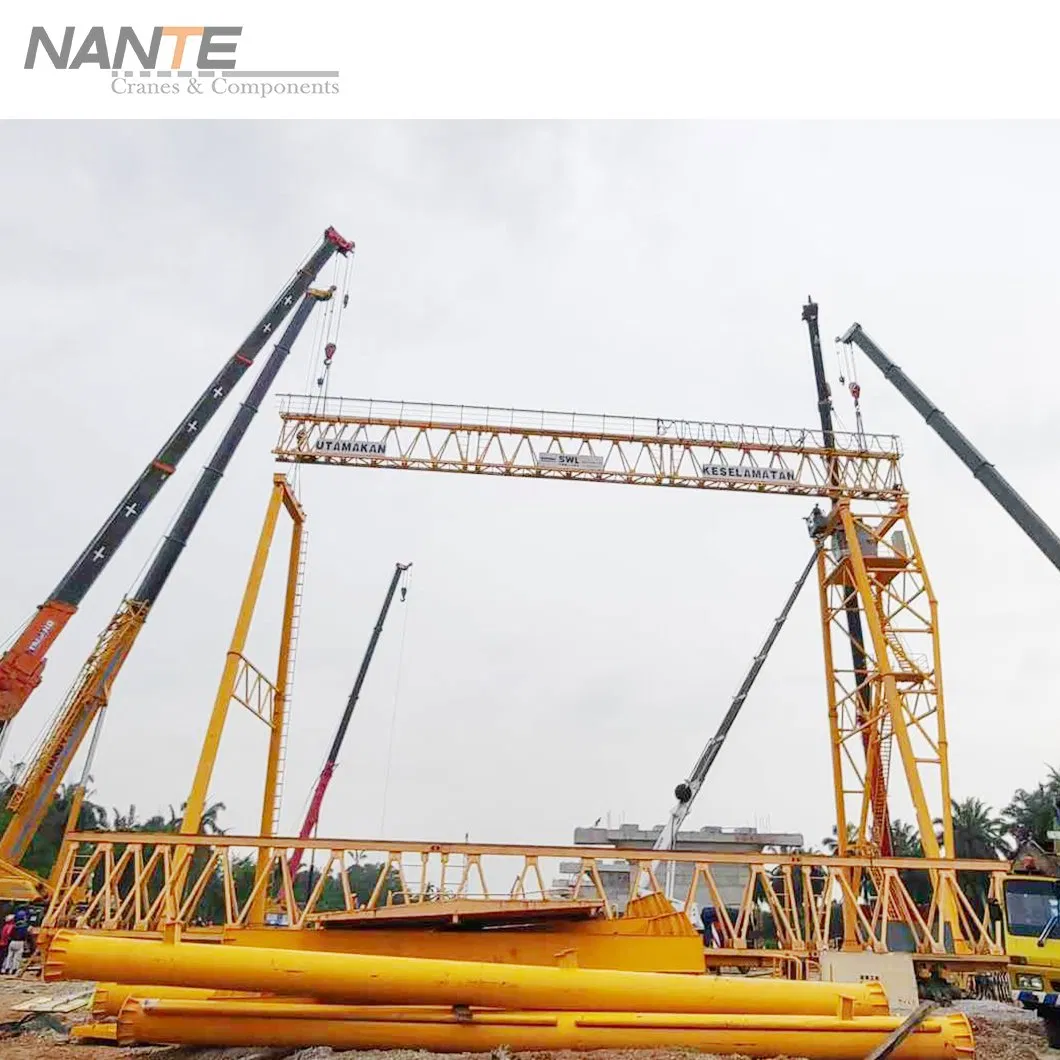

33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
1 / 5
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton
33m Span Truss Beam Single Girder Gantry Crane 90 Ton

33m Span Truss Beam Single Girder Gantry Crane 90 Ton

Customization: Available
After-sales Service: Online Support
Warranty: a Year
Send Inquiry

Product Description

Basic Information

Model NO.
Single beam
Certification
CE, ISO9001
Max Lifting Weight
50-100t
Max Lifting Height
>40m
Type
Gantry Crane
Main Girder Form
Single Girder
Driven Type
Electric
Feature
Explosion-Proof
Operation Form
Remote Control
Package Size
2000cm * 1000cm * 800cm

90T Truss Type Single Beam Gantry Crane

Our single beam gantry crane is a versatile and cost-effective lifting solution designed for various indoor and outdoor applications. It features a single main beam supported by two legs, creating a clear span for material handling. This configuration allows for efficient movement of loads across a wide area, making it ideal for tasks requiring both horizontal and vertical movement.

Key Advantages

  • Simple and Compact Design: Easy to install and maintain, even in space-constrained environments.
  • Cost-Effective: Offers a high lifting capacity at a competitive price point.
  • Durable Construction: Built with high-quality steel for long-lasting performance and reliability.
  • Safety First: Equipped with overload protection, limit switches, and emergency stop mechanisms.

Design Features

Design Code: Follows FEM, CMAA, ISO EN, BS, GB standards.

Hoist: Compact structure, smooth operation, accurate positioning, and high safety reliability.

Girder: High-strength Q355B steel material. Welding follows ISO 15614 and AWS D14.1 specifications.

End Carriage: Direct driving design for high transmission efficiency. Alloy steel wheels with heat treatment.

Gear Motor: Worldwide brand motors, IP55 protection, F insulation class with electromagnetic brakes.

Safety Functions: Includes overheat protection, load cell overload limiters, and dual-position limit switches.

Applications

  • Outdoor Storage Yards
  • Workshops and Factories
  • Assembly Lines
  • Construction Sites

Technical Parameters

Capacity 1T - 20T Duty Group M4 - M6
Span 5m ~ 30m Lifting Height 6m ~ 36m
Lifting Speed 4 - 5 m/min Trolley Speed 5/20 m/min
Power Supply 220V - 525V / 3P / 50Hz, 60Hz
Control Model Pendent Control, Remote Control, Crane Cabin
Protection Overload Switch, Limit Switches, Phase Sequence Relay

Product Showcase

Gantry Crane 1
Gantry Crane 2

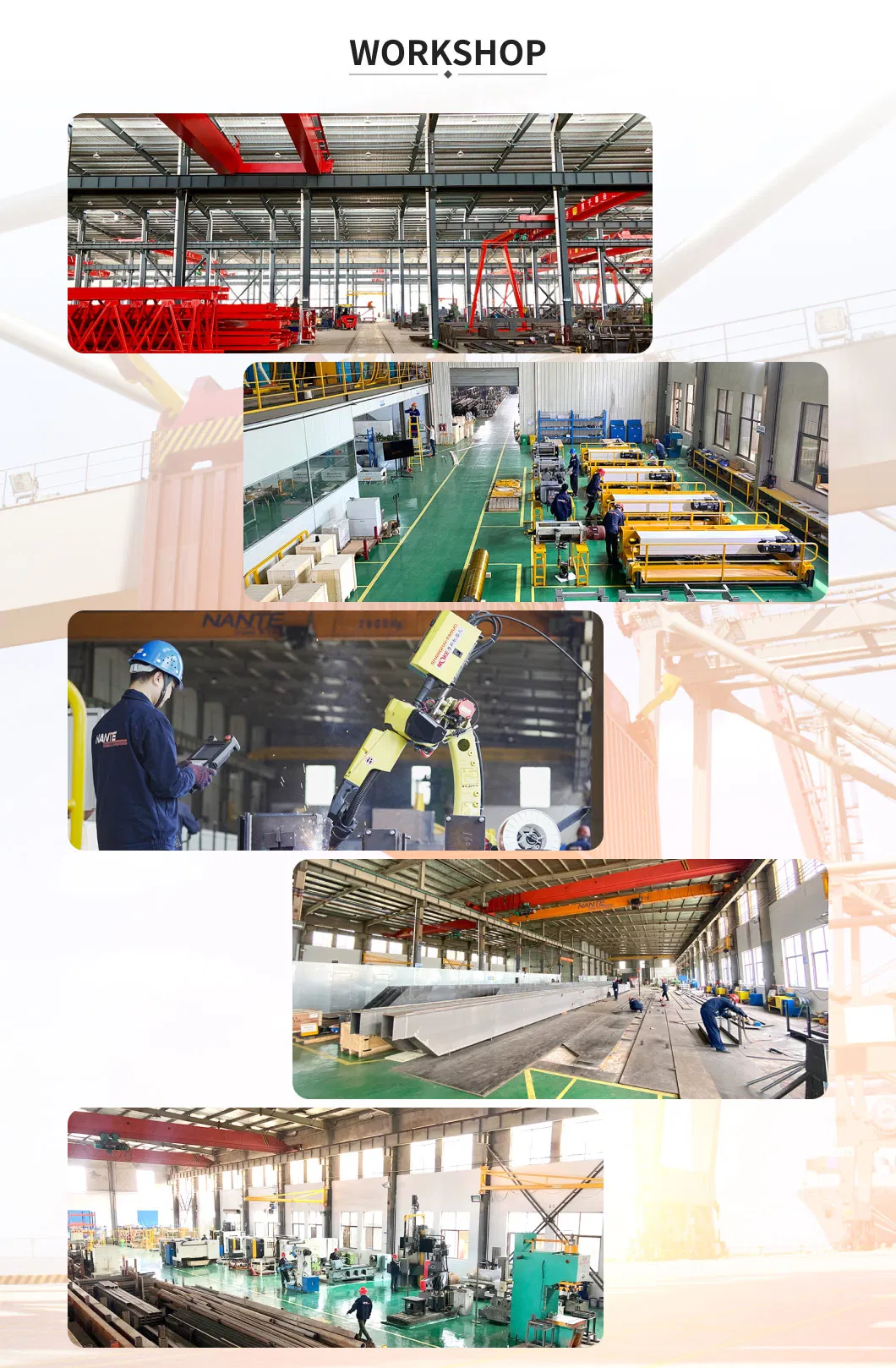

Gantry Crane 3
Gantry Crane 4
Gantry Crane 5
Gantry Crane 6
Gantry Crane 7
Gantry Crane 8
Gantry Crane 9

Frequently Asked Questions

Q1: Which standards do your crane components apply to?
A1: Our cranes are designed and manufactured based on international standards including FEM, CMAA, ISO EN, and GB.
Q2: How is product quality ensured?
A2: All processes strictly adhere to ISO-9001 procedures, including material traceability, NDT for welding, and full load testing before delivery.
Q3: What are the available payment methods?
A3: We accept T/T bank transfers, L/C, and PayPal for your convenience.
Q4: How can I assemble the crane in my facility?
A4: We provide comprehensive installation guidelines and user manuals. We can also send engineers to guide the installation process if required.
Q5: What is the warranty period for your cranes?
A5: Our standard warranty period is 12 months. Our after-sales team is available via video conference to help solve any technical issues.
Q6: What is the typical delivery time?
A6: Delivery times vary by capacity and complexity, generally ranging from 4 to 8 weeks.
