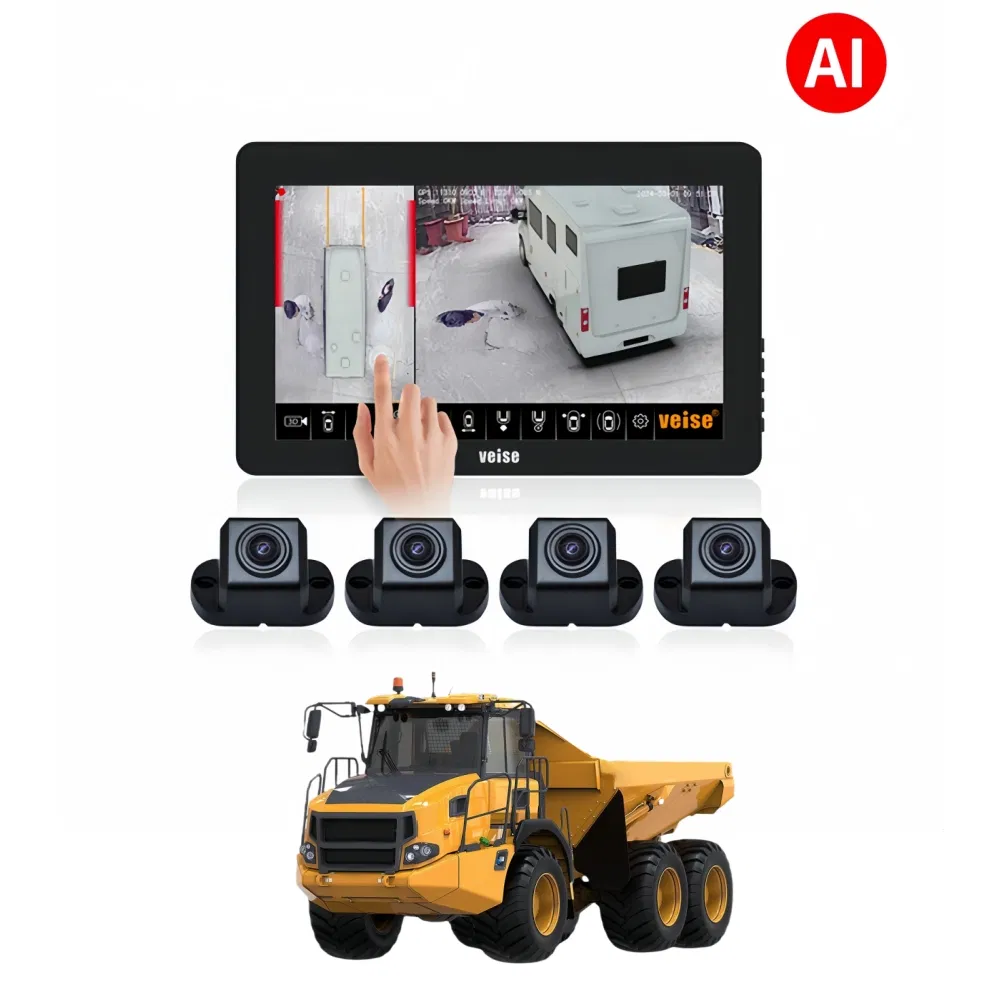

HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
1 / 5
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety
HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety

HD 1080P 360 Panoramic 3D Bird's-Eye View Dash Camera with Recording for Truck Drivers Safety

Customization: Available
After-sales Service: 24-Hour Online Service
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
HD3D-3D1014TPC802ZM4
Definition
1080P
Display Type
10.1" LCD Matrix (1024x600)
Waterproof
IP69K
View Angle
360° Bird View
Voltage
DC 11~32V
Shell Material
Aluminium
Function
Night Vision, Waterproof, Dustproof, Shockproof
Operating System
Linux
Brightness
600 CD/M²
🌟

AVM Panoramic Surround View Display

AVM Panoramic Surround View Integrated System

Overview

The system captures images using multiple (four or six) ultra-wide-angle cameras. Special algorithms correct distortion and stitch the images to form a panoramic view of the surroundings.

Key Features

  • Intelligent Stitching: Automatic and manual rapid stitching through GPS speed sensor and steering signal.
  • Detection and Warning: 360° blind-spot-free collision prevention and safety distance warnings.

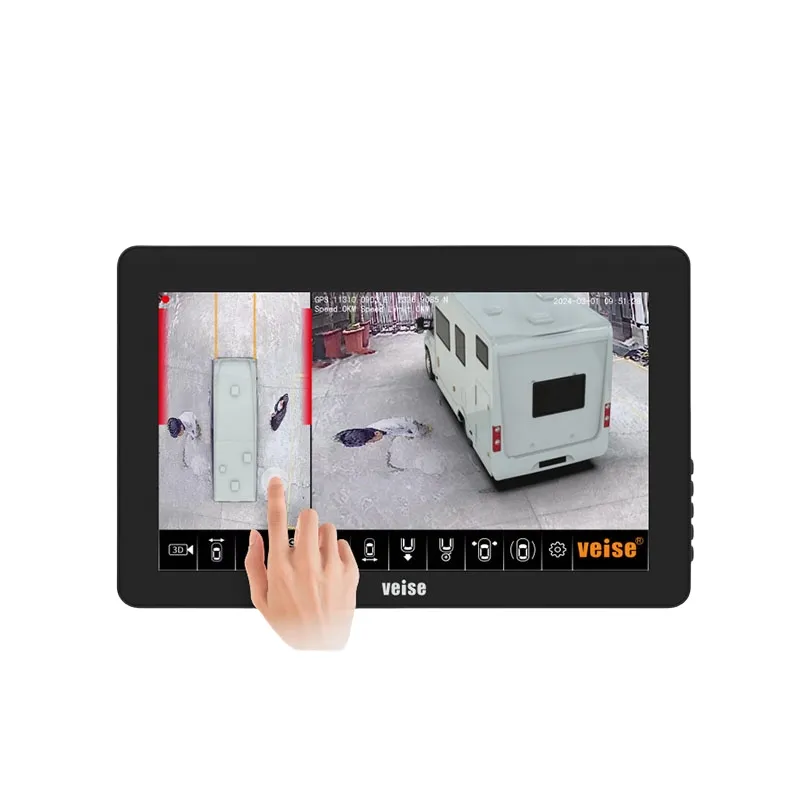

  • Full Touch Control: Simple operation to switch any display mode.
  • Automatic Switching: System triggers warning screens when speed is below 25 km/h.
  • Technical Superiority: IPS widescreen, Industrial-grade DSP, and wide voltage protection.
360 Panoramic View
Dash Camera Recording
Truck Drivers Safety
System Specifications
Product ModelMHD-3D1014HDTP
Operating SystemLINUX
Display Resolution10.1 inches, 1024 x 600
Brightness AdjustmentAuto control (Day: 90%, Night: 50%)
Image Modes2D/3D Free Switching
AI & Safety Functions
Warning Function360-degree AI vision algorithm
BSD4-channel Blind Spot Detection
FWCBuilt-in Forward Collision Warning
RecordingH265, 1080P resolution

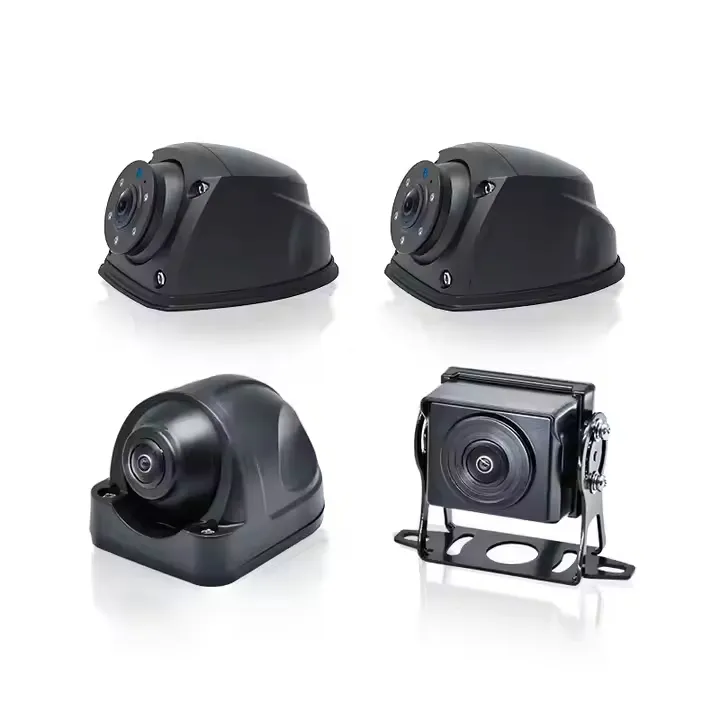

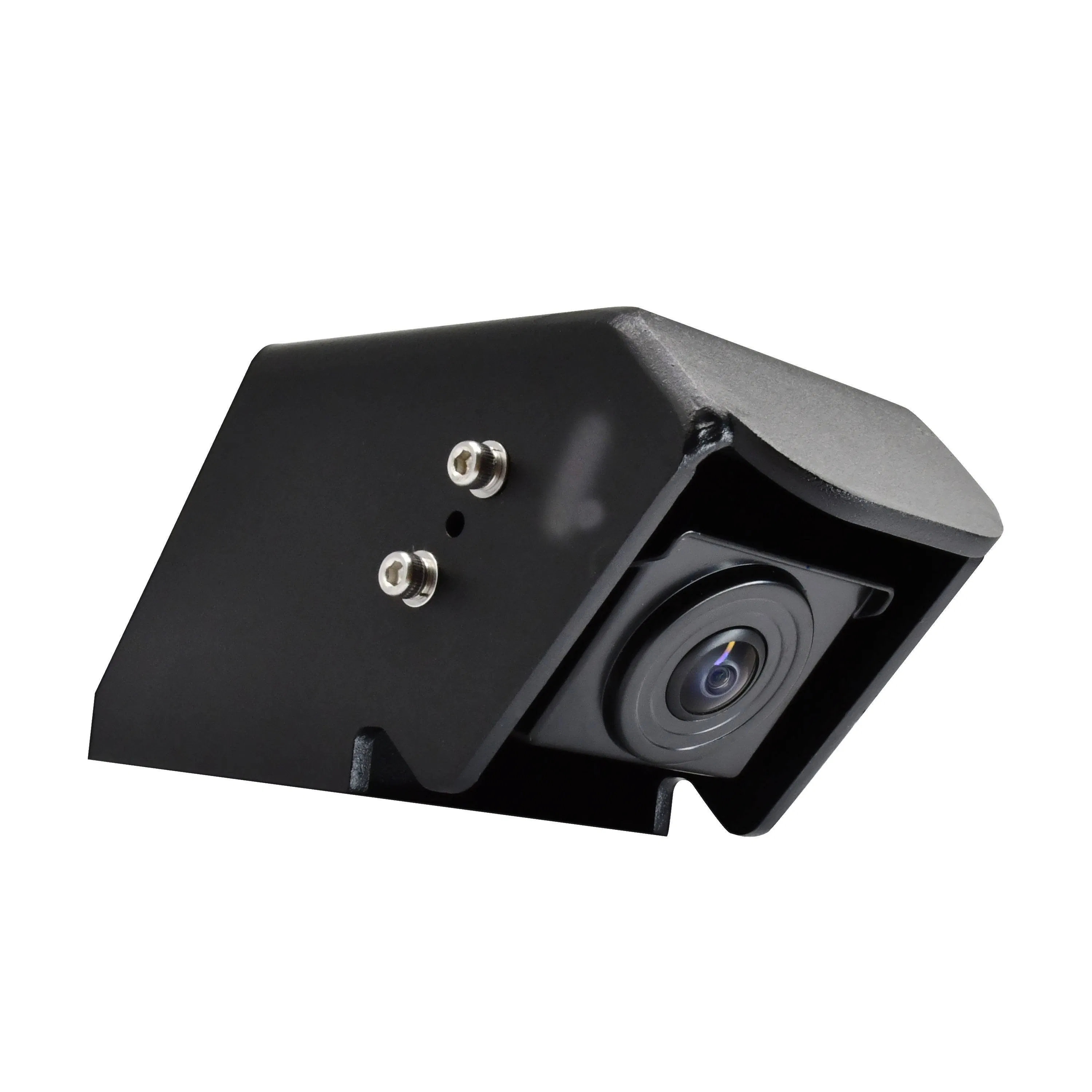

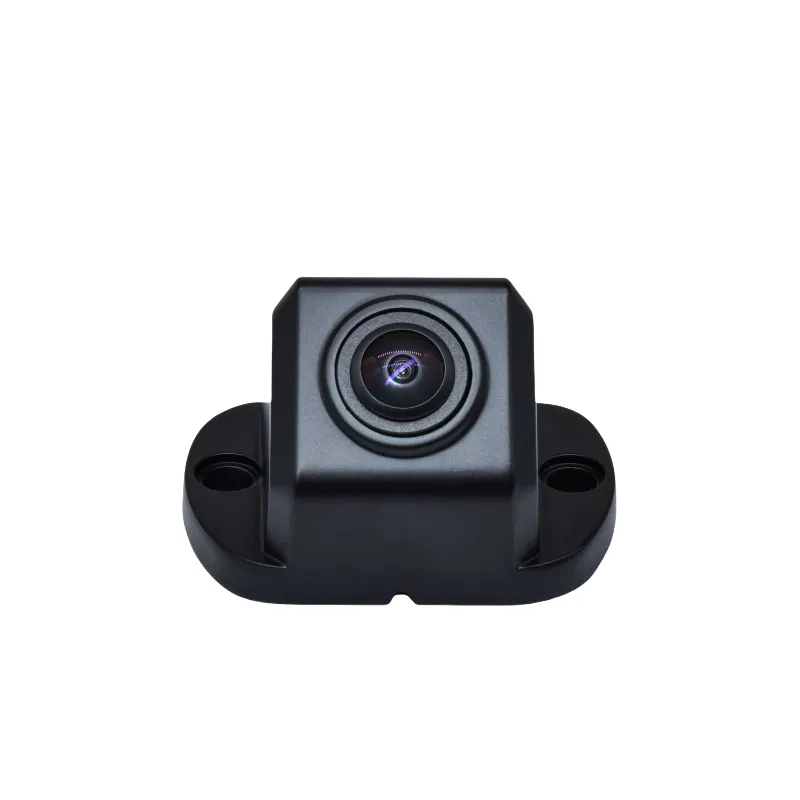

Panoramic Camera (CHD-802Z)
Resolution1080P / 0.01 Lux
Waterproof LevelIP68
View AngleHorizontal 210° / Vertical 126°
VibrationRandom 5G vibration (GB/T 2423.56-2018)

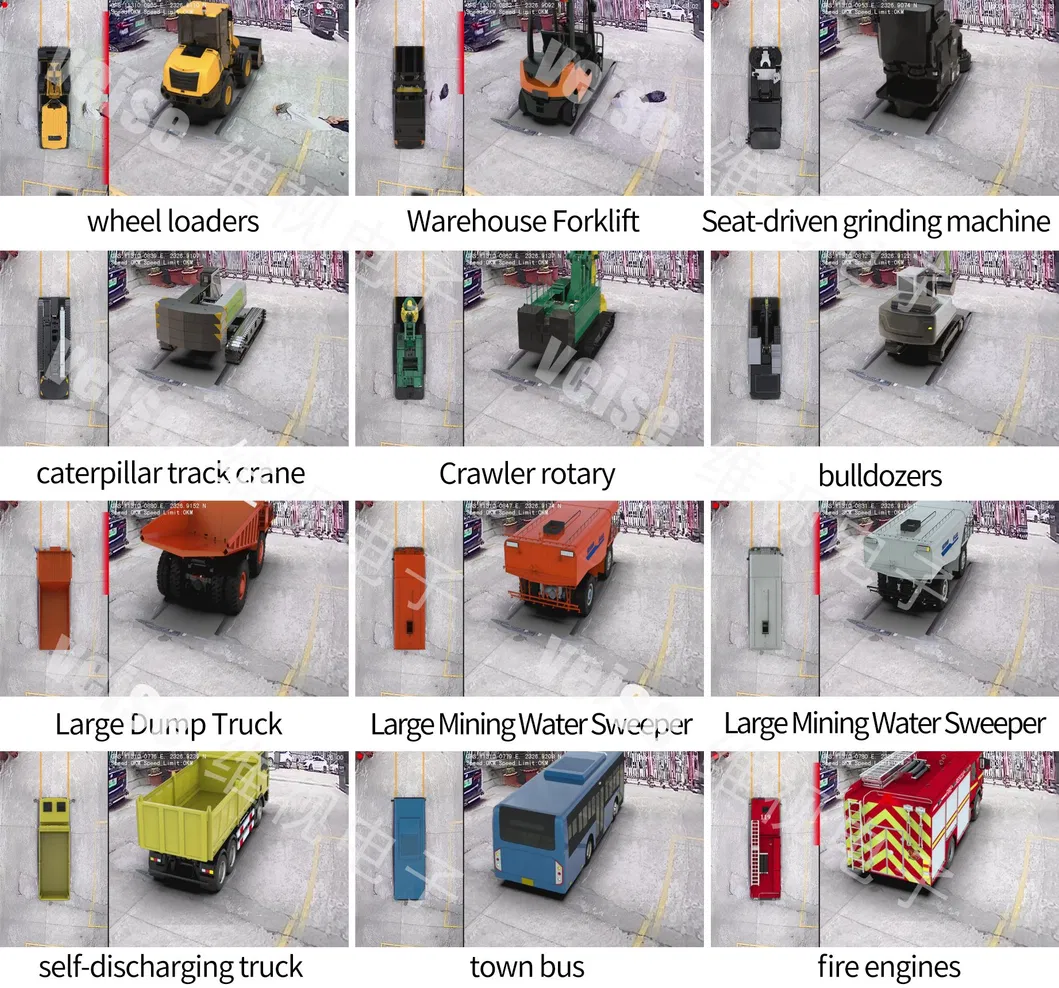

System Connection
Interface Display
Multi-screen Mode
Installation Guide
Camera Details
Sensor Integration
Product Dimensions
❓

Frequently Asked Questions

1. How does the 360° bird-eye view work?
The system uses four 210° ultra-wide-angle cameras. An intelligent AI algorithm corrects image distortion and stitches them together to create a seamless panoramic view.
2. Is the system suitable for heavy-duty trucks?
Yes, it supports a wide voltage range of DC 12-36V and features IP69K/IP68 waterproof ratings, making it ideal for trucks, agricultural, and engineering vehicles.
3. Does it support night vision?
Absolutely. The cameras feature starlight full-color technology and 0.01 Lux low illumination performance for clear visibility at night.
4. Can I record the footage?
Yes, the system supports real-time recording, loop recording, and local playback using H265 format stored on an SD card.
5. What safety warnings are included?
It includes 4-channel Blind Spot Detection (BSD) and Forward Collision Warning (FCW) to detect pedestrians and other vehicles.
6. Is the display touch-operated?
Yes, it features a 10.1-inch capacitive touch screen for easy mode switching and system operation.
