Vuelo Camera
1 / 5
| Camera Detailed Parameters | |
|---|---|
| Imaging & Lens | |
| Image Sensor | 1/2.8" 8.0M Pixel SONY IMX415 |
| Min. Illumination | Color:0.01Lux; B/W: 0.001Lux @(F1.6, AGC ON) |
| Zoom | 36x, f=4.6mm~167mm, D/N( ICR-Cut) |
| WDR / SNR | Digital WDR ≥80dB / SNR ≥50dB |
| Network & Video | |
| Video Resolution | Main: 3840*2160 @15fps; Sub: 1280*960 @25fps |
| Bitrate | CBR/VBR, 32Kbps~10Mbps variable |
| Protocols | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, P2P |
| Storage | Mini SD Card up to 128GB (Optional) |
| 4G Wireless | |
| 4G Bands | LTE B1/B3/B7/B8/B38/B39/B40/B41; WCDMA; GSM/GPRS |
| WIFI | 802.11b/g/n (Optional) |
| Dome & PTZ Features | |
| Pan / Tilt Range | 360° Continued Rotation / 0~90° (Auto Flip) |
| Preset Speed | 100°/S (255 Preset Points) |
| CPU Type | 32 bit ARM CPU |
| General | |
| Work Temperature | -35ºC ~ 55ºC |
| Power Consumption | DC12V 5A; < 50W |

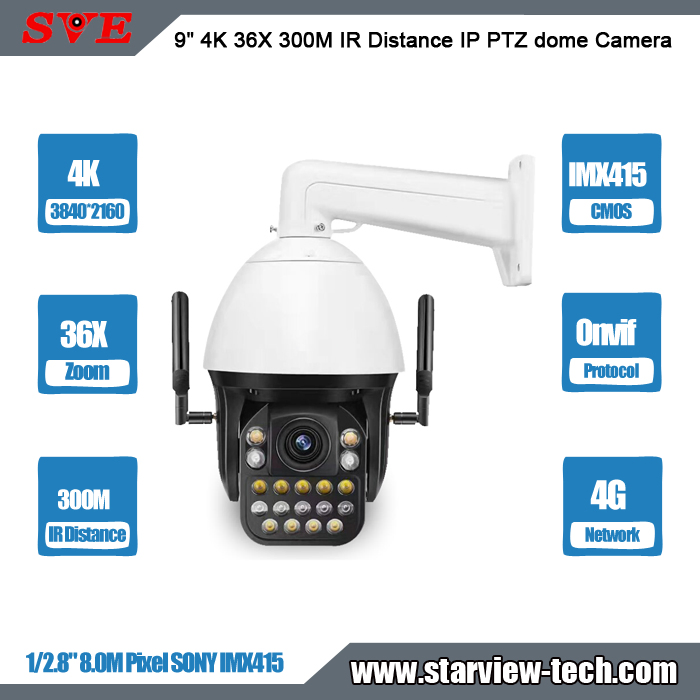

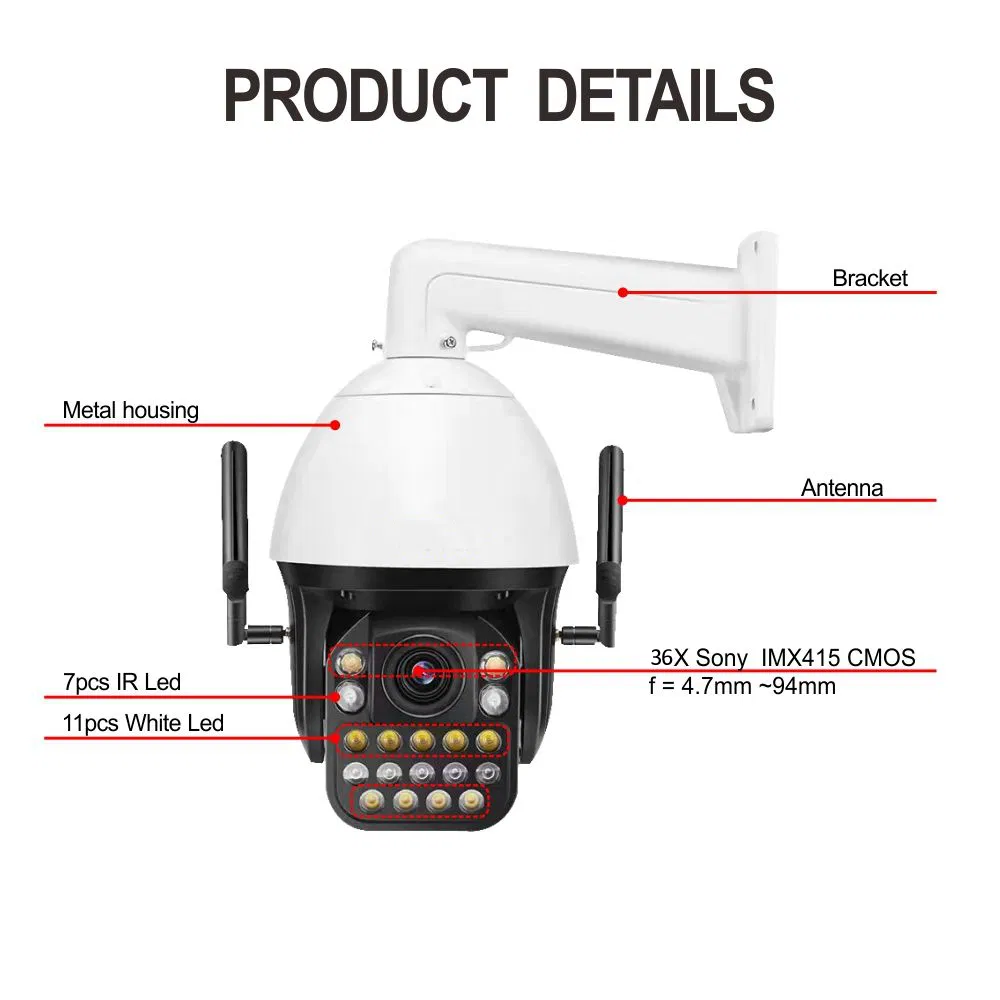

The camera features a high-performance 8.0 Megapixel Sony IMX415 sensor, delivering 4K Ultra HD resolution (3840*2160) for crystal clear imaging.
This model supports dual-light modes: up to 300 meters using IR night vision and up to 150 meters for full-color night vision using its integrated white light LEDs.
Yes, it supports P2P technology, allowing you to access live streams and recordings via dedicated apps for both Android and iOS smartphones.
The SVN-36XCW78-4G supports multiple 4G LTE bands (B1/B3/B7/B8/B38/B39/B40/B41) and WCDMA, making it ideal for remote locations without traditional internet access.
Yes, the camera is equipped with Humanoid and Vehicle detection software to provide accurate alerts and monitoring for security purposes.
Absolutely. The camera is designed with a waterproof and weatherproof housing, capable of operating in temperatures ranging from -35ºC to 55ºC.
