| Model NO. | Dismantling Assembly Device |
| Trademark | QUAPIN |
| Origin | Dongguan China |
| HS Code | 8207300090 |
| Production Capacity | 100,000 Units |
| Feature | Specifications |
|---|---|
| Material | Punch-body SKH51, Die DC53 |
| Heat treatment | HRC 60°- 62° |
| Hits (Stainless Steel) | About 300,000 hits before regrinding |
| Hits (Mild Steel) | About 500,000 hits before regrinding |
| Compatible Models | AMADA AE2510NT, 357, TAILIFT HP2500, MATE Ultra, Prima Power E5X, LFK T3, Accurpress E2000, JFY ET-300, YANGLI T30, YAWEI HPH-30, FINN-POWER, KOMATS, STRIPPIT, DATONG PTC-LX230 |
| Forming Tools | Extrusion, Louver, Lance and Form, Cluster, Countersink, Half-cut, Knockout, Emboss, Thread screw, Center Point, HexLock, Bridge thread, MultiBend, Card guide, Hinge, Logo, Roller Rib/Shear/Deburr |
| Options | Coating with TICN or Tin |
| Delivery Time | 3 - 10 Days |

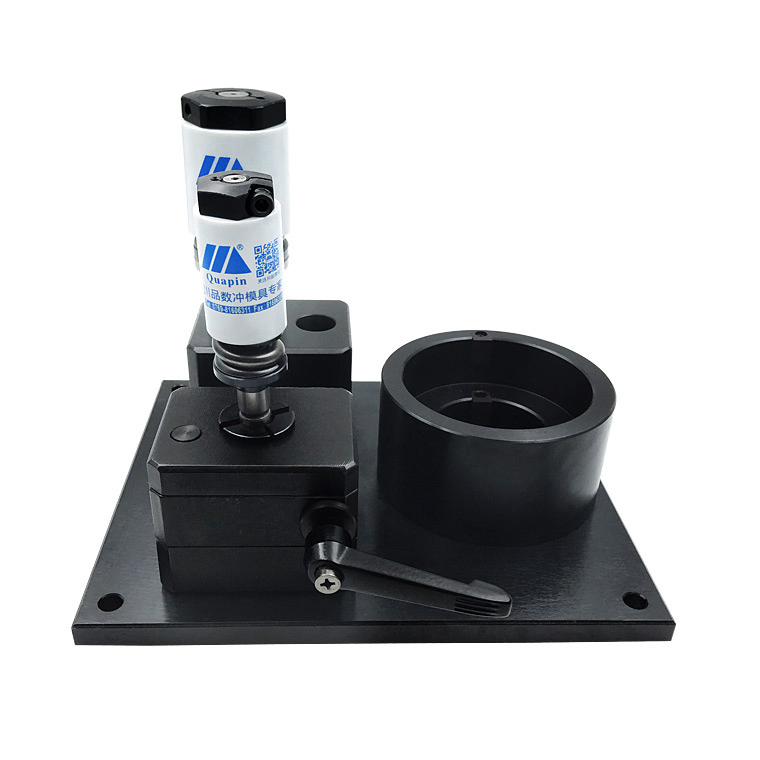

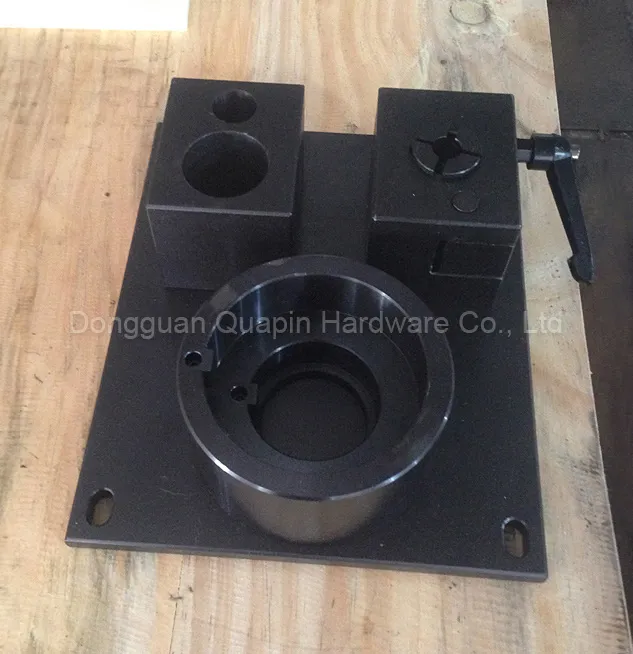

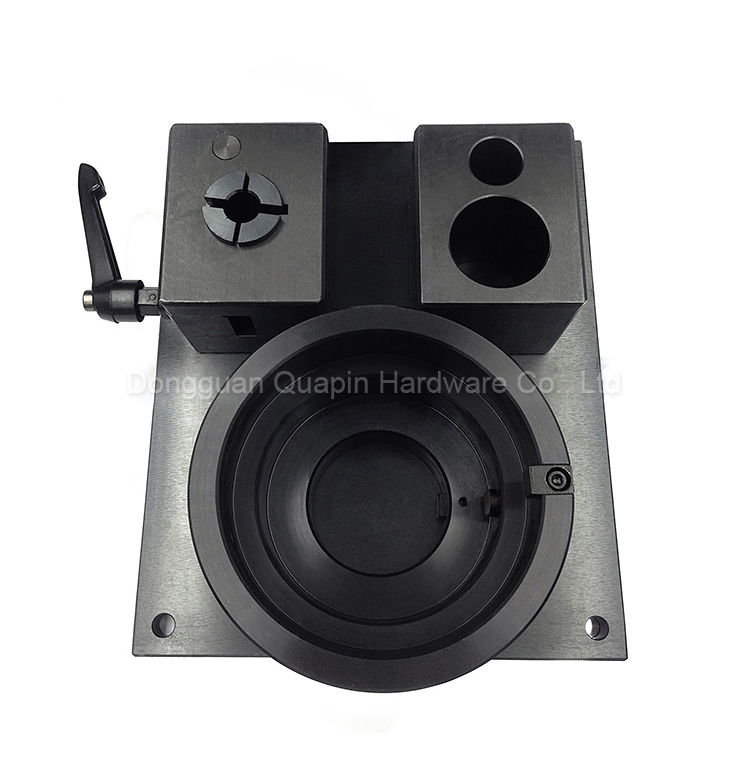

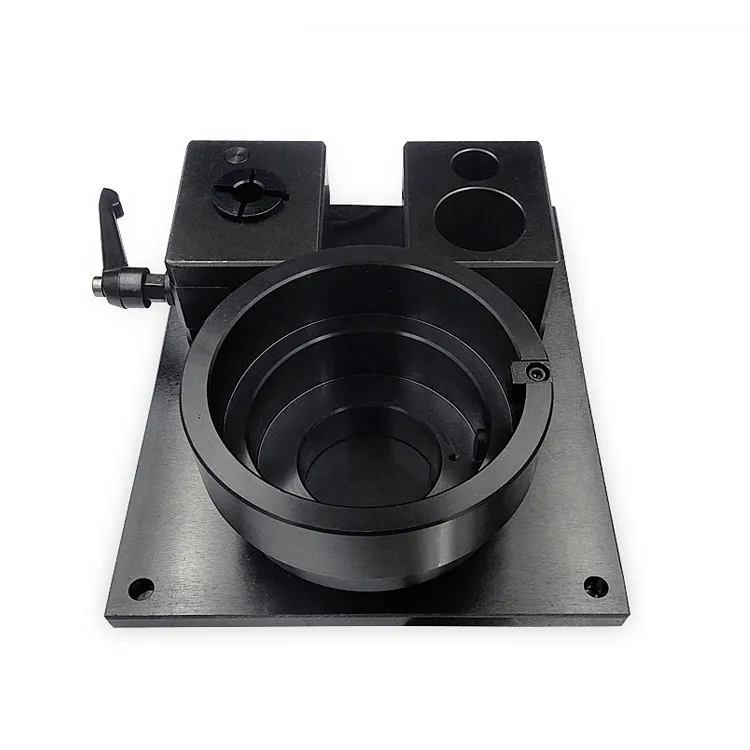

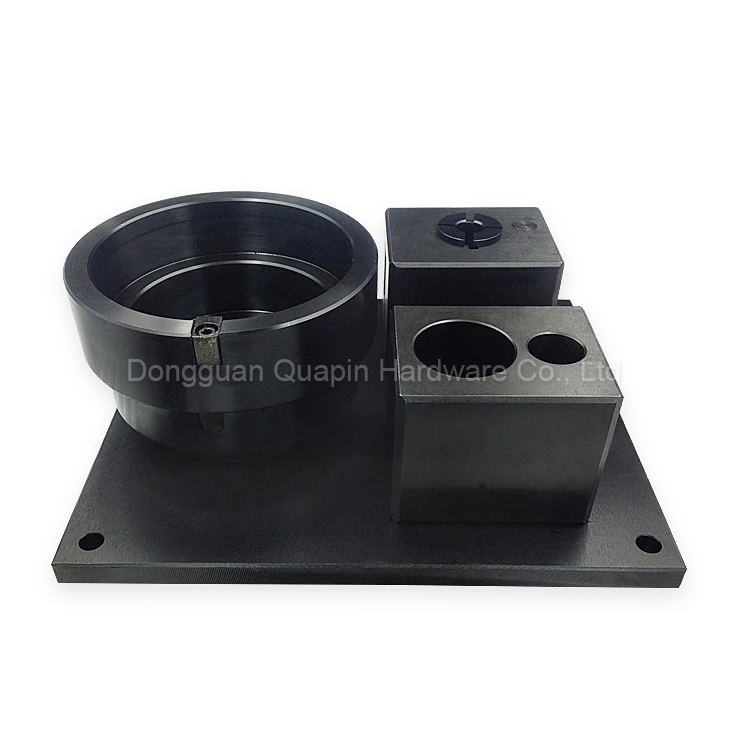

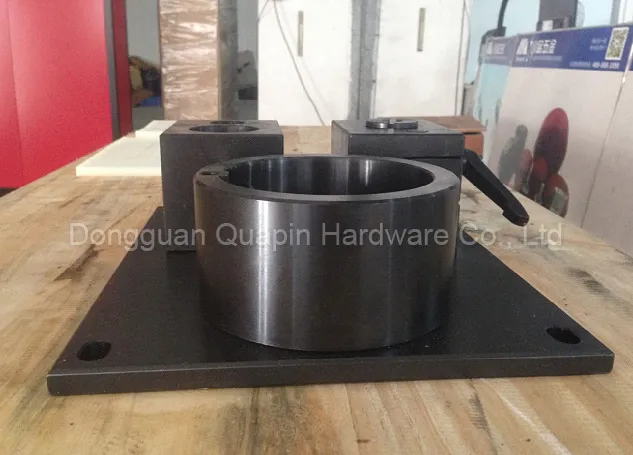

Fixture for assembling or disassembling each station tools
Please provide the following information when purchasing:
| Example 1 | Example 2 | Example 3 | Example 4 | Example 5 |
|---|---|---|---|---|
| AE2510-NT Thick Turret 85 Gap+0.3 Full set B-RE 30*5 |
CP1500 Thick Turret 90 Gap+0.25 Punch Assembly D-OB Φ10*50 |
EM2510NT I Type Gap+0.3 Upper/Lower stripper I-RO Φ15 |
M2048TE 114 / Vulcan Gap+0.3 Upper/Lower tooling G-SQ 62*62 |
Busbar Machine BM303 Copper plate 0.3 Full set B-SQ 20*20 |

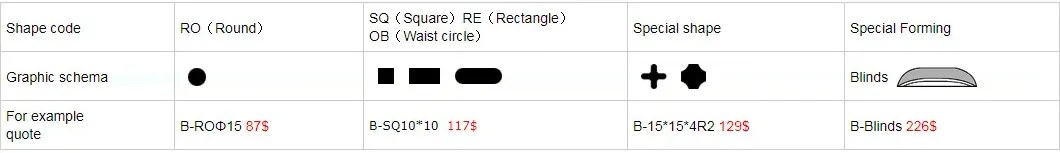

Tooling Quoted Price Reference
Punch body material: SKH51
High-speed steel, also known as front steel. It maintains extreme sharpness and hardens even when air-cooled after quenching. Offers superior toughness and wear resistance compared to conventional mold steels.
Die material: DC53
A high-performance cold-work die steel (JIS G4404). It improves upon SKD11 by overcoming weaknesses in high-temperature tempering hardness and toughness, making it ideal for precision molds requiring high strength.

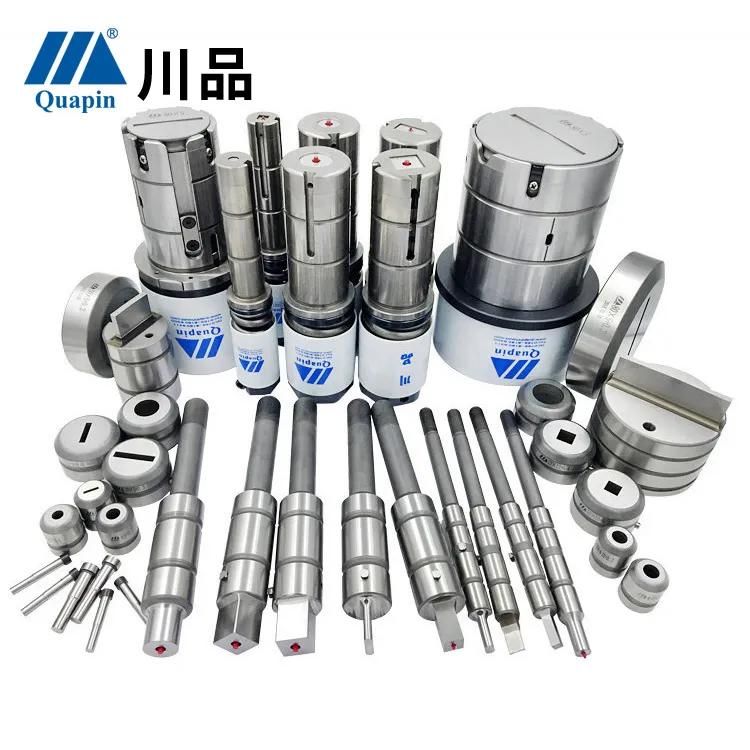

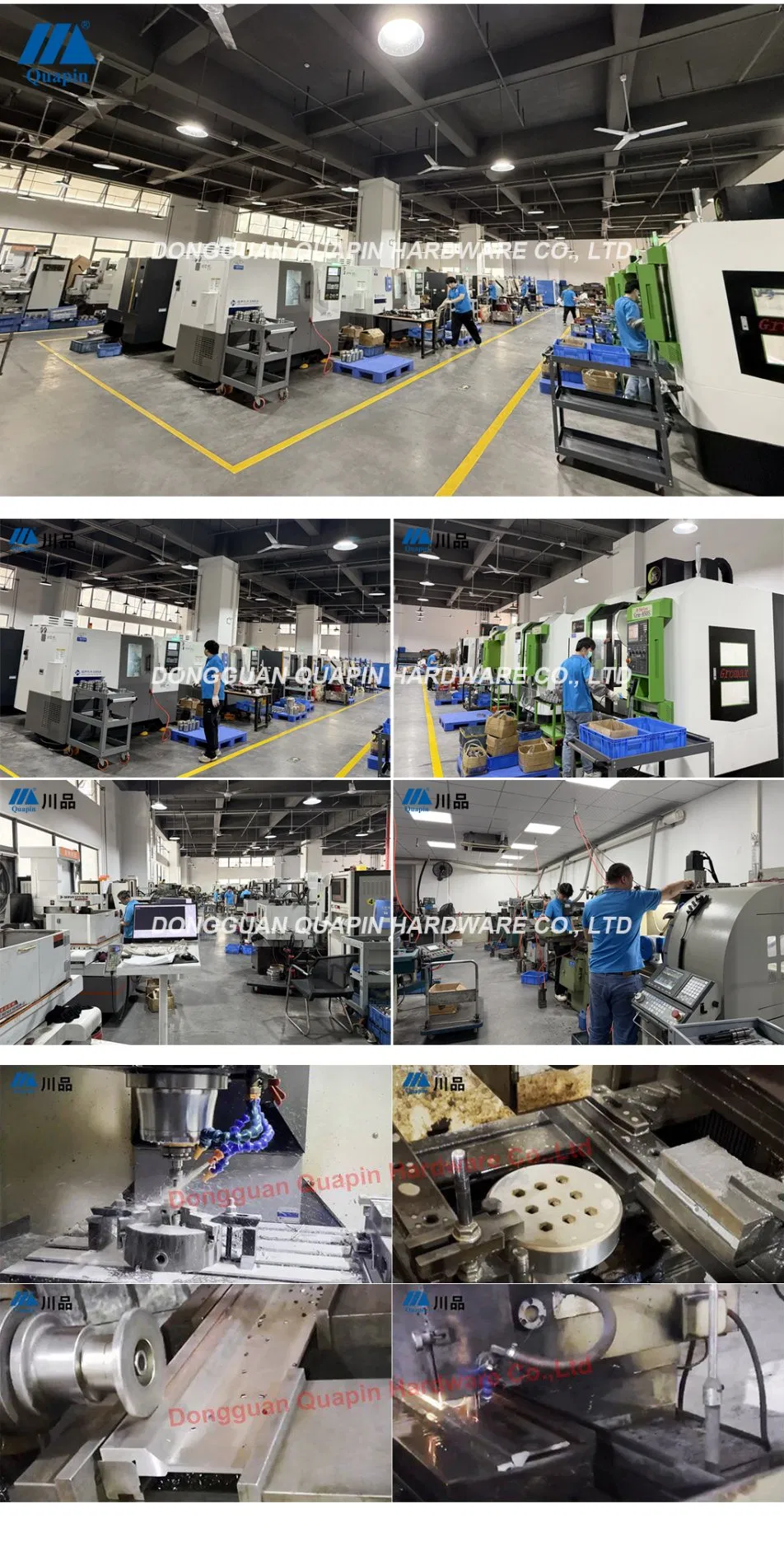

Specializing in R&D and manufacturing of CNC turret punch press tooling (NCT) molds. Equipped with advanced production and inspection equipment including CNC machining centers, Sodick wire-cut machines, CNC EDM, and precision cylindrical grinders.
Our facility utilizes CAD/CAM/UG manufacturing capabilities to provide high-efficiency management and one-on-one technical services. We focus on helping sheet metal manufacturing enterprises increase production efficiency and minimize processing costs through intelligent stocking and lightning-fast delivery.
