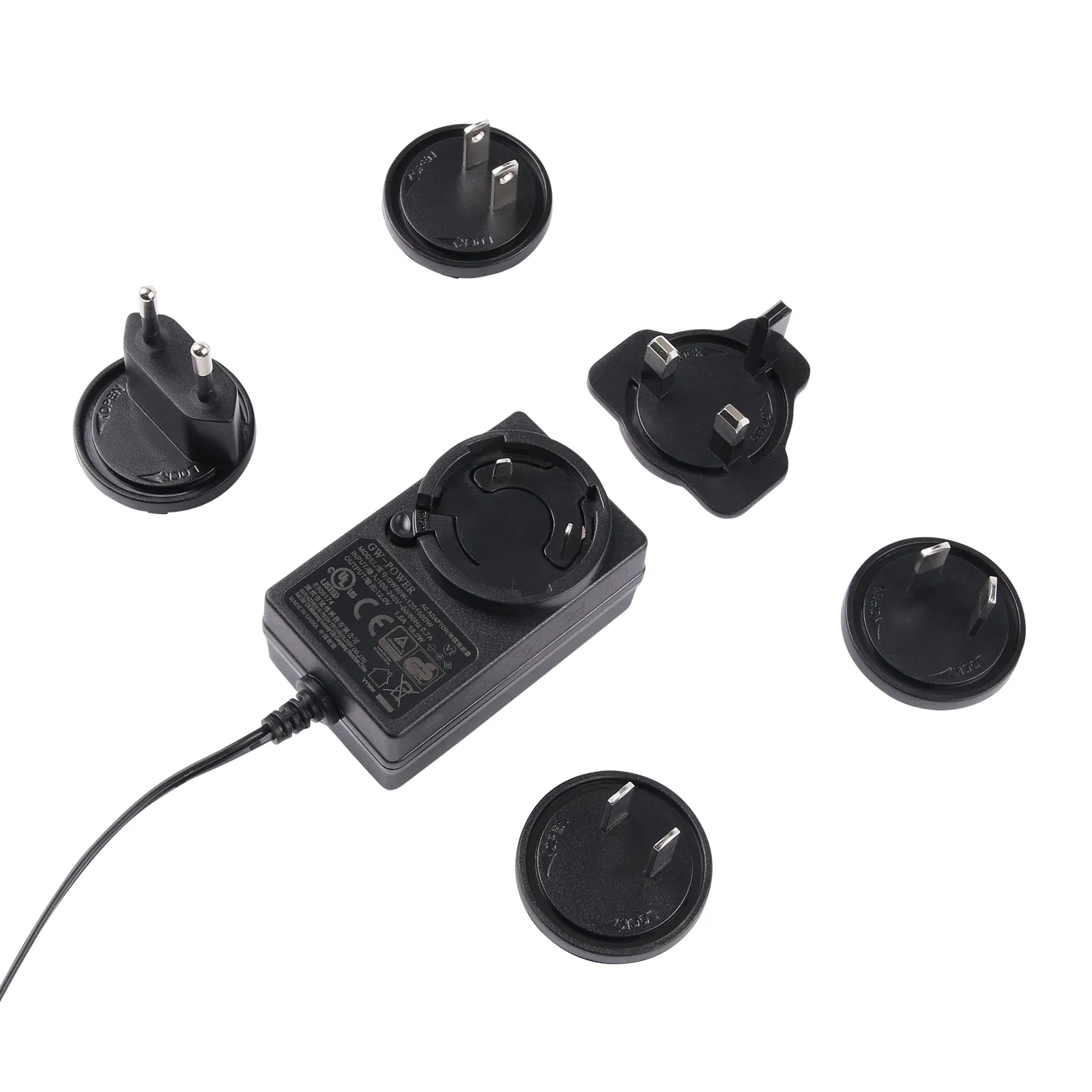

Interchangeable Plug Type Wall Mount Power Adapter with Worldwide Approved Certifications

1 / 5

Interchangeable Plug Type Wall Mount Power Adapter with Worldwide Approved Certifications

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

GW30W-120200/250D

Certification

TUV, RoHS, ISO9001, CCC, GS CE UL FCC Ukca PSE

Color

Black

Internal Structure

On-Off Type

Power Source

Half-Bridge Type

Connection

Plug In

Protection

Ocp, Ovp, SCP, Olp, Uvlo

Size

71X43.3X38.5mm

Efficiency

Level VI (DOE & ERP), 86.95%+

Input

90-264VAC, 50/60Hz, 0.7A

Standby Power

Less Than 0.1W

HS Code

8504401400

General Introduction

Ready-made standardized external switch mode power supply adapter wall mount charger for indoor diverse applications.

This IEC62368 standard complied 12V 2.5A AC DC power adapter is specifically designed for powering digital pianos (compatible with B2N, Opsix, wavestate, and Mini-kog 700FS), CCTV security cameras, routers, network switches, and a wide range of electronics.

✔Universal input (90-264Vac)

✔Worldwide Certified (UL, FCC, CE, GS, UKCA, SAA, PSE, CCC)

✔Low ripple & noise cancellation (70mV p-p)

✔Fully protected (OCP, OVP, OLP, SCP, UVLO)

✔High efficiency (DOE Level VI & ERP)

✔MTTF > 50,000 hours

⚠ WARNING: UL Listed Products - Always choose certified products to protect your devices from potential danger.

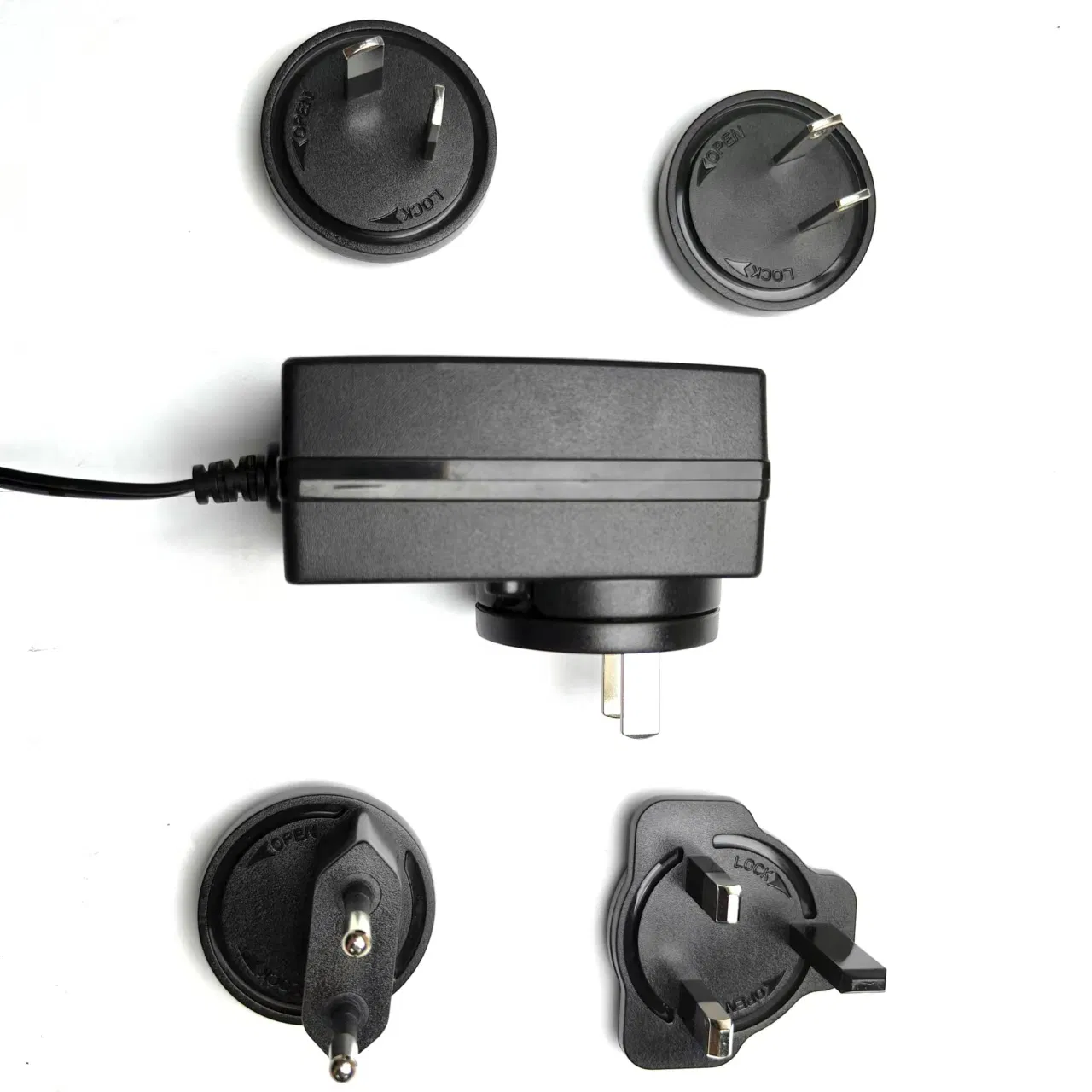

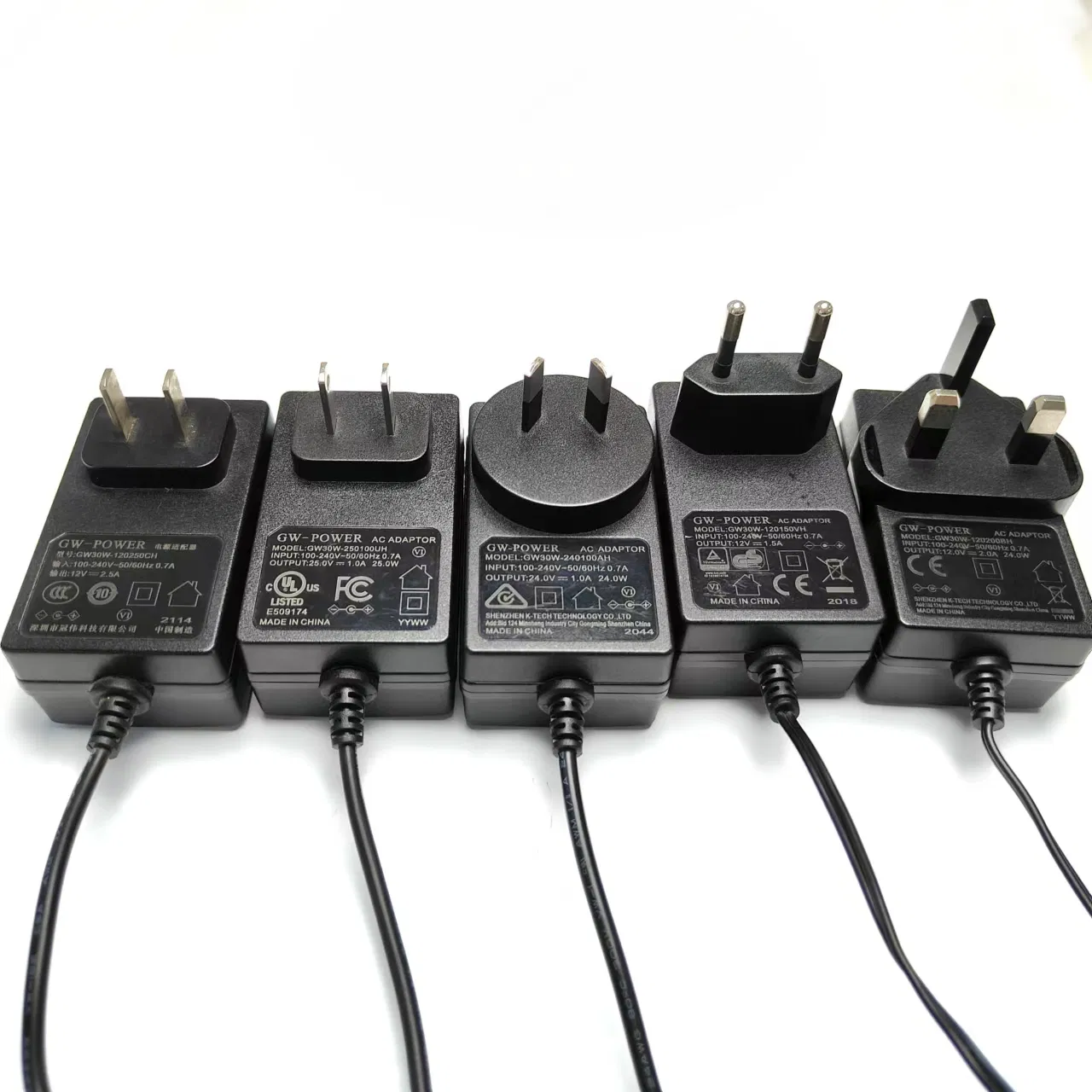

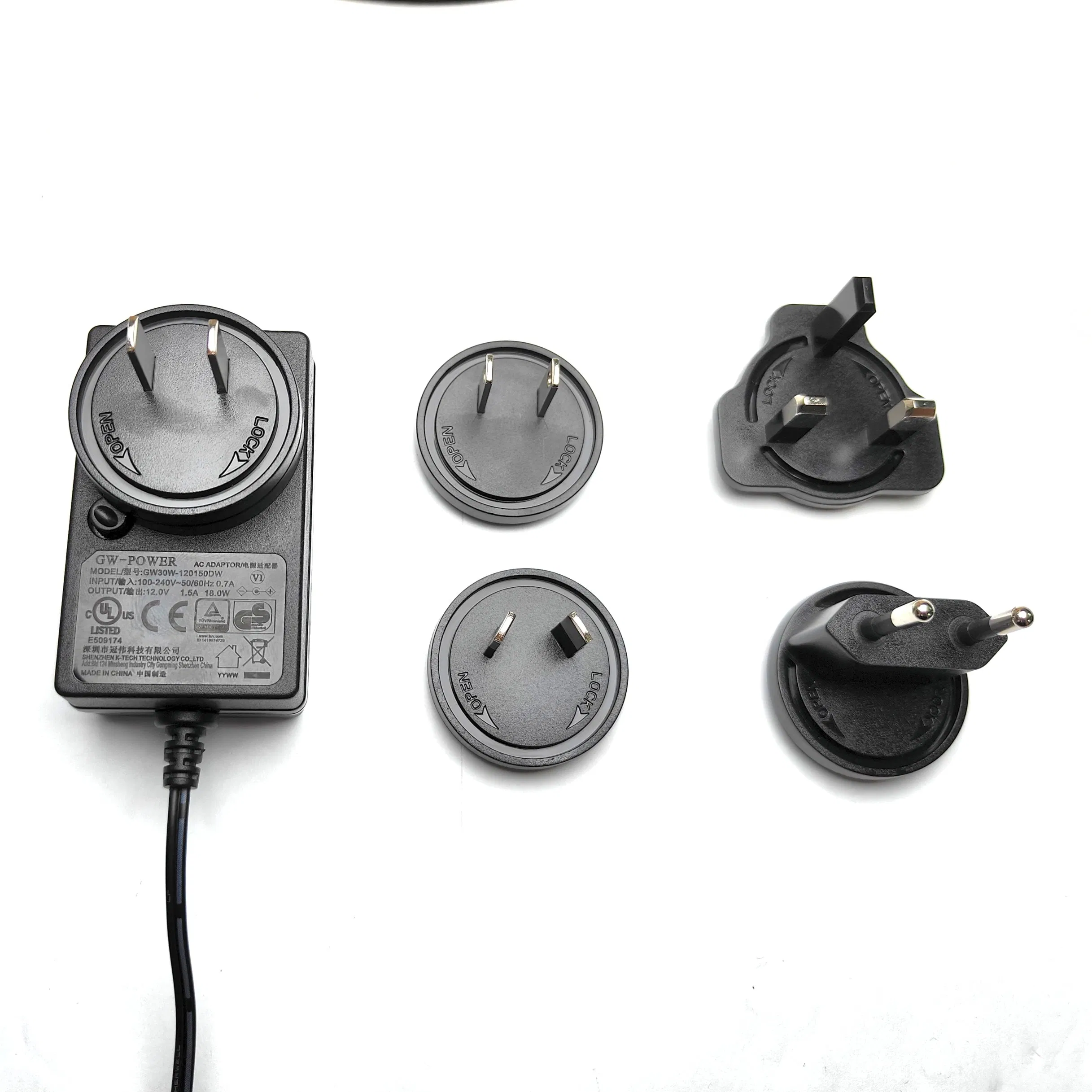

Interchangeable Plug Type Wall Mount Power Adapter

Product Applications

★Consumer Electronics

★Instrumentation

★Home Appliances

★Label Printers & ICT Equipment

★Musical Instruments

★Astronomical Telescopes

Fits all electric devices running on 12V 2.5A DC power. Customizable specifications are available upon request.

Technical Parameters

Input Characteristics

Parameter	Value
Rated input voltage	100-240Vac
Operating range	90-264Vac
Rated input frequency	50/60Hz
Rated input current	0.7 A Max
No-load Consumption	0.1W Max

Output Requirements

Parameter	Specification
DC Output Voltage	12.0V
Rating Load Current	2.5A
Rating Output Power	30.0W
Ripple and Noise	120mVp-p Max
Average Efficiency	86.95% Min (Level VI)
Turn-on Delay	3 Seconds Max

Delivery, Material & Size

Size: 71.3 x 43.3 x 38.5mm

Material: PC Case, Brass AC Pins

Weight: ≈110g

LED Indicator: Green

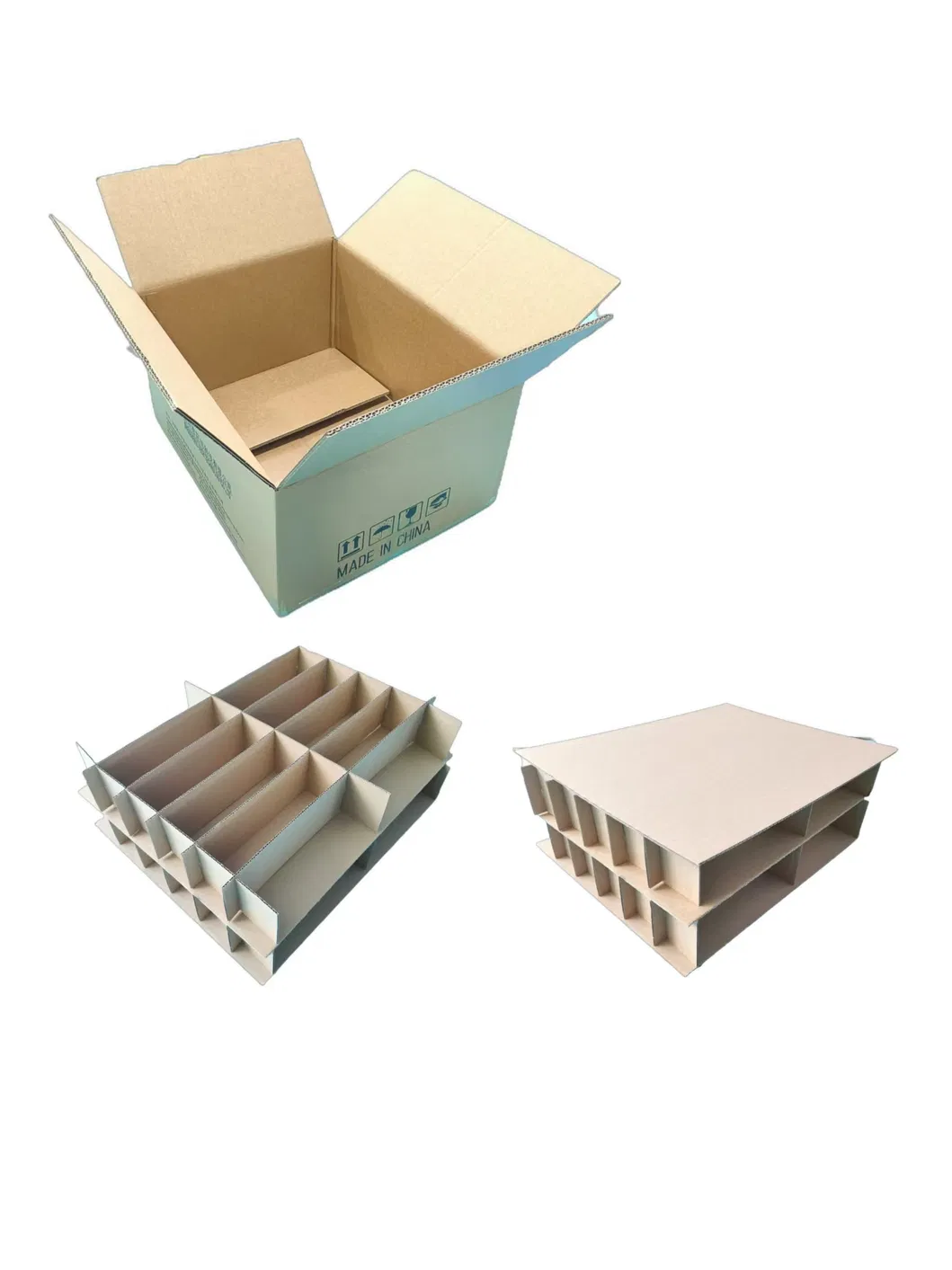

Item	Description
Carton Size	490x405x260mm
Quantity	90pcs per carton
Gross Weight	≈10.5kg

Customization Options

Output Voltage (VDC)	Output Current (Amp)	Max Output Power
5.0-5.9	0.01-4.0	20W
6.0-7.9	0.01-4.0	24W
8.0-15.9	0.01-3.0	30W
16.0-25.0	0.01-1.87	30W

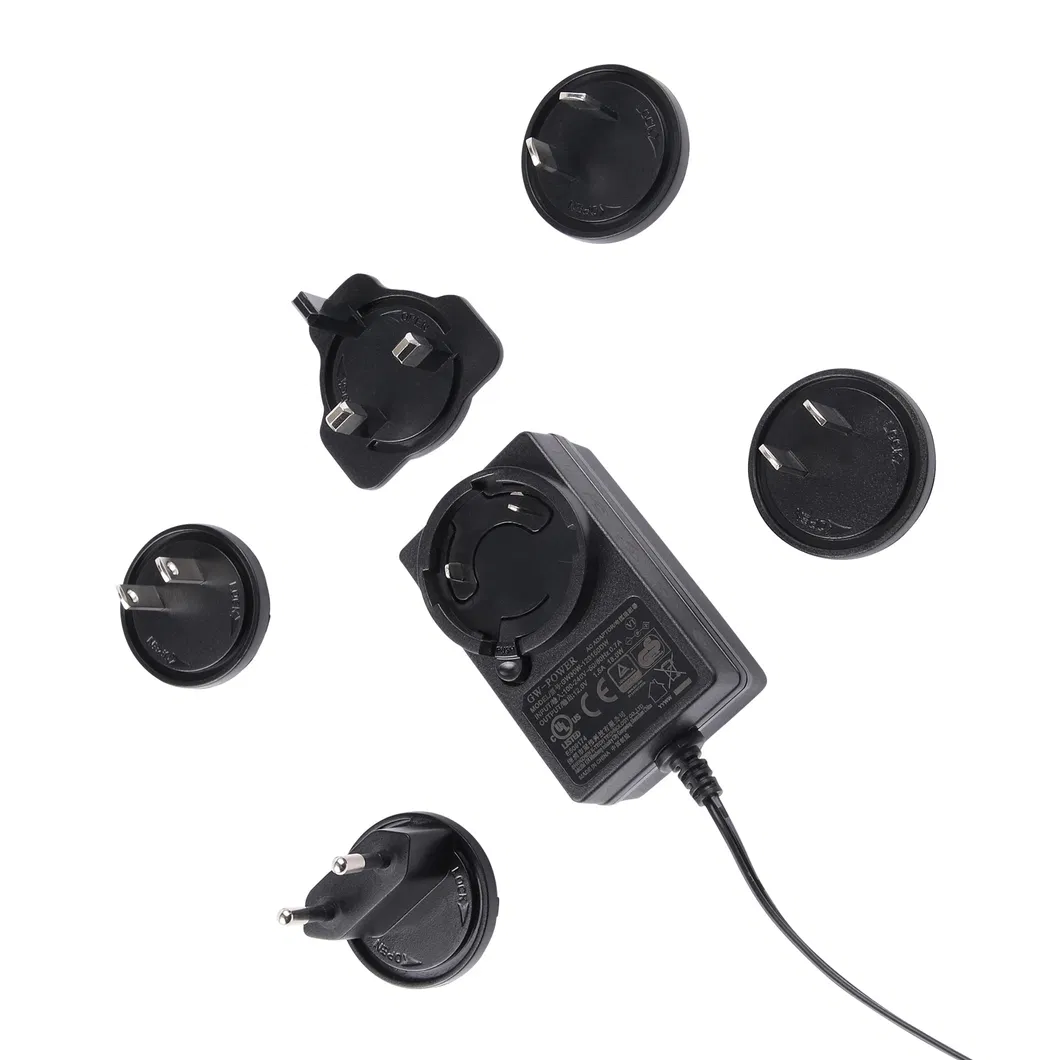

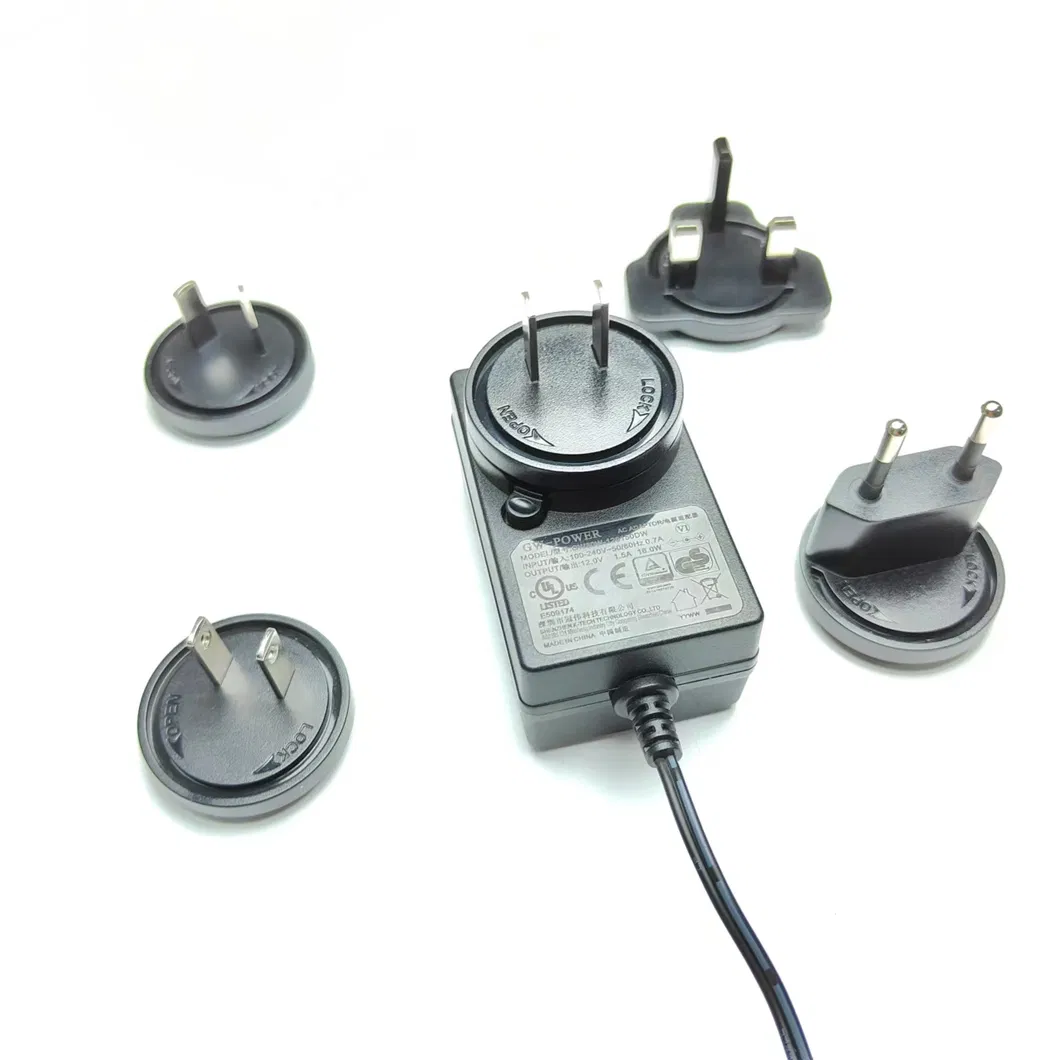

Definable Options: Detachable AC plug adapters, DC cable type/length, DC connector, and nameplate information.

Commercial Terms

🛒MOQ: 1000pcs

⏳Lead Time: 30 working days

📦Incoterm: EX-works

🛡️Warranty: 12 months

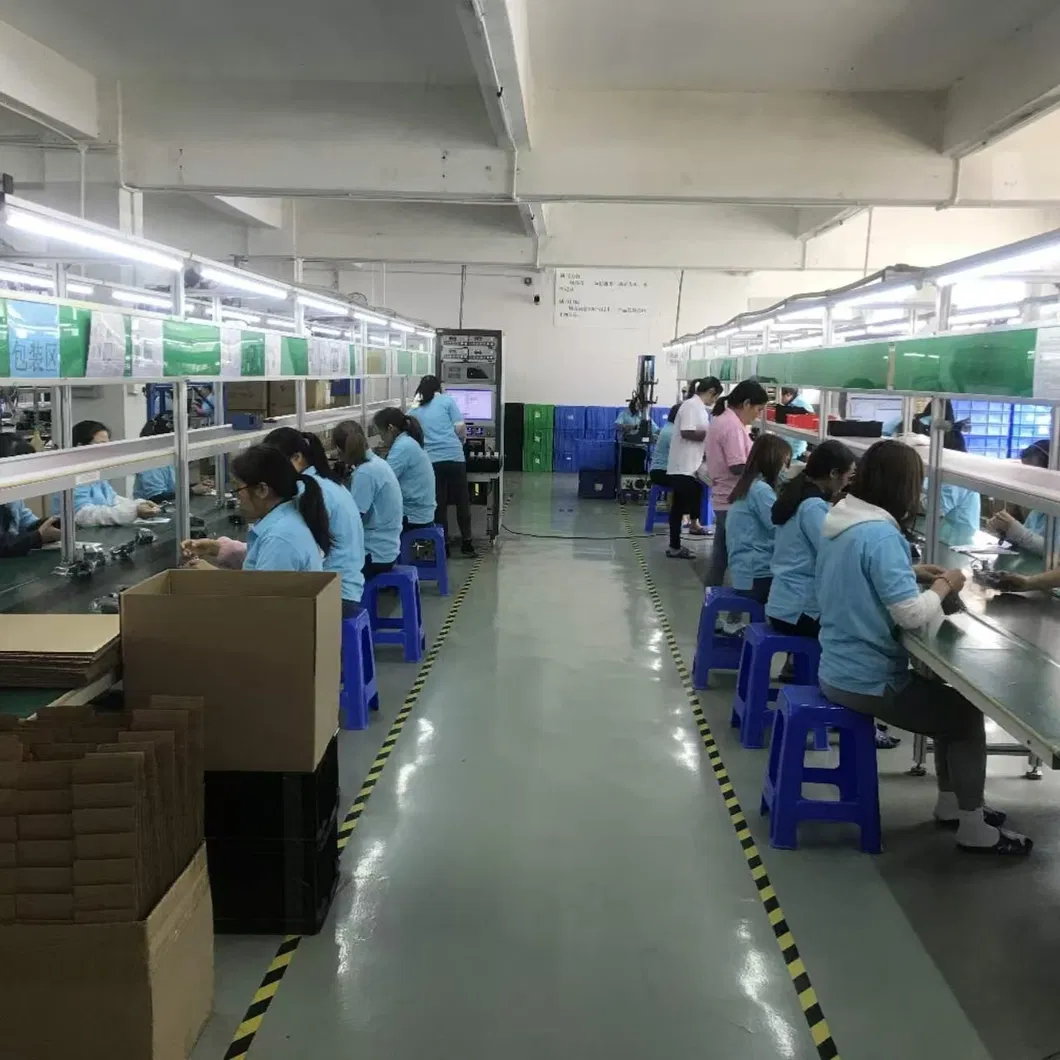

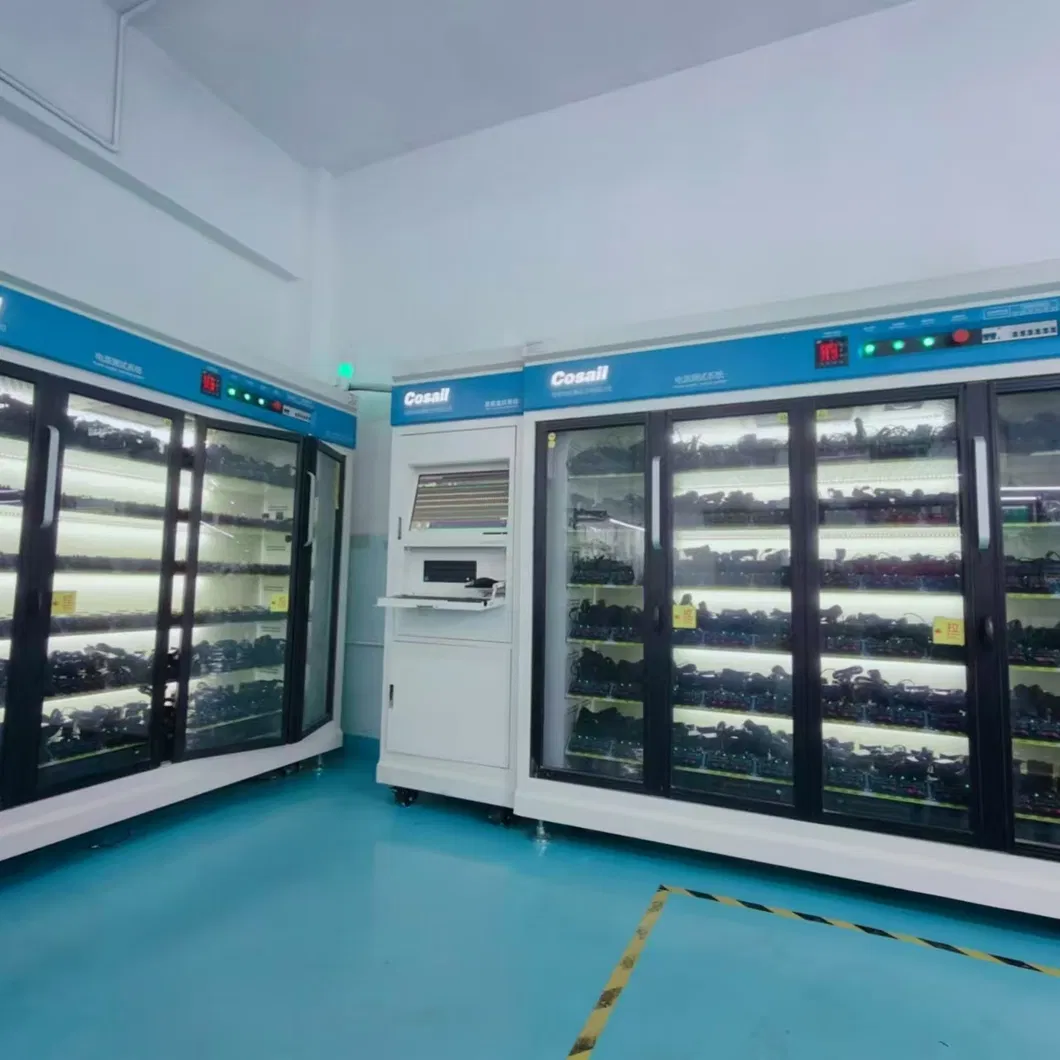

Production Excellence

Expert Solutions

Are you facing any of these common power adapter issues?

✘Insufficient power leading to device malfunction
✘Overheating posing fire hazards
✘Short product lifespan or lack of safety compliance
✘Excessive ripple noise affecting audio quality

Together, we can forge a bright future! We are ready to answer your questions and provide tailored solutions.

Frequently Asked Questions

What devices is this 12V 2.5A adapter compatible with?

It is ideal for KORG digital pianos (B2N, Opsix, etc.), CCTV cameras, network routers, and various home electronics requiring 12V DC power.

What international safety certifications does it hold?

The adapter is fully certified with UL, cUL, FCC, CE, GS, UKCA, SAA, PSE, and CCC, meeting the IEC62368 safety standard.

Is the adapter energy efficient?

Yes, it meets the high-efficiency Level VI standards of DOE and ERP, with a standby power consumption of less than 0.1W.

Can I request custom output specifications?

Absolutely. We offer customization for voltages ranging from 5V to 25V and current from 0.01A up to 4.0A.

What is the standard lead time for bulk orders?

Our typical lead time is 30 working days with a minimum order quantity (MOQ) of 1000 pieces.

How is the product protected against electrical faults?

It includes multiple protection layers: Over Current (OCP), Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP), and Under Voltage Lockout (UVLO).
