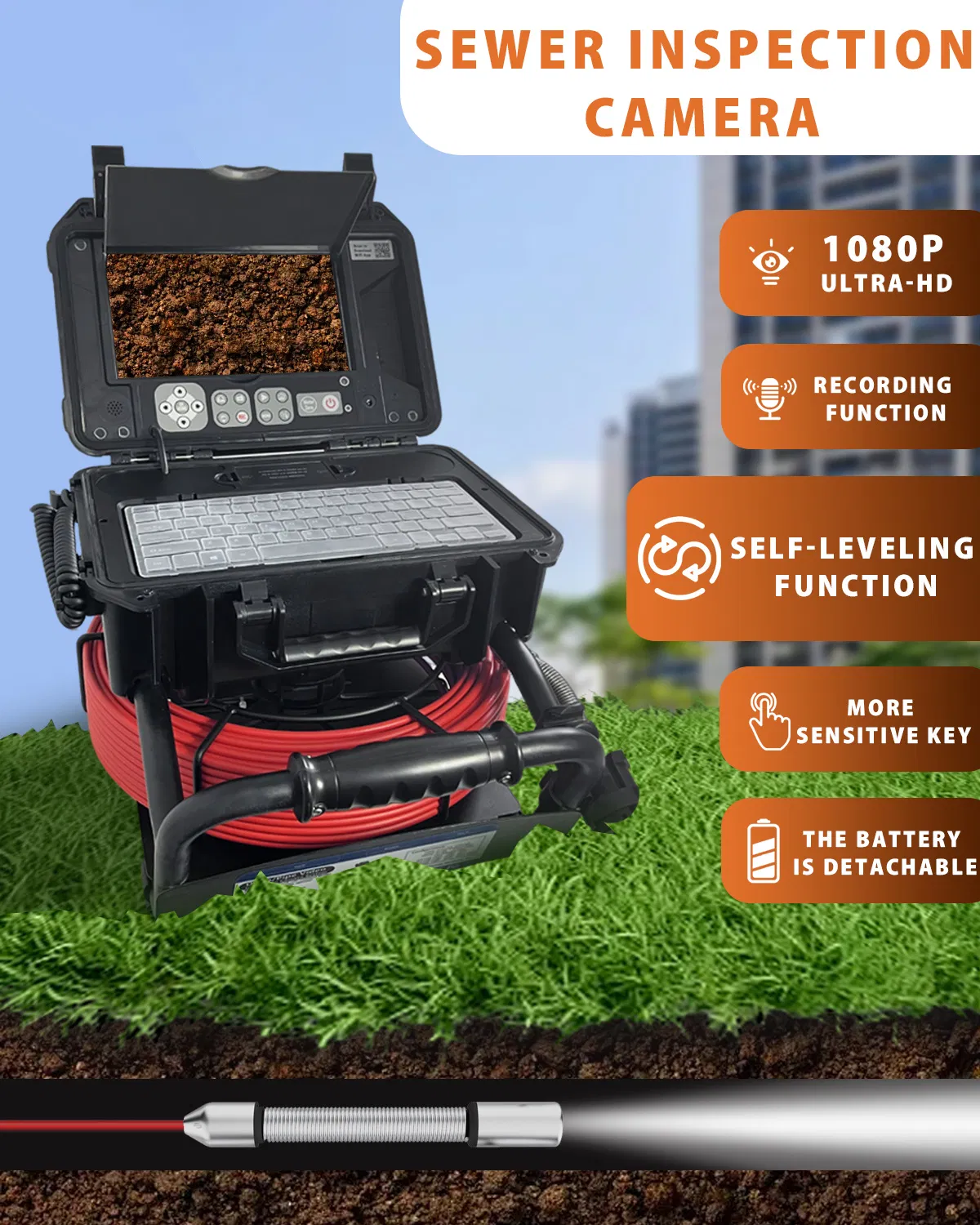

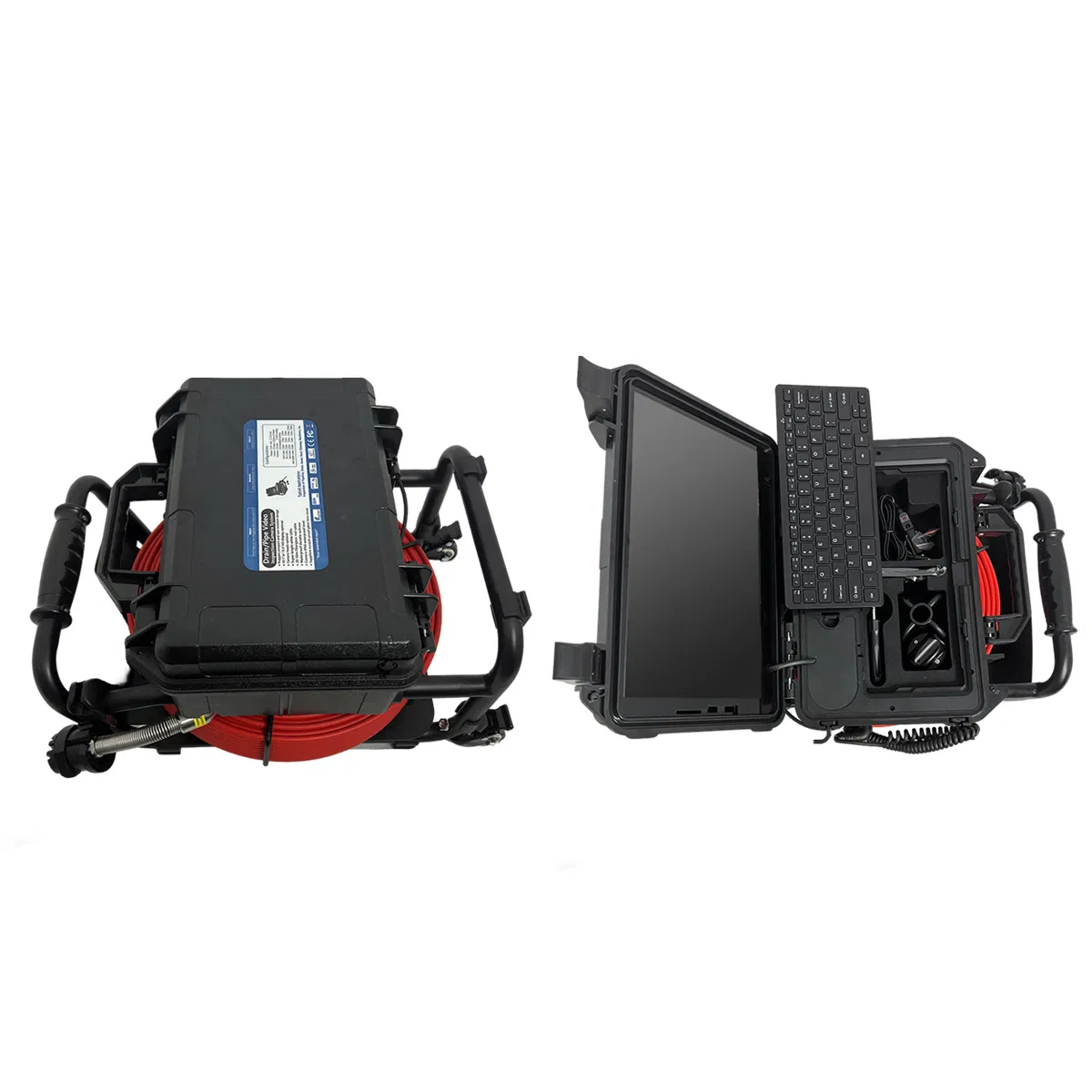

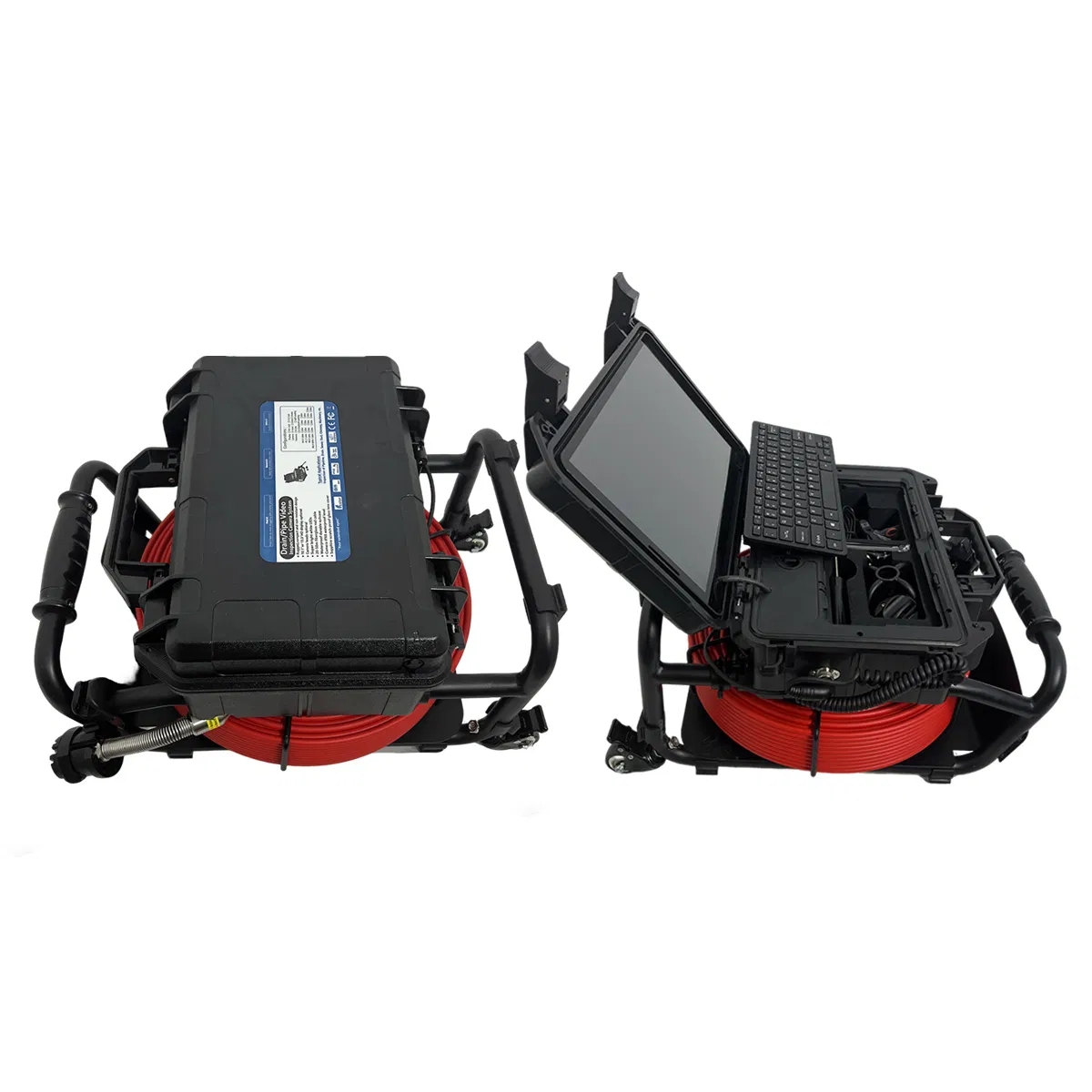

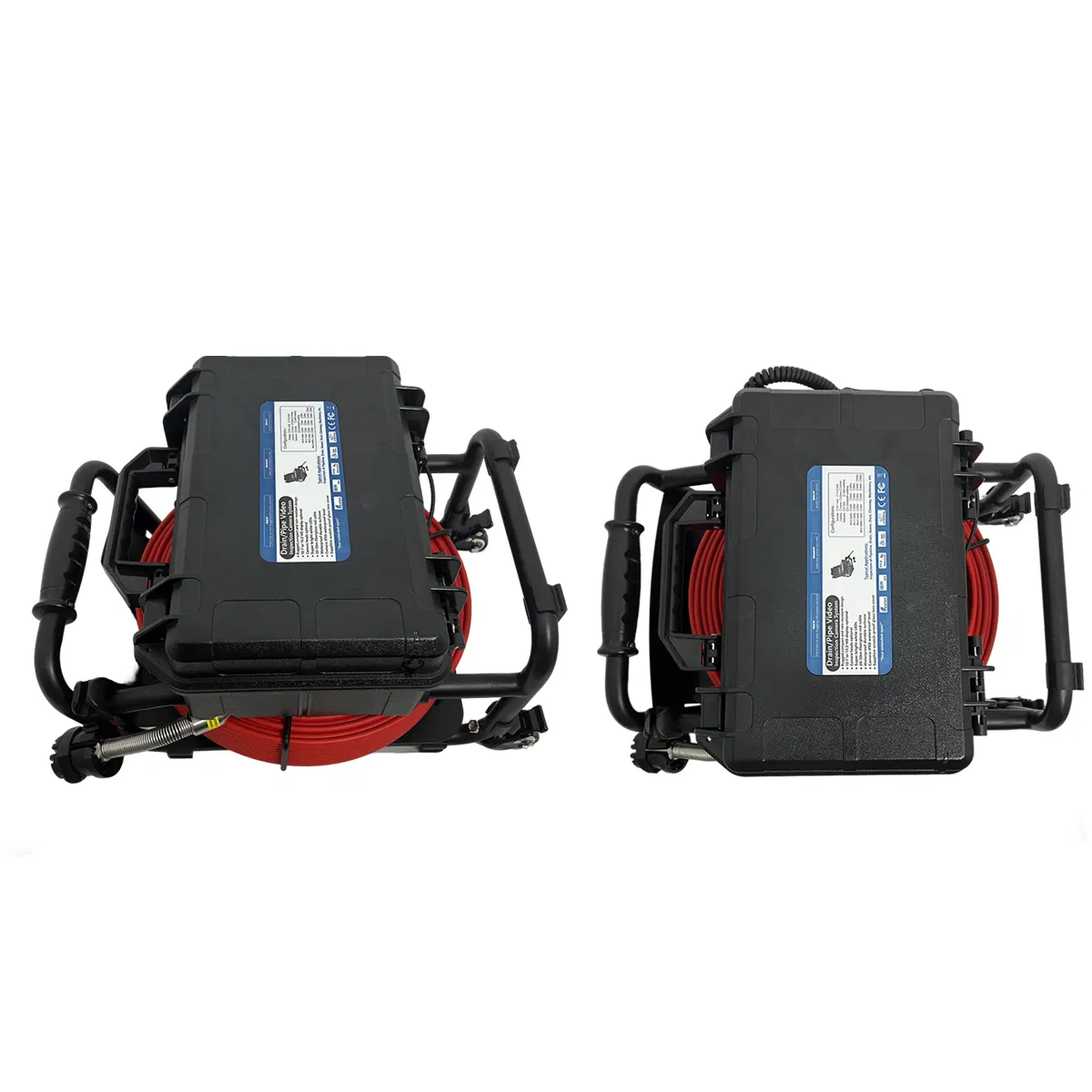

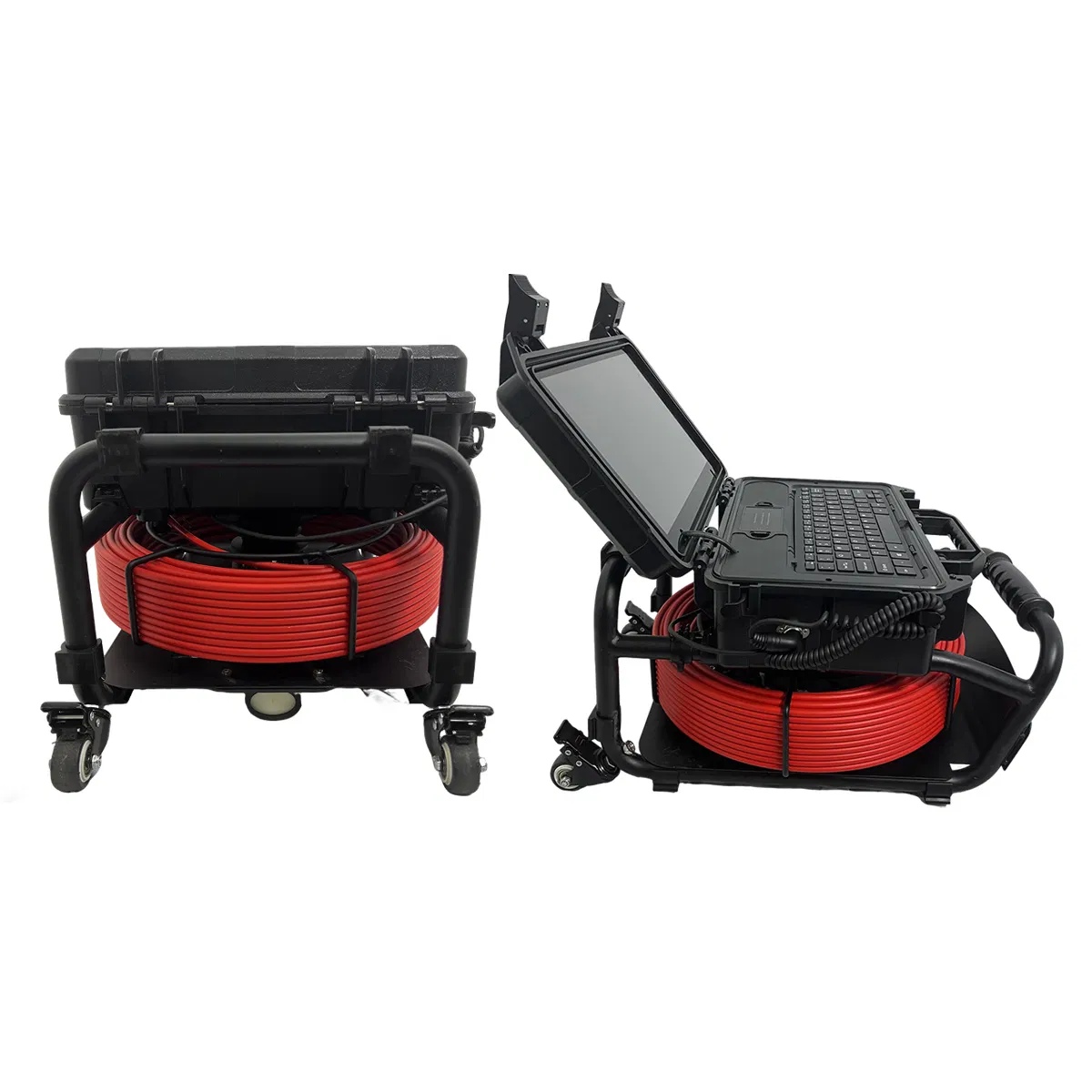

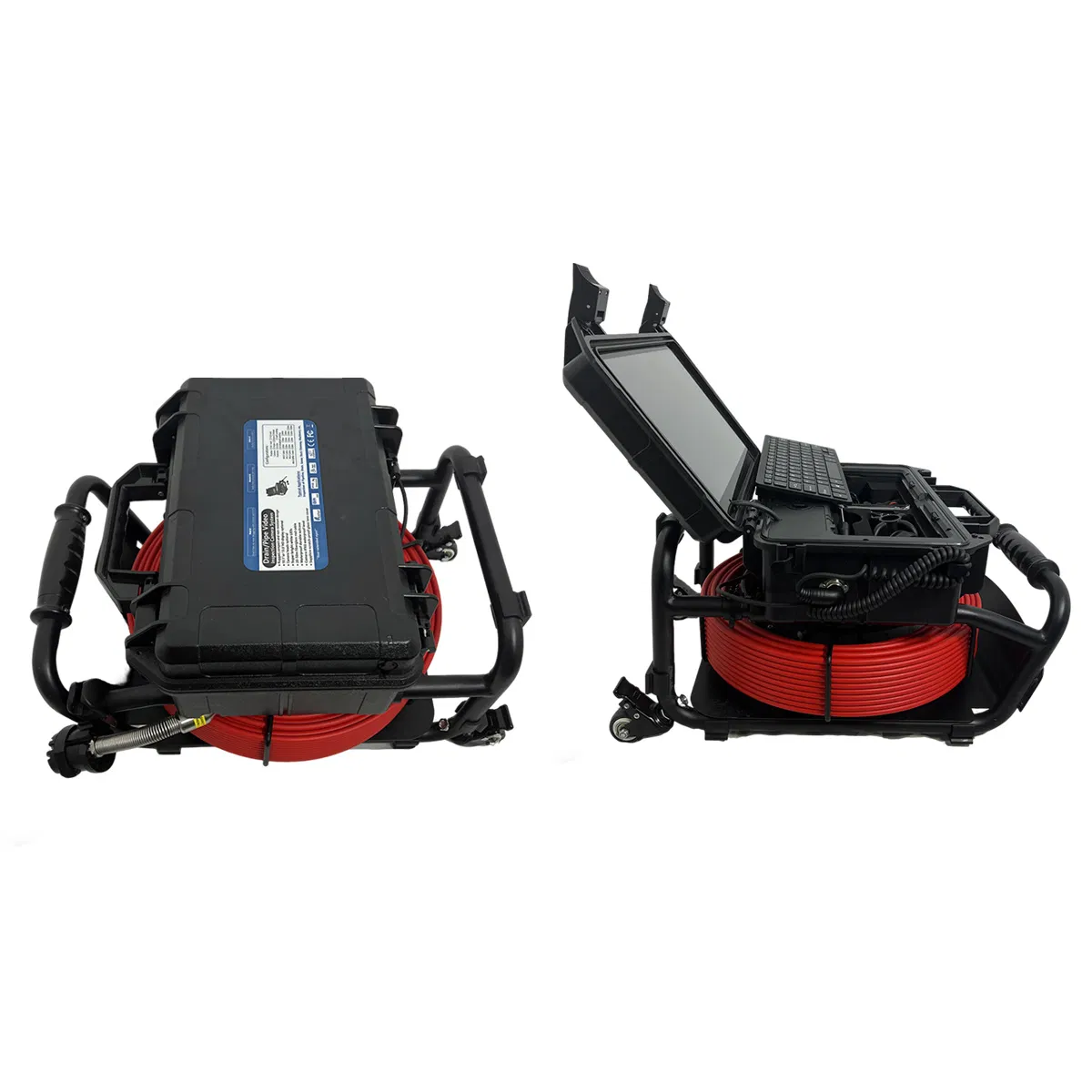

HD 13" Screen with Built-in Battery Endoscope DSLR Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

📋Product Overview

Model NO.3693EA
TypeCCTV Camera
SensorCMOS
HDMI Format1080P
Horizontal Resolution520tvl
CertificationCE, FCC, RoHS
FeatureWaterproof / Weatherproof, High Definition
Effective Distance≧30m
Field of View(Fov)130°
Waterproof Depth20m
Power SupplyDC9~15V
Production Capacity50000 Piece/ Year

⚙️Keyboard Input Parameters

Input LanguageEnglish
Maximum Page Count9 pages
Character Count Per Page500
Keyboard CompatibilityCompatible with specified PC Bluetooth keyboard
Length MeterBuilt-in
Meters and FeetMeter/foot/closed

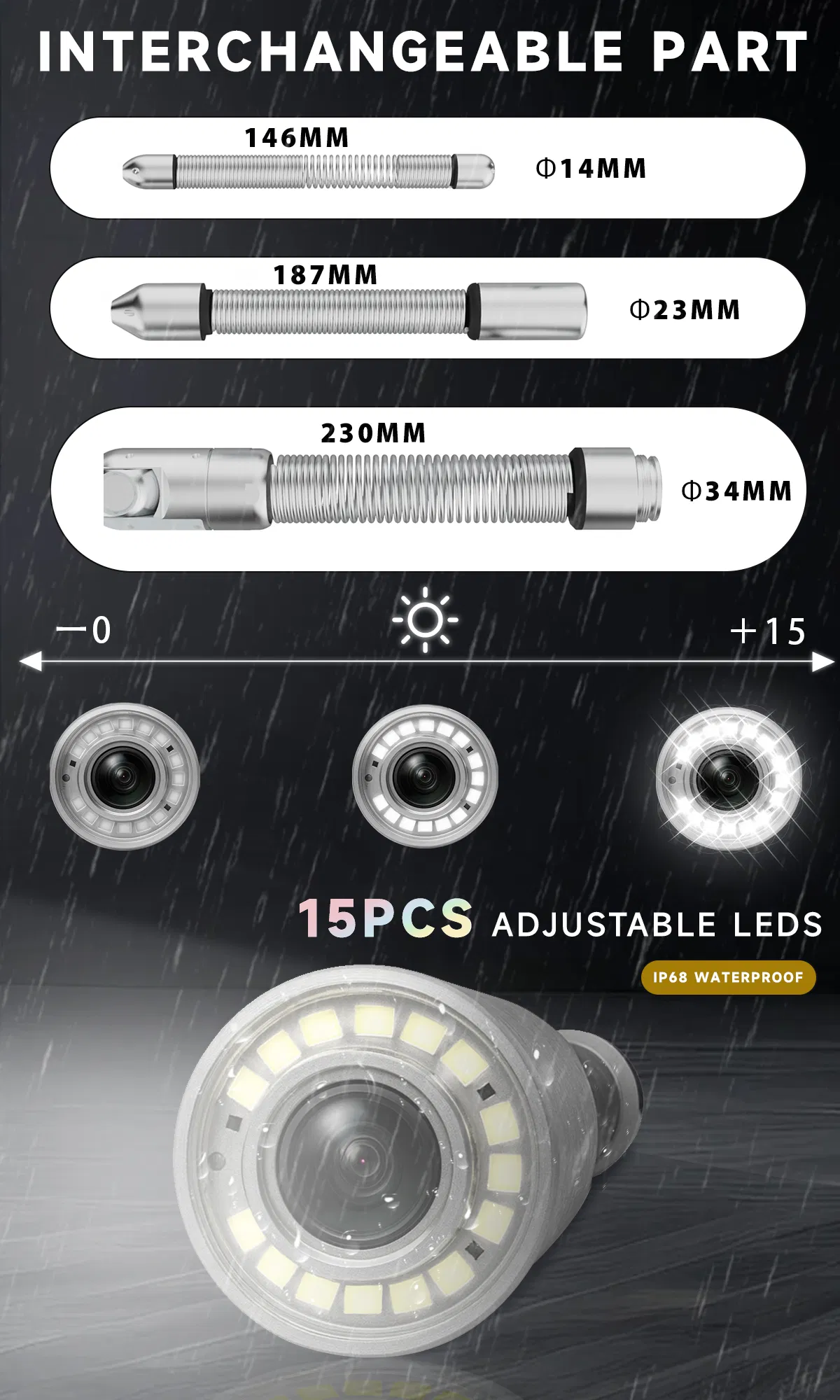

📷Camera Parameters (23mm)

Sensor1/3"CMOS
ResolutionAHD1920x1080
Field of View (FOV)130°
Lens MaterialSapphire glass
Housing Material304# stainless steel
Light SourceBuilt-in 15 white LEDs
Waterproof Depth20m

🖥️Display Parameters

ScreenHigh-definition color LCD screen
Screen Resolution1920*1080
Video CompressionHigh compression, H.264
MemorySupports 64G SD card
Battery Capacity7.2V 9000mAh lithium-ion battery
Operating Time11-12hour (7") / 10-11hour (10.1")
🚀Outperforming the Competition

Our product isn't just an upgrade—it's a different class. From the replaceable 9000mAh battery to the true 1080P display and self-leveling camera, every detail is engineered to deliver higher efficiency, clearer visuals, and a more professional user experience.

Competitor devices may look similar on the surface, but the differences become obvious the moment you start working: clearer images, faster controls, longer runtime, and smarter features that simply make your job easier.

🖼️Product Showcase

Frequently Asked Questions

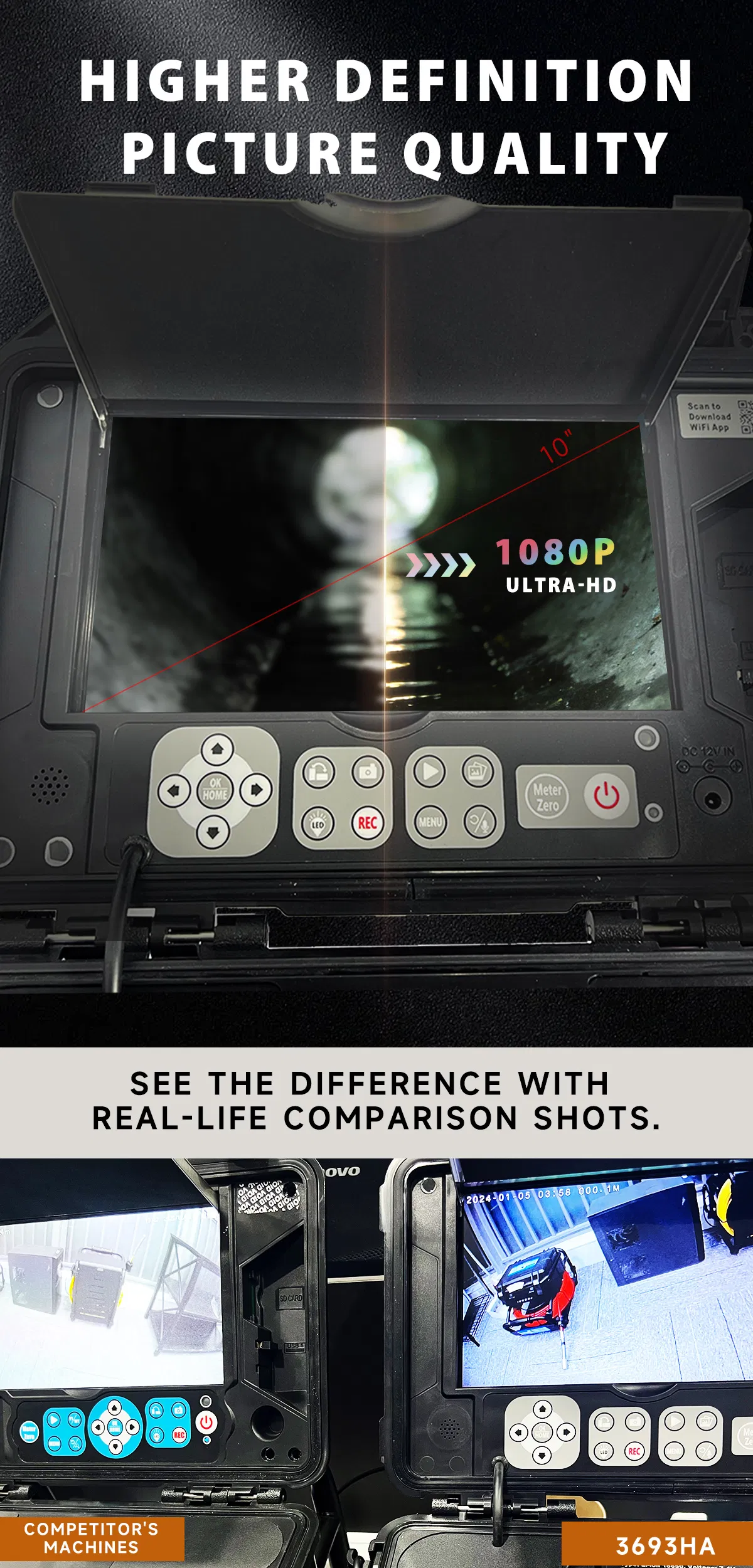

What is the resolution of the camera and display?
Both the camera and the display support high-definition AHD 1920x1080 resolution for crystal-clear inspections.
How long does the battery last on a single charge?
The 9000mAh lithium-ion battery provides approximately 11-12 hours of operating time for the 7" screen and 10-11 hours for the 10.1" screen.
Is the camera suitable for deep underwater use?
Yes, the camera is designed with a waterproof depth rating of up to 20 meters when fixed on the cable.
Does the system support length measurement?
Yes, the system has a built-in length meter that can display measurements in both meters and feet with high accuracy.
What storage options are supported for recording?
The system supports local recording and photography, with compatibility for SD cards up to 64GB.
Can I adjust the brightness of the camera lights?
Yes, the display features a built-in LED dimming adjustment to control the 15 white LEDs integrated into the camera head.
