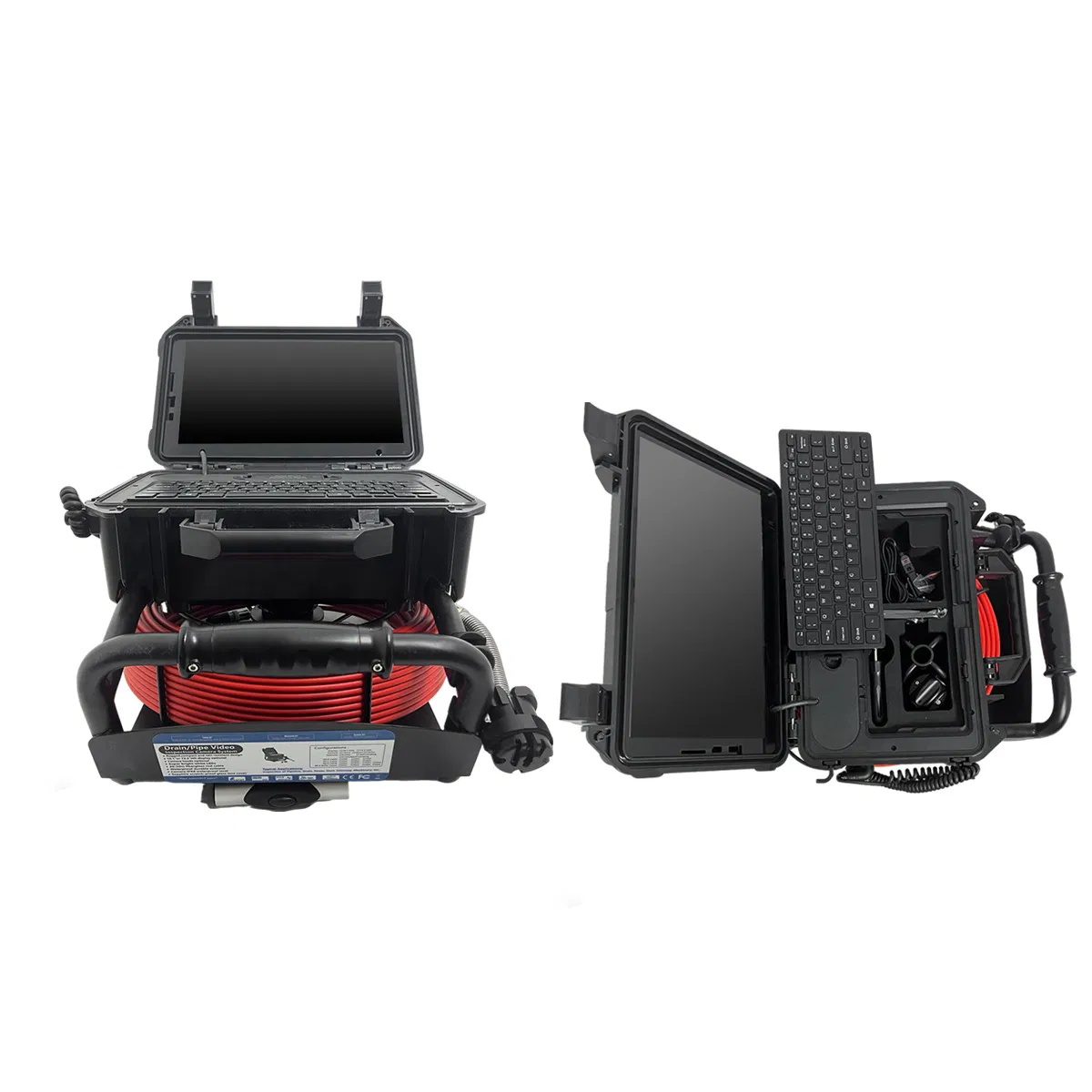

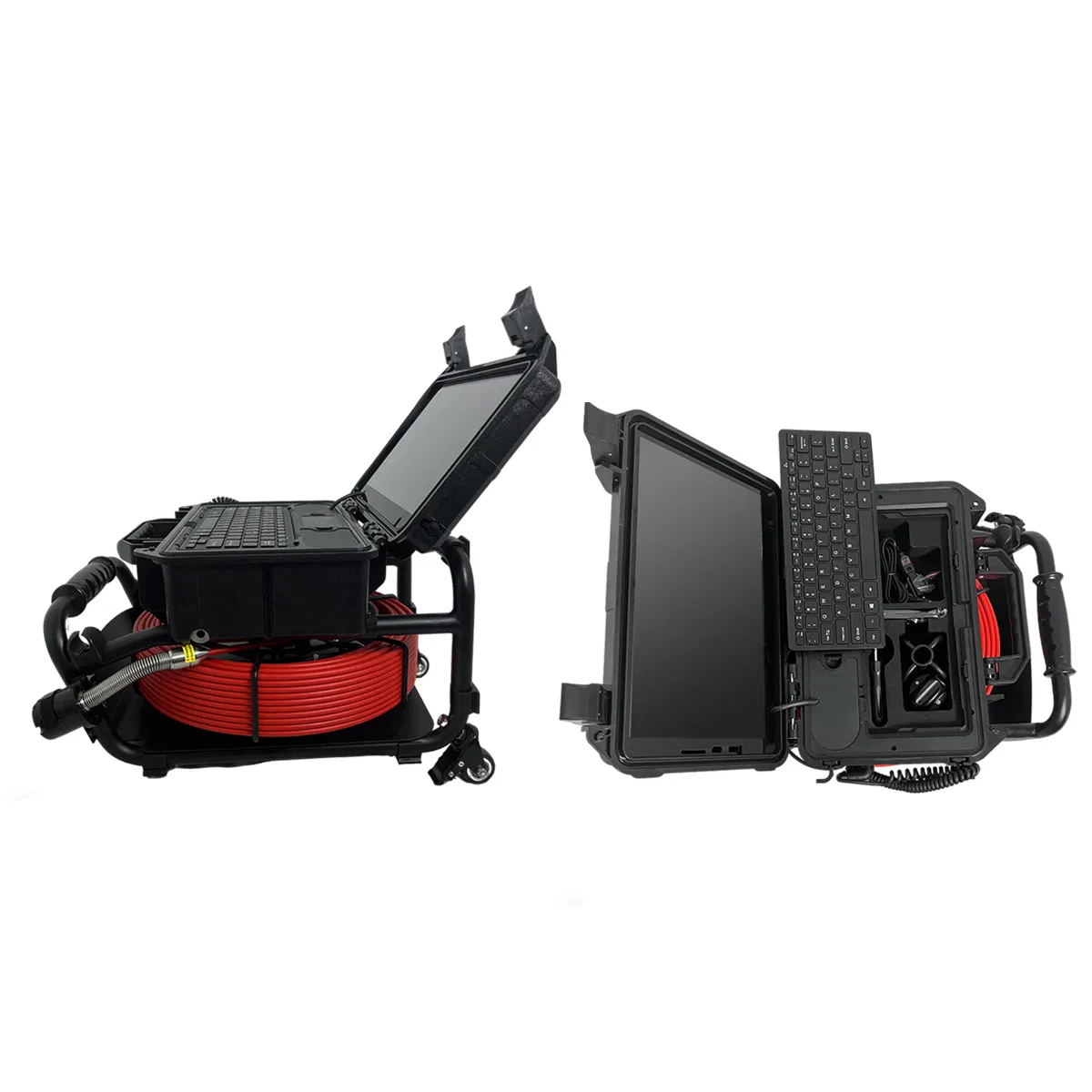

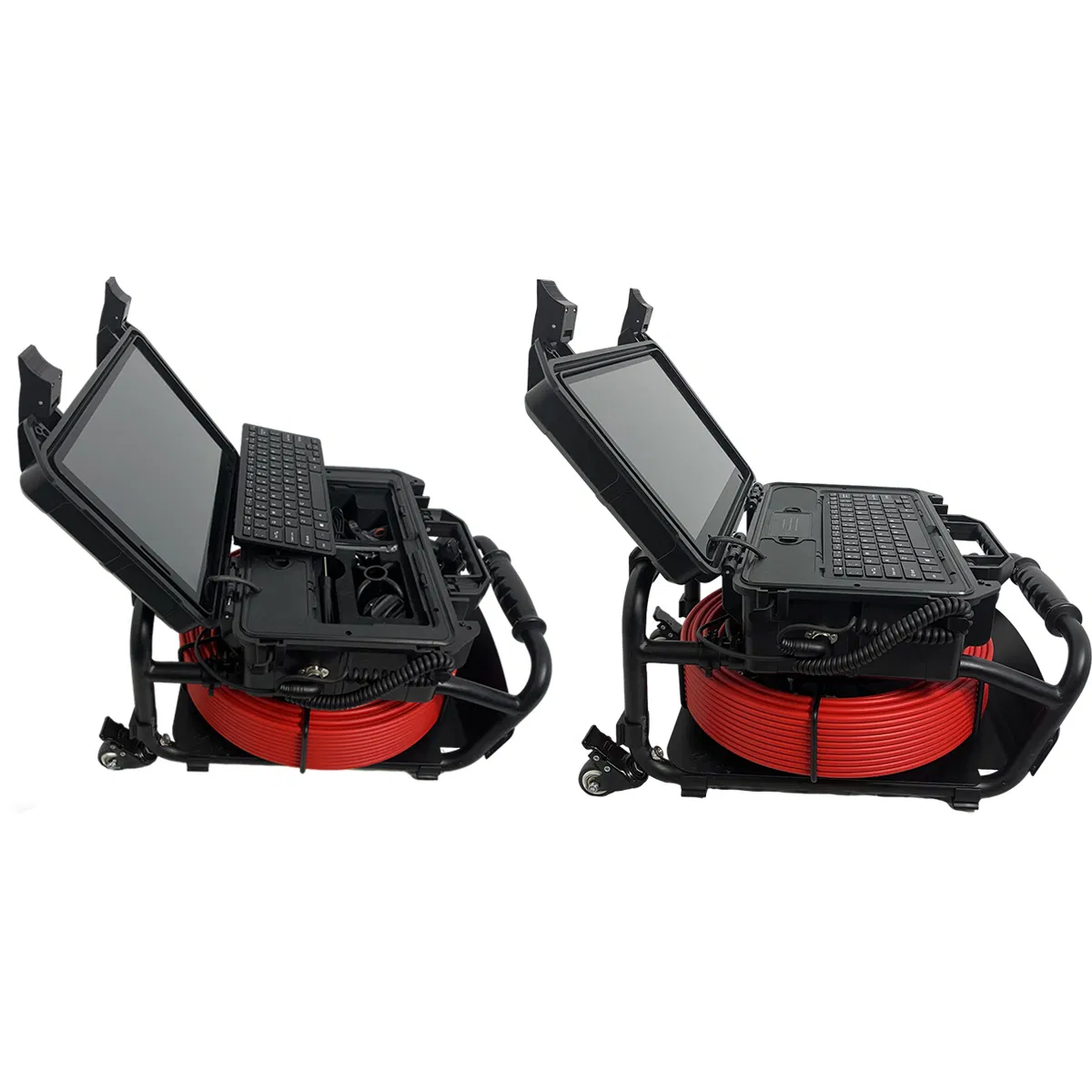

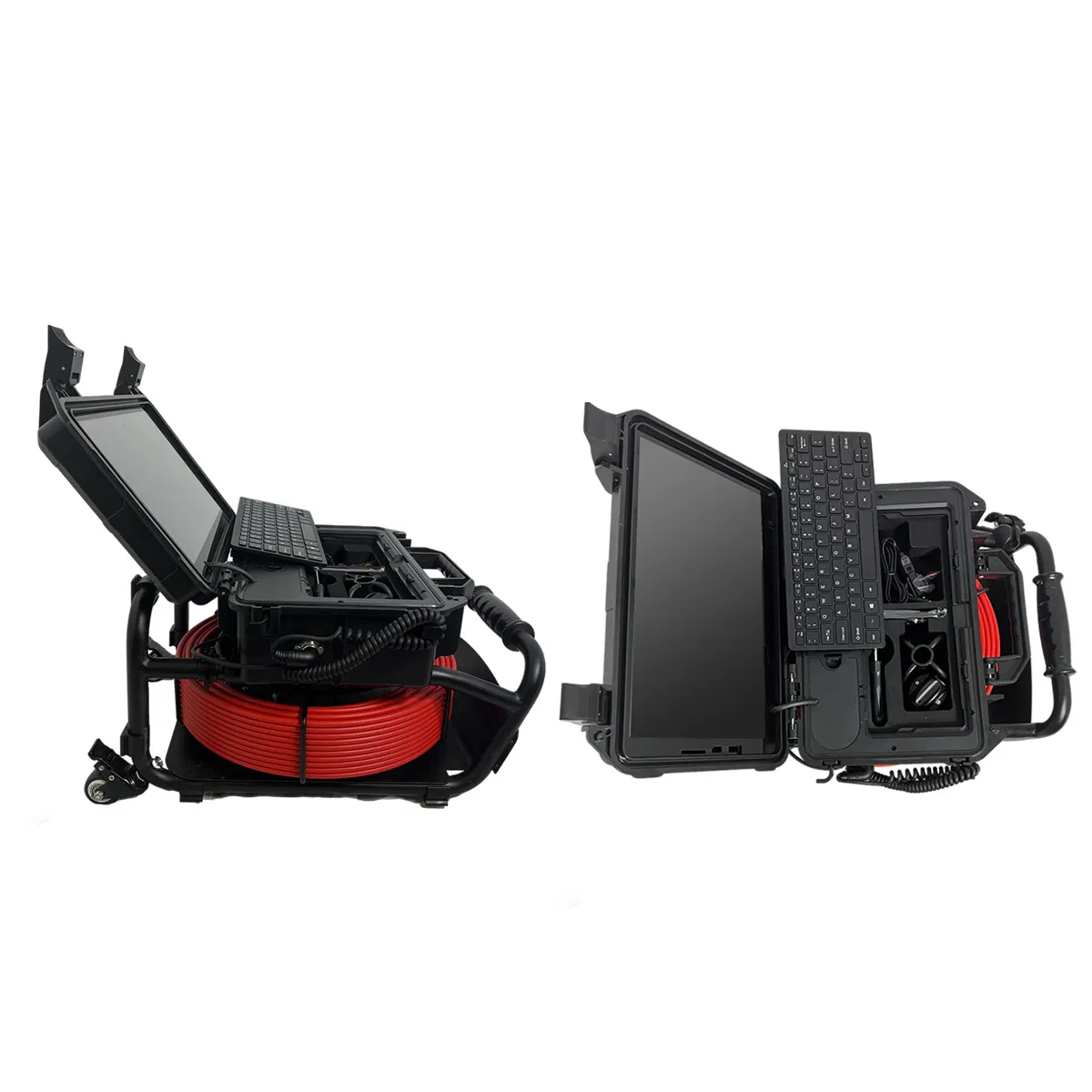

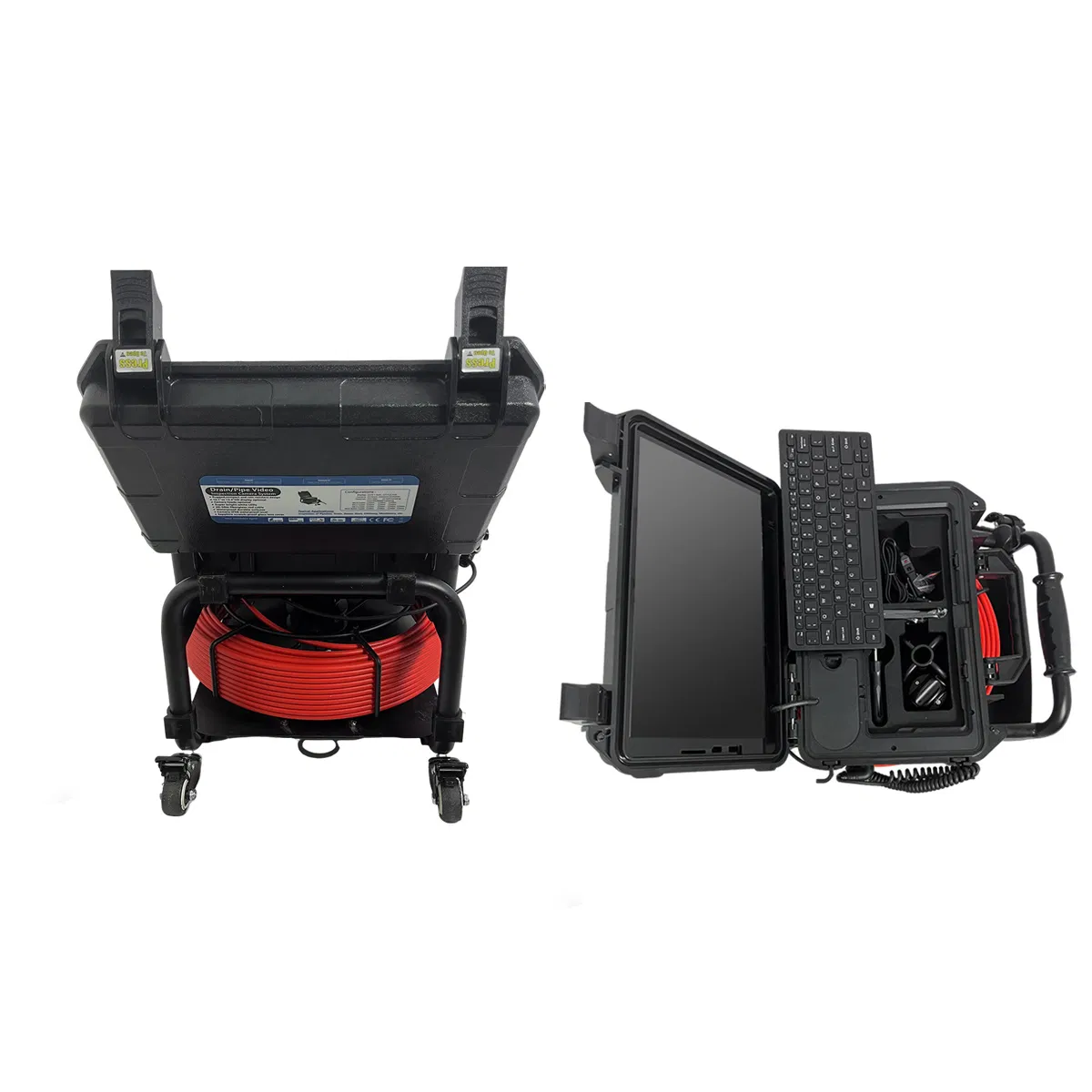

Power Plant Boiler Inspection Camera 13" DSLR Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.
3693EA
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Remote Control
With Remote Control
Resolution
Ahd1920X1080
Field of View(Fov)
130°
Waterproof Depth
20m
Power Supply
DC9~15V
Power Consumption
55mA(LED off)/110mA(LED on)
Operating Time
11-12hour(7")/10-11hour(10.1")
Origin
China
HS Code
8525813000
📦

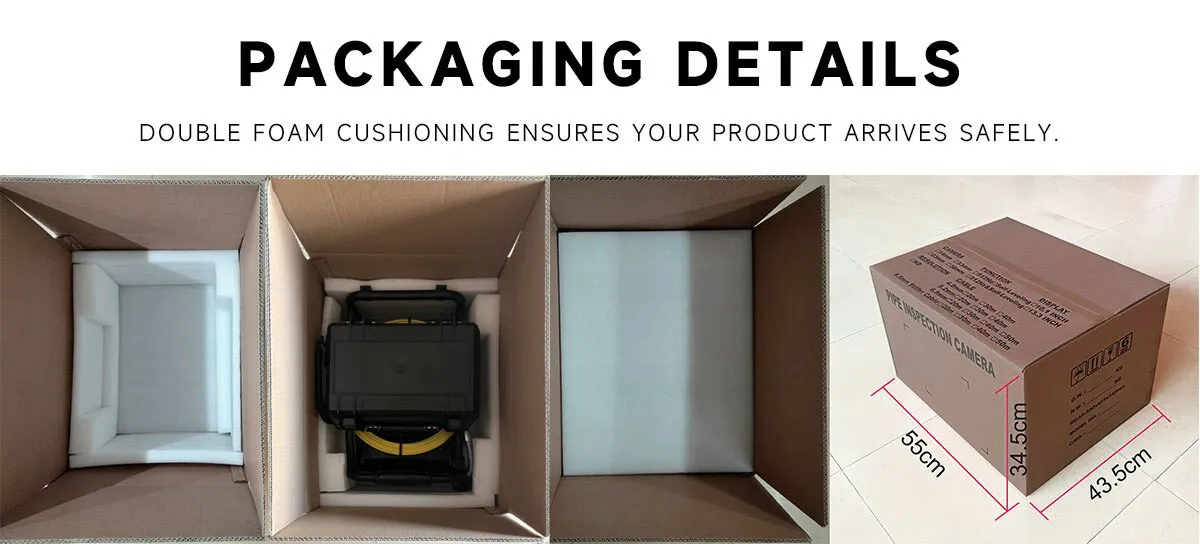

Packaging & Delivery

Package Size
55.00cm * 43.50cm * 34.50cm
Package Gross Weight
13.300kg
⌨️

Keyboard Input Parameters

Input LanguageEnglish
Maximum page count9 pages
Character count per page500
Character hidingOne click hide and display all characters
Keyboard compatibilityCompatible with specified PC Bluetooth keyboard
Length meterbuilt-in
Meter toleranceMaximum(± 10cm+0.5%)
Meters and feetMeter/foot/closed
📷

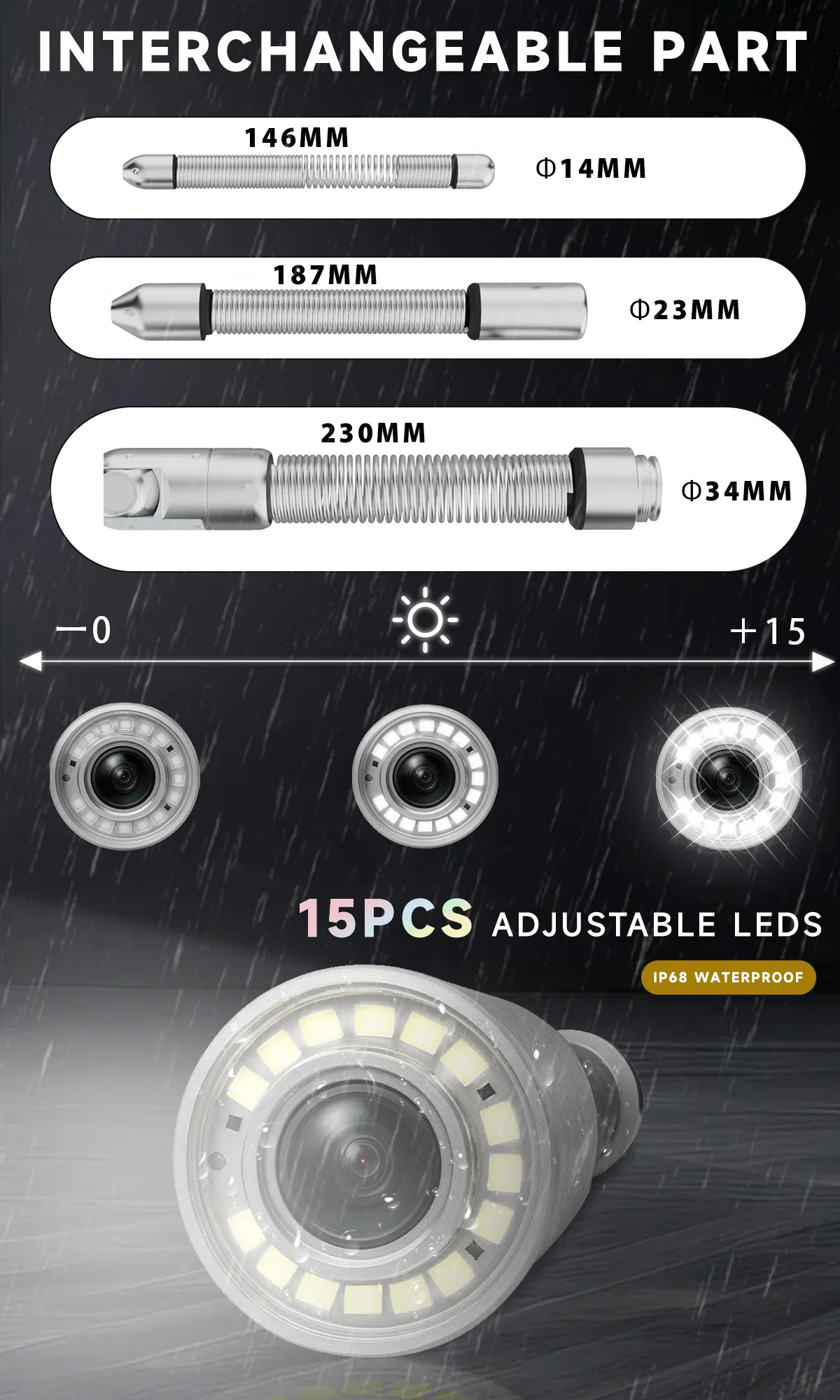

Camera Parameters - 23mm Camera

Sensor1/3"CMOS
ResolutionAHD1920x1080
Field of View(FOV)130°
Focal LengthApproximately 15cm
Depth of FieldApproximately 20cm
Camera size23mm x 51mm(Main Body)
Total camera length155mm
Lens materialSapphire glass
Housing material304# stainless steel
Light sourceBuilt-in 15 white LEDs
Waterproof depth20m water depth(camera fixed on the cable)
Power consumption55mA(LED OFF)/110mA(LED ON)
🖥️

Display Parameters

ScreenHigh-definition color LCD screen
Screen resolution1920*1080
ImageSupports image rotation
Video resolutionAHD1080P, CVBSD1
Video compression formatHigh compression, H.264
MemorySupports 64G SD card
Battery capacity7.2V 9000mAh lithium-ion battery
Operating time11-12hour(7")/10-11hour(10.1")
Charging timeApproximately 10 hours
Outperforming the Competition:
Our product isn't just an upgrade—it's a different class. From the replaceable 9000mAh battery to the true 1080P display and self-leveling camera, every detail is engineered to deliver higher efficiency, clearer visuals, and a more professional user experience. Competitor devices may look similar on the surface, but the differences become obvious the moment you start working: clearer images, faster controls, longer runtime, and smarter features that simply make your job easier.

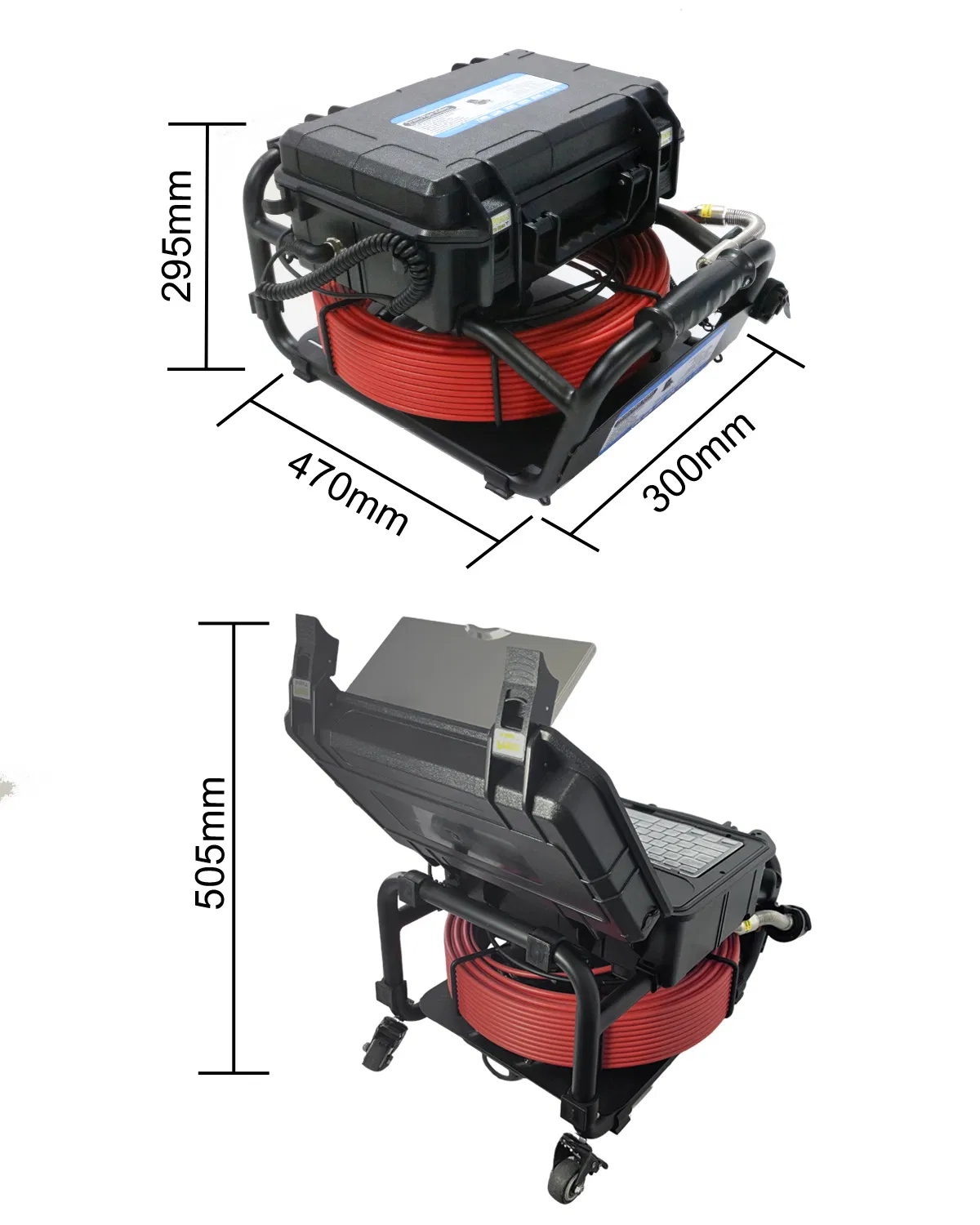

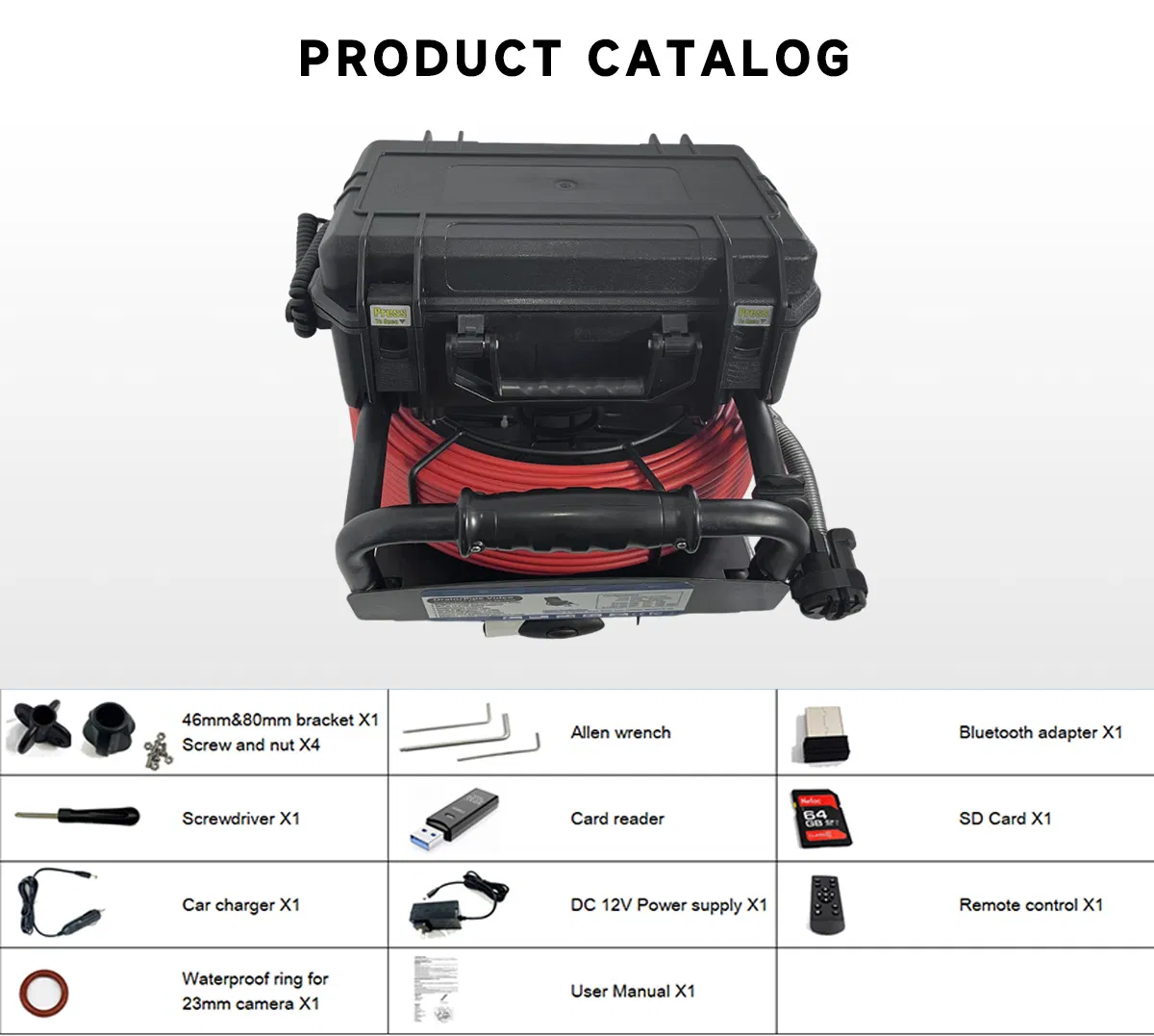

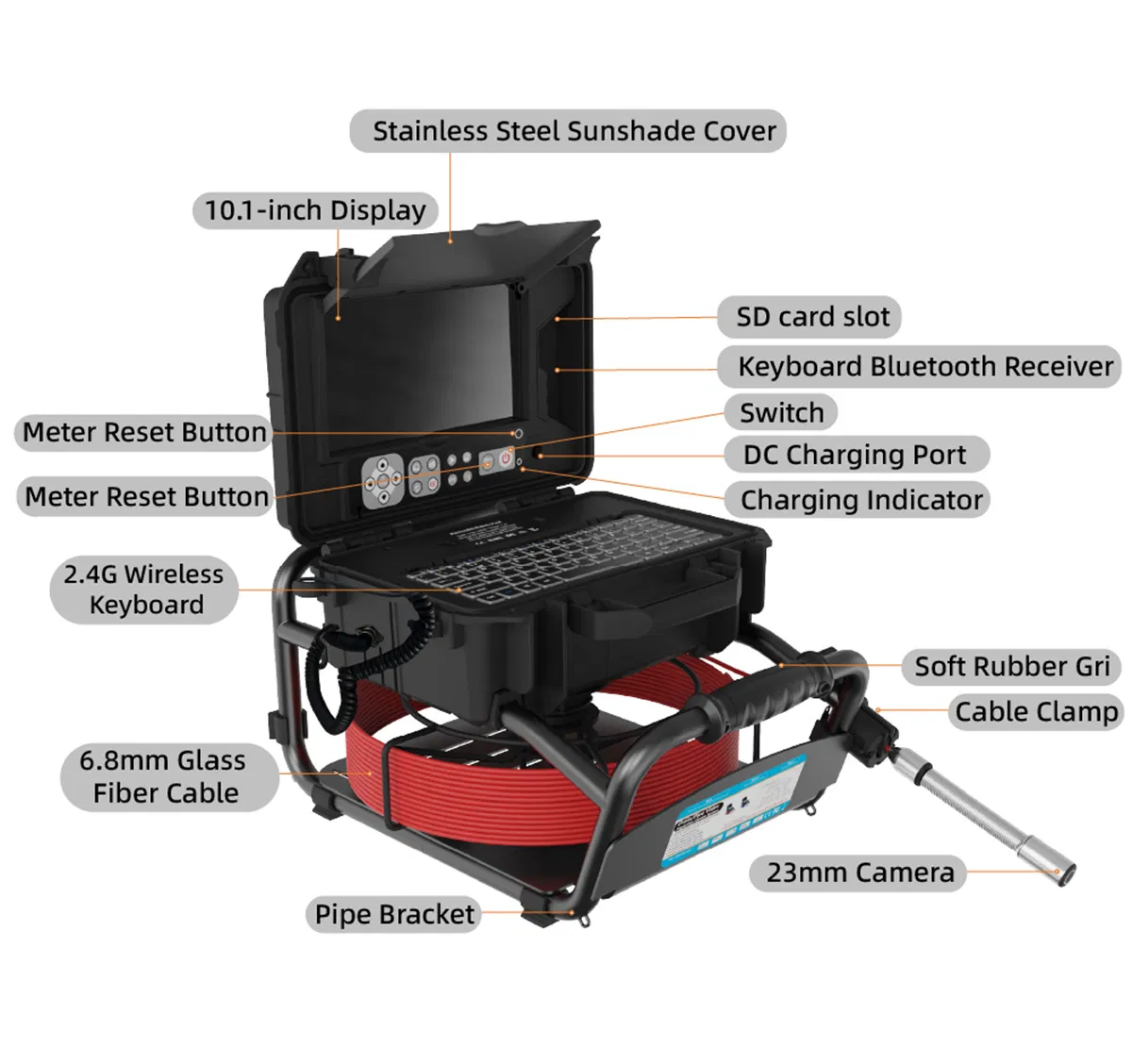

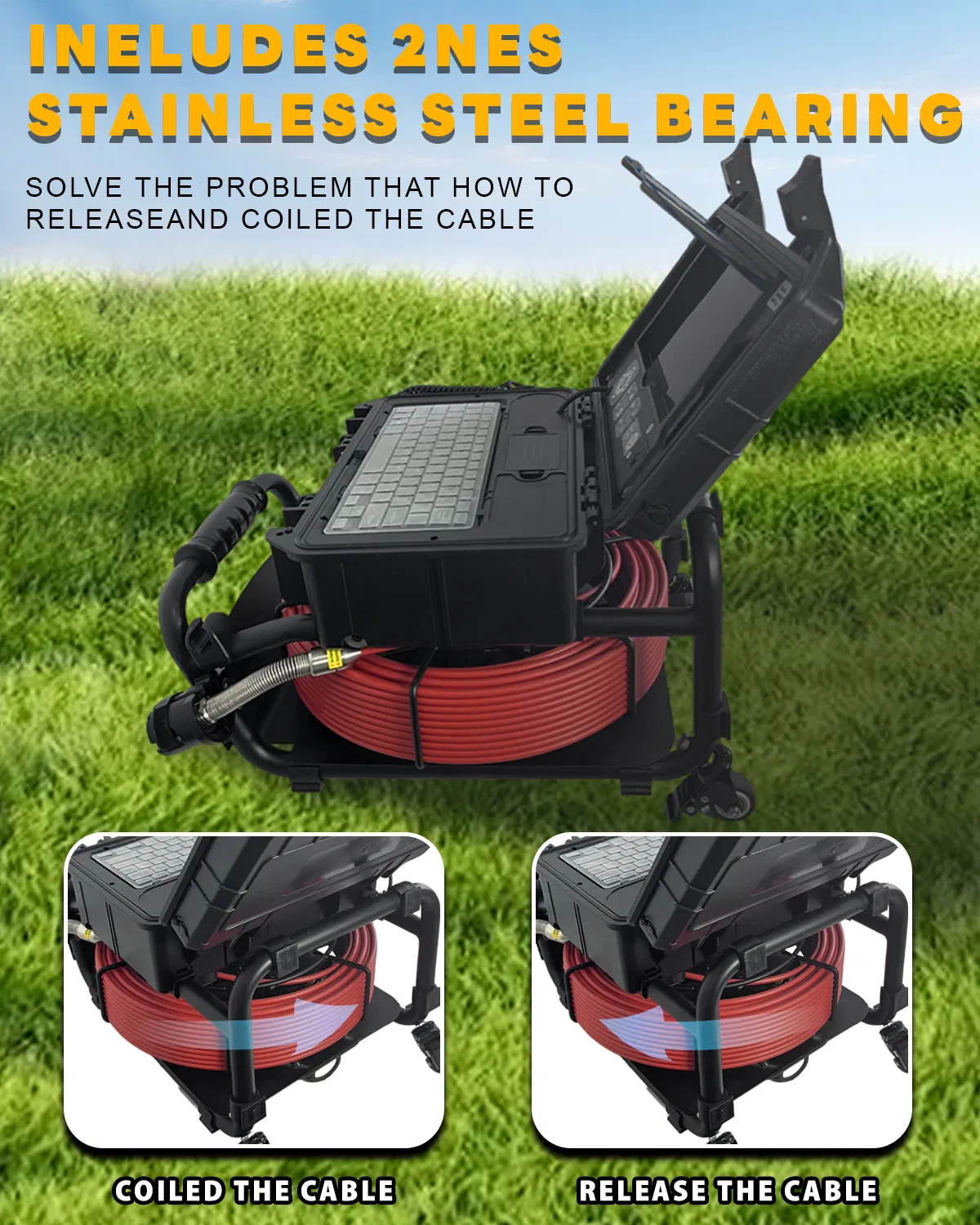

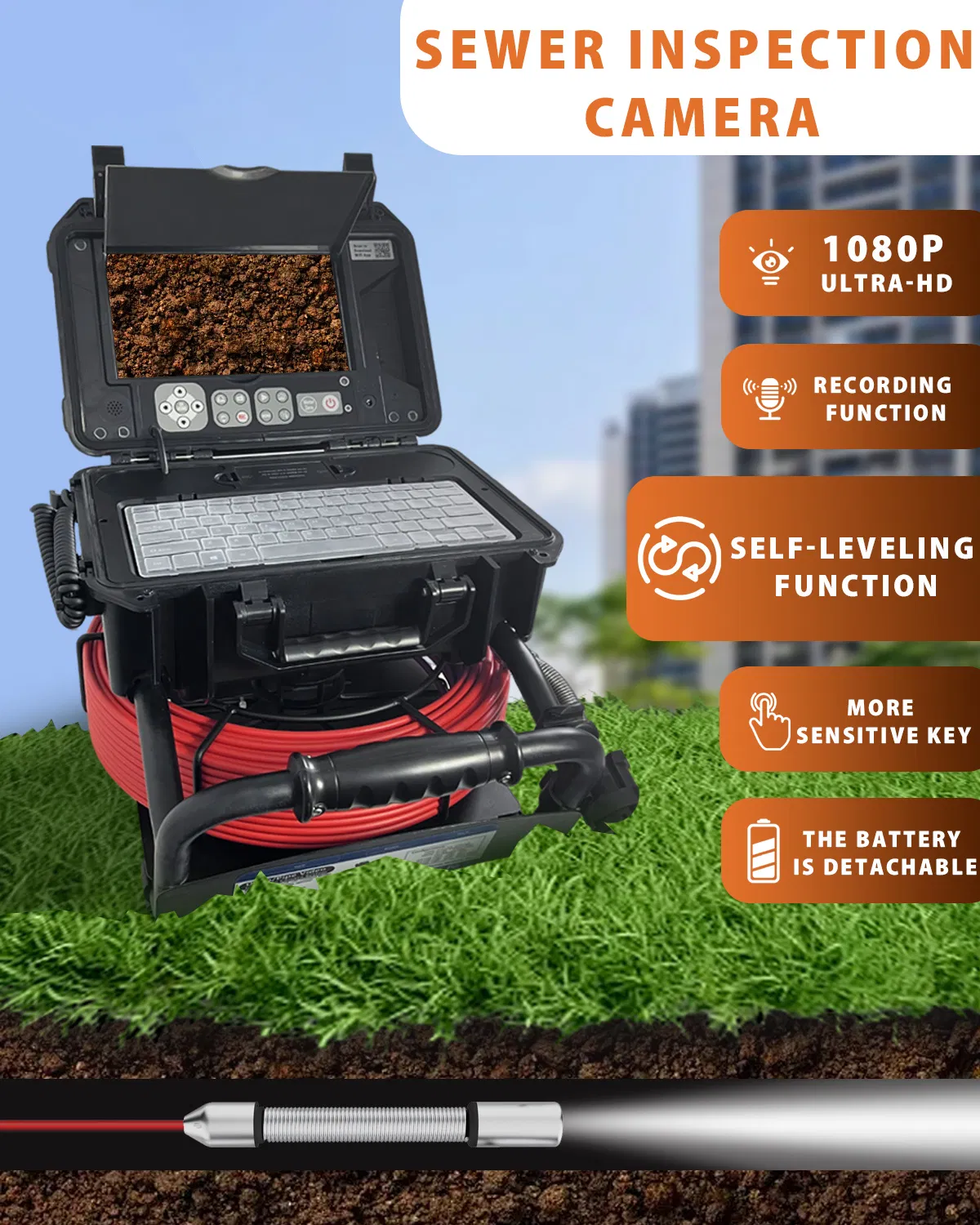

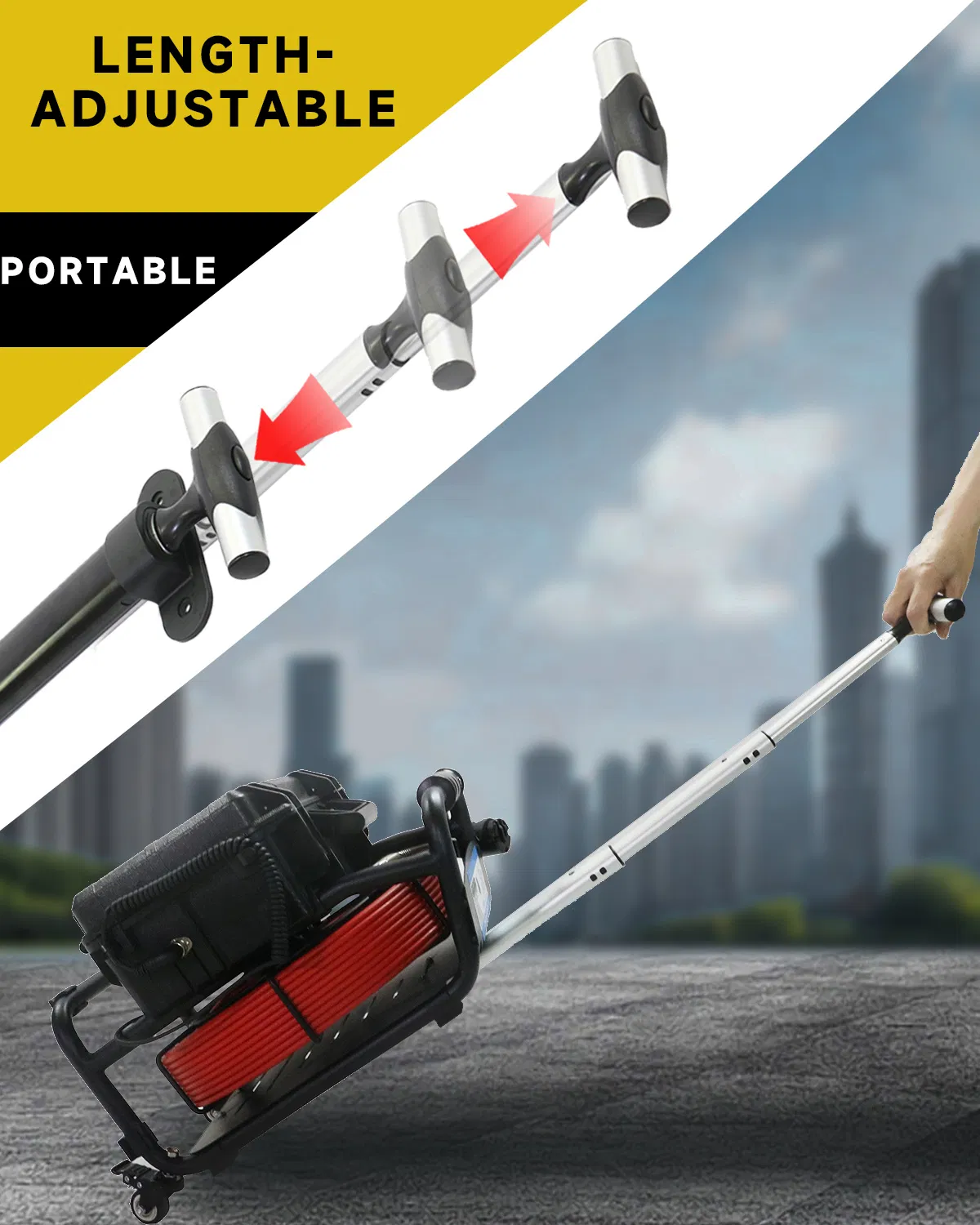

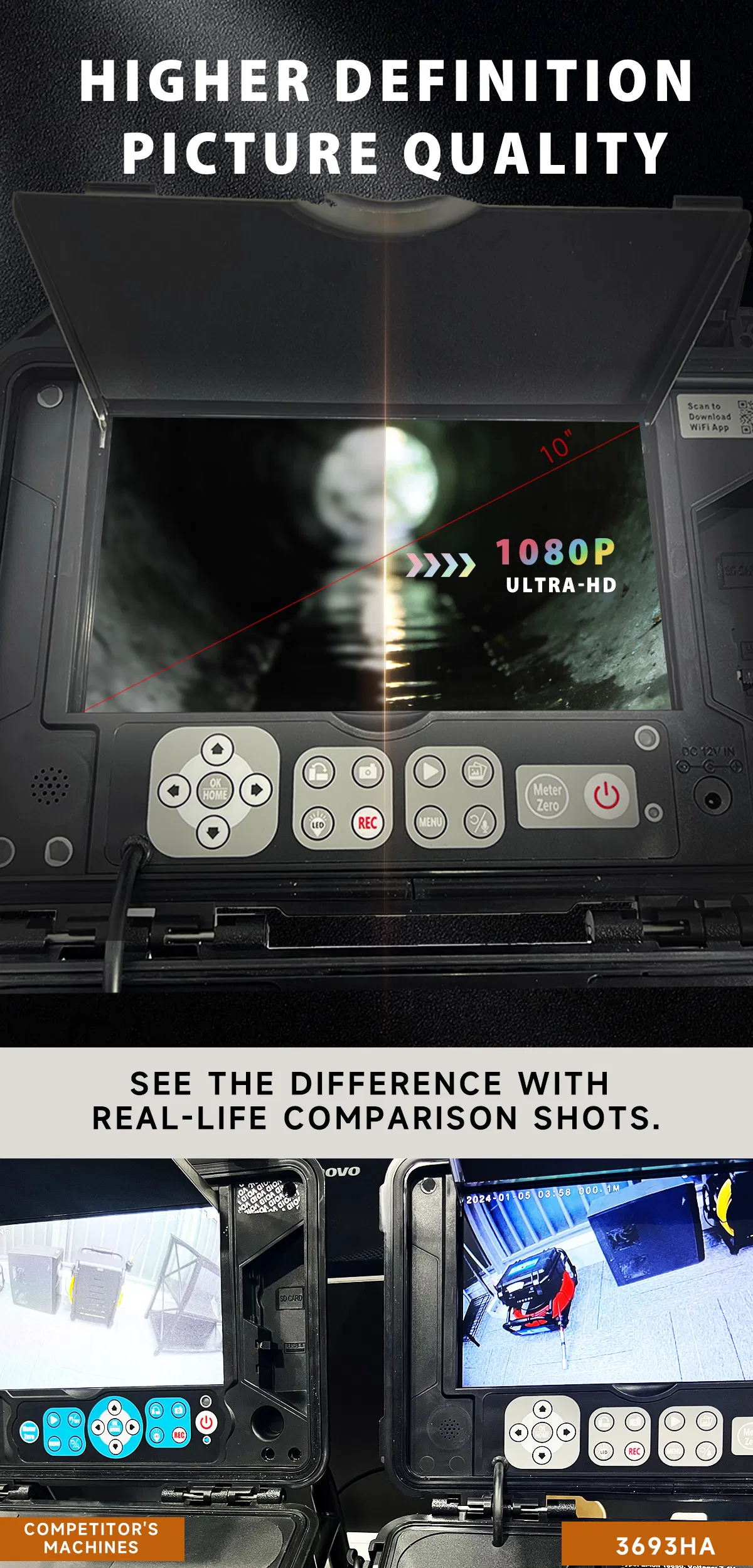

Inspection Camera View 1 Inspection Camera View 2 Inspection Camera View 3 Inspection Camera View 4 Inspection Camera View 5 Inspection Camera View 6 Inspection Camera View 7 Inspection Camera View 8 Inspection Camera View 9 Inspection Camera View 10 Inspection Camera View 11

Frequently Asked Questions

What is the maximum depth the camera can handle?
The camera is designed for professional underwater use with a waterproof depth rating of up to 20 meters when fixed to the cable.
How long can the system operate on a single charge?
Depending on the screen size, it offers 11-12 hours for the 7" model and 10-11 hours for the 10.1" model, powered by a 9000mAh lithium-ion battery.
What is the resolution of the screen and recorded videos?
The system features a high-definition color LCD screen with a resolution of 1920*1080, supporting AHD 1080P video recording.
Does the camera support length measurement?
Yes, it features a built-in length meter with a tolerance of maximum (± 10cm+0.5%) and supports switching between meters and feet.
Is the keyboard compatible with standard devices?
The system is compatible with specified PC Bluetooth keyboards for easy data entry and reporting during inspections.
What materials are used for the camera construction?
The camera body is constructed from durable 304# stainless steel, and the lens is protected by high-quality sapphire glass for maximum scratch resistance.
