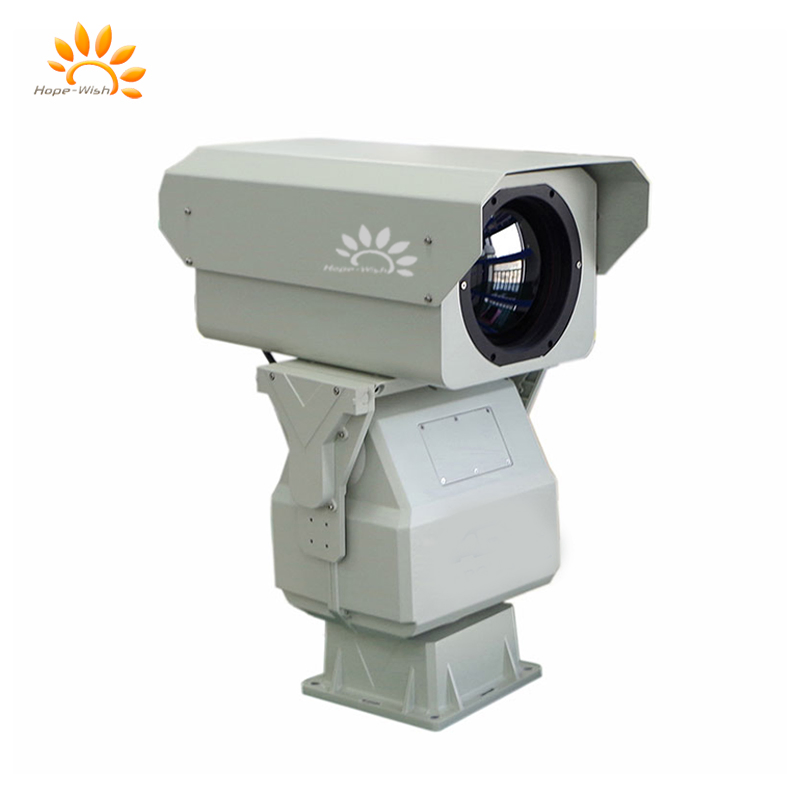

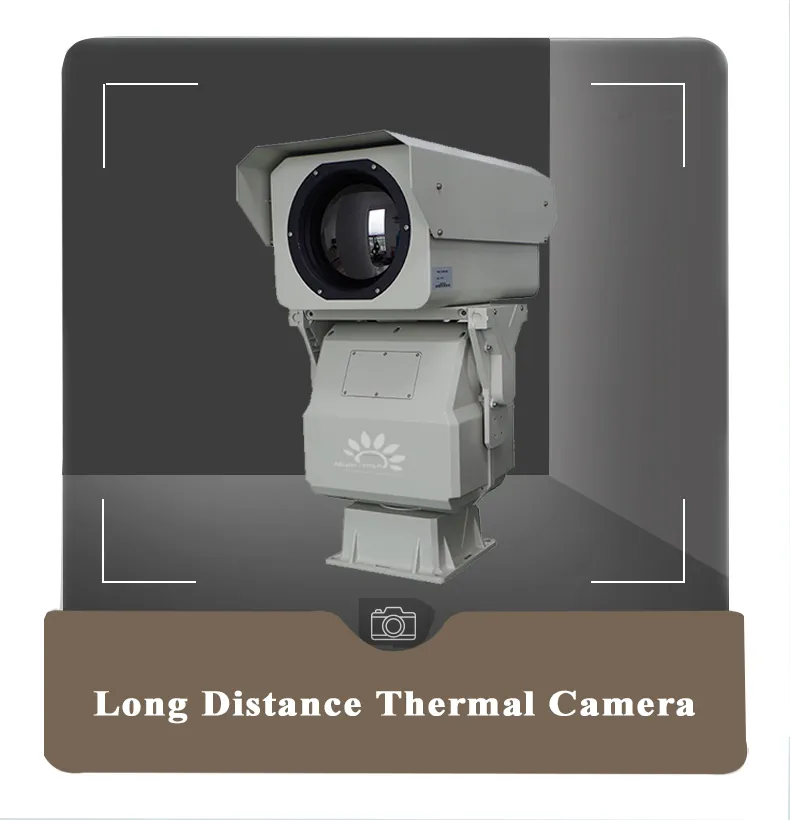

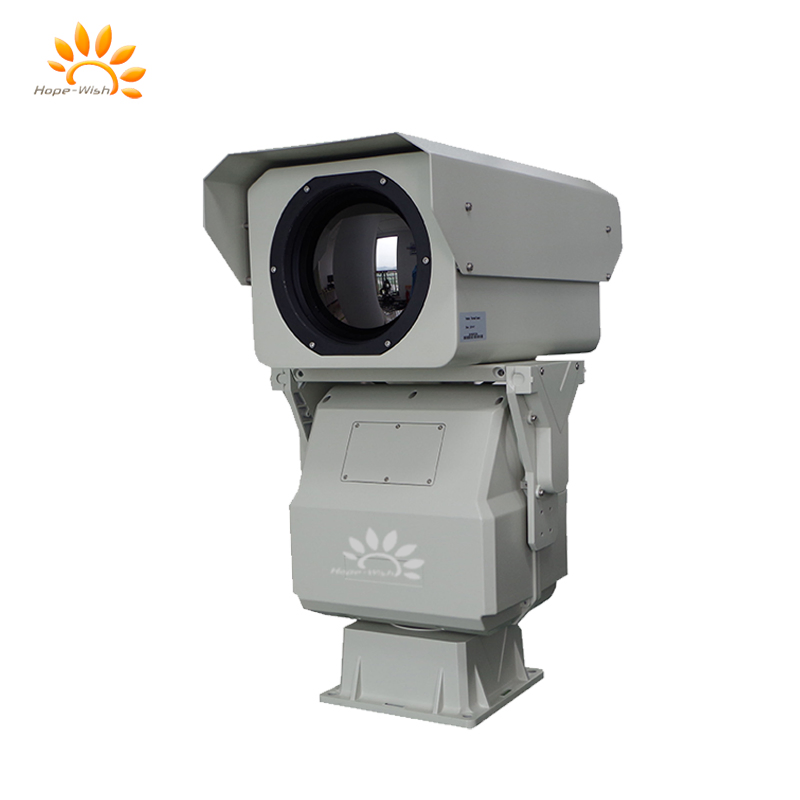

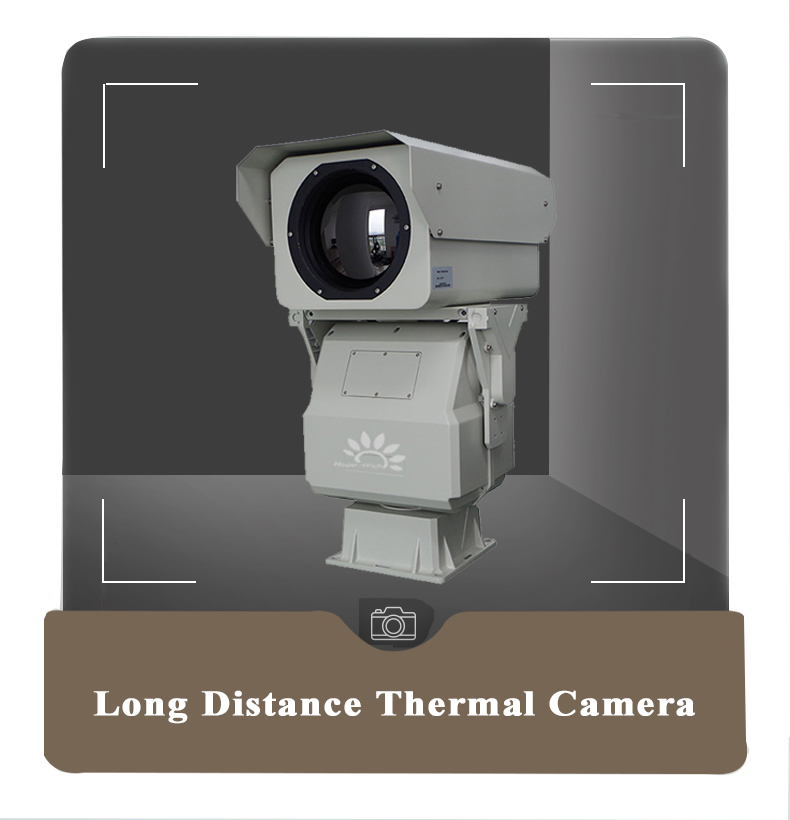

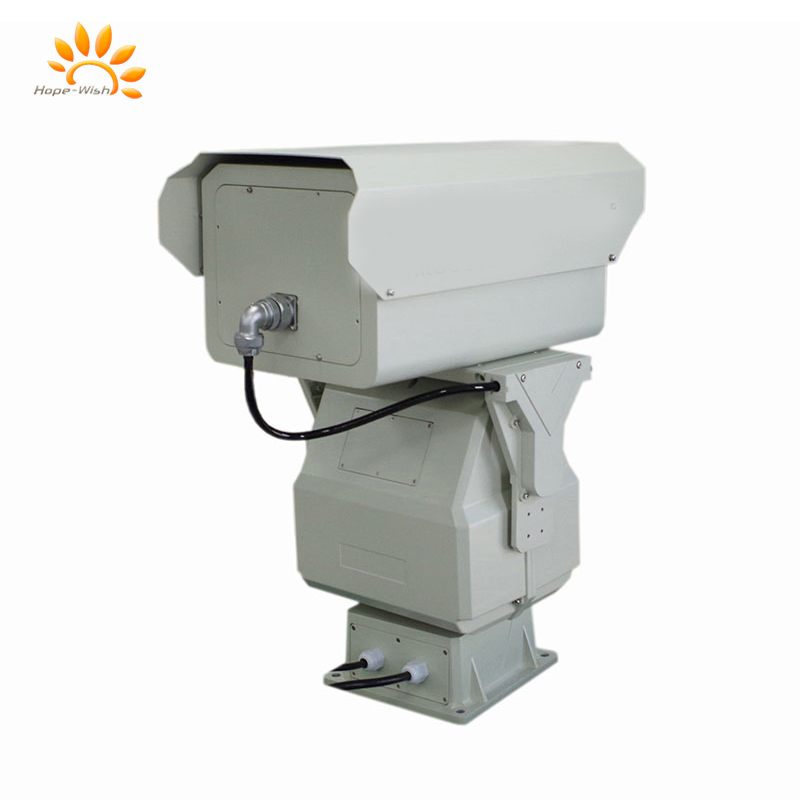

The HP-TC41021PT long range zoom thermal camera is based on the latest uncooled IR technology and continuous IR optical zoom. Users can obtain superior imaging details with 336*256/640*512 resolution, supported by advanced digital circuits and image processing algorithms.

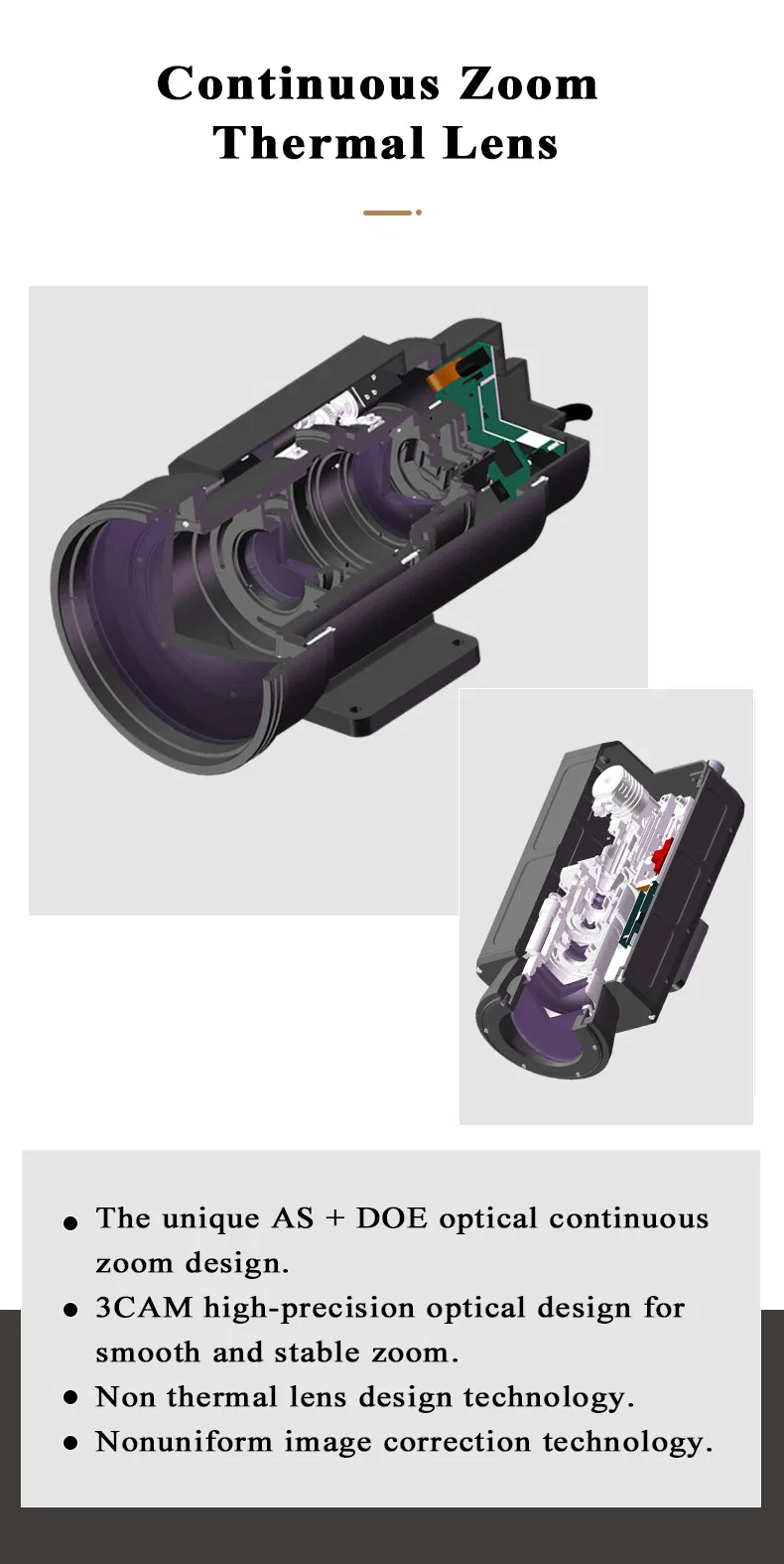

The specialized 10X optical zooming lens provides a detection distance of up to 18km, making it suitable for both seeking and watching. The integral aluminum alloy housing ensures an IP66 sealing rate, allowing the camera to perform reliably in harsh outdoor conditions.
| Model | HP-TC41021 |
| Detection Range | Vehicle: 17400m / Human: 6800m |
| Recognition Range | Vehicle: 4800m / Human: 1800m |

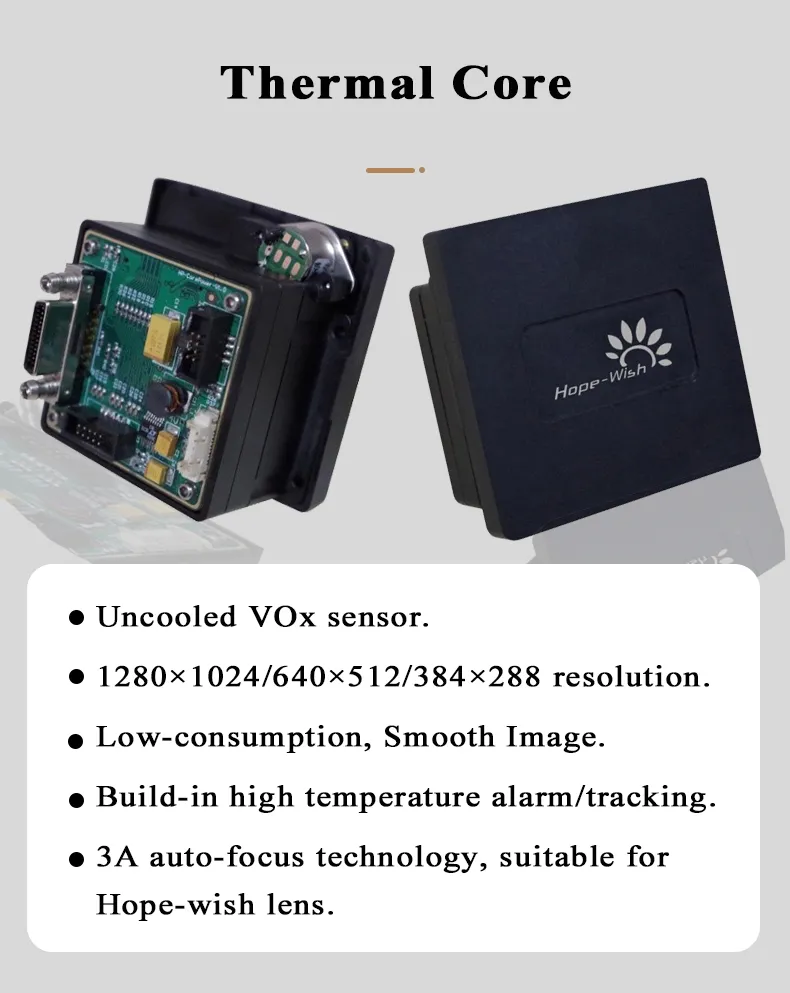

| Sensor Type | 5th generation UFPA Vox Detector |
| Resolution | 336×256 (640X512 optional) |
| NETD | 50mK (@25ºC F1.0) |
| Focal Length | 21~210mm (Motorized Zoom/Focus) |
| FOV | 16°×12° ~ 1.6°×1.2° |
| Image Processing | SDE digital processing, 10 pseudo colors, AGC, 2X Digital Amp |
| Housing | Aluminum alloy, IP66, Anti-corrosion coating |
| PTZ Control | Pan: 0~360°, Tilt: -45°~+45°, 80 Presets |
| Operating Temp | -25ºC to +55ºC |
Specializing in night vision and multispectral imaging technology, our core R&D team focuses on laser imaging and infrared thermal detection. We provide comprehensive optoelectronic system solutions for long-distance, high-definition, and intelligent monitoring in complex environments.
