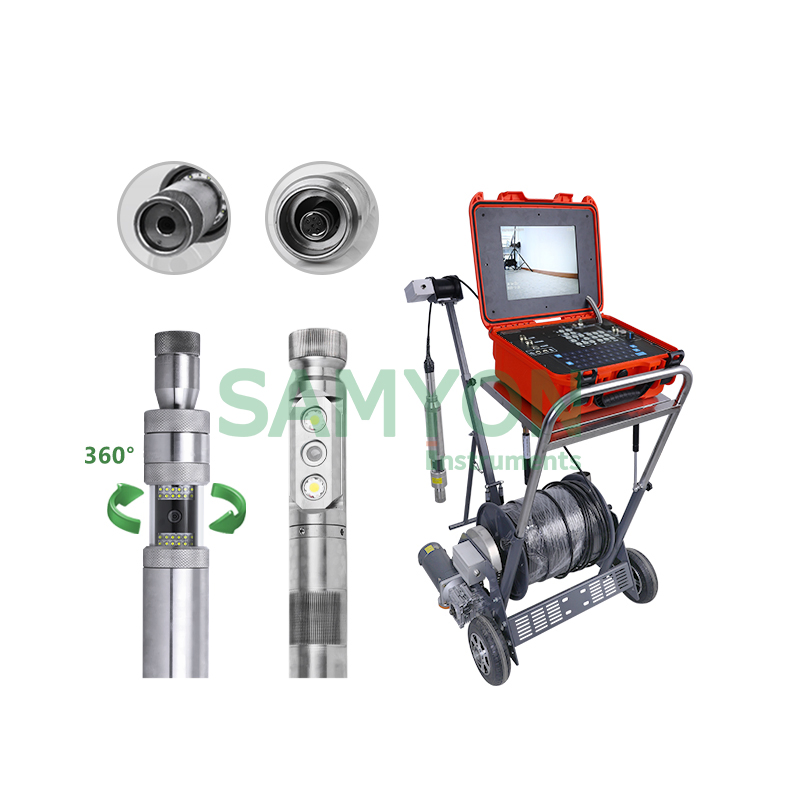

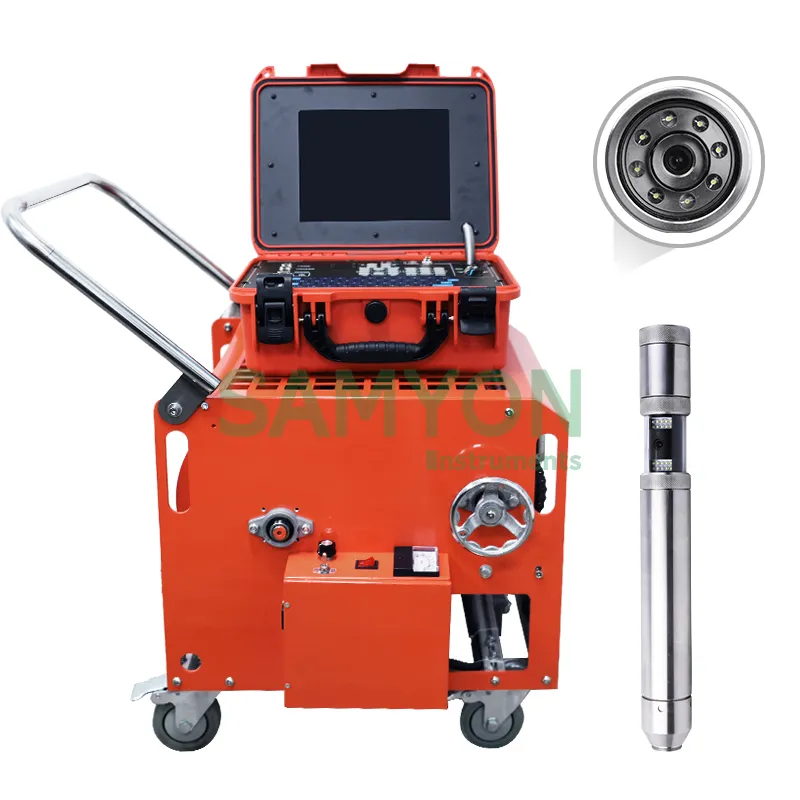

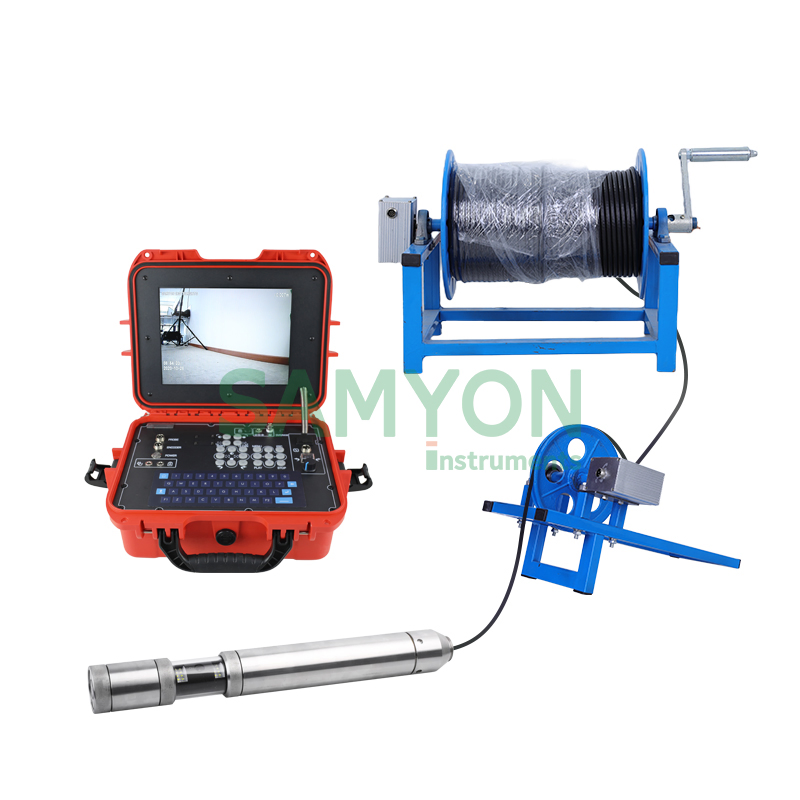

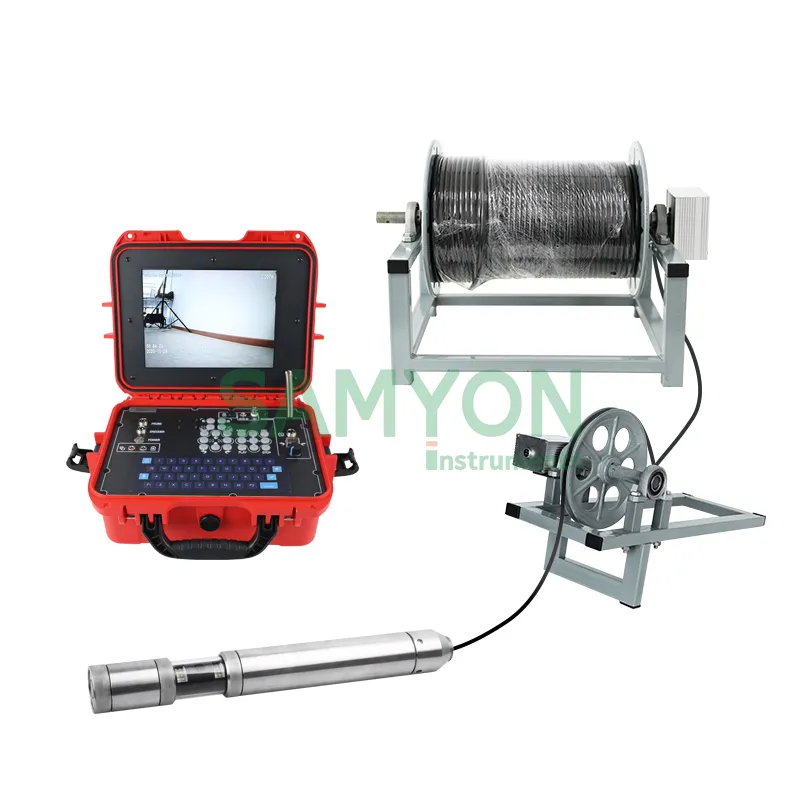

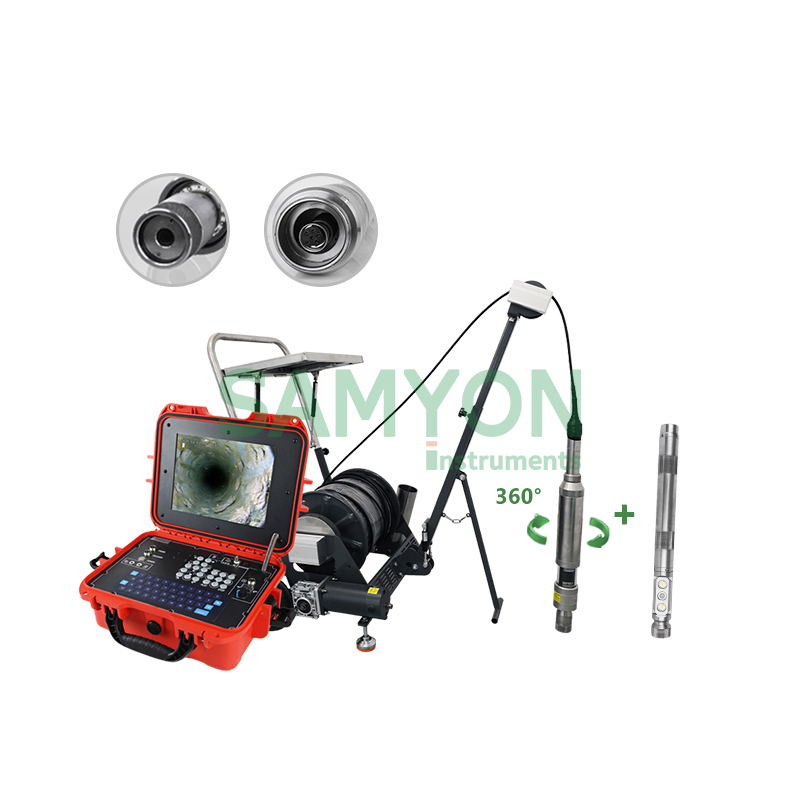

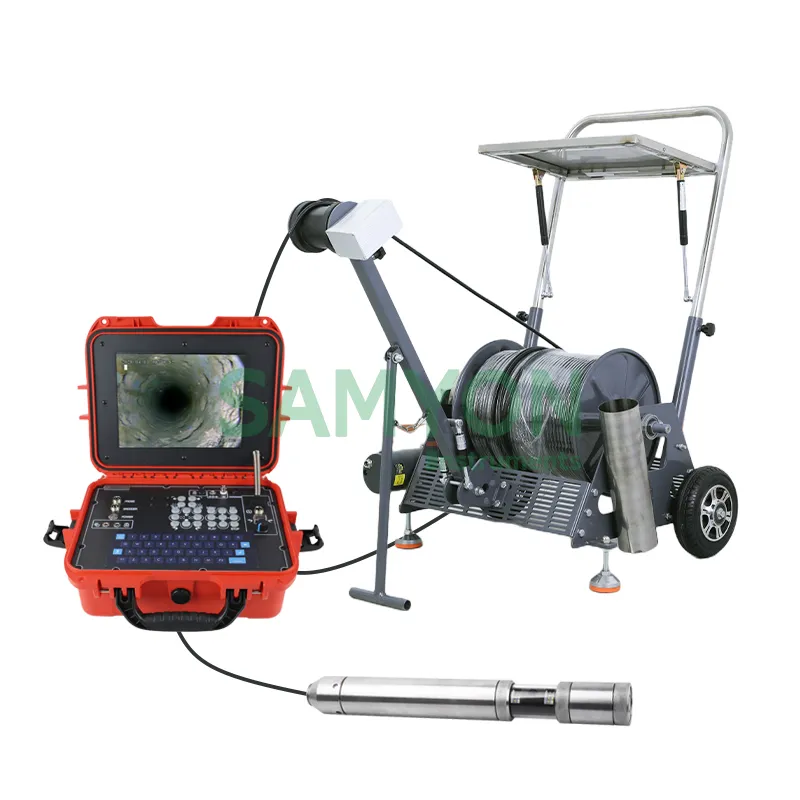

300m Borehole Inspection Camera 360 Degree Rotate Down Hole Video Camera
Borehole Camera is a special instrument for well testing, it uses the latest television camera technology, so well wall can be reflected on the monitor very clearly to the ground. The images can be saved on the disk, and it provides the reliable data for the various geological conditions in the mine.
✨ Application:
Suitable for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology. It can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole, position of fluid sand, and bedrock fissures.

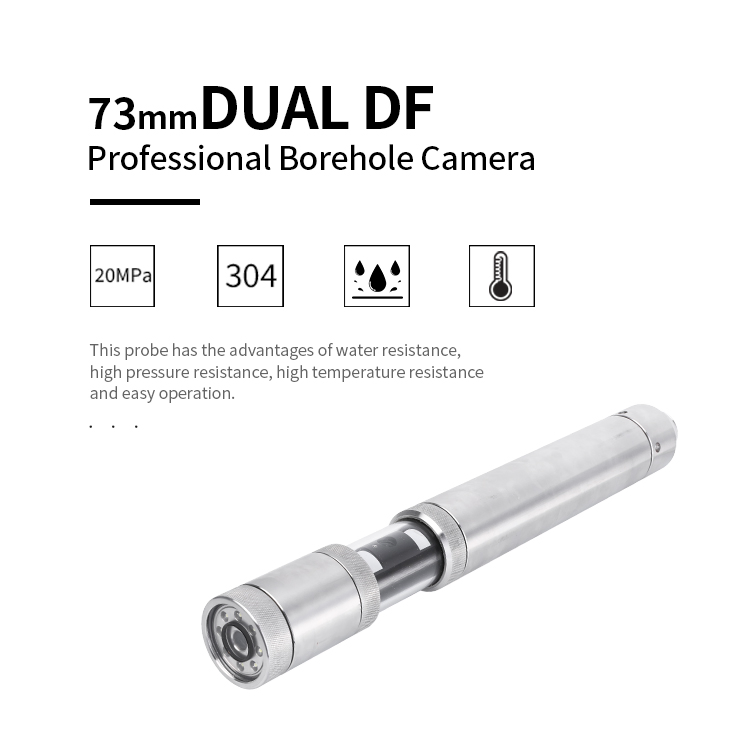

| Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm Dual F | 73mm Single | 40mm Single |
|---|---|---|---|---|---|---|
| Rotate Angle | 360 degree | Side 360° | Side 360° | Side 360° | - | - |
| Camera Number | One | Two | Two | Two | One | One |
| Material | 316L Stainless Steel | 316L Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | Steel | Steel |
| Bear Pressure | Max. 20Mpa | |||||
| Depth Meter | Digital Depth Meter | |||||

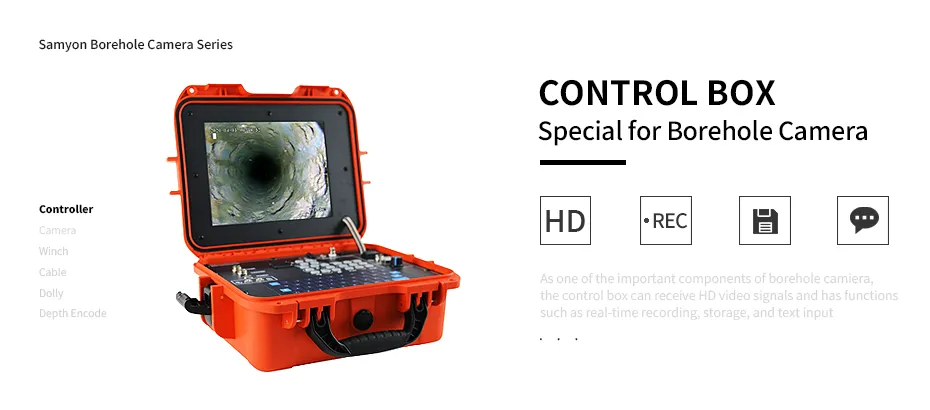

| Display | 12 inch | |||||

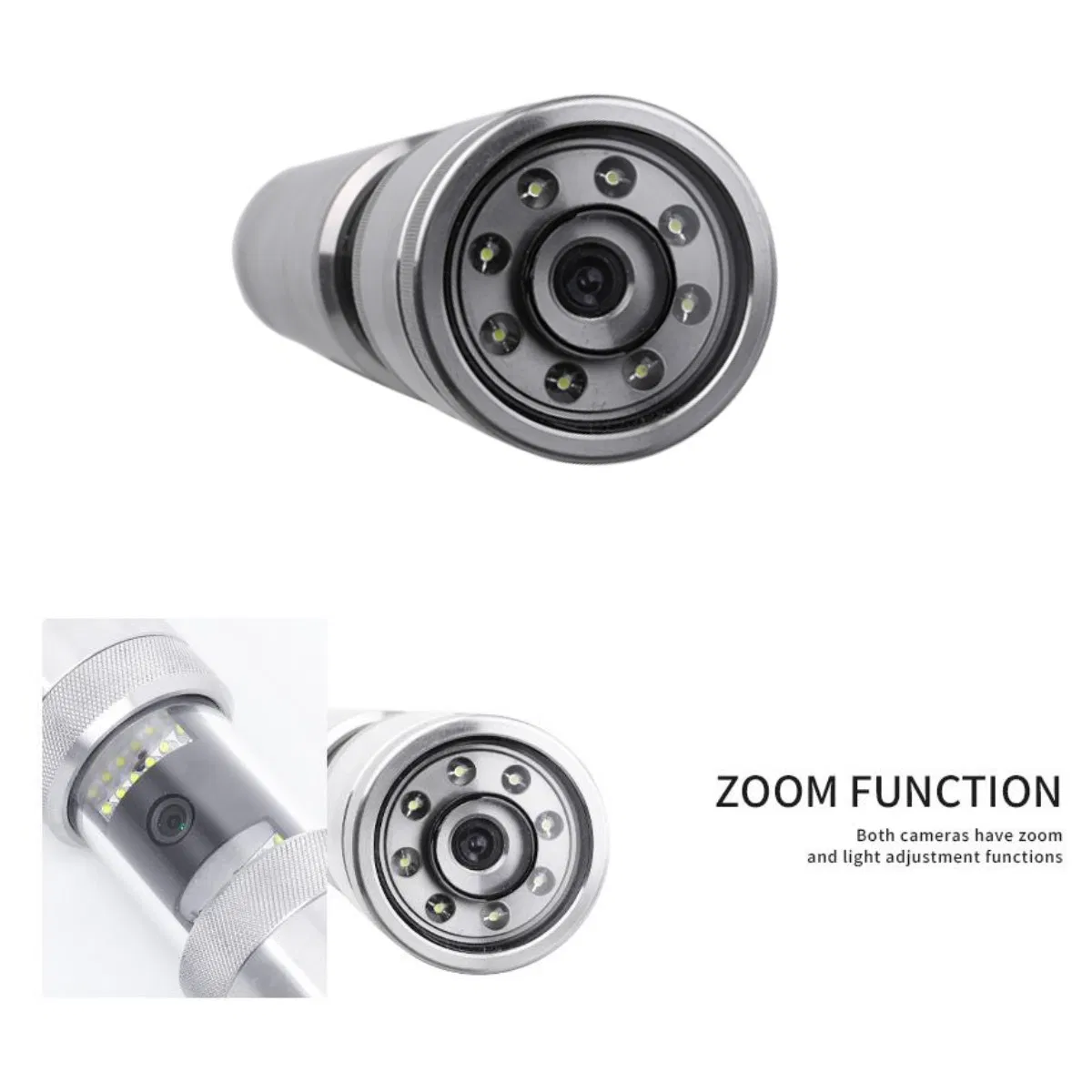

| Focus Function | Yes | NO | NO | Yes | NO | NO |
