5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
1 / 4
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder
5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder

5km 24/7 360 Degree Detection Recognition Tracking Drone Thermal Imaging Camera with Rangefinder

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
CQ-DMA-CTVC690C110-20100D-5LRF
Type
Video Camera
Sensor
CMOS
Resolution
1080P / 520tvl
Focus
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Features
Waterproof / Weatherproof
Distance
≧30m
Sensor Size
1/3 inch
Drone Tracking
5000m
Thermal Lens
90-1100mm
Visible Lens
60X
Rangefinder
5km
Rotation
0-360 Degree
🚀

Product Description

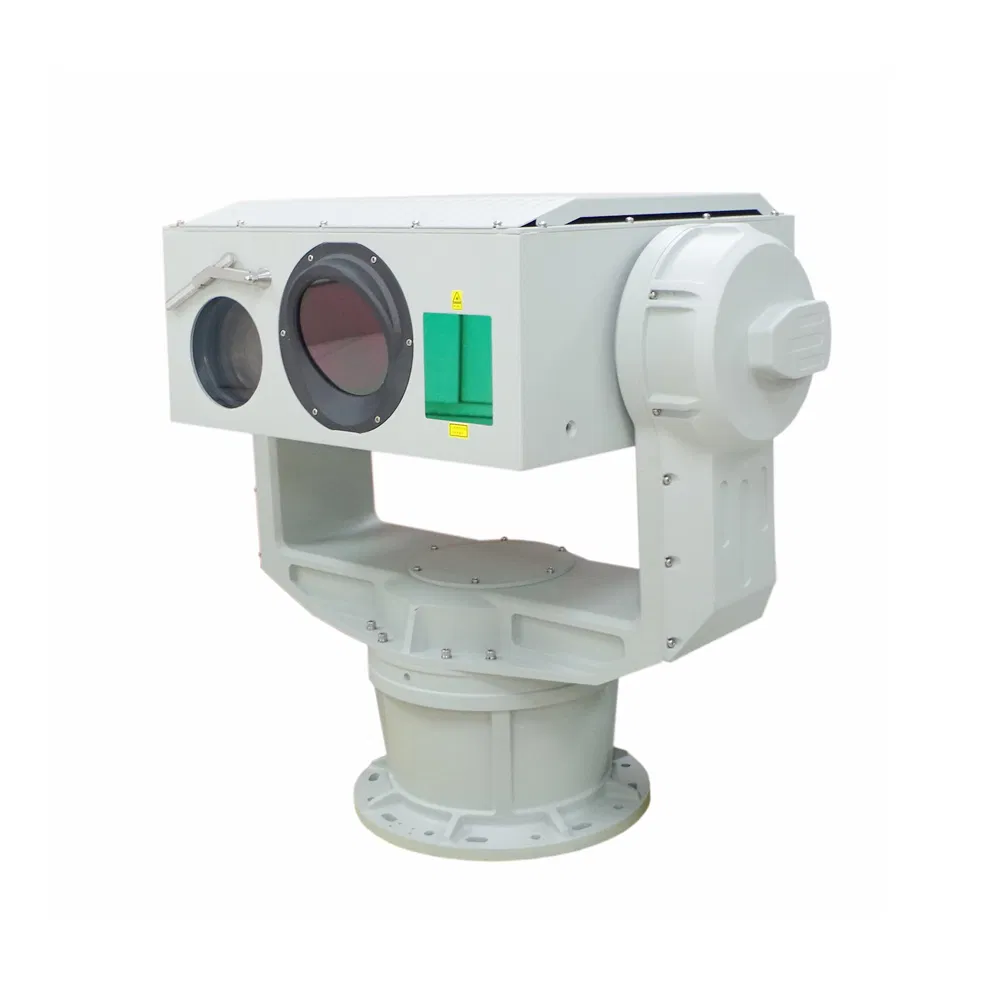

5km Tracking Drone Thermal Camera with Rangefinder
  • Integrated high-definition visible light, thermal imaging, laser illuminator, and multi-band detection for superior day/night monitoring.
  • Rapid performance with 80°/s turning speed and 100°/s² acceleration, perfect for capturing fast-moving targets.
  • Full 360° azimuth and -90°~+90° pitch rotation range for zero-dead-angle coverage.
  • High-precision positioning (0.02°) using advanced angle encoders and closed-loop servo control systems.
  • Advanced target acquisition algorithms ensure stable tracking of targets during direction changes and fast flight.
  • Rugged IP66 protection with high-strength aluminum alloy, suitable for harsh wild environments.

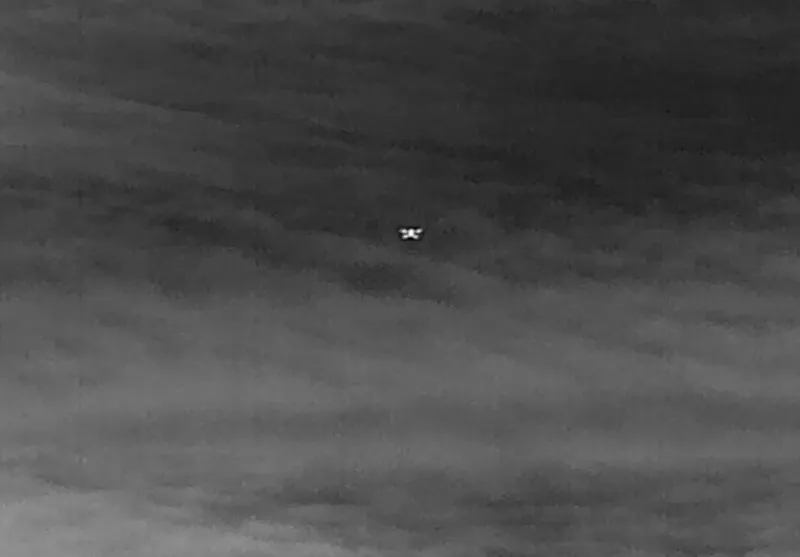

Thermal Imaging Camera View 1

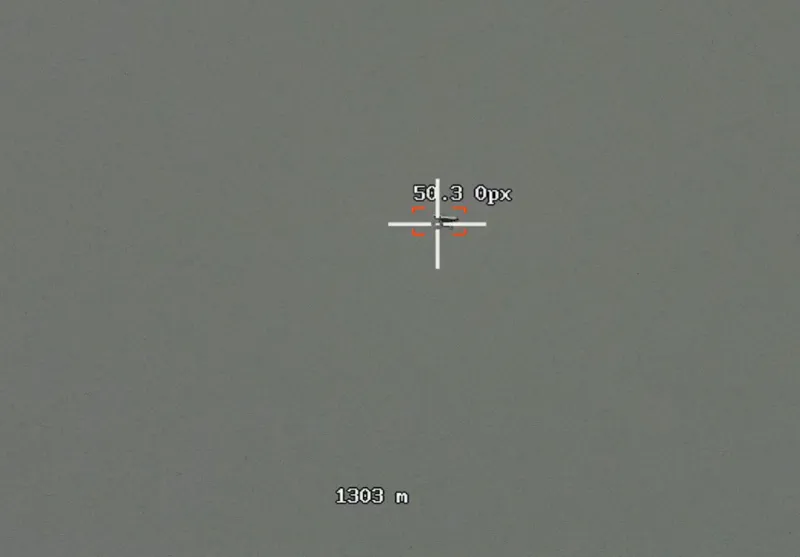

Thermal Imaging Camera View 2

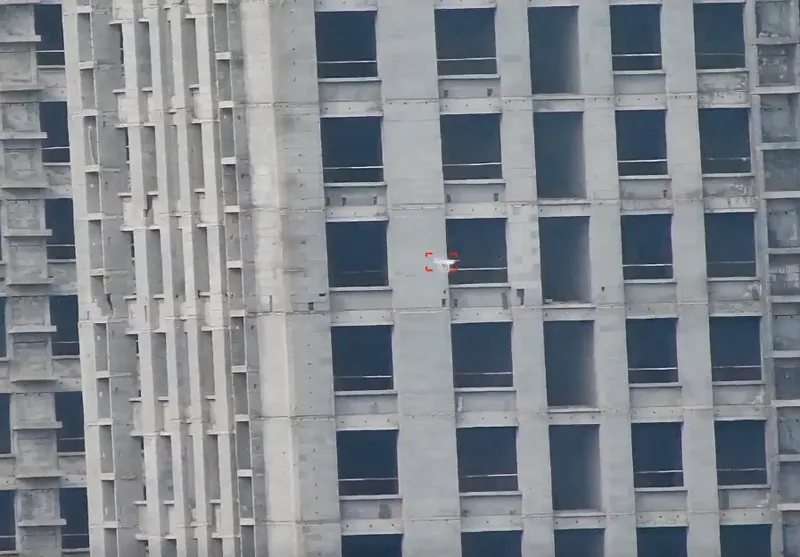

Thermal Imaging Camera View 3
⚙️

Technical Parameters

DRI Distance (Vehicle 2.3x2.3m) Detection: 22km; Recognition: 15km; Identification: 8km
Thermal Sensor Type Cooled Focal Plane Array (FPA) MCT HgCdTe detector
Resolution 640x512, 15μm Pixel Size
NETD ≤20mK
Thermal Lens 90-1100mm 12X Motorized Zoom, F5.5
Visible Camera Sensor 1/1.8'' Star Level CMOS, 1920x1080
Lens 16.7~1000mm 60X Optical Zoom
Laser Rangefinder Effective Range: 5km
PTZ Rotation Pan: 0~360°, Tilt: -90°~+90°
Accuracy 0.02° high precision
Environmental IP66, Operating Temp: -25ºC~+55ºC
📦

Packaging & Delivery

Package Size
80.00cm * 100.00cm * 70.00cm
Gross Weight
105.000kg
Transport
Carton with high-strength protection
❓

Frequently Asked Questions

What is the maximum drone tracking distance?
The system is capable of tracking drones at a distance of up to 5000 meters (5km) using both thermal and visible light sensors.
How does the camera perform in total darkness?
It utilizes a high-sensitivity Cooled MCT HgCdTe thermal detector with a spectral range of 3.7~4.8μm, allowing for clear imaging and detection in complete darkness and through smoke or fog.
Is the system protected against harsh weather?
Yes, the system is IP66 rated, rain-proof, and dust-proof. It features a high-strength aluminum alloy housing with seawater corrosion resistance and an internal industrial defroster.
Can the PTZ rotate a full circle?
Yes, the PTZ supports a continuous 0-360° azimuth rotation and a -90° to +90° pitch range, providing full-dimensional coverage without blind spots.
Does it support automatic focusing?
Absolutely. The camera is equipped with a high-performance image processing unit and a 3A adaptive active focusing algorithm to achieve precise and fast automatic focusing.
What kind of target detection features are included?
The system supports target intrusion detection, motion detection, hotspot alarms, radar linkage, and 3D zoom positioning for automated security monitoring.
