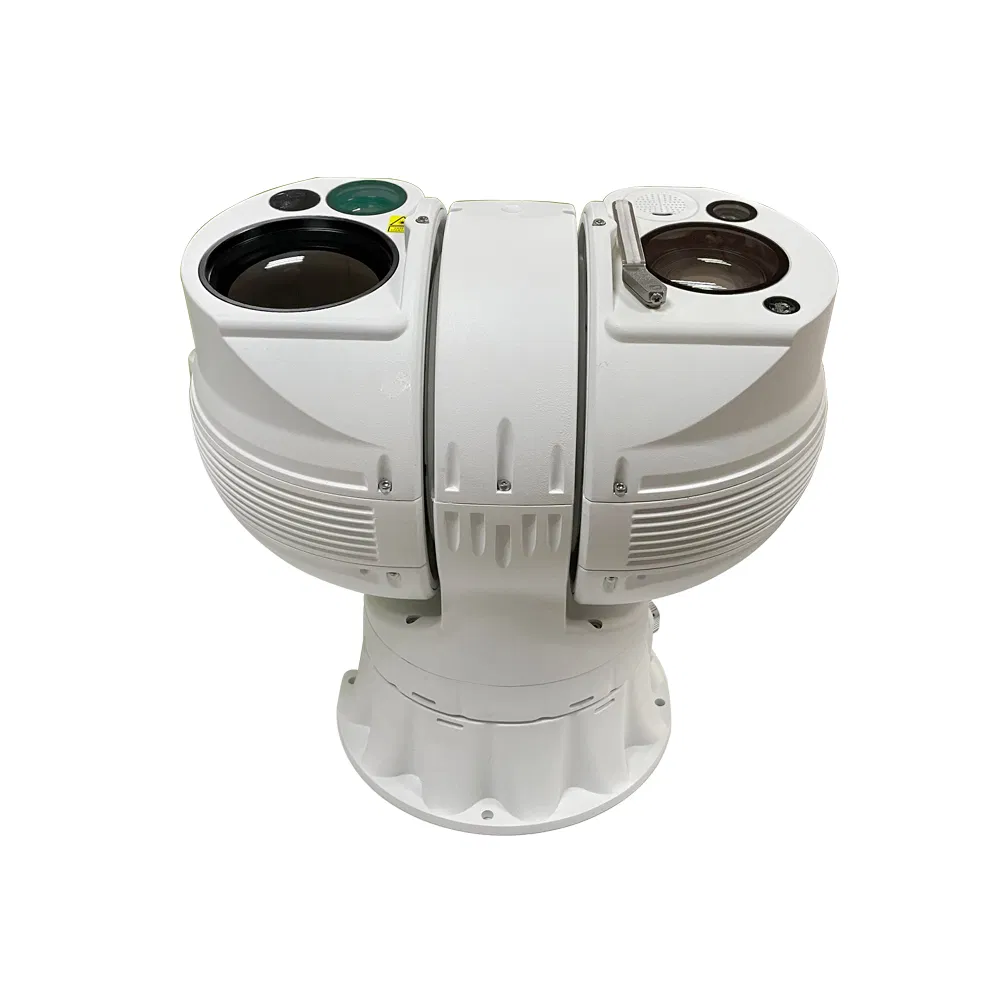

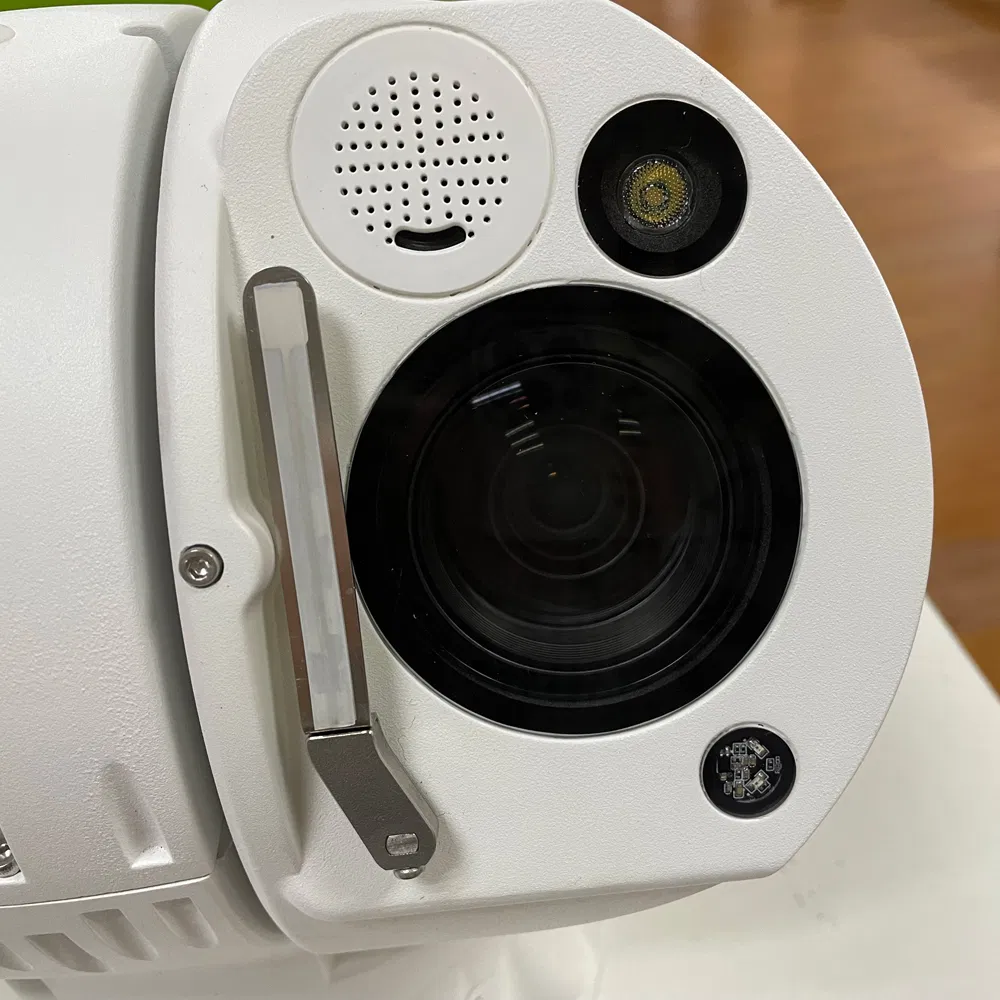

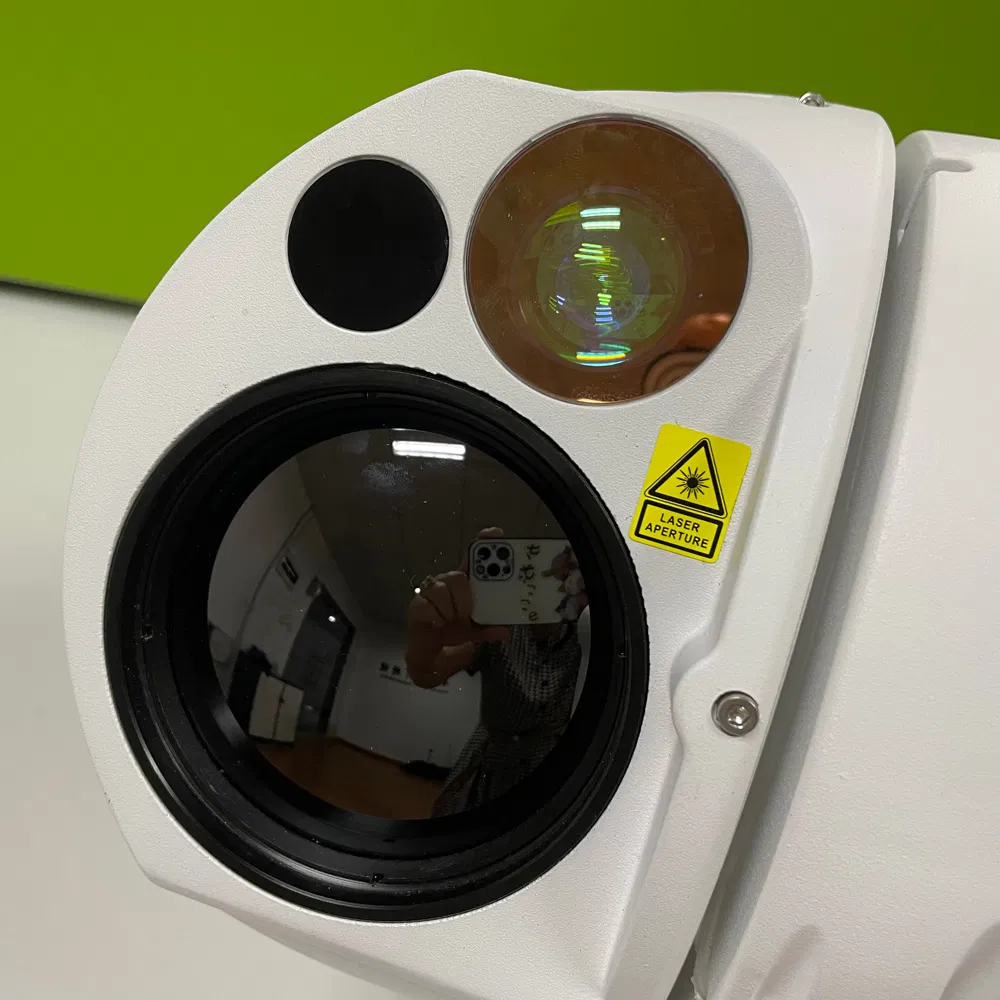

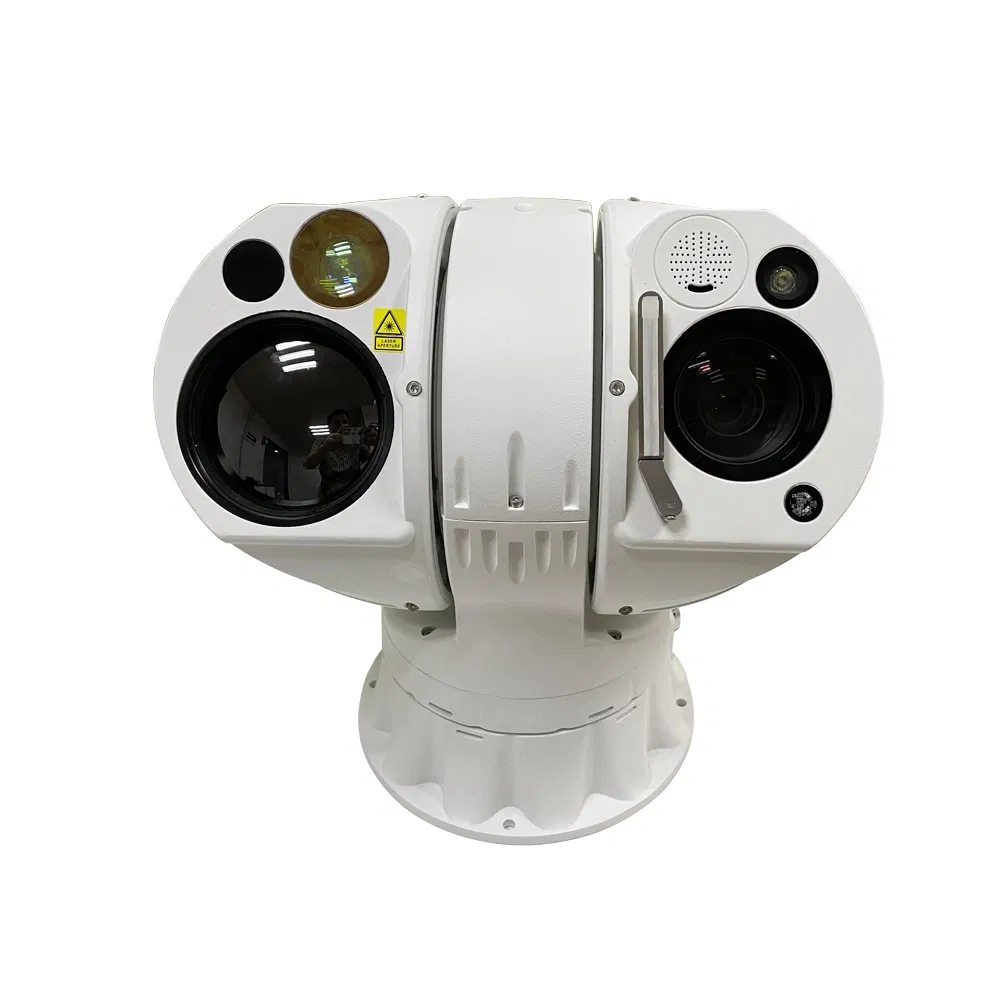

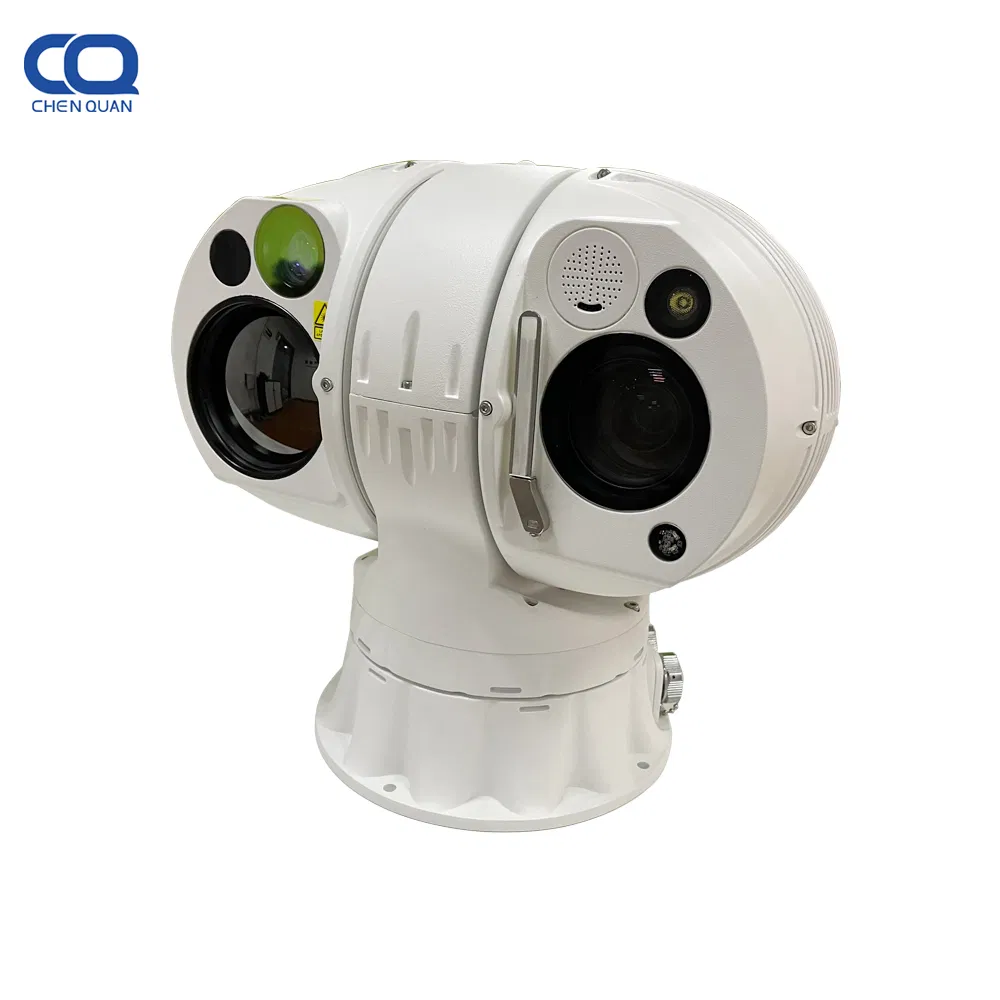

3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
1 / 5
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera
3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera

3km 360 Degree Forest Fire Detection Alarm Firefighting PTZ Thermal Camera

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
CQ-DMS10-63C00-75Z
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
640X512
Focal Length
25-75mm 3X
Certification
CE, FCC, ISO9001: 2015
Ingress Protect
IP67
Effective Distance
≧30m
Feature
Waterproof, High Definition, IP67 Protection
P

Product Gallery

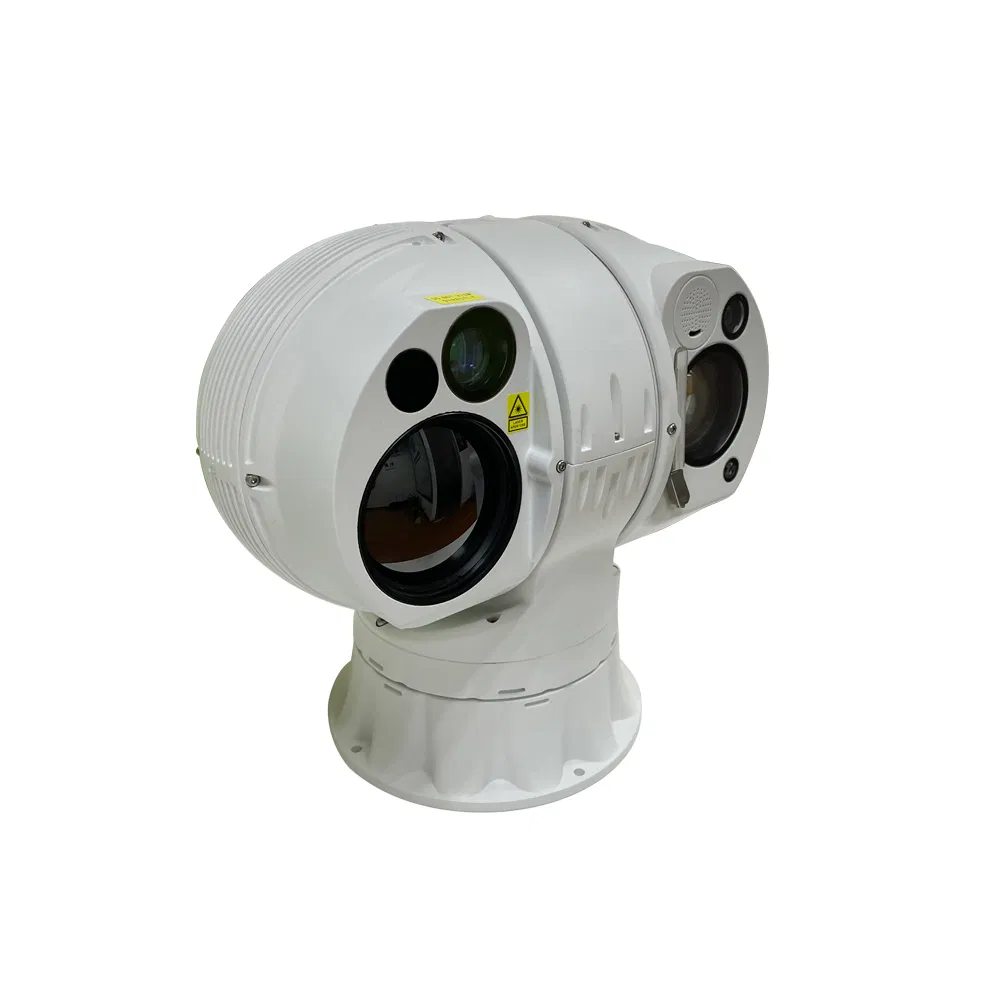

Thermal Camera View 1

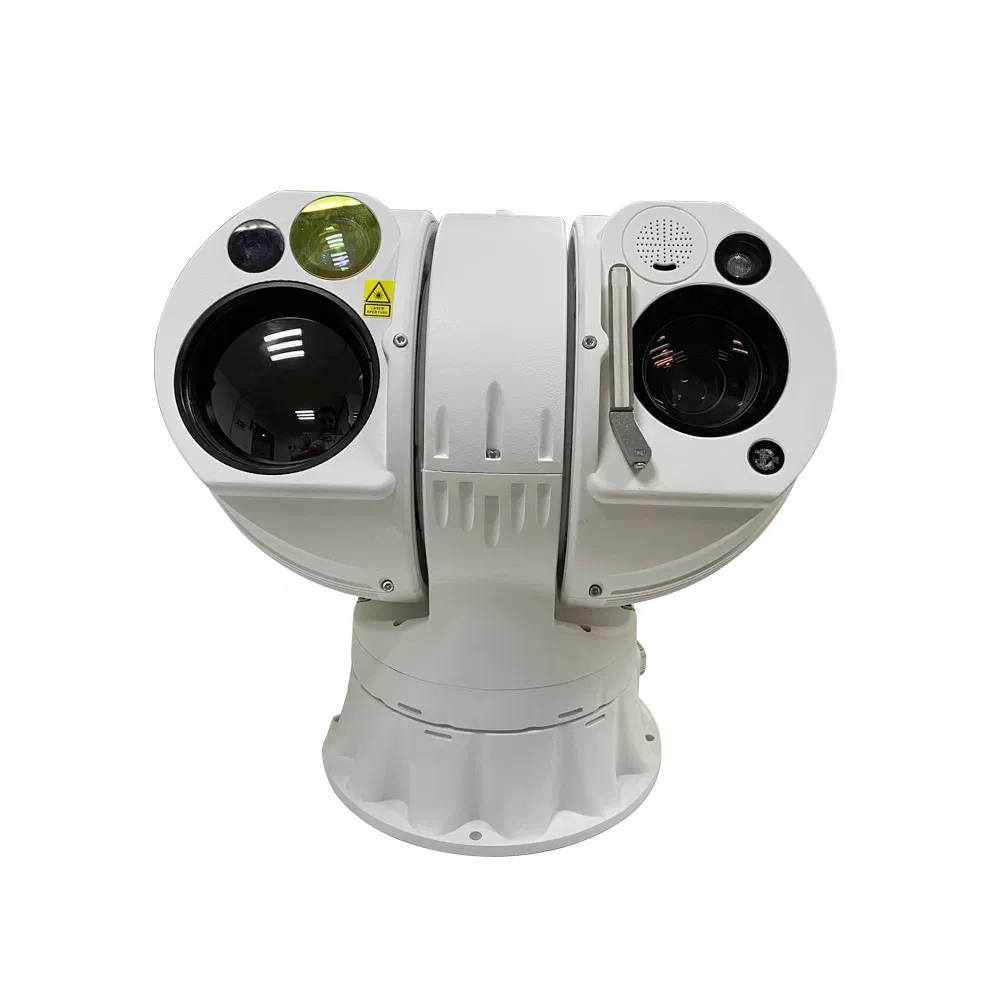

Thermal Camera View 2

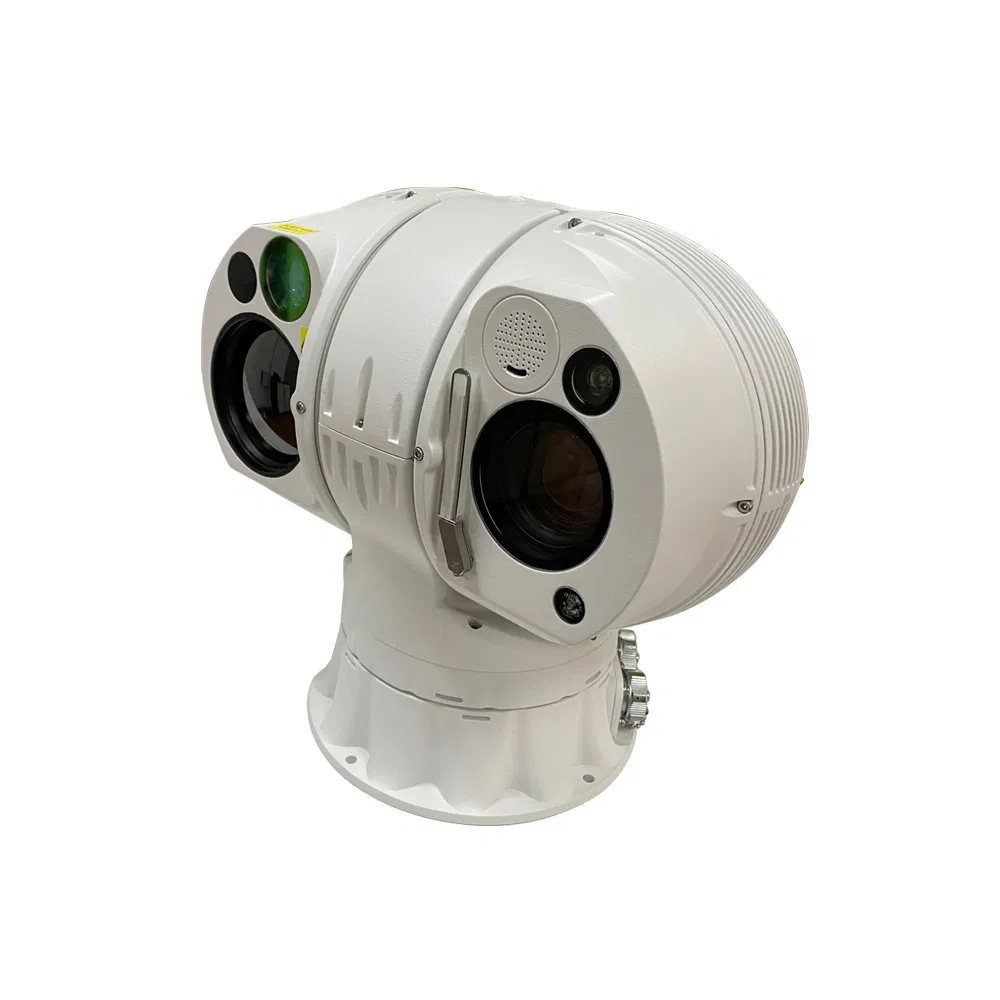

Thermal Camera View 3

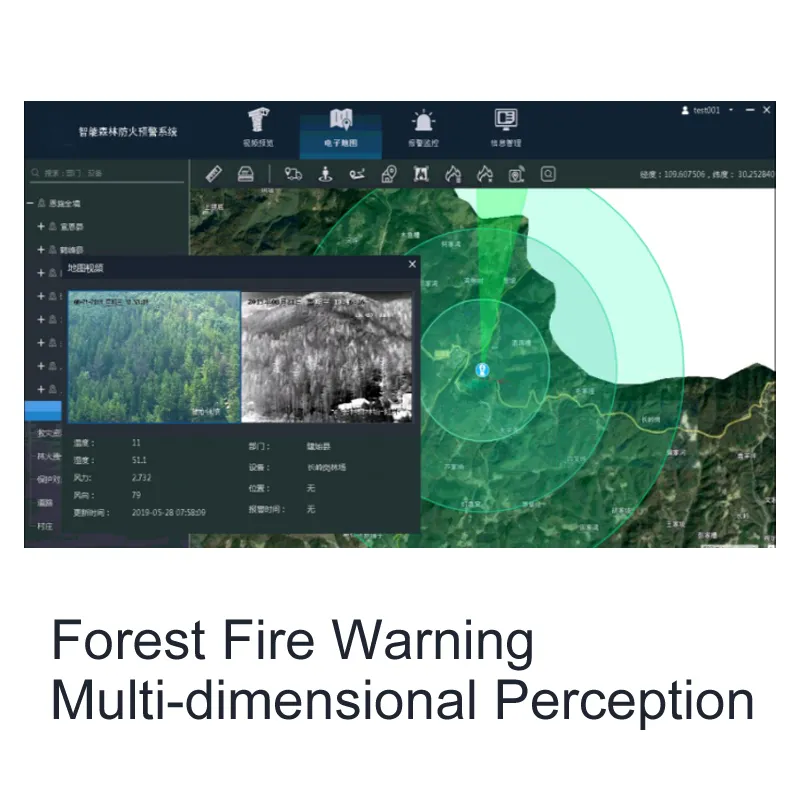

Technical Design 1

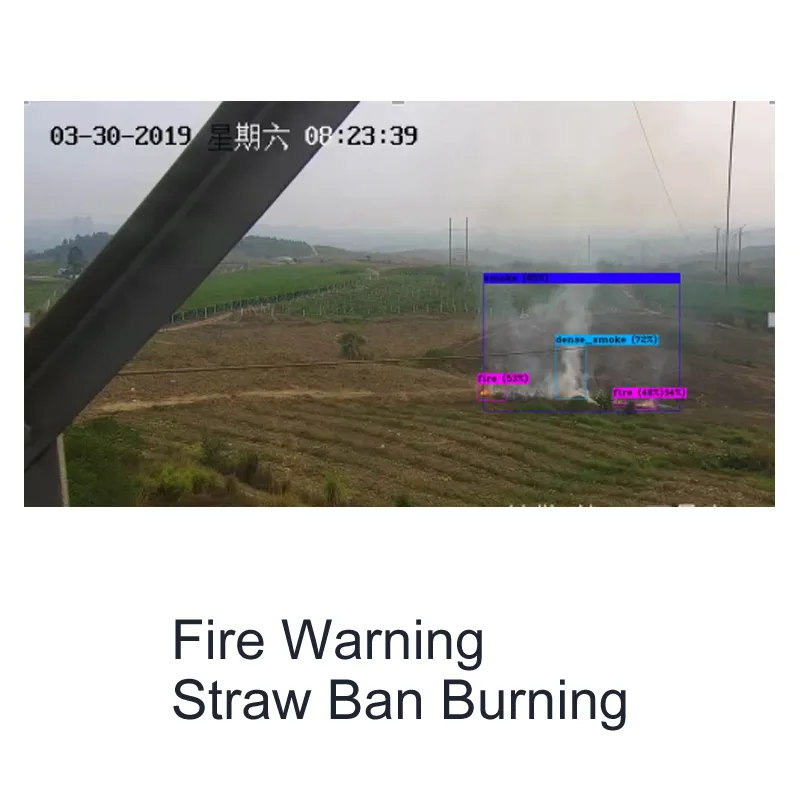

Technical Design 2
T

Technical Parameters

Effective Distance (DRI)
Vehicle (2.3*2.3m)Detection: 6.3km; Recognition: 1.8km; Identification: 0.9km
Human (1.8*0.6m)Detection: 2.5km; Recognition: 0.7km; Identification: 0.35km
Fire Detection4km (3km for 2*2m Fire)
Thermal Sensor & Lens
Sensor Type5th generation uncooled FPA sensor
Effective Pixels640x512 50Hz
Focal Length25~75mm Zoom
NETD≤45mK
Visible Camera Systems
Sensor1/2.8'' Star Level CMOS, Integrated ICR
Optical Lens8-320mm 40X Zoom
Resolution1920(H)x1080(V)
PTZ Performance
Rotation RangePan: 0~360°, Tilt: -90~+90°
Preset Positions3000
ProtectionIP67, Fan/Wiper/Heater attached

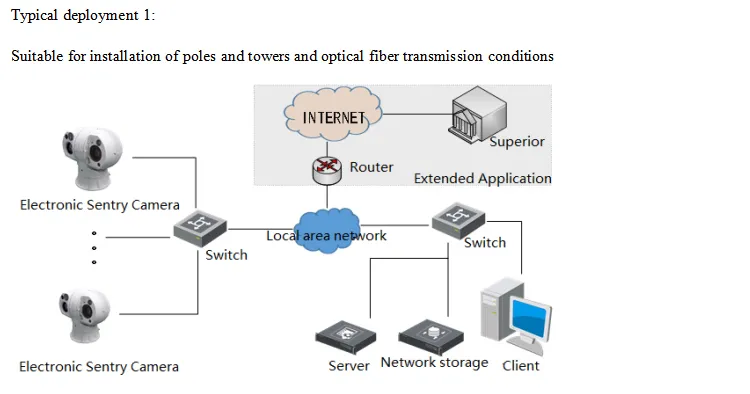

Feature Overview
Dimensional Drawing

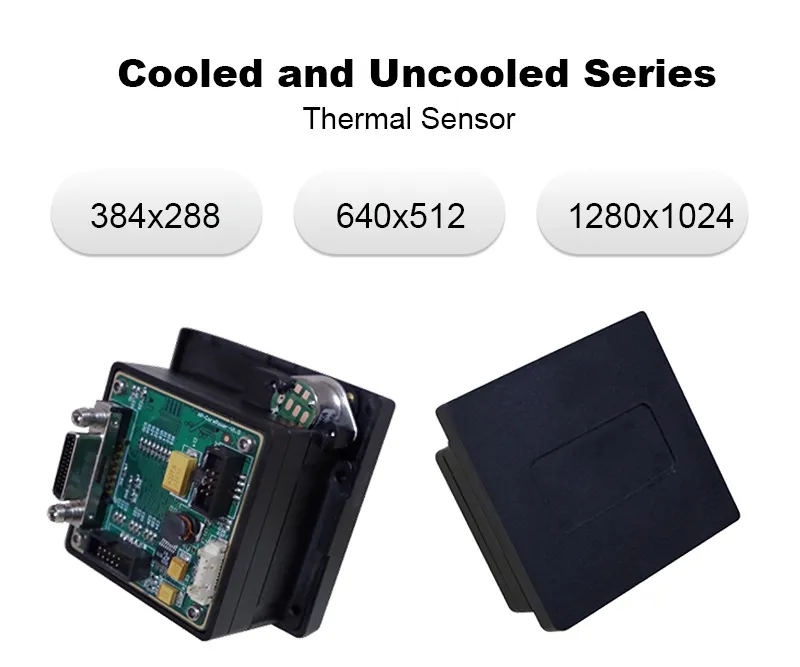

Application 1

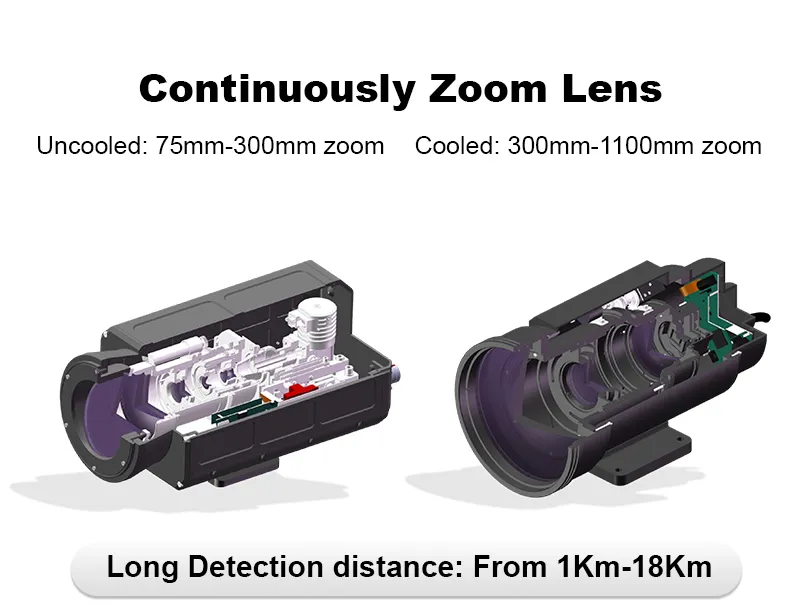

Application 2

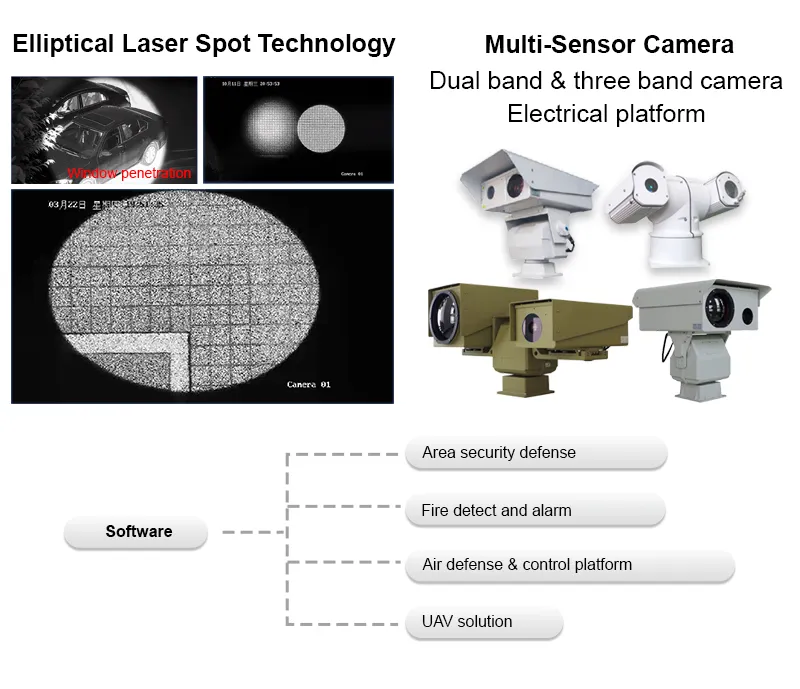

Scenario 1
Scenario 2
Scenario 3
?

Frequently Asked Questions

What is the maximum fire detection range for this PTZ camera?
The camera can detect fire up to 4km away, and is specifically optimized for a 2x2m fire at a distance of 3km.
Is this camera suitable for harsh outdoor environments?
Yes, the camera features an IP67 ingress protection rating and is built with a PTA three-resistance coating for seawater corrosion resistance. It operates between -25ºC and +55ºC.
What kind of zoom capabilities does the dual-lens system provide?
It features a 25-75mm 3X thermal zoom lens and an 8-320mm 40X optical zoom lens for the visible camera, allowing for detailed recognition at long distances.
Does the system support intelligent monitoring features?
Yes, it supports 16 cruise routes, 3000 preset positions, and various watch functions including panorama, pattern, and frame scanning.
What are the power and connectivity options?
The camera supports AC12V or DC24V power input and utilizes RJ45 Ethernet with support for protocols like ONVIF, RTSP, and TCP/UDP.
Can this camera be used on a moving vehicle?
Yes, it is compatible with vehicle mounting and offers an optional absorber platform to handle vibrations during mobile use.
