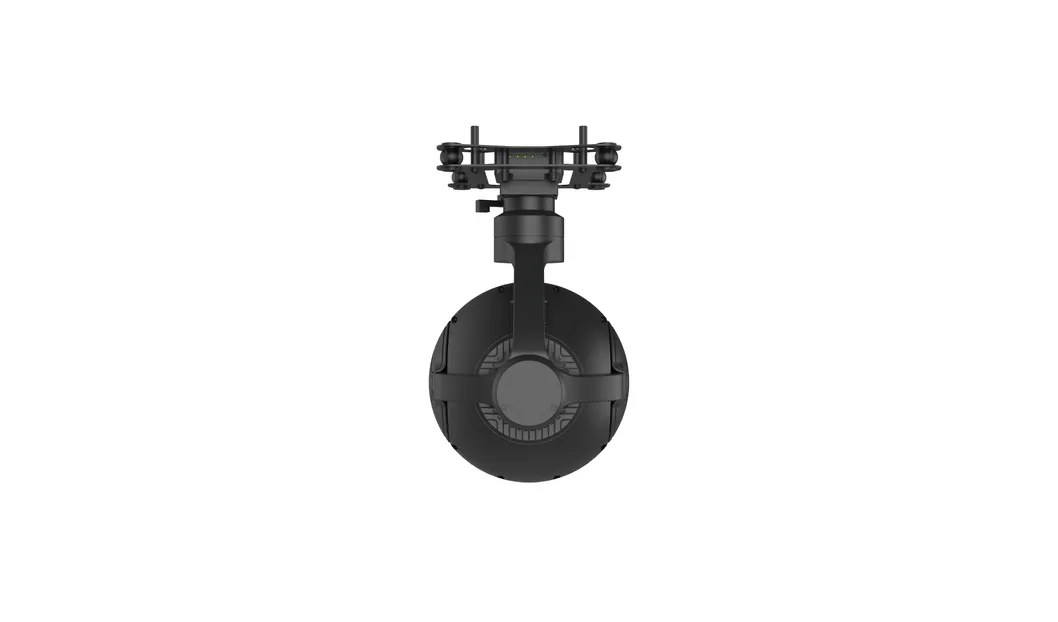

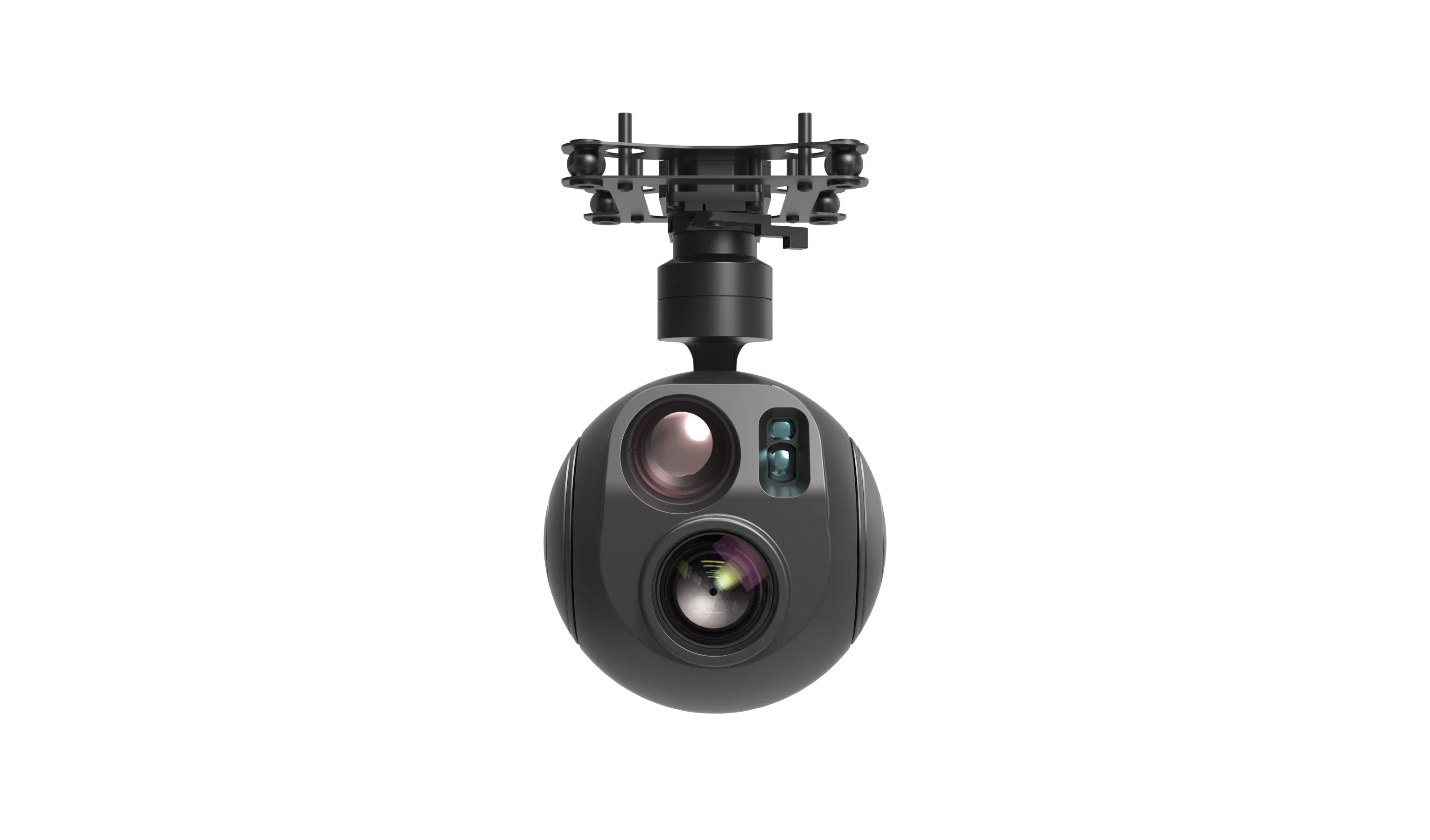

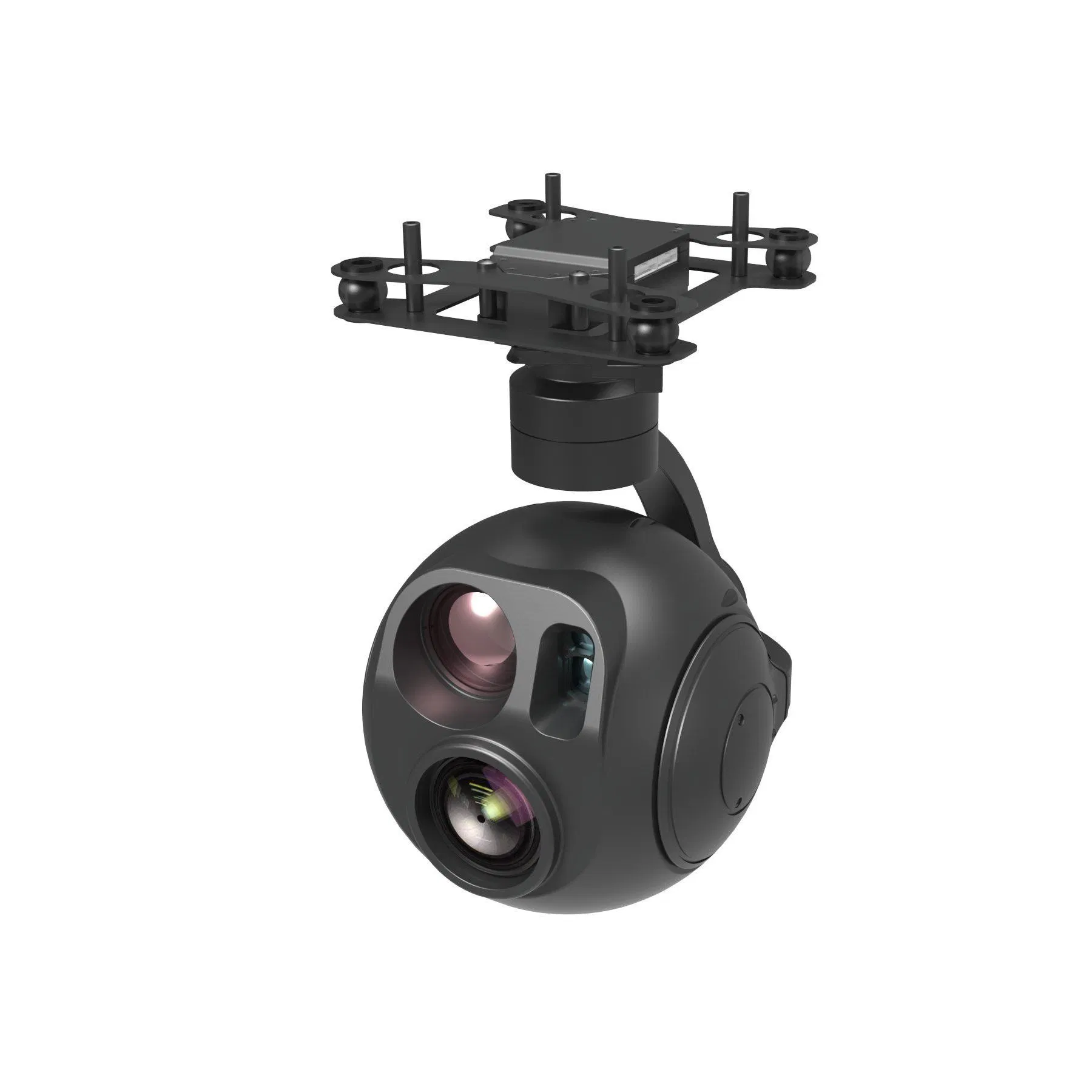

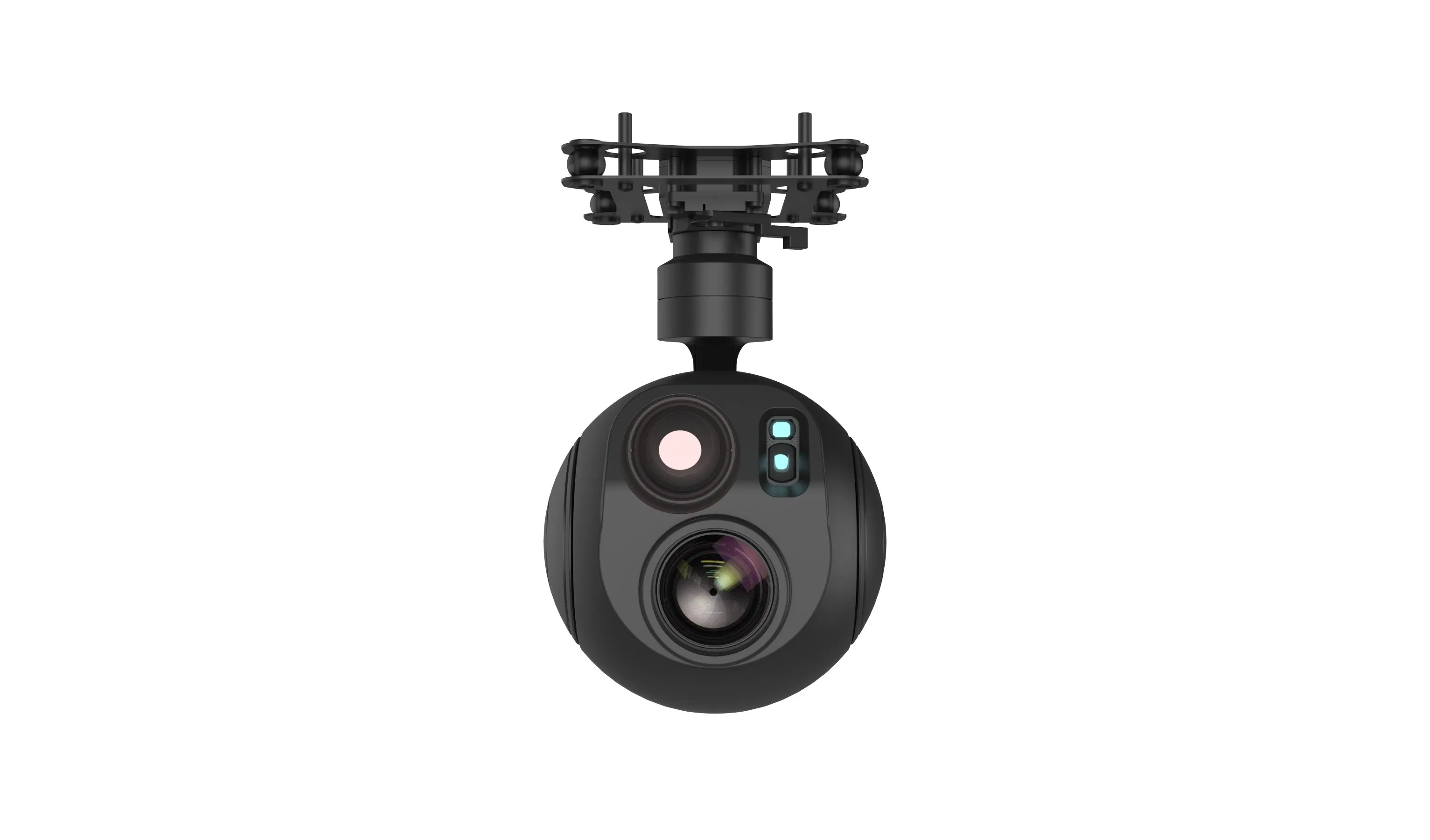

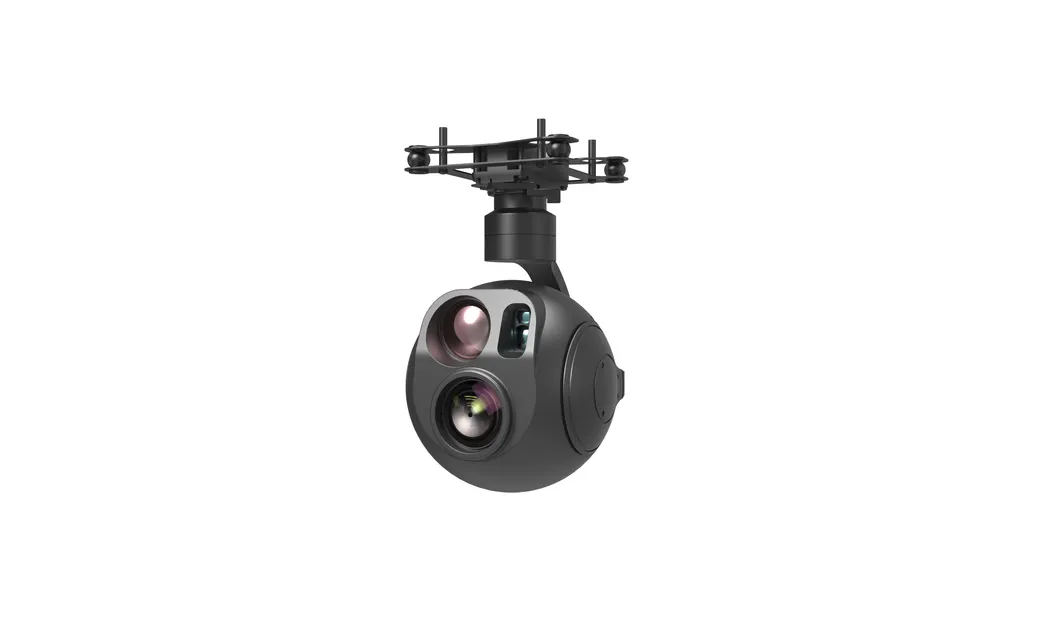

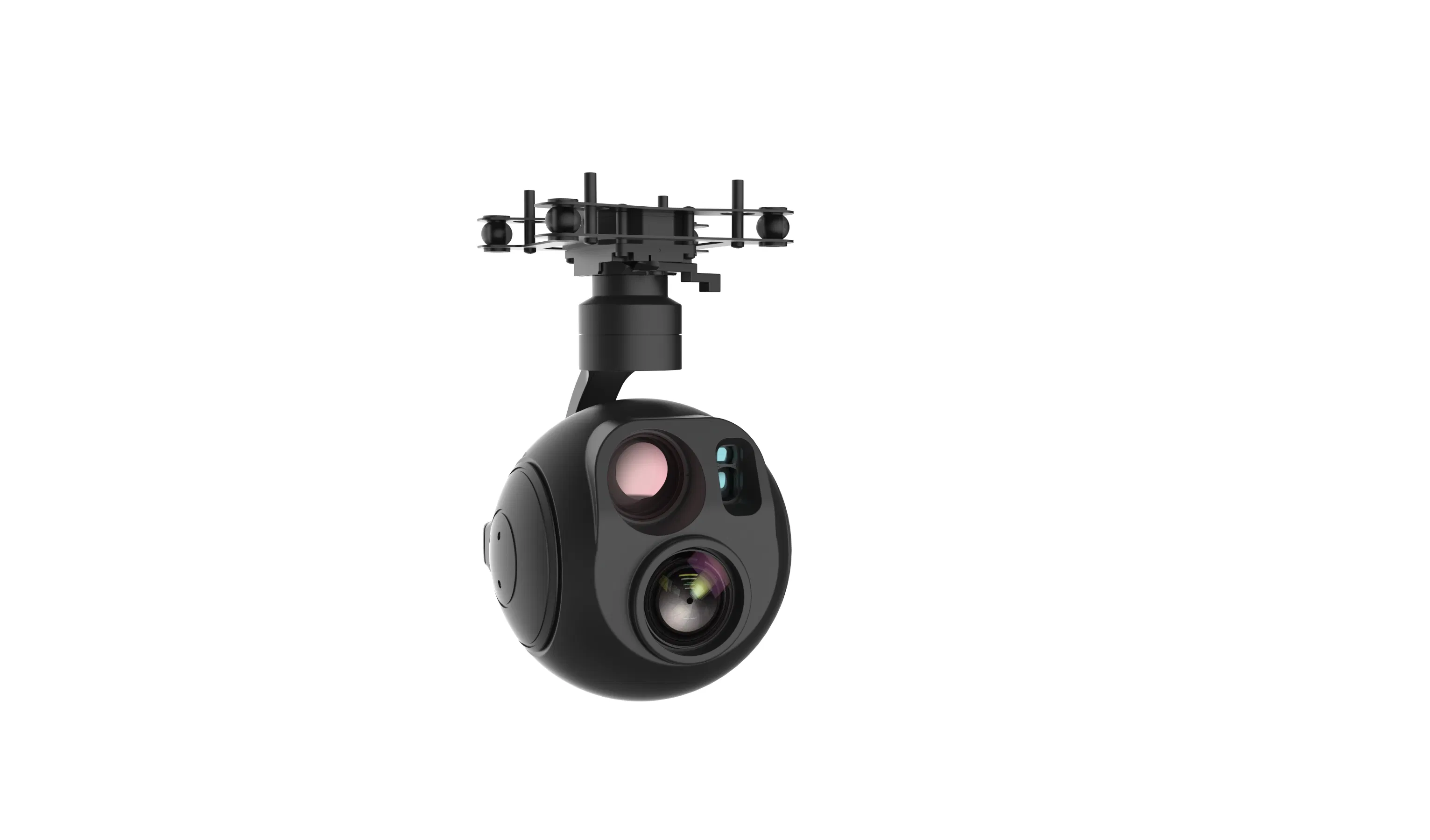

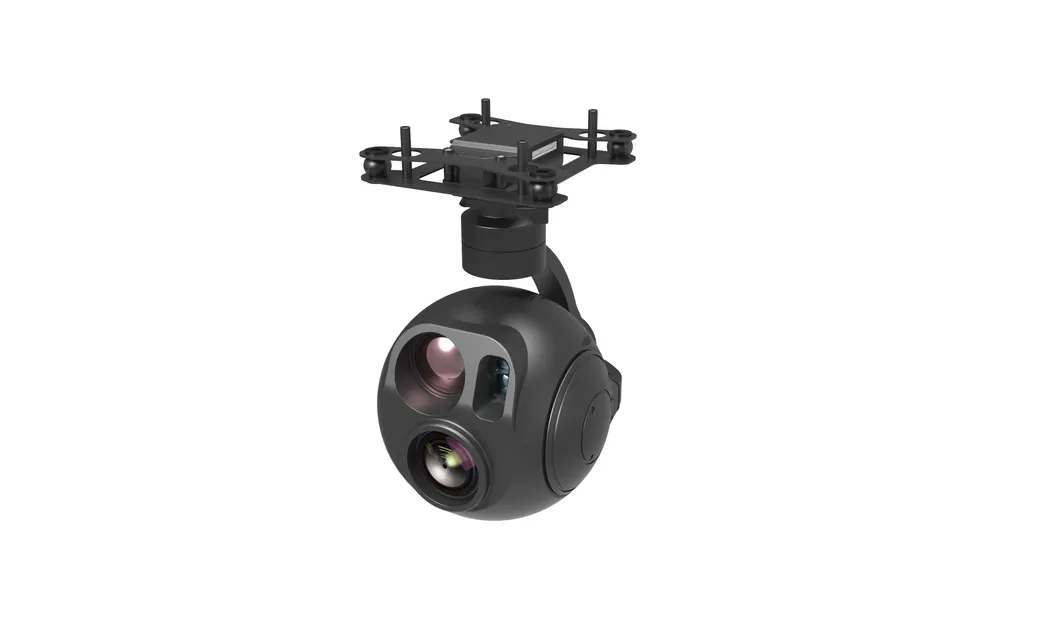

The TZ130TA-HNV230T635L305 Electro-Optical Pod integrates an uncooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a three-axis servo-stabilized platform, and image processing components with autonomous recognition and tracking capabilities. Characterized by its light weight, high stabilization accuracy, high integration, automatic target identification, and automatic tracking features, it is designed for deployment on medium and small unmanned aerial vehicles (UAVs) to perform day-and-night reconnaissance and surveillance missions in target areas.

This gimbal pod has been adapted to multiple mainstream flight control platforms, enabling seamless integration with flight control systems. It can also be connected to ViewControlStudio display and control software platforms, assisting system integrators in rapidly completing the development of UAV systems.

Utilizing the uncooled infrared thermal imager and visible light camera, the electro-optical pod provides all-weather detection, recognition, and tracking of ground targets, while outputting both infrared and visible light video streams in real-time for mission operators. Primary applications include reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.
