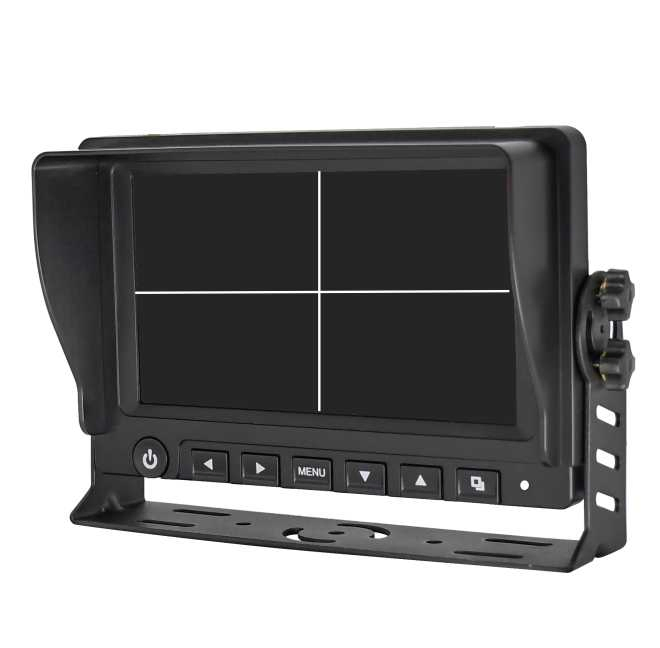

7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
1 / 5
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment
7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment

7"Inch Car Monitor Ai Pedestrian Video Warning Camera System for Car, Forklift, Heavy Duty Equipment

Customization: Available
Warranty: 1year
Applicable Model: Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester
Send Inquiry

Product Description

Basic Info.

Model NO.
HDS-764AI271S4-SG
Shell Material
ABS Plastic / Aluminum alloy
Display Type
Reverse Image
Interface
BNC / 4-core aircraft female head
Function
Waterproof, Dustproof, Shockproof
Definition
AHD 720P
Chip
CMOS (1/3 Color Sony)
Waterproof Grade
IP69K
Screen
7-Inch IPS (1024x600)
Brightness
600 CD/M2
Working Voltage
DC9-36V
Storage
Support TF up to 256G

Product Description

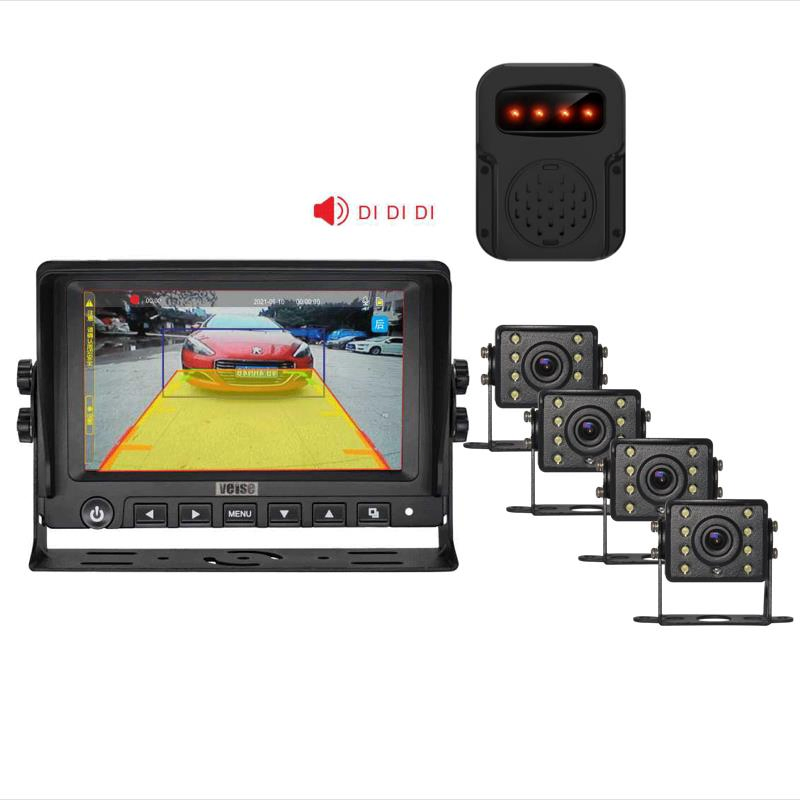

7" Car Monitor AI Pedestrian Video Warning System

Designed for Cars, Forklifts, and Heavy Duty Equipment. Features intelligent AI detection for enhanced safety.

7-inch IPS display with 1024X600 resolution
Three-channel AI pedestrian and vehicle detection
Support four AHD720P camera signal inputs
IP69K waterproof rating & 5G seismic rating
165° Wide viewing angle with Infrared LED
Automatic loop recording on 256GB TF card
Customizable warning area calibration
Heat-dissipating aluminum alloy case

Technical Specifications

Monitor (MHD-764AI) & Camera (CHD-271S) Details
Video Operating SystemRTOS (H.264 TS format)
Recording CapacityUp to 65 hours (approx. 1G/hour per channel)

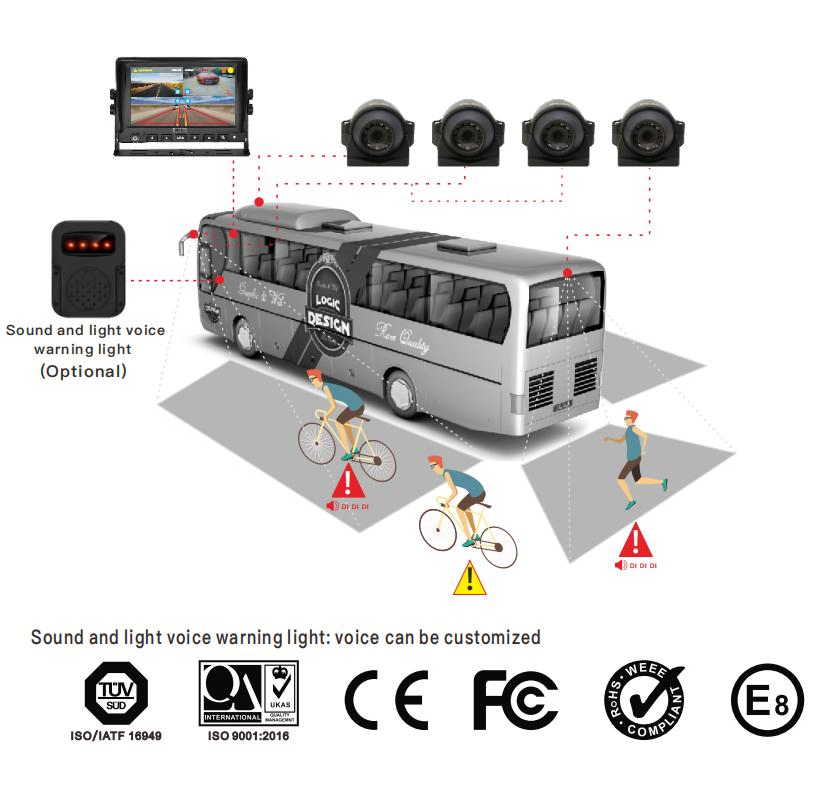

Detection AreasLeft, right, and rear blind area approach warning
Alarm ModesSingle/Four-view mode, adjustable sensitivity
Voltage RangeDC9-36V (Monitor), DC 12V (Camera)
Vibration Resistance5G (GB-T2423056-2006 standard)
Temperature Range-20ºC to +70ºC (Working), -30ºC to +80ºC (Storage)

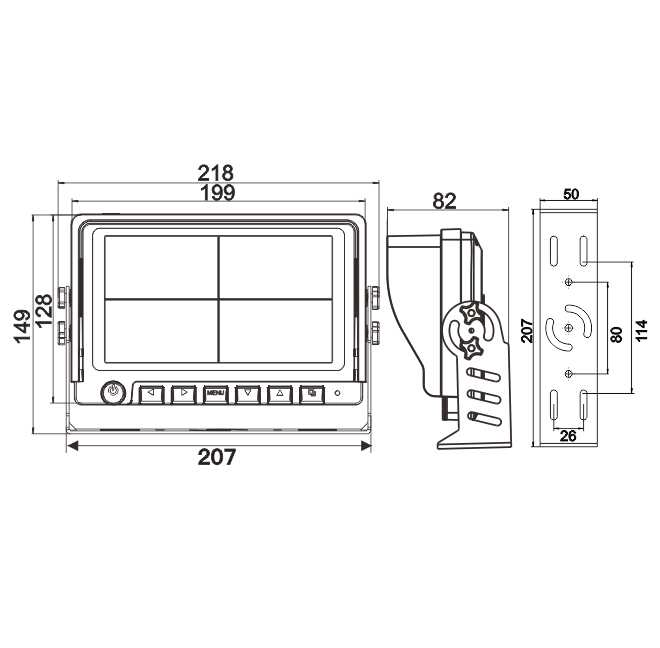

Monitor Size218 x 149 x 82mm

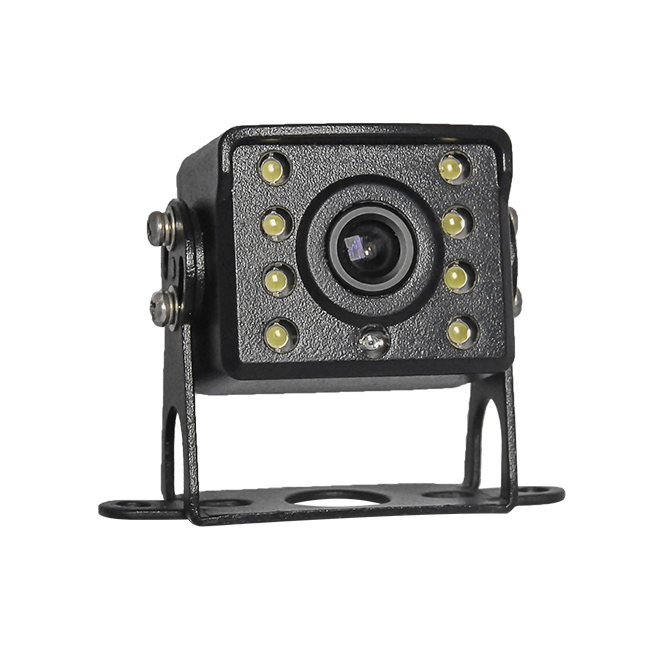

Camera Size87(W) x 75(H) x 70(D) mm
Camera Night ModeFull color night vision / Infrared LED

Detailed Images

AI Pedestrian Video Warning System

R & D and Quality Control

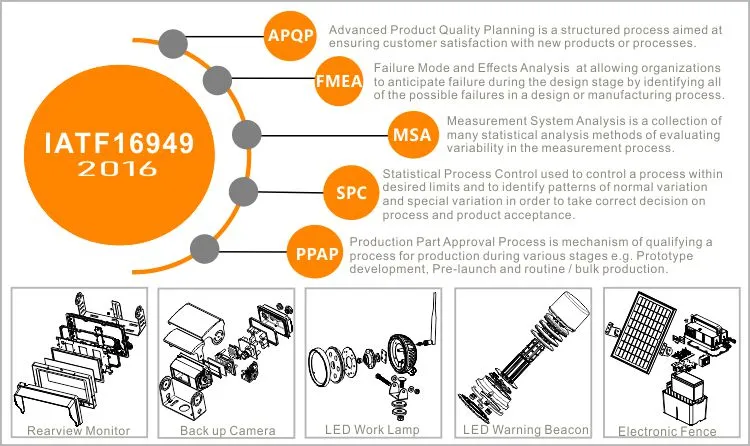

R & D Center

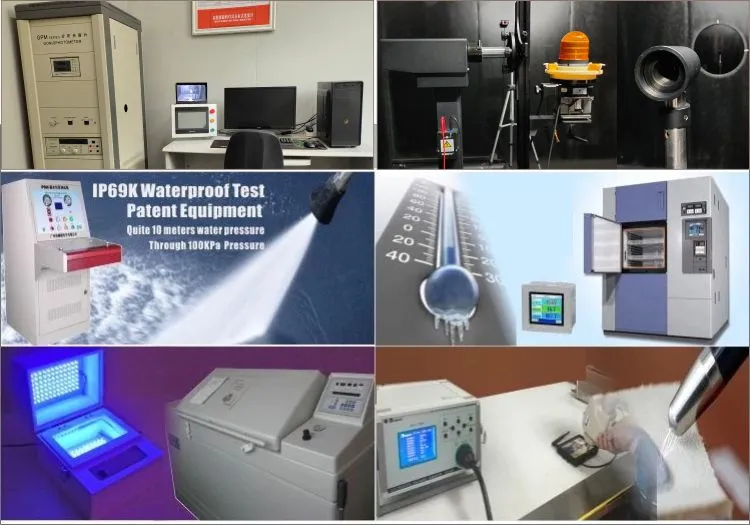

Quality Control Testing

The light intensity analyzer ensures LED warning light output conforms to ECE R65.

The patented sealed pressure tester ensures waterproof levels conform to IP69K.

Manufacturing and Certifications

Manufacturing Facility
Certifications

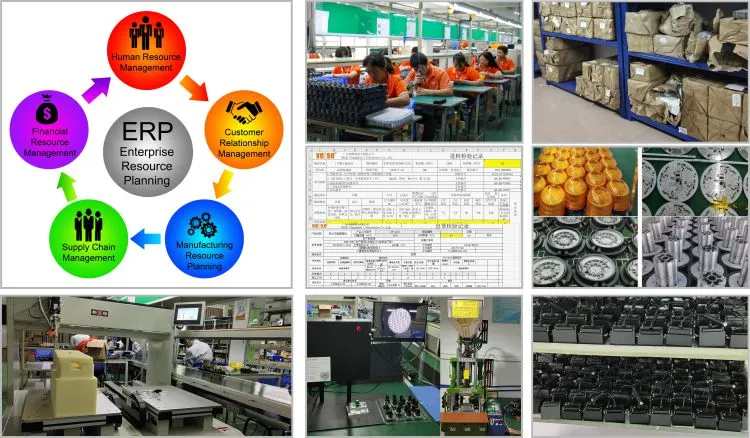

ERP System

Trade Show

Exhibition Booth

Frequently Asked Questions

What specific pedestrians or vehicles can the system detect?
The system utilizes AI to detect motor vehicles, non-motor vehicles, and pedestrians approaching the left, right, and rear blind areas of the vehicle, providing an immediate warning.
Is the camera suitable for extreme weather conditions?
Yes, the camera has an IP69K waterproof rating and an aluminum alloy shell, designed to withstand high-pressure water jets, dust, and temperatures ranging from -20ºC to +70ºC.
What is the maximum storage capacity for video recording?
The system supports TF cards up to 256GB, which can store approximately 65 hours of recording in H.264 TS format. It also features automatic loop recording.
Can I adjust the warning zones?
Yes, the regional warning calibration feature allows users to customize and adjust the warning area to fit the specific needs of different vehicles or equipment.
What vehicles is this AI system compatible with?
It is designed for universal application in heavy-duty environments, including cars, forklifts, trucks, and other construction or agricultural equipment with a voltage range of DC 9-36V.
Does the monitor display multiple cameras at once?
The 7-inch IPS monitor supports four AHD720P camera inputs and can switch between four-split screen and single-screen display modes.
