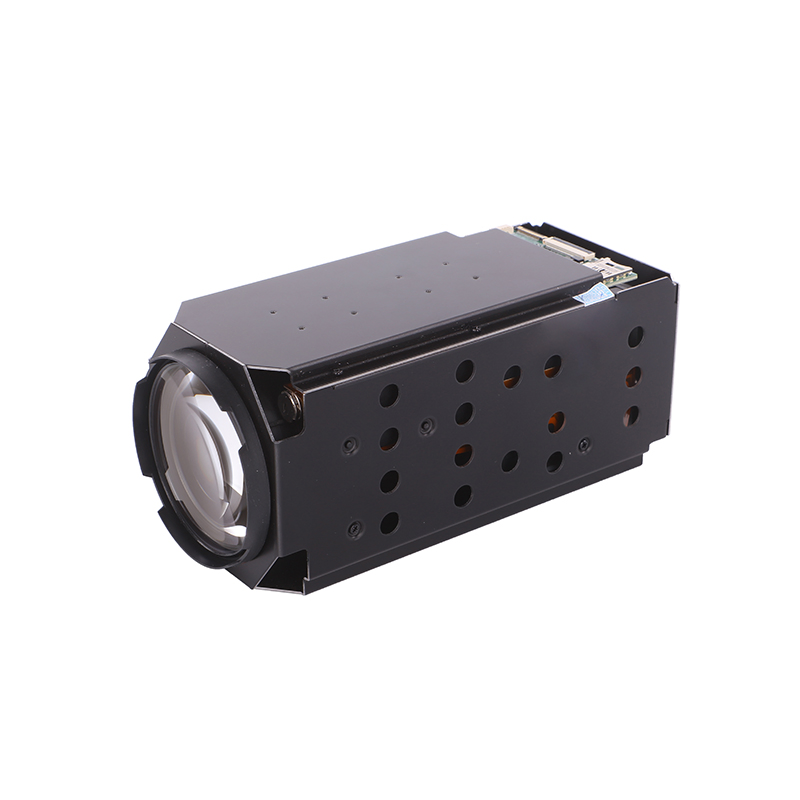

52X Auto Tracking Camera Drone Ultra Zoom Bridge Camera Module

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
UV-ZN2252
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
1920*1080
Lens Kind
Autofocus Lens
Certification
CE
Feature
High Definition, Auto BLC
Effective Distance
≧30m
Sensor Size
1/1.8''
Specification
175.5*75*78mm
Key Features
2MP Full HD 1920×1080 @ 60fps live image quality.
Advanced 52x Optical Zoom & 16x Digital Zoom capability.
Starlight Low Illumination (0.0005Lux Color) for superior night vision.
Intelligent Detection: Intrusion, Cross-border, Motion, and Face detection.
H.265/H.264/MJPEG compression with 3-stream technology.
Optical Defog and 120dB Optical Wide Dynamics (WDR).
Support for 256G Micro SD storage and ONVIF protocols.
ICR Automatic Switching for 24-hour day and night monitoring.

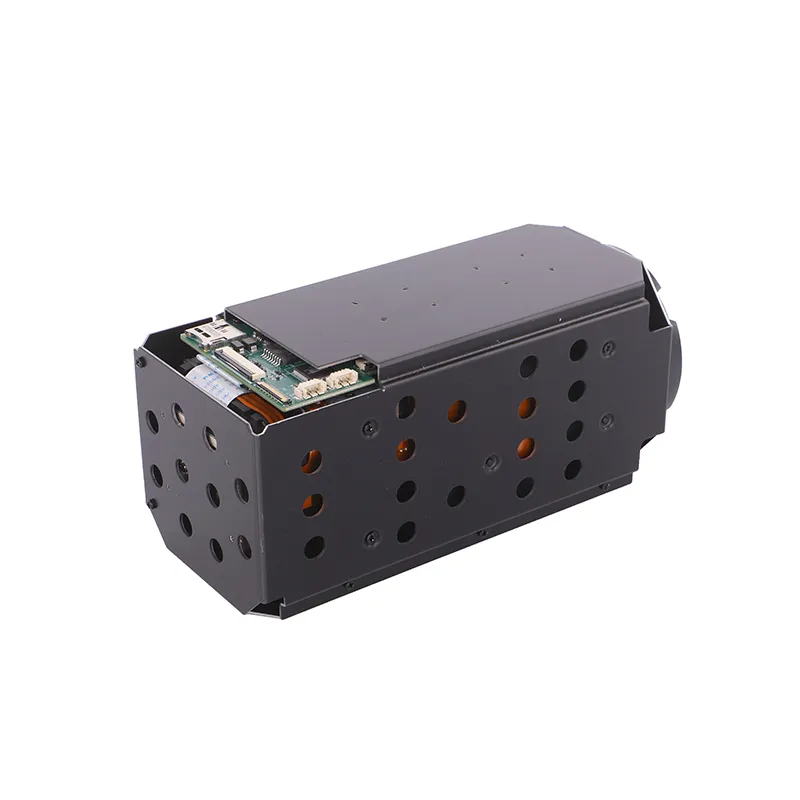

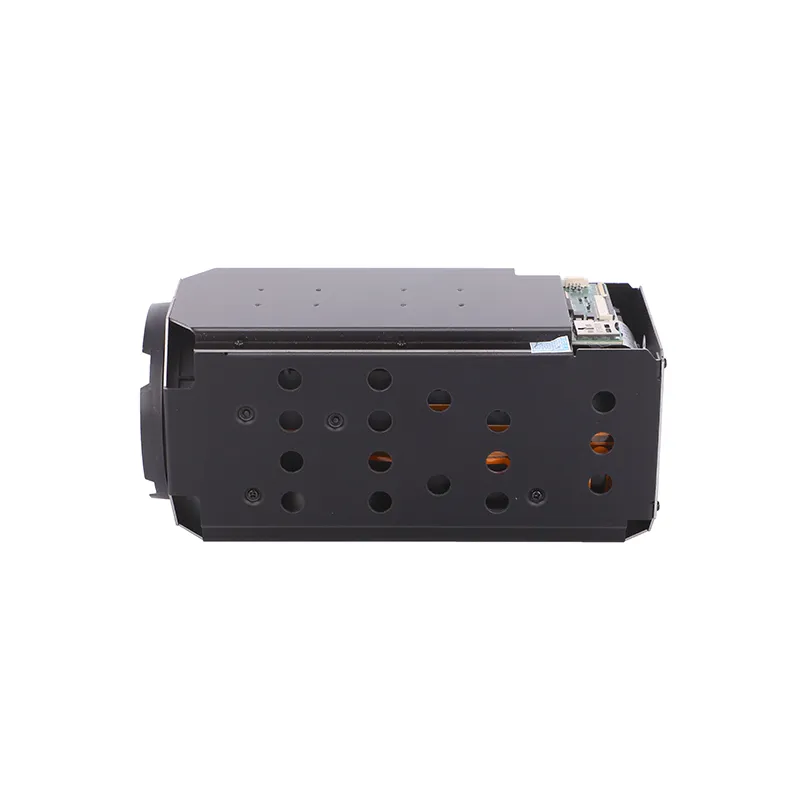

Camera Module View 1 Camera Module View 2 Camera Module View 3
Detailed Camera View
Technical Specifications
CAMERA PERFORMANCE
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.0005 Lux; B/W: 0.0001 Lux @ (F1.4, AGC ON)
Focal Length6.1-317mm, 52x Optical Zoom
Aperture RangeF1.4-F4.7
Digital Zoom16x
VIDEO & IMAGE
CompressionH.265 / H.264 / MJPEG
Max Resolution1920 × 1080
Frame Rate50Hz: 50fps; 60Hz: 60fps
Smart FeaturesCross-border, Intrusion, Personnel gathering, Fast motion, Face detection
INTERFACE & GENERAL
StorageMicro SD/SDHC/SDXC (up to 256G), NAS
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, ONVIF (Profile S/G)
Operating Temp-30ºC to 60ºC, Humidity ≤95%
Power SupplyDC12V±25%
Weight925g

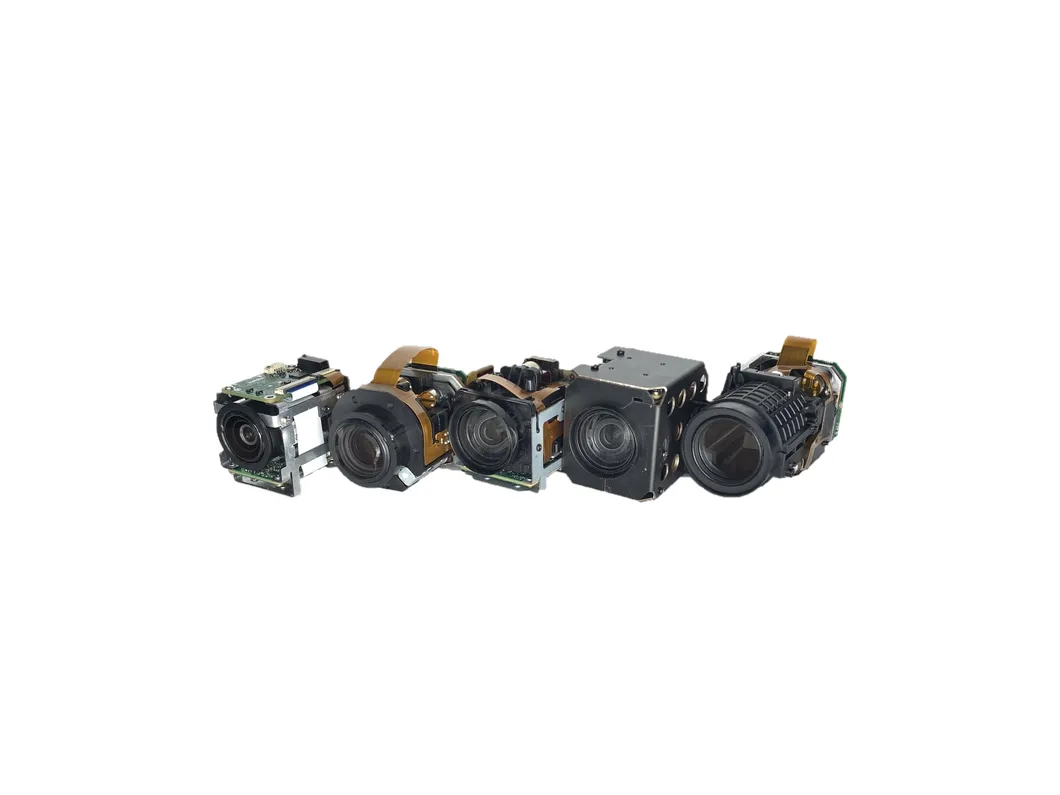

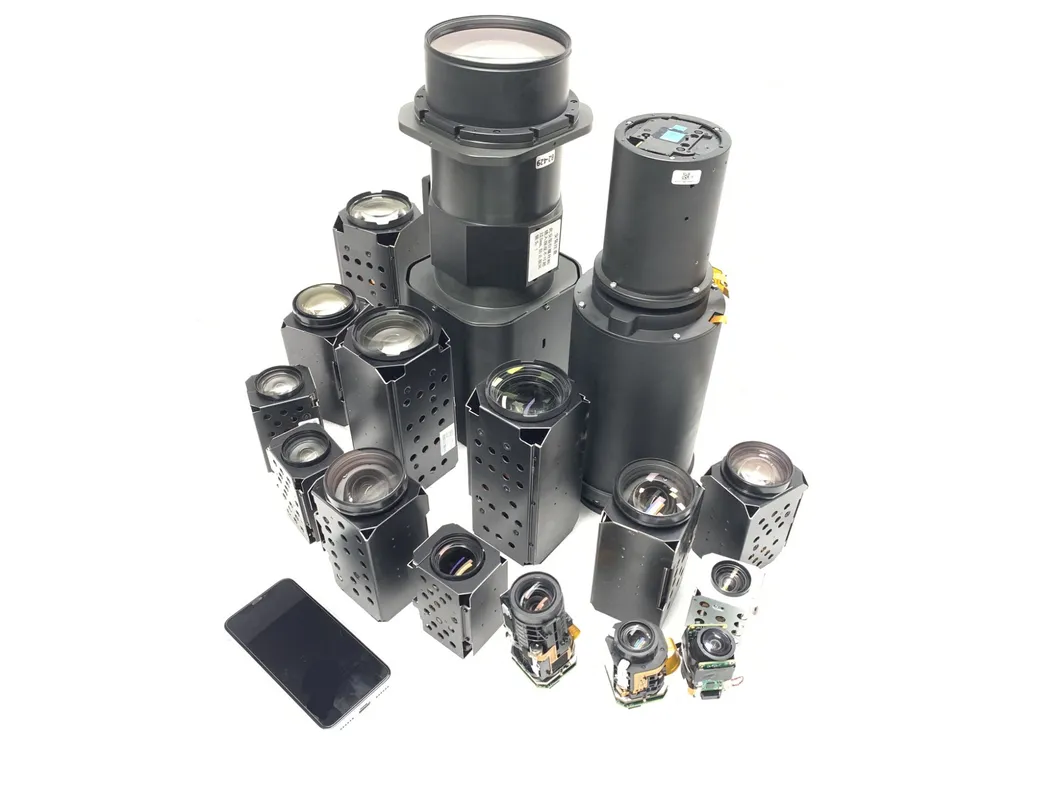

Application Scenario 1 Application Scenario 2
Technical Drawing 1 Technical Drawing 2
Frequently Asked Questions
What is the zoom capability of the UV-ZN2252?
The camera features a powerful 52x optical zoom and a 16x digital zoom, allowing for detailed monitoring at long distances.
Does this camera perform well in low-light environments?
Yes, it uses Starlight technology with a minimum illumination of 0.0005 Lux in color and 0.0001 Lux in black and white, ensuring clear images even in near-dark conditions.
What intelligent detection features are supported?
The camera includes a suite of smart features such as area intrusion detection, cross-border detection, motion detection, face detection, and personnel gathering alerts.
What are the storage options for recorded video?
It supports local offline storage via Micro SD, SDHC, or SDXC cards up to 256GB, as well as NAS (NFS, SMB/CIFS) network storage.
Is the camera compatible with third-party systems?
Yes, it supports the ONVIF (Profile S and Profile G) interface protocol, ensuring compatibility with a wide range of network video software and hardware.
What is the maximum frame rate and resolution?
The camera supports a maximum resolution of 1920x1080 (2MP) with a high frame rate of up to 60fps for smooth live video output.
