Customization: Available
Technology: Pipe Inspection Camera
Style: Box Camera
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
WPS-L1-C23LG
Type
Video Camera
Sensor
CMOS
Horizontal Resolution
720p
Kind
Pipe Inspection Camera
Feature
Waterproof, High Definition
Sensor Size
1/3 inch
Monitor Size
4.3 inch
Length
3.6m
Material
Telescopic Pole (Carbon Fiber)
Camera Diameter
23mm
Waterproof Level
IP68
View Angle
105°
Certification
CE, FCC, RoHS, ISO9001
★

Product Overview

MODEL: WPS-4LG

High-performance Carbon Fibre CCTV Systems featuring a handheld telescopic pole designed specifically for wall, chimney, and pipe inspections. This system provides high-definition video recording capabilities for professionals.

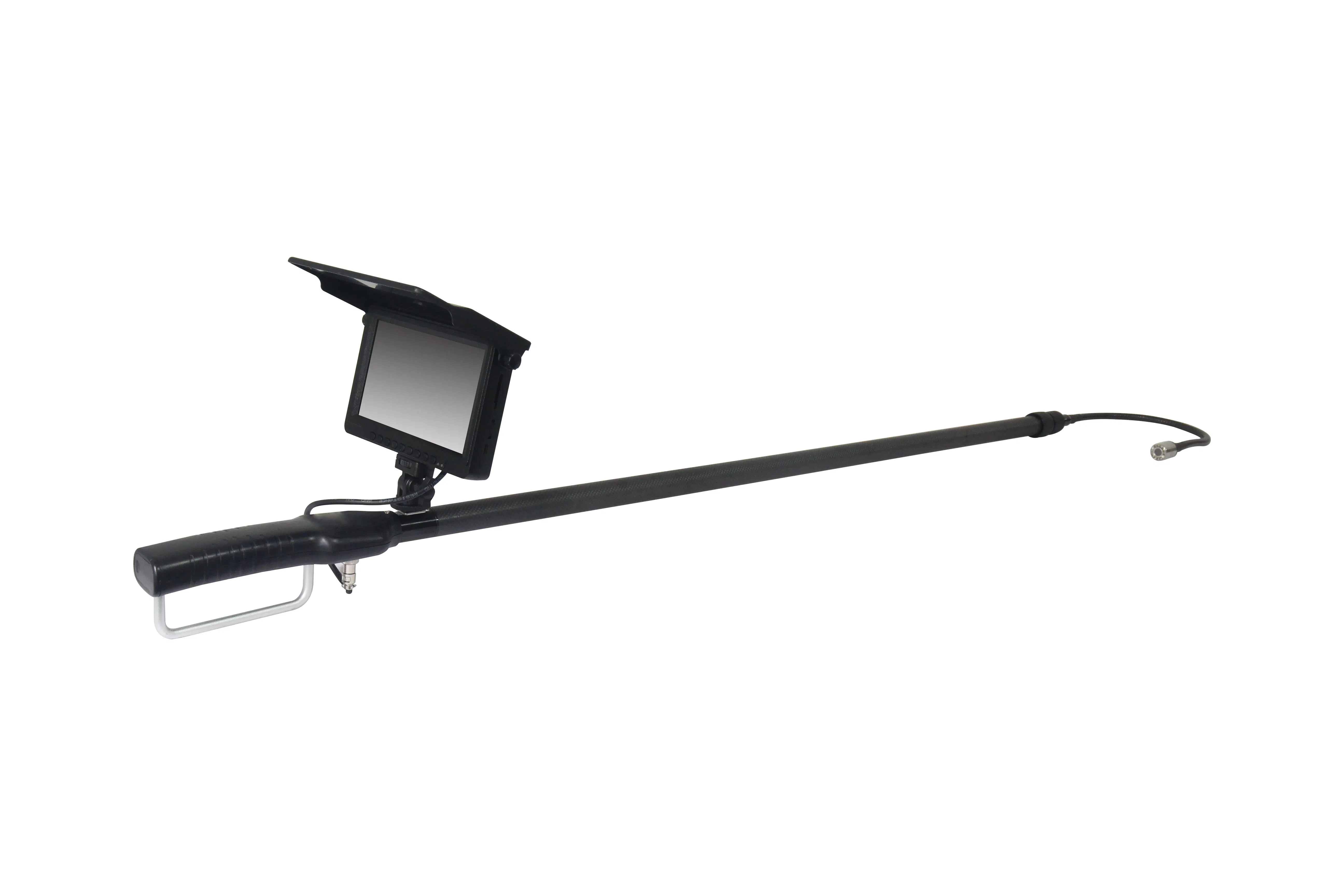

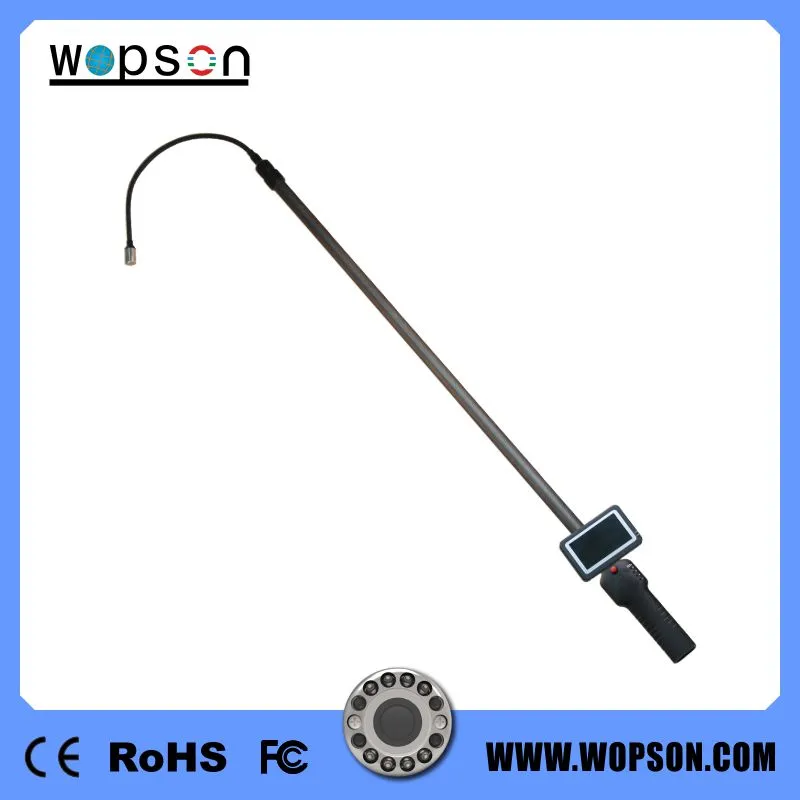

Telescopic Pole Camera
Viaduct Bridge Inspection Camera
Inspection Video Recording
📋

Technical Parameters

CAMERA UNIT
Camera SizeΦ23mm * 510mm (L)
Housing MaterialStainless Steel
Total PixelsPAL: 720*576; NTSC: 720*480
View Range120°
Illumination12PCS White LEDs
WaterproofIP68
TELESCOPIC POLE
MaterialCarbon Fiber
Joints3 Adjustable Joints
Length Range1080mm to 3600mm
MONITOR & CONTROL

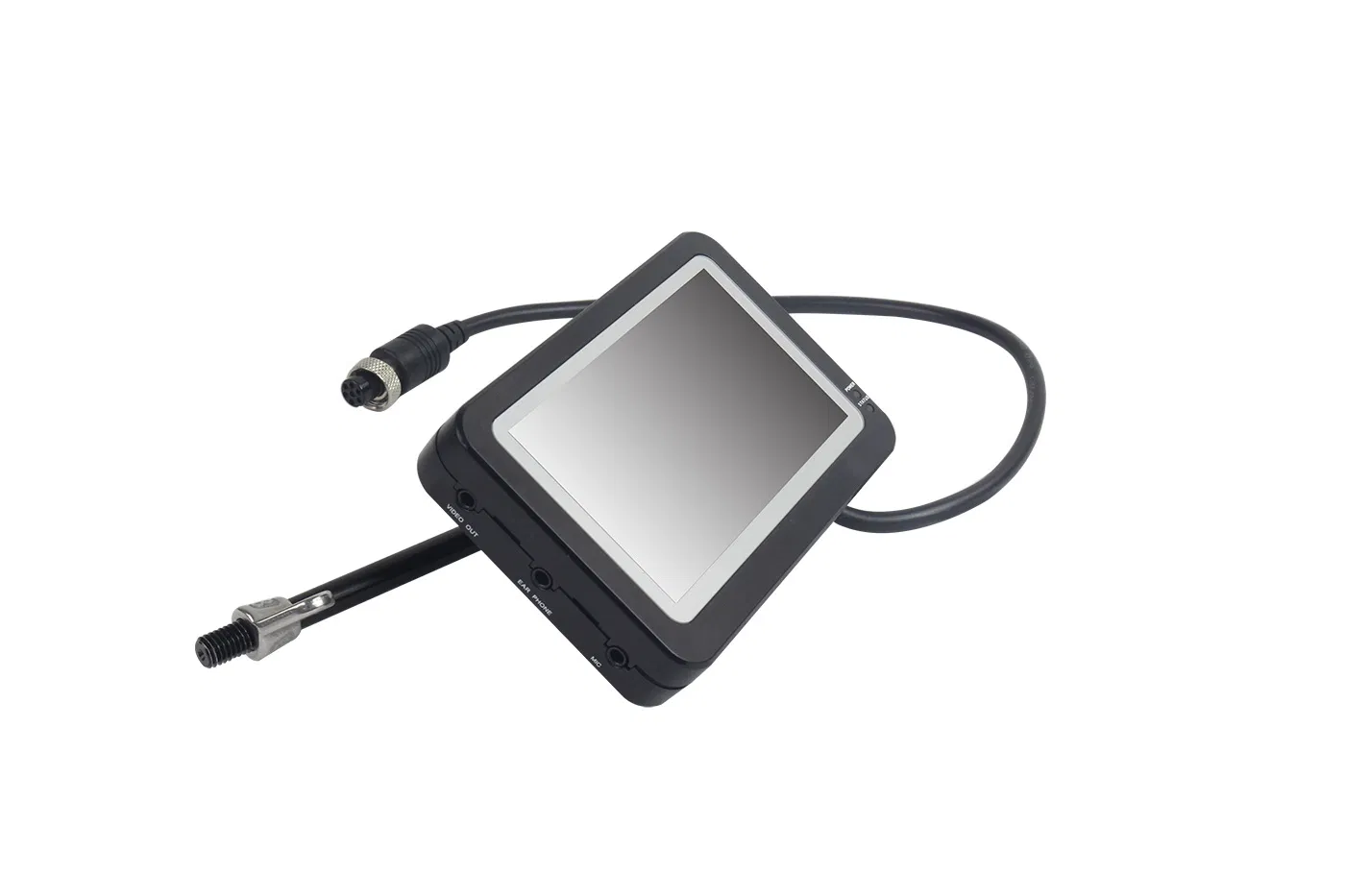

Monitor4.3 inch TFT Color Monitor
StorageSD Card (Max 32G)
Movie FormatAVI
FeaturesPicture Snap, Video & Audio Record
POWER & CASE
Battery12V 5200MAH Li-ion (Rechargeable)
Working Time> 260 Minutes

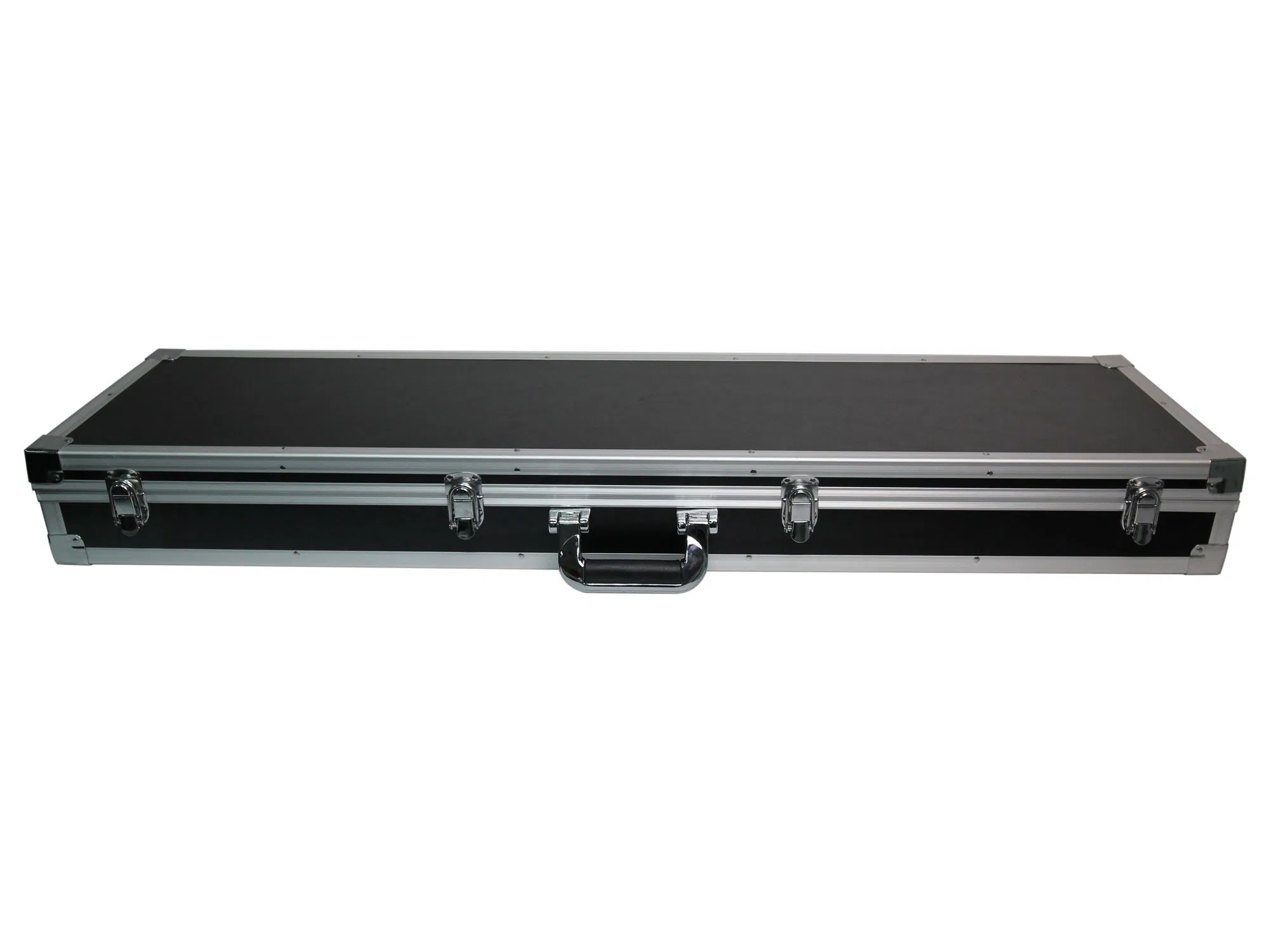

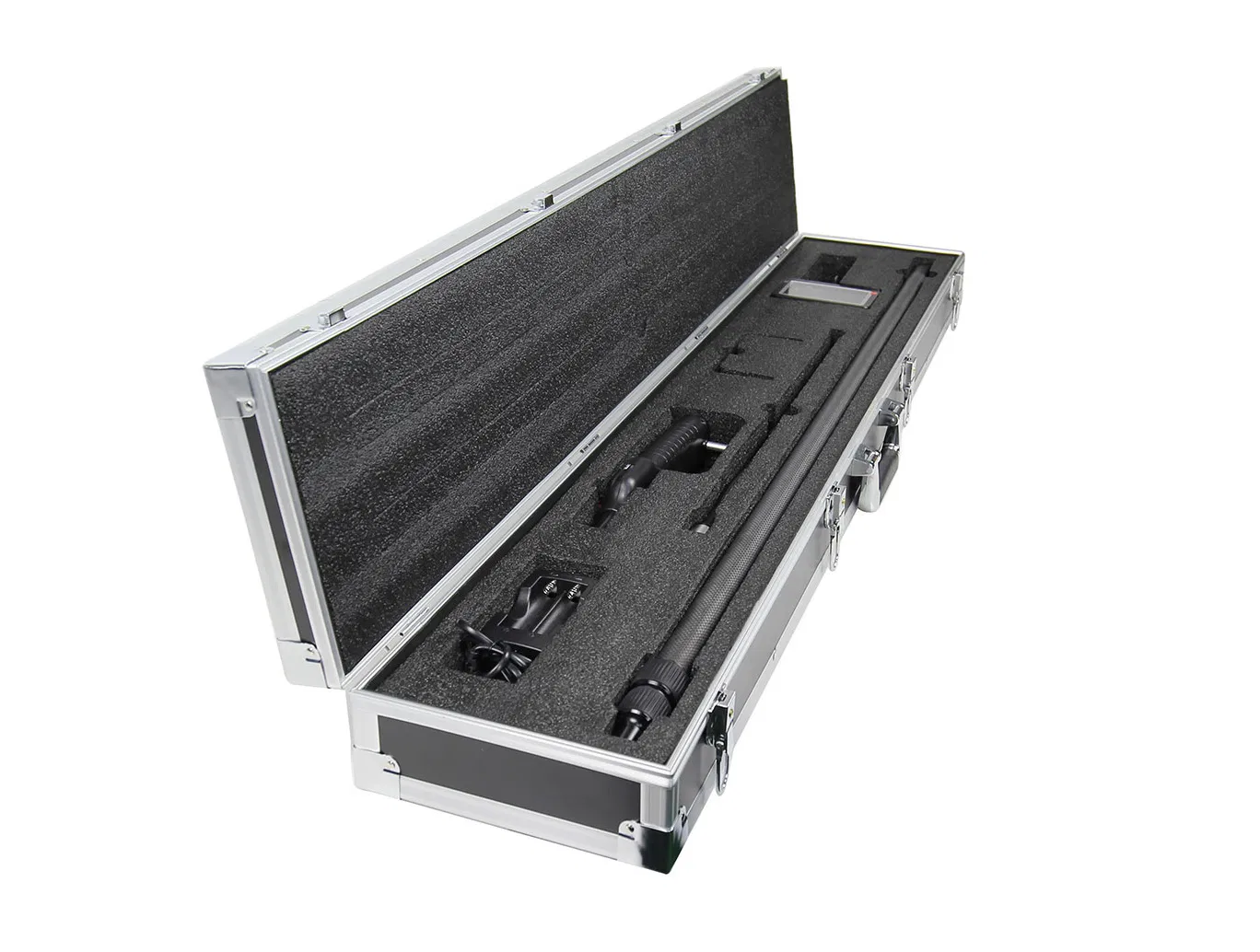

Case MaterialFire board & Aluminum alloy
✔

Wide Range of Applications

This Carbon Fibre Handheld Telescopic System is highly versatile and can be utilized in:

  • Pipe & Pipeline Inspection
  • Drain & Sewer Lines
  • Chimneys & Exhaust Vents
  • Industrial Tanks & Ducts
  • Confined Space Investigation
  • Underwater Maintenance
  • Heat & Cooling Lines
  • Civil Engineering Projects
  • Rescue Area Surveillance
  • Cavity & Attic Inspection
✚

Key Advantages

  • Direct Manufacturer Support
  • Customized Development
  • National High-tech Standard
  • 16+ Industry Patents
  • 9 Years OEM/ODM Experience
  • Certified Quality (CE, FCC, RoHS)
  • ISO9001:2015 Operation
  • Low Maintenance Cost
    • ?

    Frequently Asked Questions

    What is the maximum reach of the telescopic pole?
    The pole is made of lightweight carbon fiber and consists of 3 joints, reaching a total maximum length of 3600mm (3.6 meters).
    Is the camera head waterproof?
    Yes, the camera head is rated IP68 waterproof and is built with high-grade stainless steel for durability in wet and underwater environments.
    How long does the battery last on a single charge?
    The system includes a 5200mAh rechargeable Li-ion battery that provides over 260 minutes of continuous operation.
    Can this device record both video and audio?
    Yes, the integrated control box supports AVI format movie recording and microphone audio recording to an SD card.
    What is the diameter of the camera head?
    The camera head has a compact diameter of 23mm, making it suitable for narrow pipes and confined spaces.
    Does the system support photo capture during video recording?
    Yes, the system allows for picture snapping and high-definition movie recording through the 4.3-inch TFT monitor interface.
