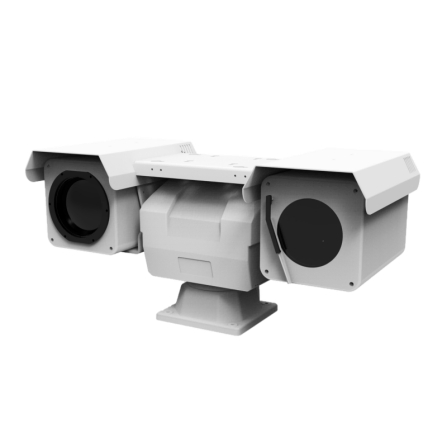

📋 Basic Specifications
Model NO.
UV-PT2315-TH66100AW-H4240
Sensor
Vox Uncooled Thermal Detector + 1/1.8 Progressive CMOS
Resolution
2560*1440 (Visible), 640*512 (Thermal)
Thermal Lens
15~100mm, 6X Zoom
Visual Lens
6.6~264mm, 40X Optical Zoom
Working Temp
-35℃ to +65℃
🌟 Key Highlights
- Support H.265/H.264 Video Compression Algorithm with multi-level video quality configuration.
- Dual Spectrum System: 40X Optical zoom visible camera and 15-100mm thermal camera.
- Integrated adjustable camera mounting plate for flexible deployment.
- Advanced automatic temperature control with built-in heating fan circuit.
- Pull-out equipment mounting design ensures easy installation and maintenance.
⚙️ Technical Specifications
| Visible Camera |
Image Sensor |
1/1.8" Progressive Scan CMOS |
| Focal Length |
6.6~264mm, 40x Optical Zoom |
| Aperture |
F1.61-F5.19 |
| Field of View |
59.20° to 1.93° (Wide-Tele) |
| Thermal Sensor |
Detector Type |
Uncooled Vox Thermal Detector |
| Resolution |
640x512 |
| Pixel Size |
12μm |
| Spectral Range |
8~12μm, LWIR |
| Smart Functions |
Analytics |
Line Crossing, Intrusion, Region Entrance/Exiting |
| AI Detection |
Fire & Smoke Detection, Human & Vehicle Detection |
| PTZ Performance |
Rotation |
360° Continuous Horizontal; +60° to -60° Vertical |
| Presets |
255 Positions; ±0.01° Accuracy |
| Speed |
Horizontal up to 10.5°/s; Vertical up to 4°/s |
❓ Frequently Asked Questions
What is the maximum zoom range for both lenses?
The visual camera features a 40X optical zoom (6.6-264mm), while the thermal camera provides a 6X zoom (15-100mm) for long-range detection.
Can this camera operate in extreme weather conditions?
Yes, it is designed for outdoor use with an IP66 protection rating and a wide working temperature range from -35℃ to +65℃, including a built-in heating fan control.
Does the system support AI smart analytics?
Yes, it supports advanced AI functions including Fire & Smoke detection, as well as Human & Vehicle classification and detection.
What is the thermal sensor's sensitivity?
The camera uses a high-sensitivity Uncooled Vox Thermal Detector with a NETD ≤35mK, ensuring clear imaging even in low thermal contrast.
What are the PTZ rotation capabilities?
The PTZ unit offers a full 360° continuous horizontal rotation and a vertical range of +60° to -60°, with a preset accuracy of ±0.01°.
What video compression formats are supported?
The camera supports efficient H.265 and H.264 video compression algorithms, allowing for high-quality streaming with reduced bandwidth usage.
