Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
1 / 5
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom
Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom

Airborne Systems with Visual Camera and Thermal Imaging Camera 10~300mm Continuous Zoom

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

📋

Basic Information

Model NO.
GDES-300F20
Type
Video Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Manual Focus Lens
NETD
<40mk
Resolution
256X192
Spectral Range
8-14μm
Certificate
ISO9001:2015; RoHS; Reach
HS Code
8541409000
Production Capacity
500
🔍

Product Description

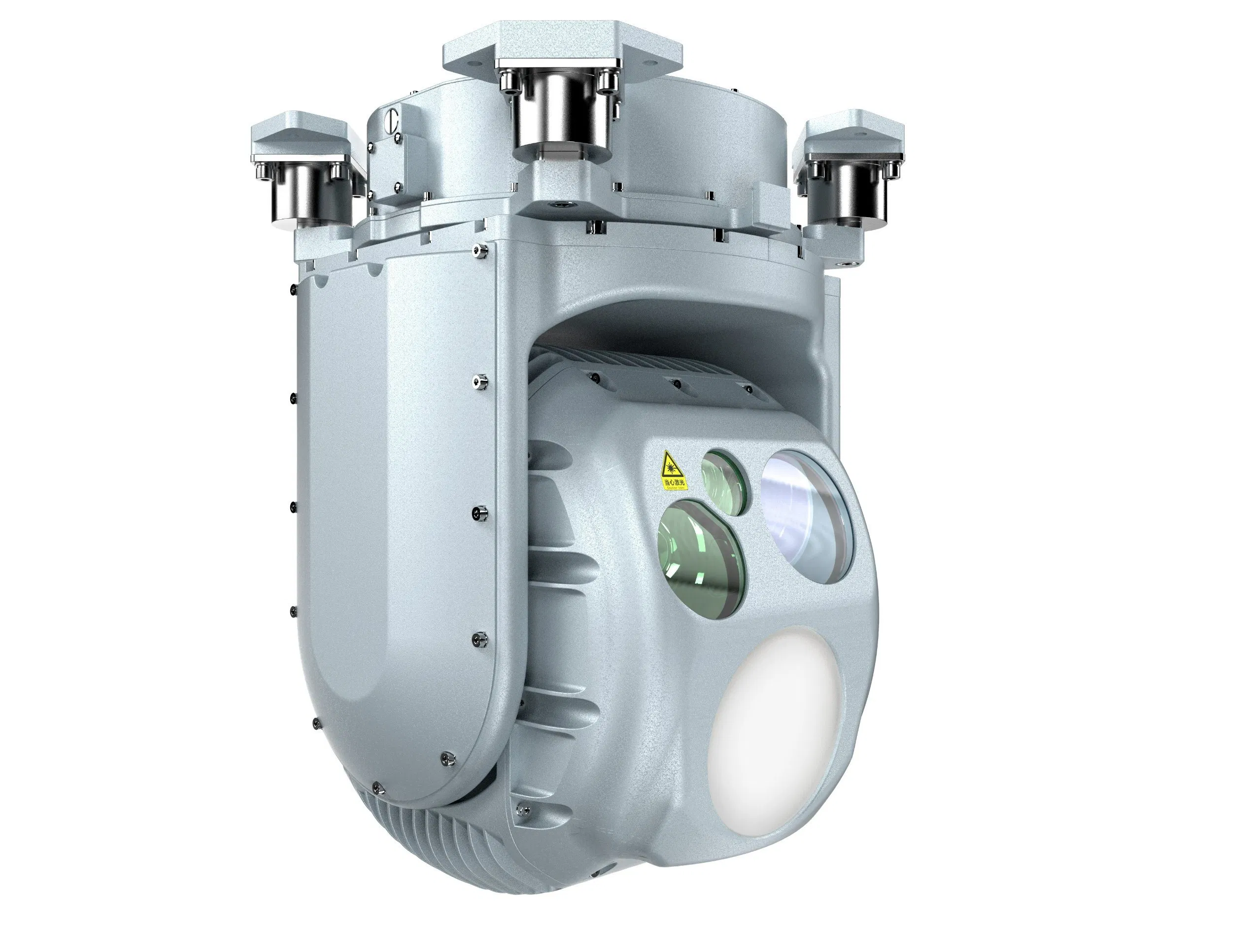

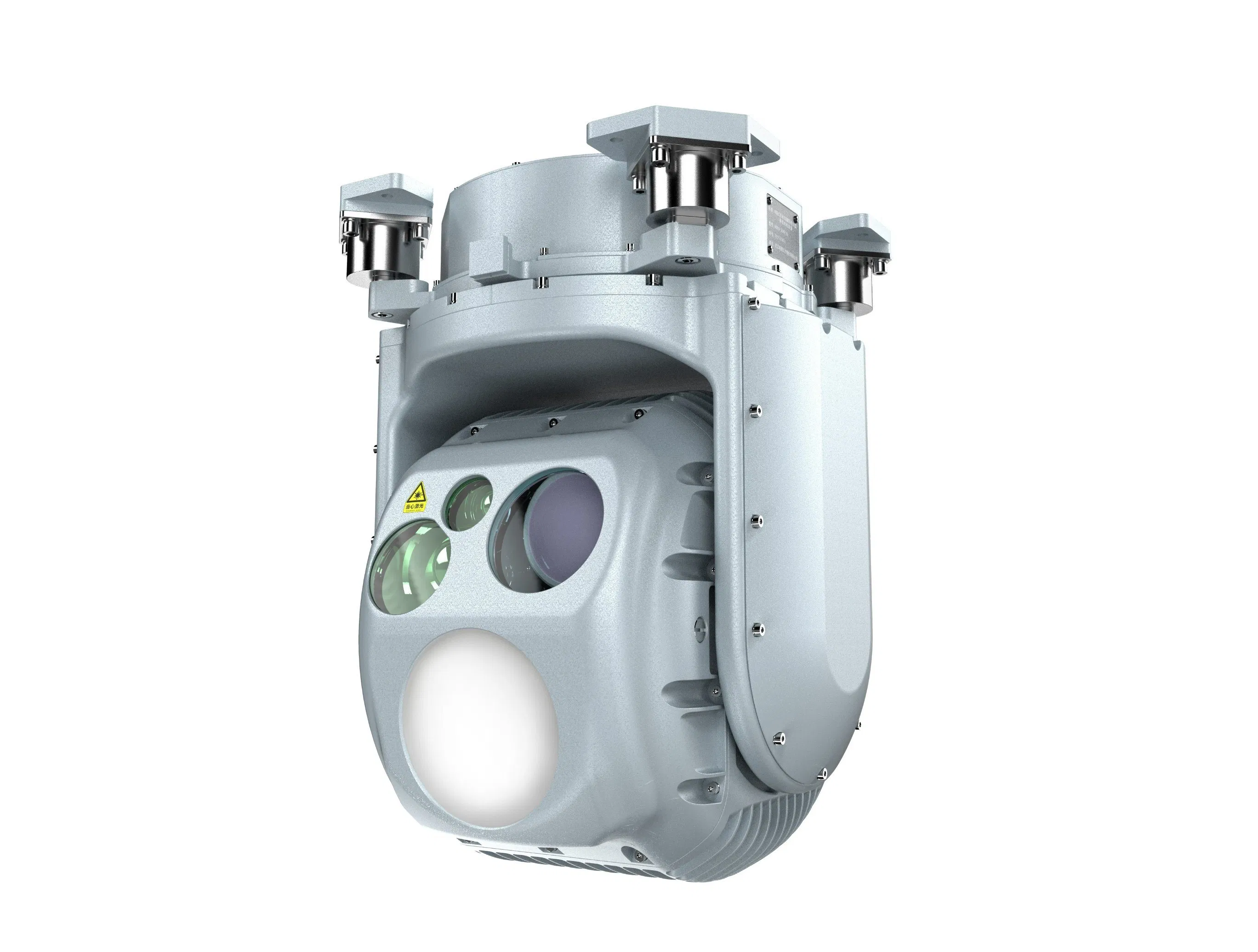

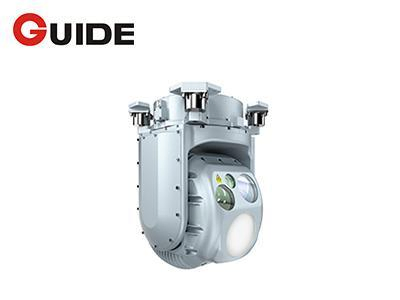

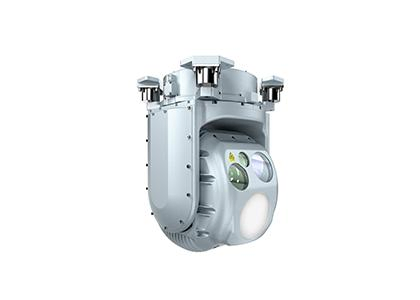

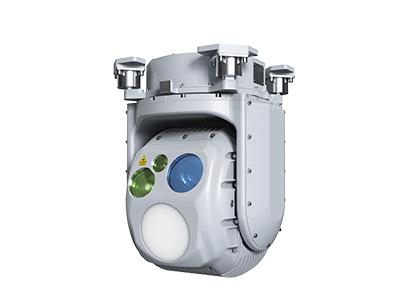

The GDES-300F20 airborne 2-axis multi sensors observation pod adopts a spherical stable platform with a diameter of 280mm. It is equipped with a 1080P low-illuminance visual camera, a cooled infrared camera and a laser rangefinder.
The pod weighs less than 20KG and is suitable for small and medium-sized UAVs to search and observe targets. It has the functions of target positioning and geographic guidance based on the aircraft information.
⭐

Main Features

  • High stability accuracy up to 0.03 mrad
  • Core infrared detector with self-developed intellectual property right
  • Support real-time output of thermal image and visible image
  • With inertial image stabilization, locking, scanning functions
  • With airborne information for target positioning
📊

Product Parameters

ModelGDES-300F20
Infrared Camera
Detector TypeCooled MWIR Focal Plane Array
Resolution640×512
Pixel Pitch15μm
Horizontal FOV1.83°×1.5°~35.5°×28.7°
Zoom Lens15~300mm, Continuous Zoom
Visual Camera
Resolution1920×1080
Focal Length10~300mm Continuous Zoom
FOV1.1°×0.6° ~ 32.1°×18.4°
Laser
Wavelength1.064μm (Safe for Human Eyes)
Maximum Range≥12KM
Irradiation Distance≥6KM
LRF Accuracy±5m
Servo System
Moving Range360° Continuous Azimuth, -120 ~+10° Elevation
Stabilization Accuracy≤ 0.03mrad (RMS)
Angle Measurement Accuracy≤ 1mrad
Maximum Angular Velocity≥60°/s
Electrical Interface
Working VoltageDC28V (18~36V Input Accepted)
Power Consumption≤200W (Average)
Video InterfaceEthernet Interface
Physical Characteristics
Weight≤20kg
Size≤300mm×380mm (OD×H)
💎

Our Advantages

Observation System
🏢

Professional Capability

Production Line
Detection Technology
As a world leading infrared detector manufacturer and service provider, we are willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share professional application experience.
Our facility covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for three 8-inch fabrication lines. All key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.
📜

Certifications

Certificates
❓

Frequently Asked Questions

1. What is the total weight of the GDES-300F20 pod?
The pod is lightweight and designed for mobility, weighing less than 20kg, making it ideal for small and medium-sized UAVs.
2. Does the system support both thermal and visual imaging?
Yes, it is equipped with a 1080P low-illuminance visual camera and a high-performance cooled infrared camera, supporting real-time output for both.
3. What is the maximum range of the laser rangefinder?
The laser system has a maximum range of ≥12KM and an irradiation distance of ≥6KM with high accuracy.
4. How accurate is the stabilization system?
The system features a 2-axis stable platform with a stabilization accuracy of ≤ 0.03mrad (RMS).
5. What kind of power supply does the pod require?
The working voltage is DC28V, although it can accept a range of 18V to 36V input.
6. Is the laser safe for human eyes?
Yes, the laser operates at a wavelength of 1.064μm, which is categorized as safe for human eyes.
