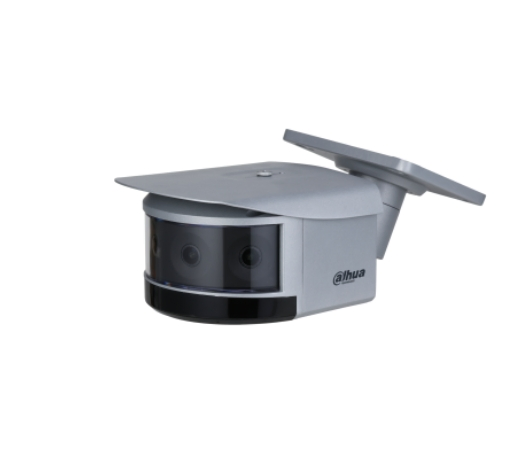

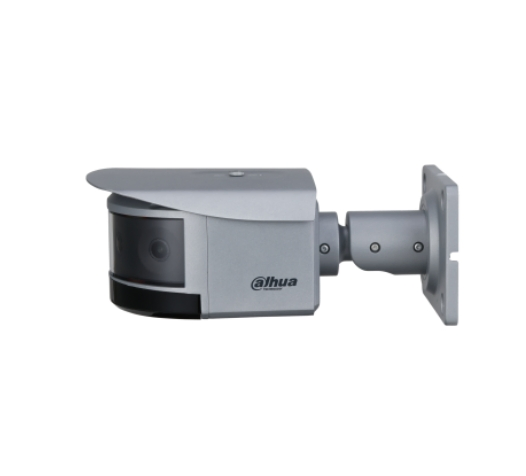

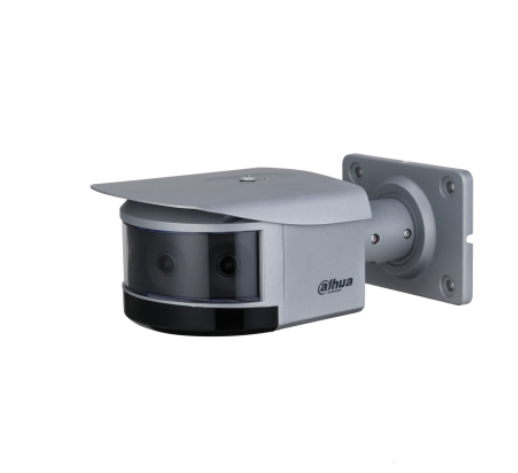

Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
1 / 5
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera

Ipc-Pfw81642-A180 Dahua 360 Degree 4 × 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Product Overview
Model NO.IPC-PFW81642-A180
Resolution16MP (4x4MP)
Sensor Type1/1.8'' CMOS
CompressionH.265 / H.264
ProtectionIP67, IK10 Waterproof
Effective Distance≧30m IR
Lens MountM16 (Fixed Lens)
Special Feature360° Panoramic View
✨ Key Features
Panoramic Camera View
  • 4x4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 16 MP (5520 × 2700) @ 25/30 fps.
  • Three streams for HD video display with high compression rate.
  • Built-in IR LED with a maximum illumination distance of 30 m.
  • Supports 3D NR, HLC, BLC, and digital watermarking.
  • Advanced Intelligence: Tripwire, Intrusion, Vehicle Density, and Crowd Distribution Map.
  • Interface: 2 Alarm in/out, 1 Audio in/out, RS-485, BNC, and Micro SD (up to 256 G).
  • Dual Power: 12 VDC/24 VAC/PoE power supply.
⚙️ Technical Specifications
Image Sensor1/1.8" CMOS
Max. Resolution5520 (H) × 2700 (V)
Scanning SystemProgressive
Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.001 Lux @ F1.6 (Color); 0.0001 Lux @ F1.6 (B/W); 0 Lux (IR on)
S/N Ratio>56 dB
Illumination8 IR LEDs, up to 30 m distance
Pan/Tilt RangeTilt: 0°–90°; Rotation: 0°–360°
Lens TypeFixed-focal 2.8 mm
IVSTripwire; Intrusion; Vehicle density; Crowd map
Noise Reduction3D NR
Casing MaterialMetal + Plastic
Operating Temp.-40 °C to +60 °C (-40 °F to +140 °F)
🖼️ Product Gallery

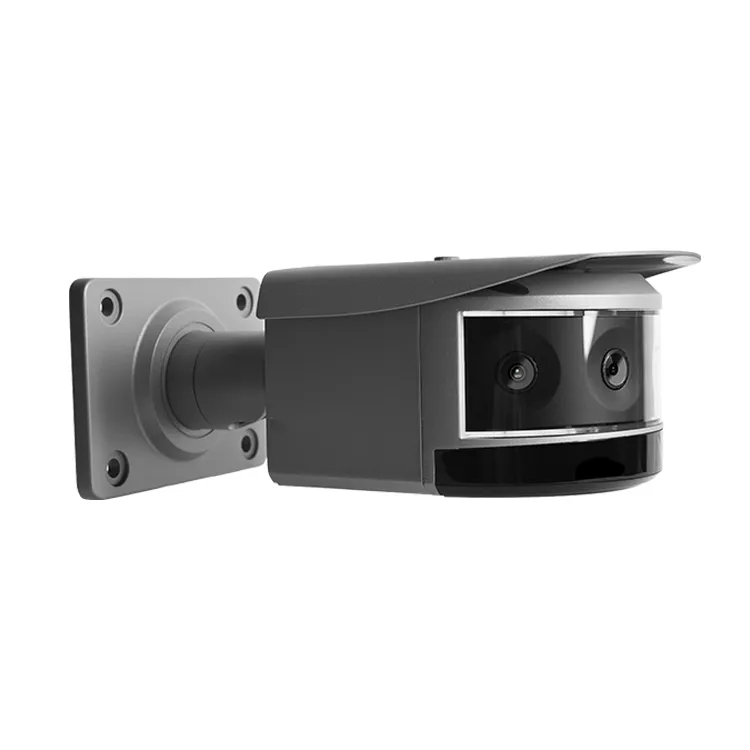

Spec Image 1
Spec Image 2
Product Angle 1
Product Angle 2
Product Angle 3
Product Angle 4
📦 Packaging & Delivery
Package Size30.00cm * 18.00cm * 13.00cm
Gross Weight3.800kg
Production Cap.300,000 PCS Per Year
❓ Frequently Asked Questions
What kind of products do you provide?
We provide original products that are fully compatible with official applications for seamless integration.
What is the estimated delivery time?
For stock items, delivery is typically 3-5 days. For bulk orders, the lead time is approximately 2-4 weeks.
Is there a warranty for the products?
Yes, we offer a 2-year warranty for standard products and up to 3 years for specific professional lines.
What payment methods are accepted?
We accept T/T, Western Union, Paypal, and major Credit Cards.
How are the goods shipped?
Small parcels are sent via express (DHL, Fedex, UPS). Bulk orders can be shipped via your preferred forwarder or our logistics partners.
Is there a Minimum Order Quantity (MOQ)?
Sample orders are welcomed. Pricing becomes more competitive with larger quantities.
