High Gain Antenna 8000 Meters Gigabit Wireless Bridge Outdoor IP Camera

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.WB5acL8-Ex

WiFi Antenna TypeExternal

Transmission Rate900Mbps

Voltage48V

ColorWhite

WiFi Standard802.11AC

POEIEEE 802.3at 48V Poe

AntennaHigh Gain Panel Antenna

Product Description

TDMA 5.8G 900Mbps Wireless Bridge 8KM PTP PTmP Distance

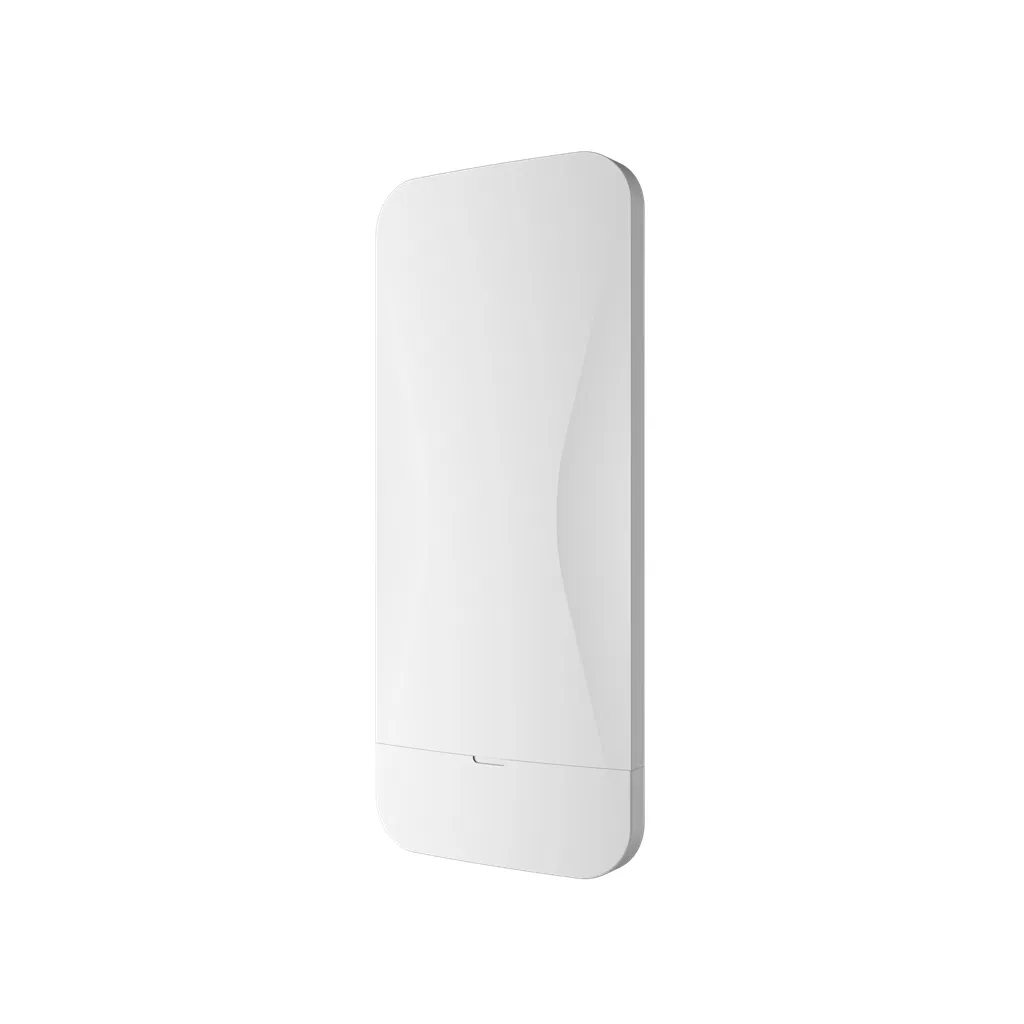

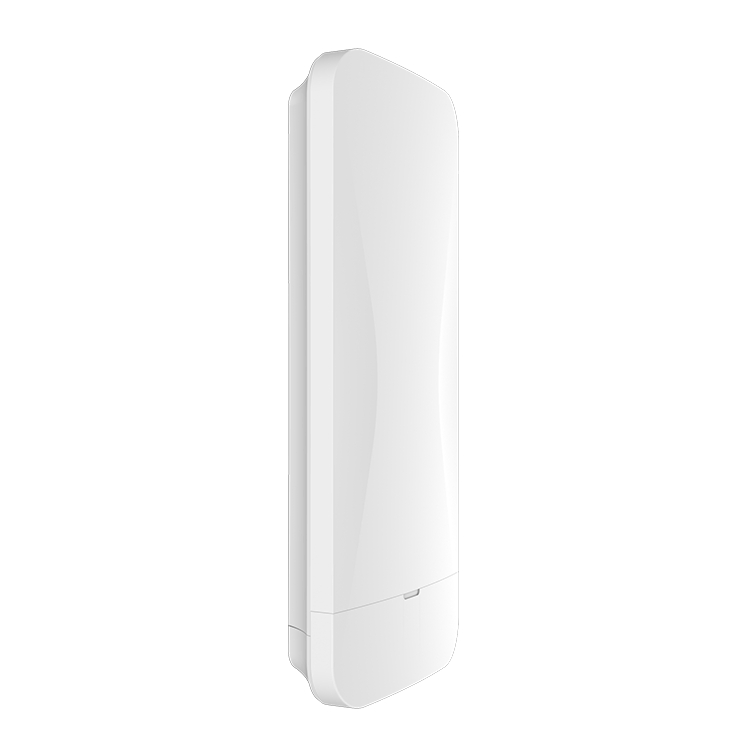

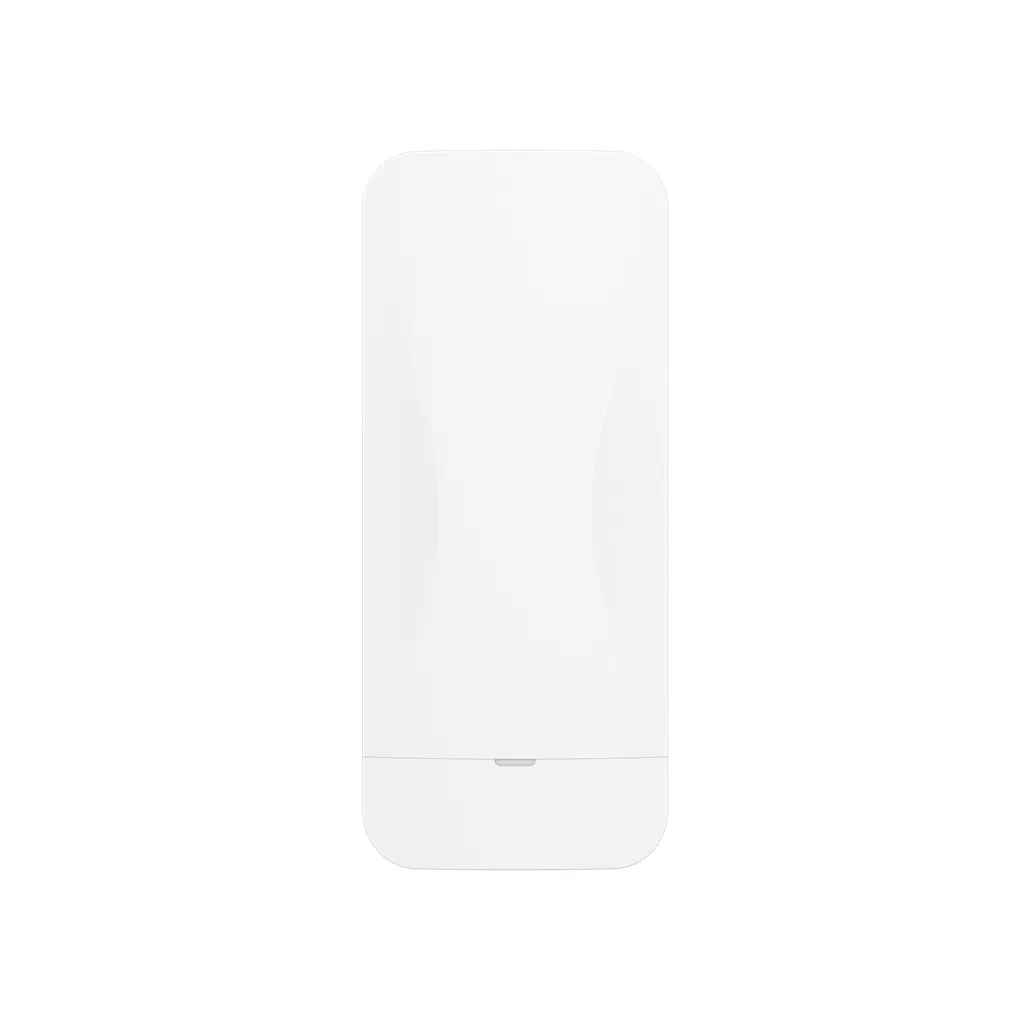

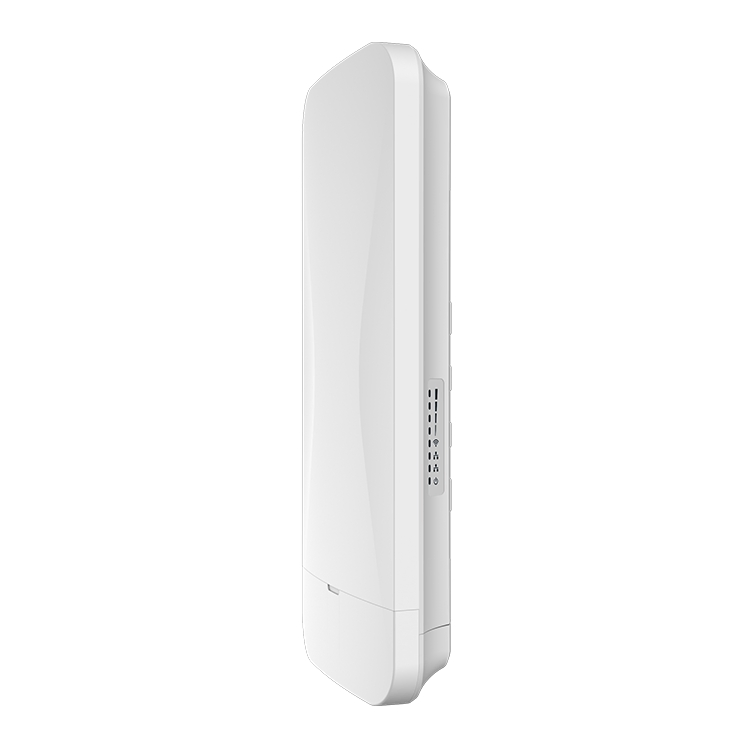

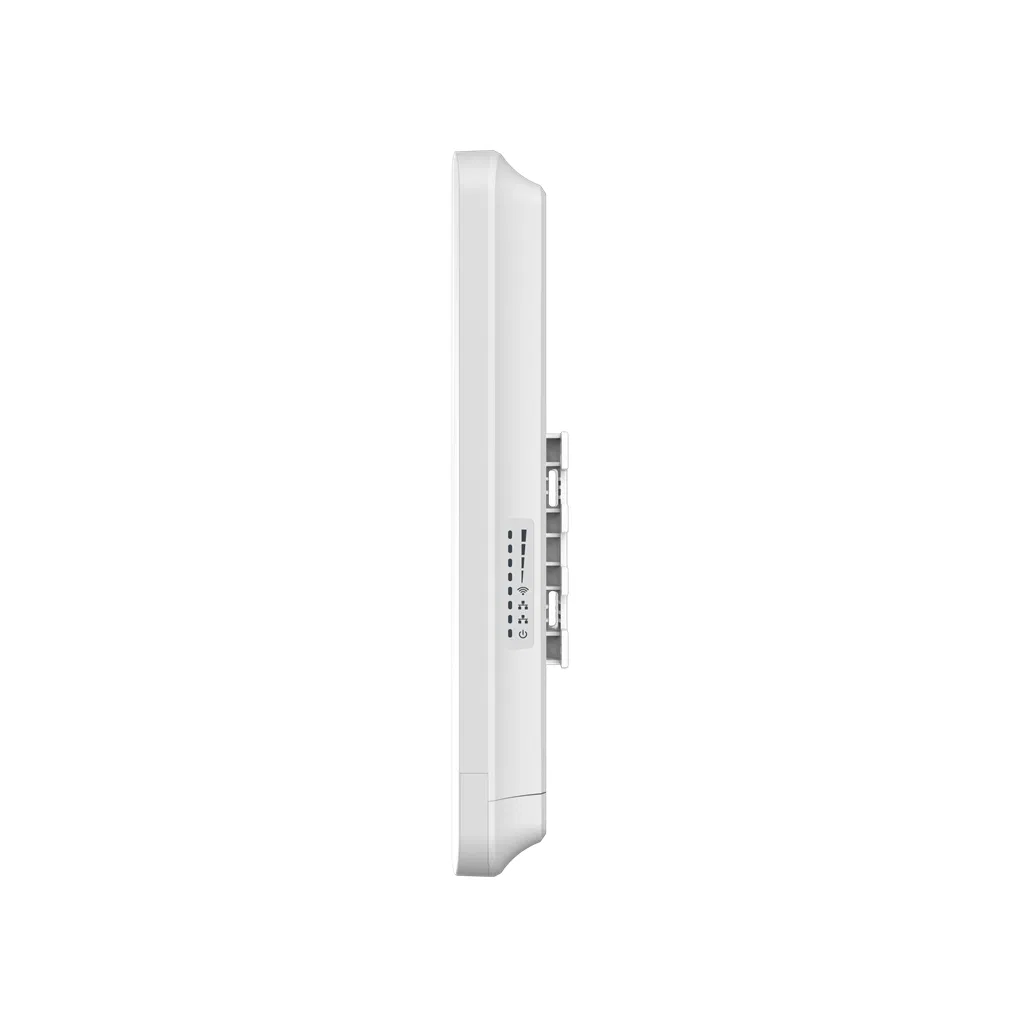

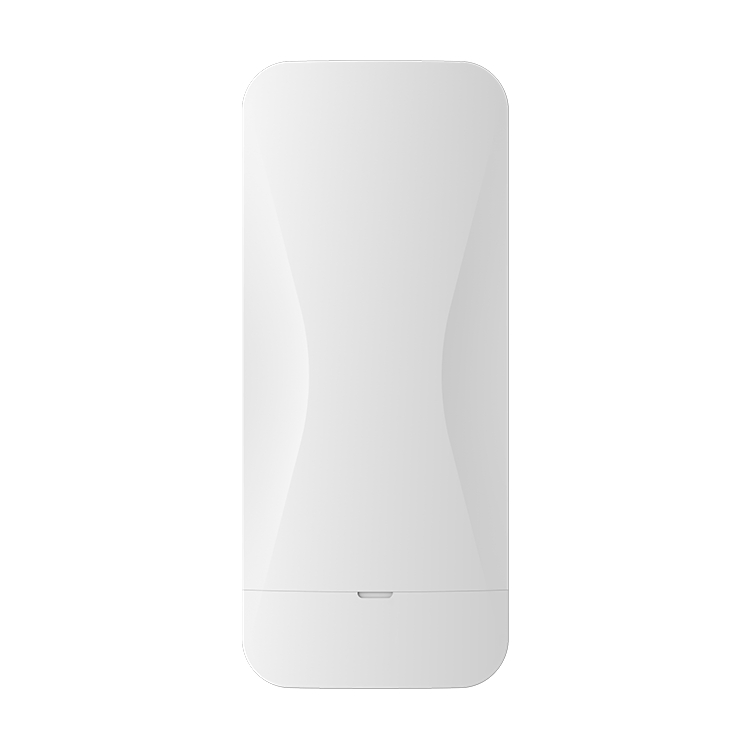

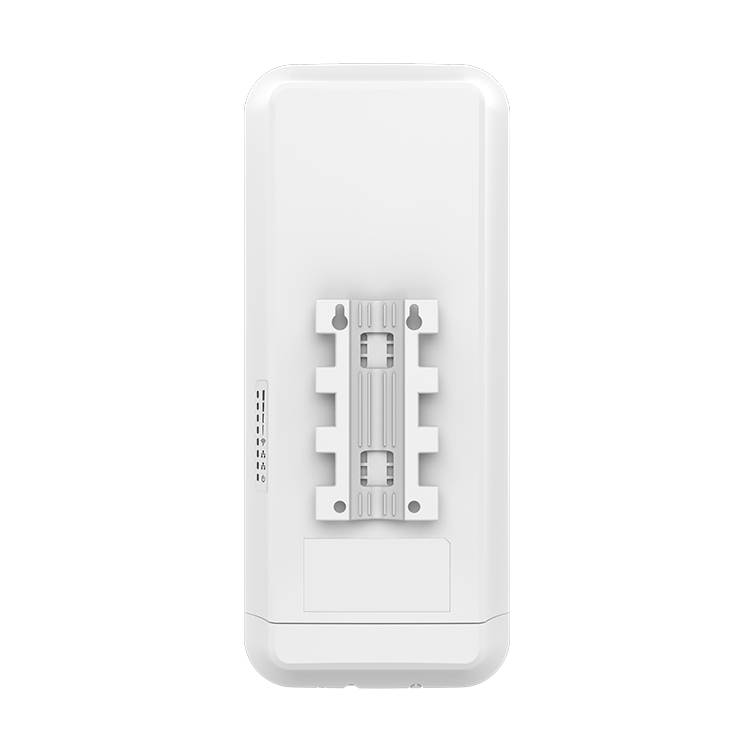

WB 5acL8 is a professional high-speed 900Mbps outdoor CPE featuring one-key fast PT/PTMP connection. Compliant with IEEE 802.11a/n/ac standards, it integrates an 18dBi dual-polarized high-gain antenna, enabling reliable wireless transmission over distances exceeding 8KM.

Designed for durability, the device features an ABS waterproof, dustproof, and sunscreen shell, making it highly adaptive to varying outdoor temperatures. It supports 24V-48V passive PoE and provides 4KV lightning protection.

Equipped with a watchdog self-detection function, the system automatically reboots and recovers in the event of network anomalies. It also supports cloud remote management, allowing administrators to monitor status, upgrade firmware, and maintain the device from any location.

Main Features

Specialized TVS lightning protection for harsh environmental endurance.
Built-in 18dBi dual polarization directional antenna for up to 8km PTP/PTmP range.
Dual power support: 24-48V PoE and 12V DC power supply.
TDMA intelligent dynamic polling protocol with ATPC and IPv6 support.

Technical Specifications

Hardware Parameter	Details
CPU	Qualcomm
DDR	DDR2-128MB
Flash	SPI NOR 16MB
5G Frequency	5.150GHz ~ 5.850GHz
Max Rate	900Mbps
Antenna	Internal 18dBi directional panel antenna
Power Consumption	< 15W
IP Grade	IP65

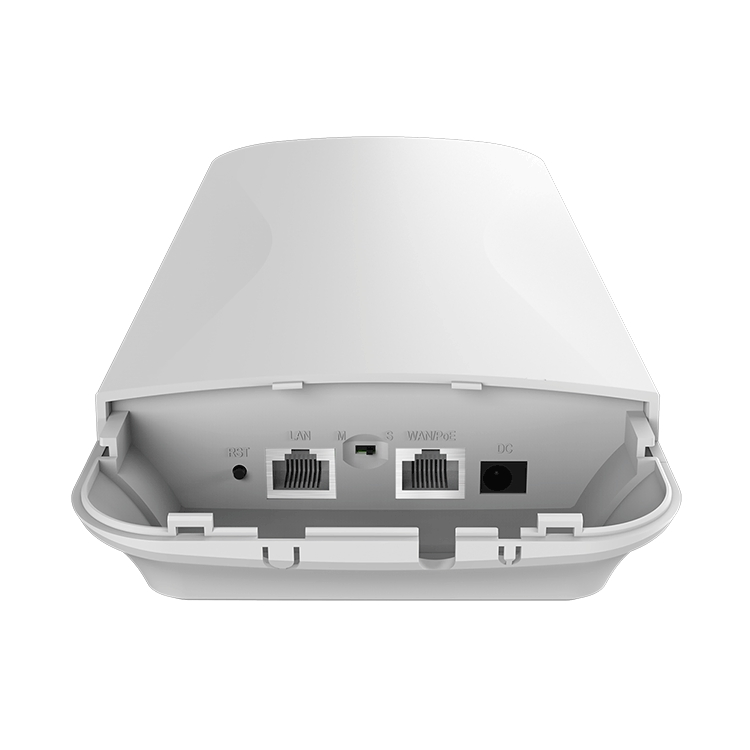

Interface	110/100/1000M WAN (PoE), 110/100/1000M LAN
Operating Temp	-30°C to 55°C

Wireless Safety

Software Capability	Description
Working Mode	Access Point (WDS/TDMA3), Site (WDS/TDMA3/ARPNAT)
Wireless Protocol	Intelligent dynamic polling, auto channel & modulation, ATPC
WPA/WPA2 Personal/Enterprise, WACL, User isolation
Wireless QoS	TDMA 4 queue priority
Management	HTTP(S) GUI, SSH, SNMP, WNMS, Telnet
Built-in Tools	Site survey, connection testing, antenna calibration

Frequently Asked Questions

What is the maximum transmission distance of this wireless bridge?

The WB5acL8-Ex supports a Point-to-Point (PTP) or Point-to-MultiPoint (PTMP) distance of more than 8KM when using its high-gain 18dBi antenna.

What kind of power supply does the device support?

It supports flexible power options, including 24V-48V passive PoE through the WAN port and a standard 12V-48V DC power input.

How does the device handle network attacks or freezes?

The bridge includes a built-in watchdog self-detection function that monitors the system and automatically reboots the device to recover if any network issues are detected.

Is the bridge suitable for extreme weather conditions?

Yes, it features an IP65-rated ABS shell that is waterproof, dustproof, and sunscreen-protected. It operates efficiently in temperatures ranging from -30°C to 55°C.

Does it support remote management?

Yes, it supports cloud remote management, allowing administrators to monitor status, upgrade firmware, and perform reboots from any location via a cloud server.

What is the advantage of the TDMA protocol used in this device?

The TDMA intelligent dynamic polling protocol improves network throughput and reduces latency by organizing communication slots, making it ideal for high-density outdoor wireless connections.
