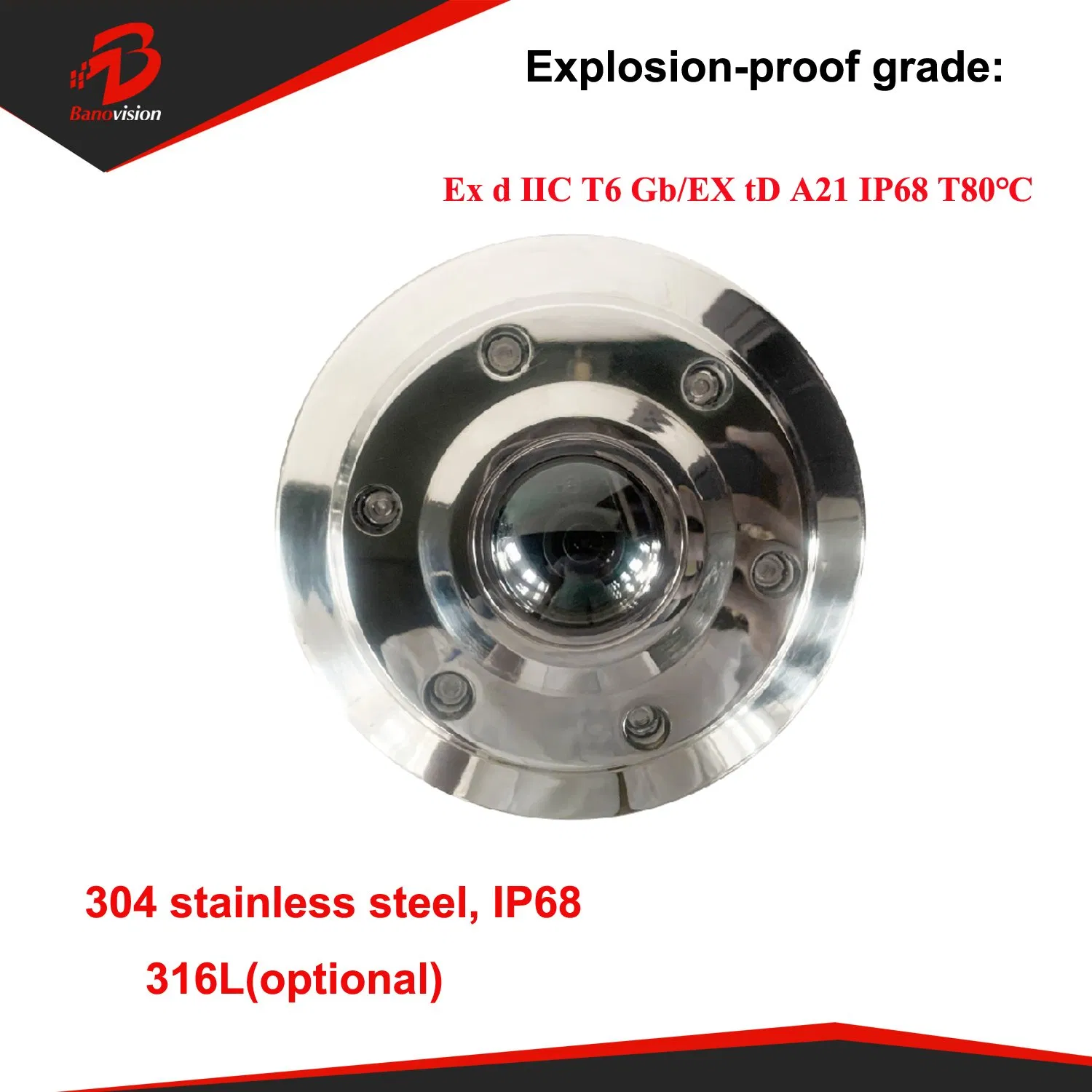

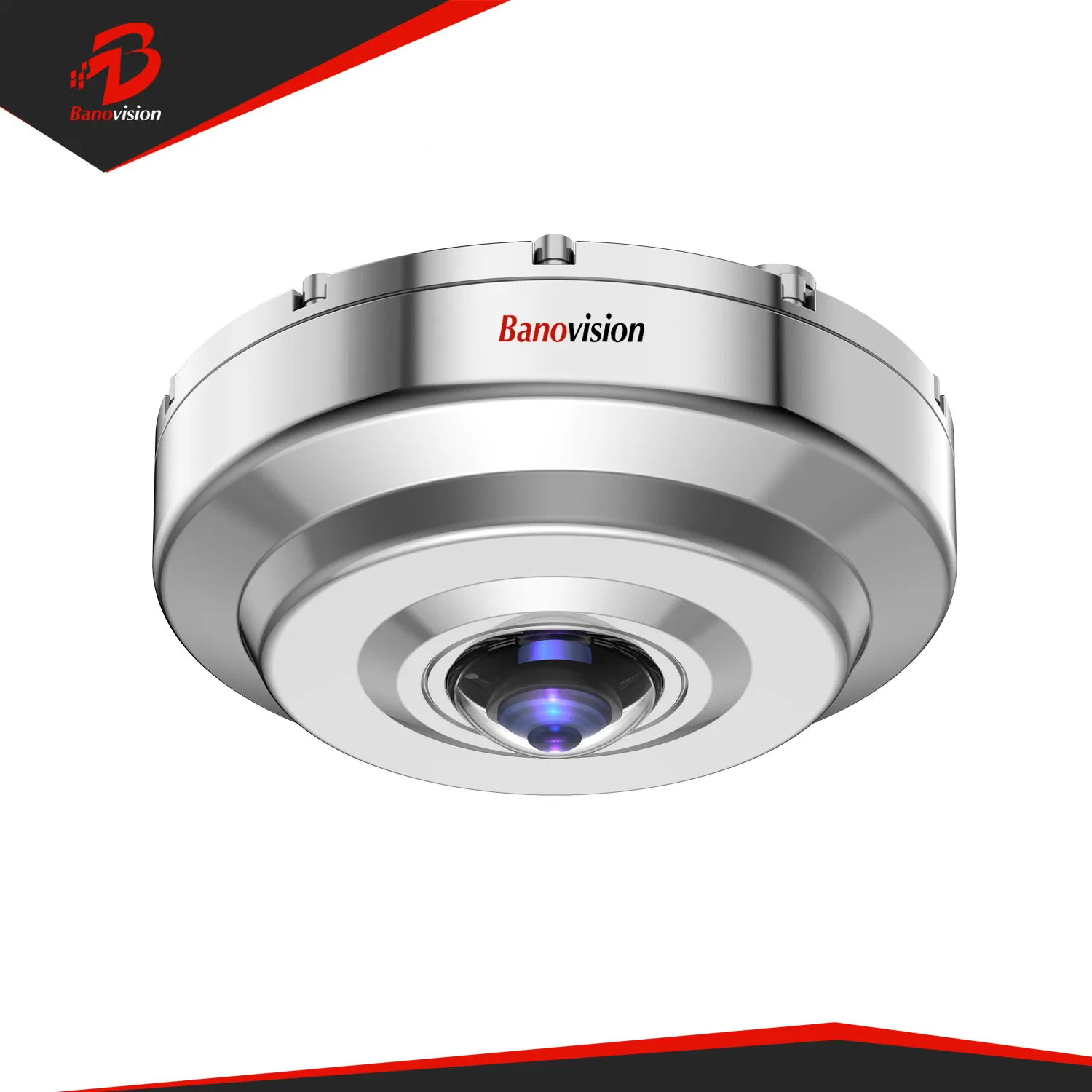

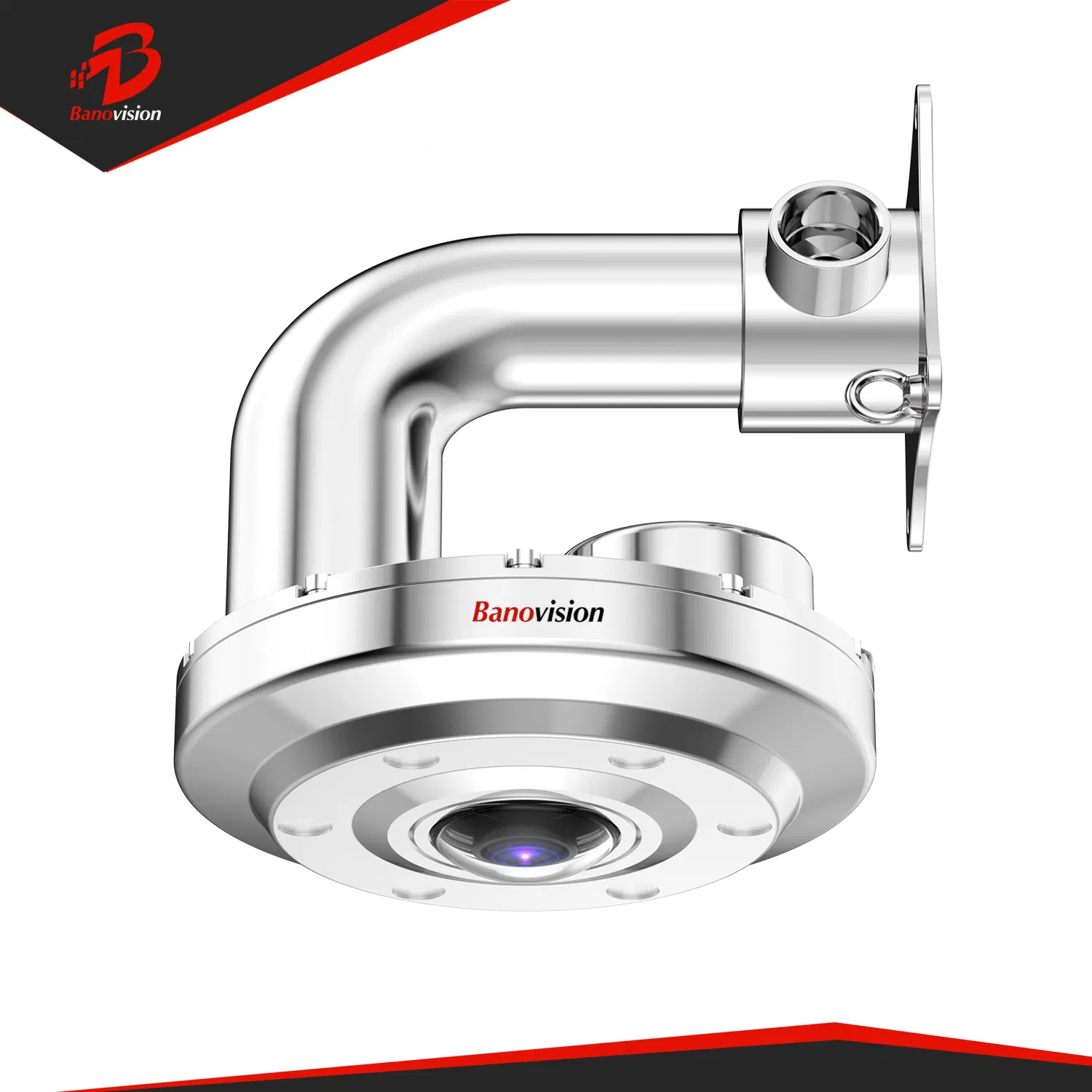

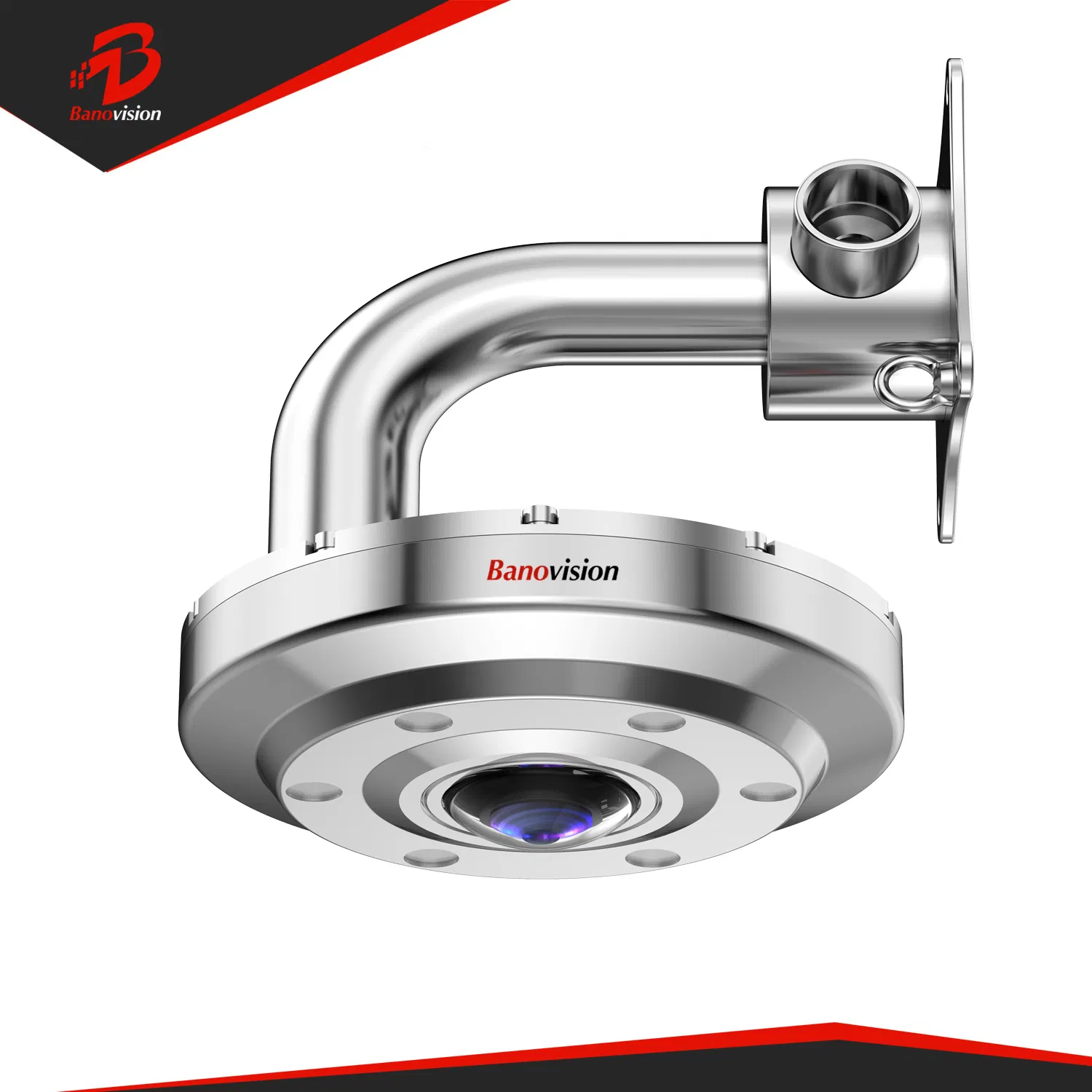

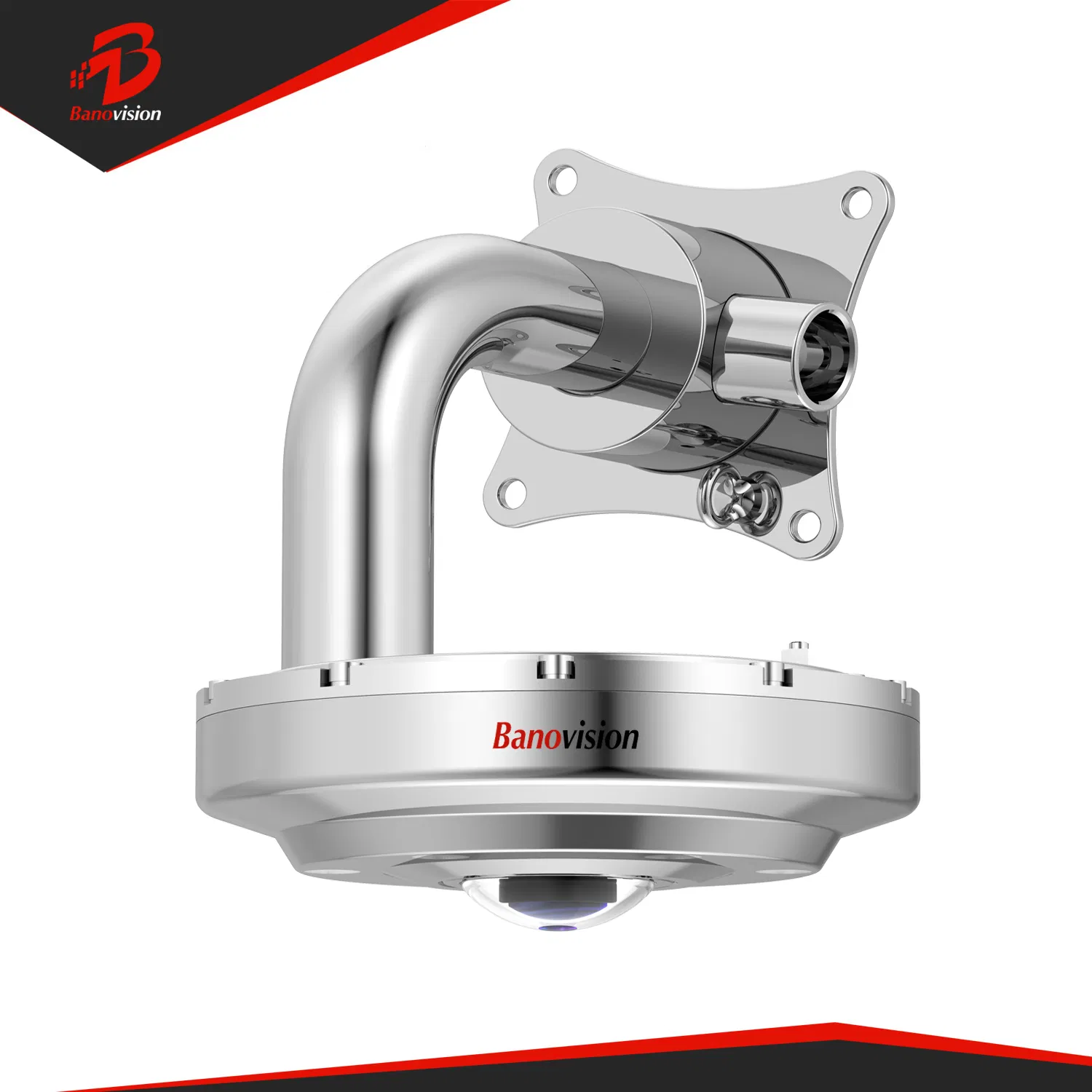

Explosion Proof 5MP Fisheye Panoramic Network Camera
The BA-EX109-FP is a cutting-edge explosion-proof fisheye camera, a specialized type of explosion-proof equipment designed to support the installation and operation of various camera modules in hazardous zones.
| Camera Specifications | |
| Image Sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS |
| Angle of View | 360° Fisheye |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.01 Lux; 0 Lux with IR |
| WDR | 120dB True WDR |
| Video & Network | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | 5MP (2592*1944) @ 30fps |
| Storage | Micro SD (up to 256GB), ANR, NAS(NFS) |
| Protocols | IPv4, TCP, UDP, DHCP, RTP, RTSP, ONVIF, API |
| General | |
| Power | DC12V±25%, PoE (IEEE 802.3af) |
| Environment | -30°C ~ 60°C, Humidity ≤95% RH |
| Protection | IK10 Vandal Resistant, 4KV Surge Protection |
Explosion-proof fisheye cameras are essential for monitoring hazardous environments where flammable gases or dust are present:
Oil and Gas Industry: Monitoring drilling rigs, refineries, and storage tanks.
Chemical Processing: Oversight of volatile chemical storage and reaction vessels.
Mining Operations: Enhancing safety in underground tunnels and conveyor systems.
Manufacturing & Power Plants: Monitoring production lines and combustible fuel areas.
Marine & Infrastructure: Offshore platforms, tunnels, and subway station security.
