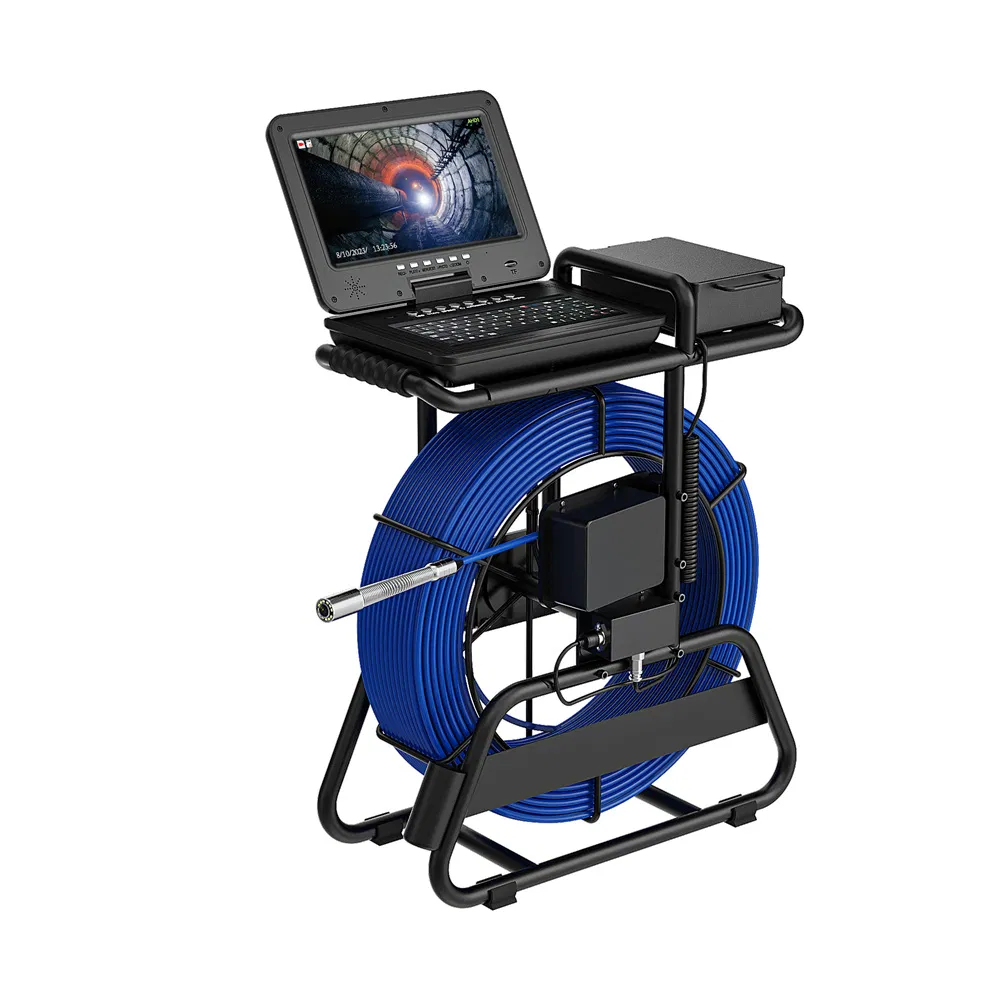

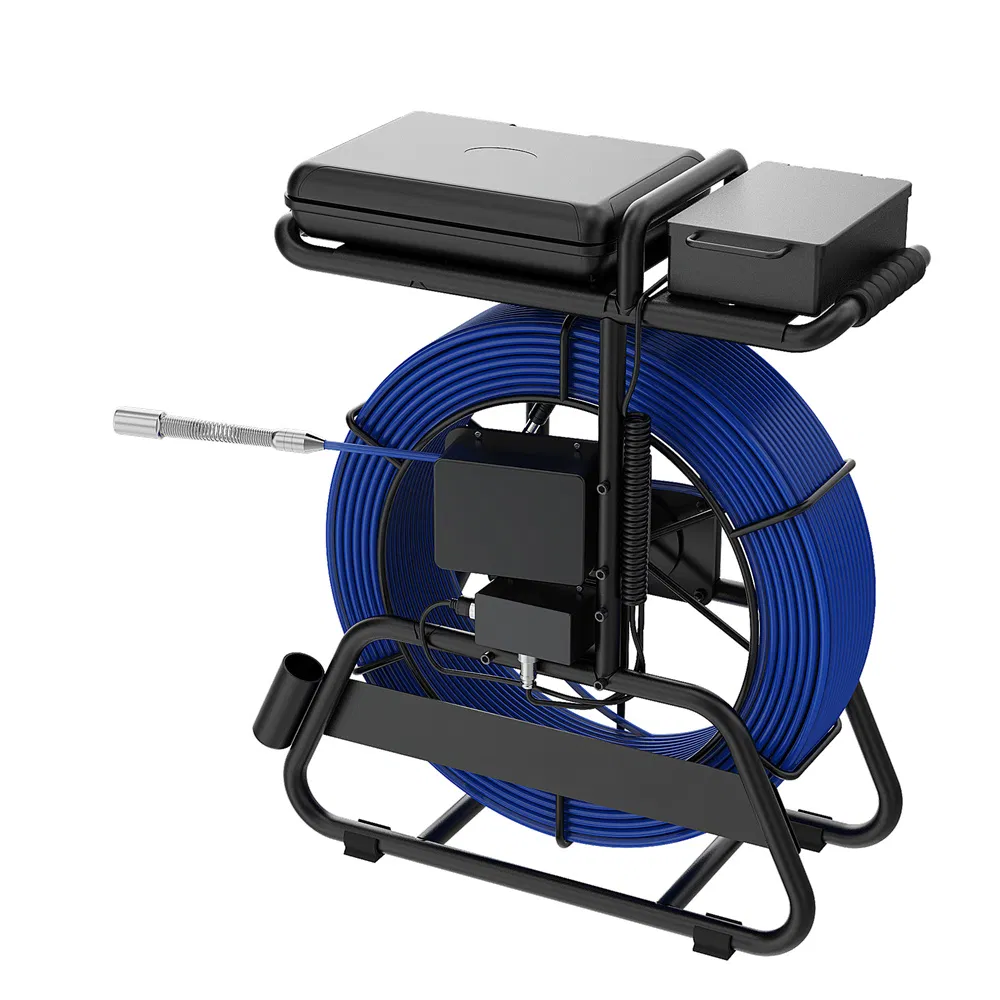

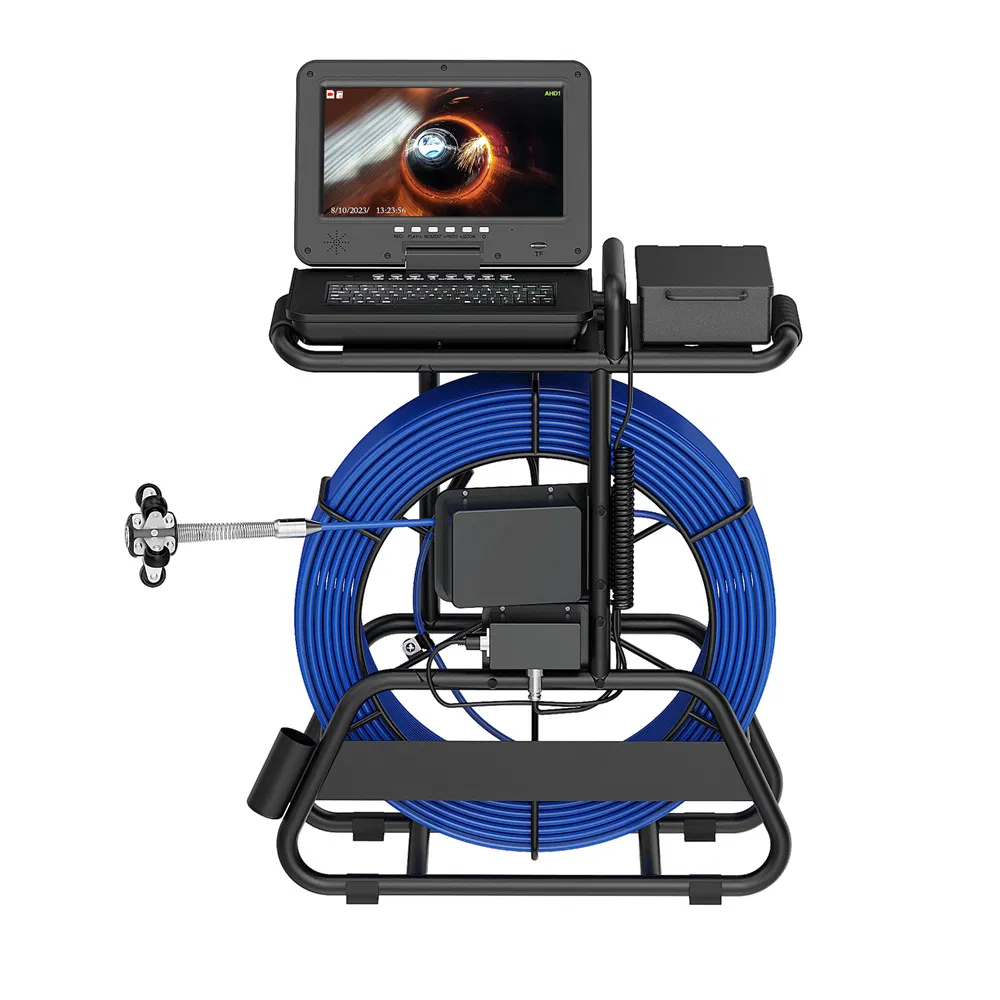

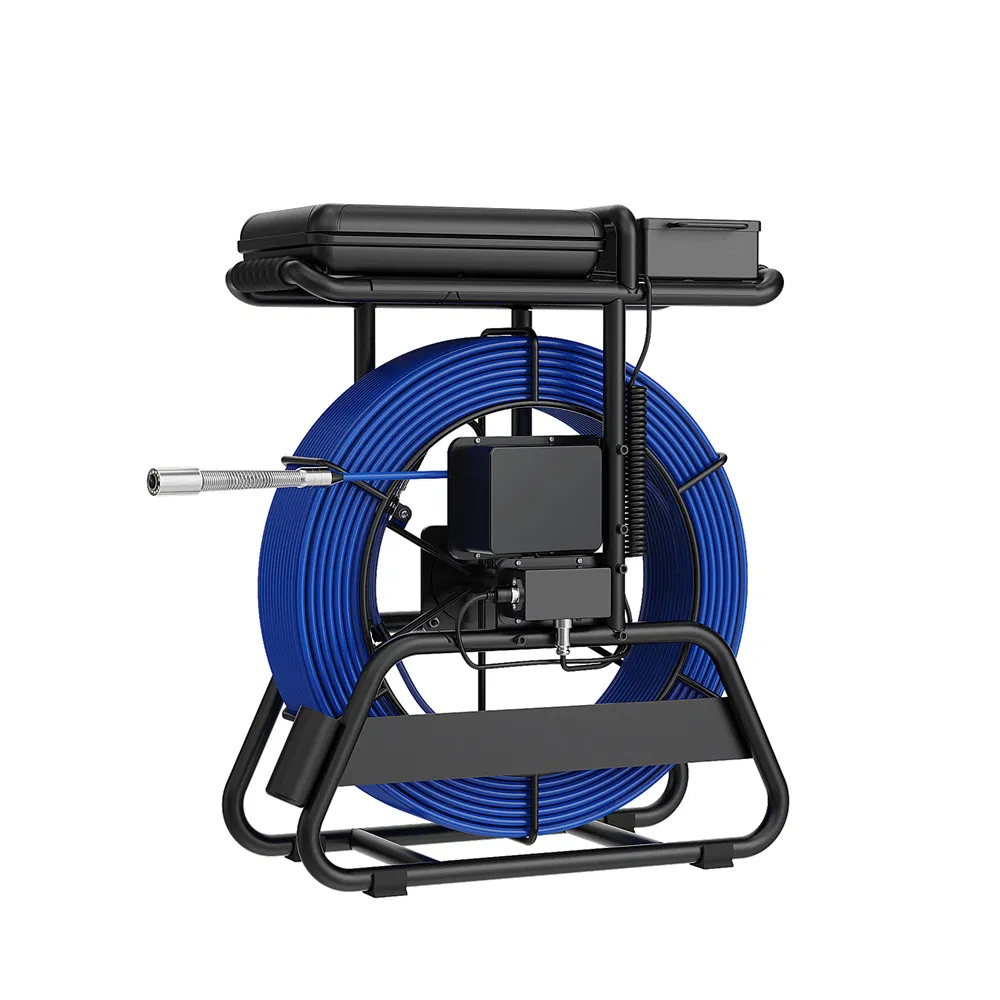

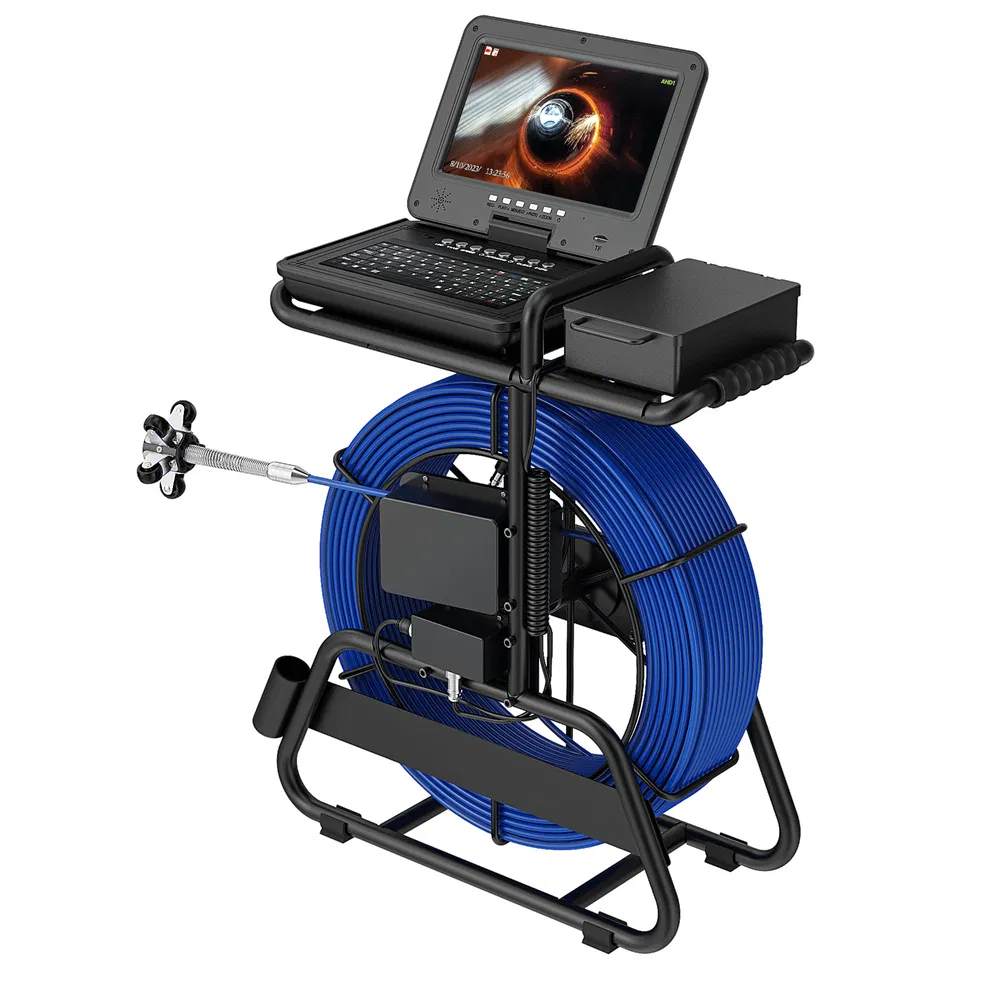

100m 360 Degrees 10 Inch IPS Cable Diameter 7mm 512Hz Transmitter Locator Meter Counter Keyboard Sewer Camera Inspection

1 / 5

100m 360 Degrees 10 Inch IPS Cable Diameter 7mm 512Hz Transmitter Locator Meter Counter Keyboard Sewer Camera Inspection

Customization:	Available
Technology:	WDR
Style:	Mini Camera

Send Inquiry

Product Description

📋 Overview & Basic Info.

Model NO.

MVPC

Type

Box Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

1280*720

Kind

Fixed Focus 5-20cm

Certification

Feature

Waterproof / Weatherproof, High Definition, Mini Size

Effective Distance

10-60m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Camera Head Size

32mm

Cable Length

100m

Video Compression

H.264

Storage

SD Card

Application

Outdoor

Monitor

10 Inch IPS

Waterproof Level

IP68

📦 Packaging & Delivery

Package Size

68.00cm * 59.00cm * 30.00cm

Gross Weight

22.000kg

🔍 Product Description

Applications:

Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.

⚙️ Technical Parameters

Monitor

10 inch IPS color record (1024*600)

TF Card

Supports up to 128G (16G included)

Transmitter

Built-in 512hz

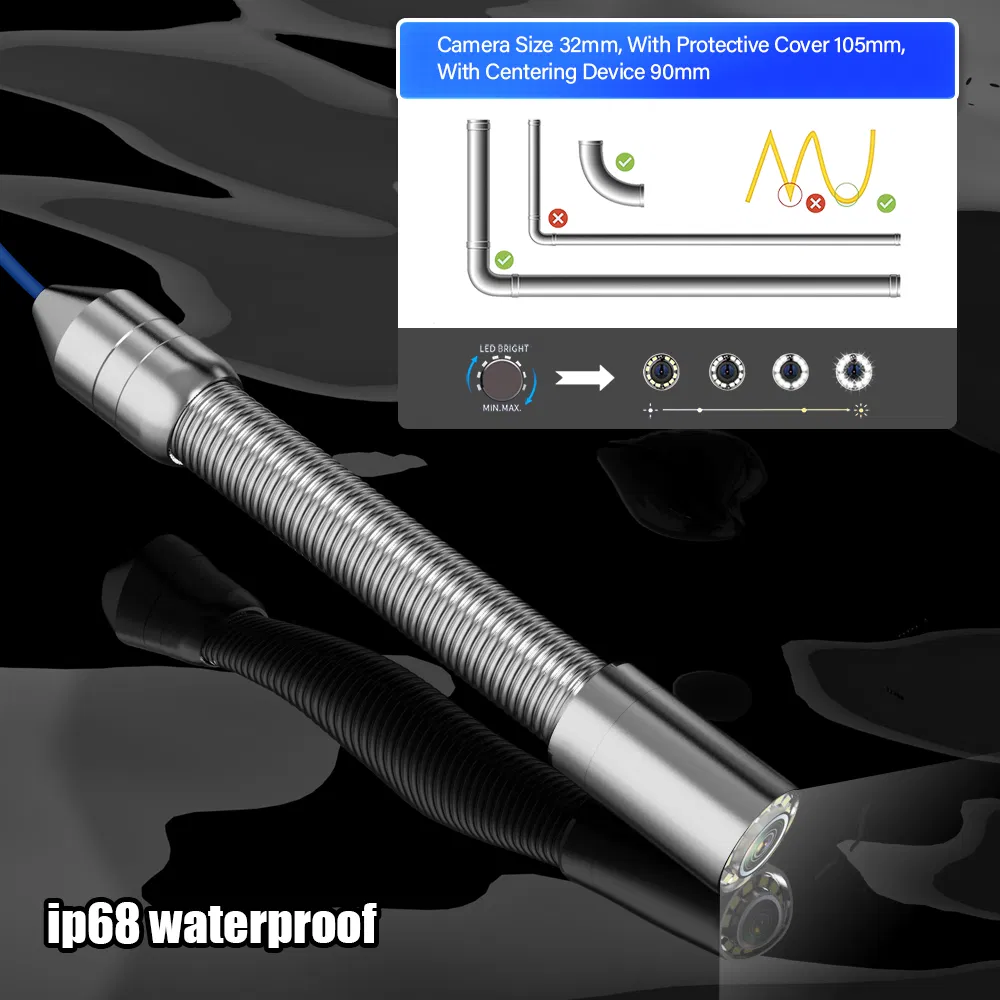

Camera Head

AHD 1080P, 360° Panning

Battery

12V 4500mA (8 hours use)

Lens Material

Sapphire Mirror

Light Source

12 PCS Adjustable White LED

Cable

100M Fiber Tube / High Intensity

Waterproof/360° PANNING NIGHT VISION TRANSMITTER: This device is equipped with a dual-lens system. One camera is a front-facing camera, while the other provides 360-degree rotation. Features IP68 waterproofing and 12 adjustable LEDs for varied viewing positions.

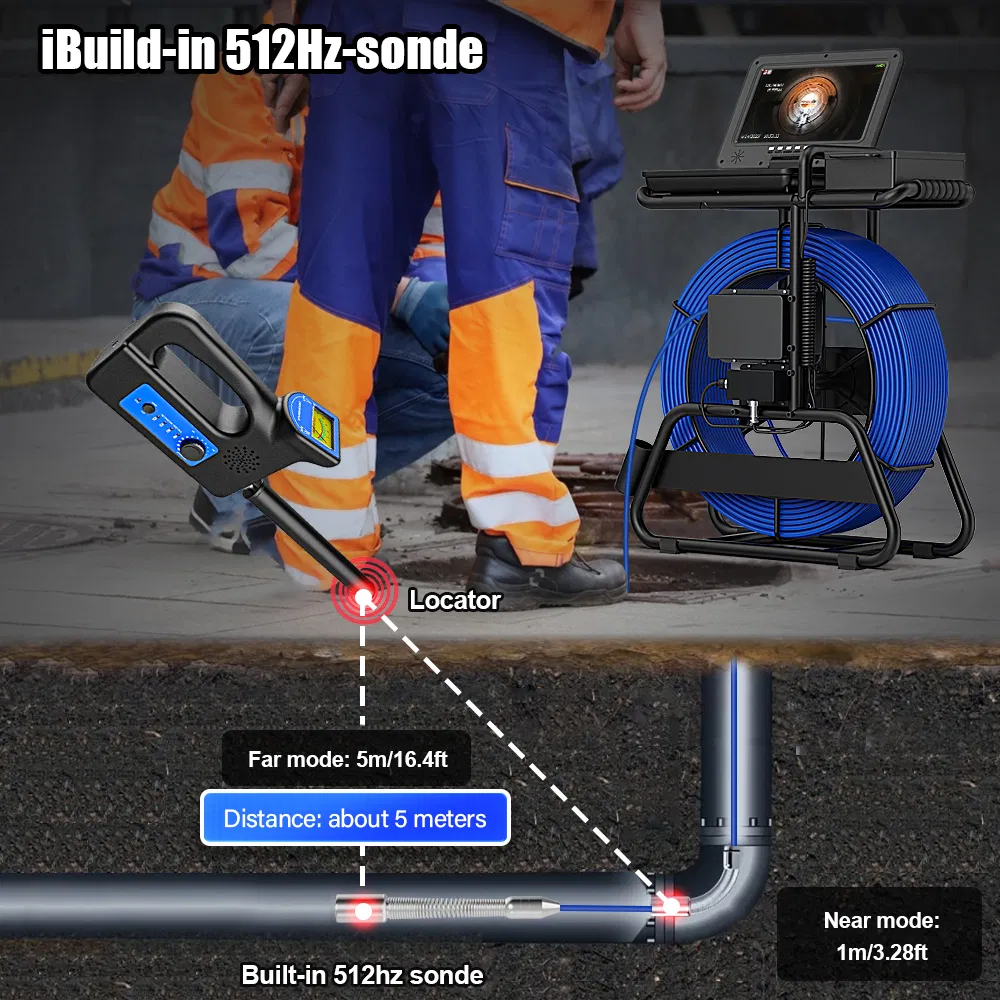

512HZ TRANSMITTER: Includes a built-in 512Hz sonde to help easily detect blockages or areas of interest underground using compatible locators.

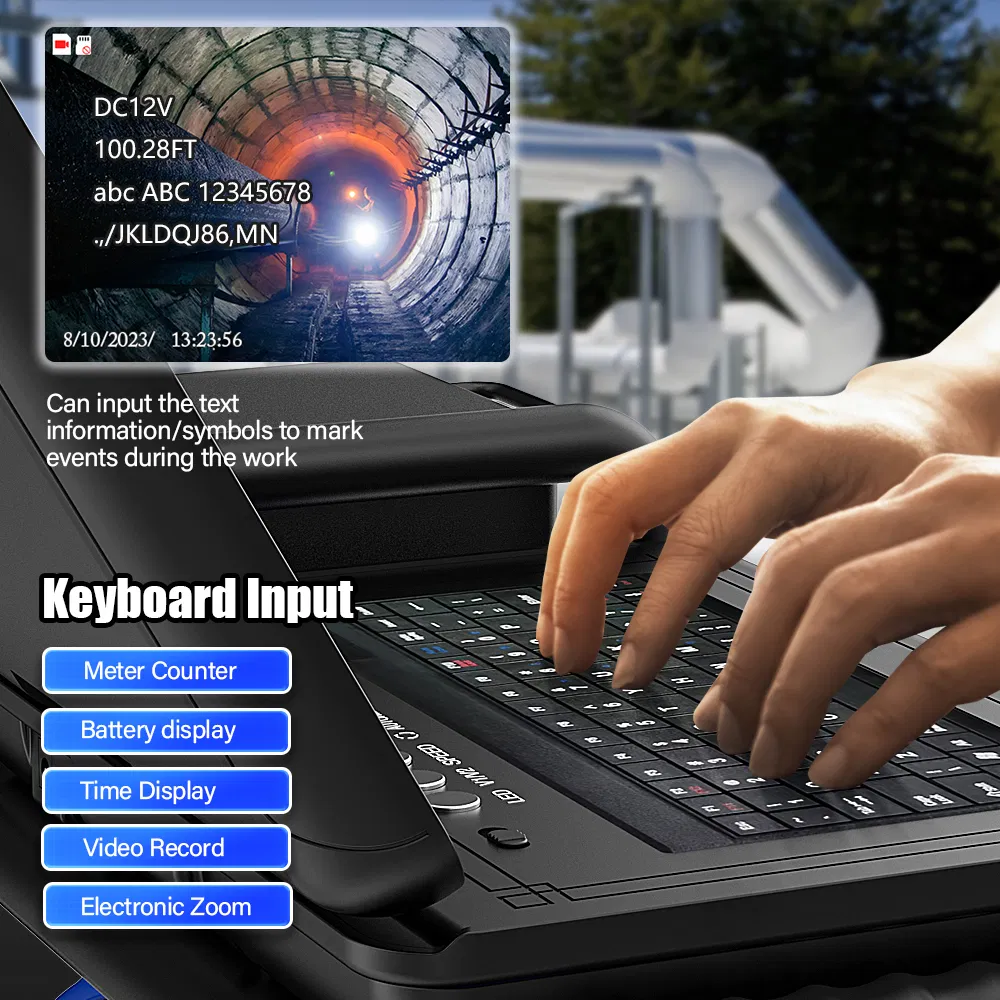

Video + Audio + 5X Zoom: Built-in TF Card slot for live viewing and recording. Supports 0-5x zoom functionality and audio recording.

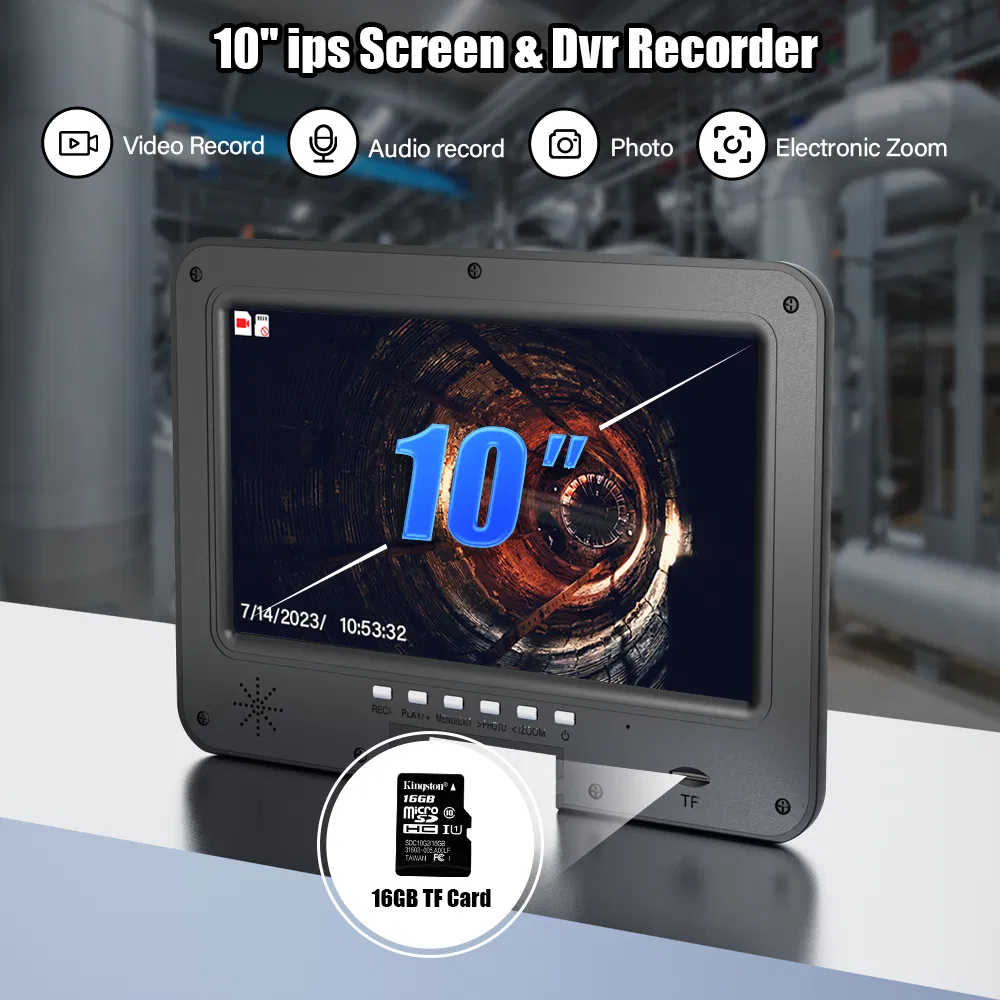

MONITOR & CABLE: Professional 10-inch color IPS LCD monitor with sun-visor. The cable is a 7mm anti-corrosion fiberglass rod.

❓ Frequently Asked Questions

Q1: How deep can this camera go into a pipe? A1: This specific model comes with a 100-meter high-intensity fiber tube cable, allowing for deep investigation in large pipeline systems.

Q2: Can the camera head rotate to see all angles? A2: Yes, the camera features a 360-degree panning head, allowing you to observe the pipe from all viewing positions.

Q3: Does the system support recording? A3: Yes, it supports video, audio, and photo recording. It includes a 16GB TF card and supports up to 128GB.

Q4: How do I locate the camera position underground? A4: The camera has a built-in 512Hz transmitter. You can use any compatible 512Hz locator receiver to pinpoint its exact position.

Q5: Is the monitor suitable for outdoor use? A5: Yes, the 10-inch IPS color monitor includes a sun-visor designed specifically for bright outdoor environments.

Q6: What is the battery life of the unit? A6: The built-in 4500mA li-ion battery supports continuous operation for approximately 6 to 8 hours.
