Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
1 / 5
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection
Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection

Custom Length Telescopic Rod Camera Viaduct Bridge Structure Inspection

Customization: Available
Technology: Pipe Inspection Camera
Style: Box Camera
Send Inquiry

Product Description

Basic Information
Model NO.
WPS-L1-C23LG
Type
Video Camera
Sensor
CMOS
HDMI Format
AVI
Horizontal Resolution
720p
Kind
Pipe Inspection Camera
Certification
CE, FCC, RoHS, EMI/EMC, ISO9001: 2000
Feature
Waterproof, High Definition
Sensor Size
1/3 inch
Monitor Size
4.3 inch
Length
3.6m
Material
Carbon Fiber Telescopic Pole
Waterproof
IP68
Zoom
8X
Product Overview

MODEL: WPS-4LG

Carbon Fibre CCTV Systems Handheld Telescopic Pole Wall and Chimney Inspection Camera

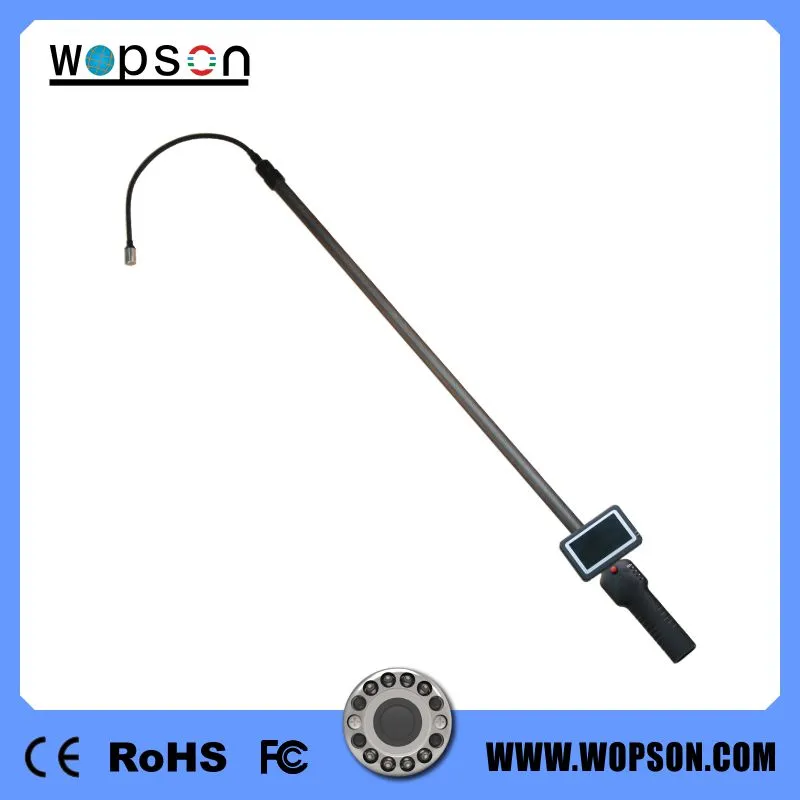

Telescopic Rod Camera Inspection
Bridge Structure Inspection

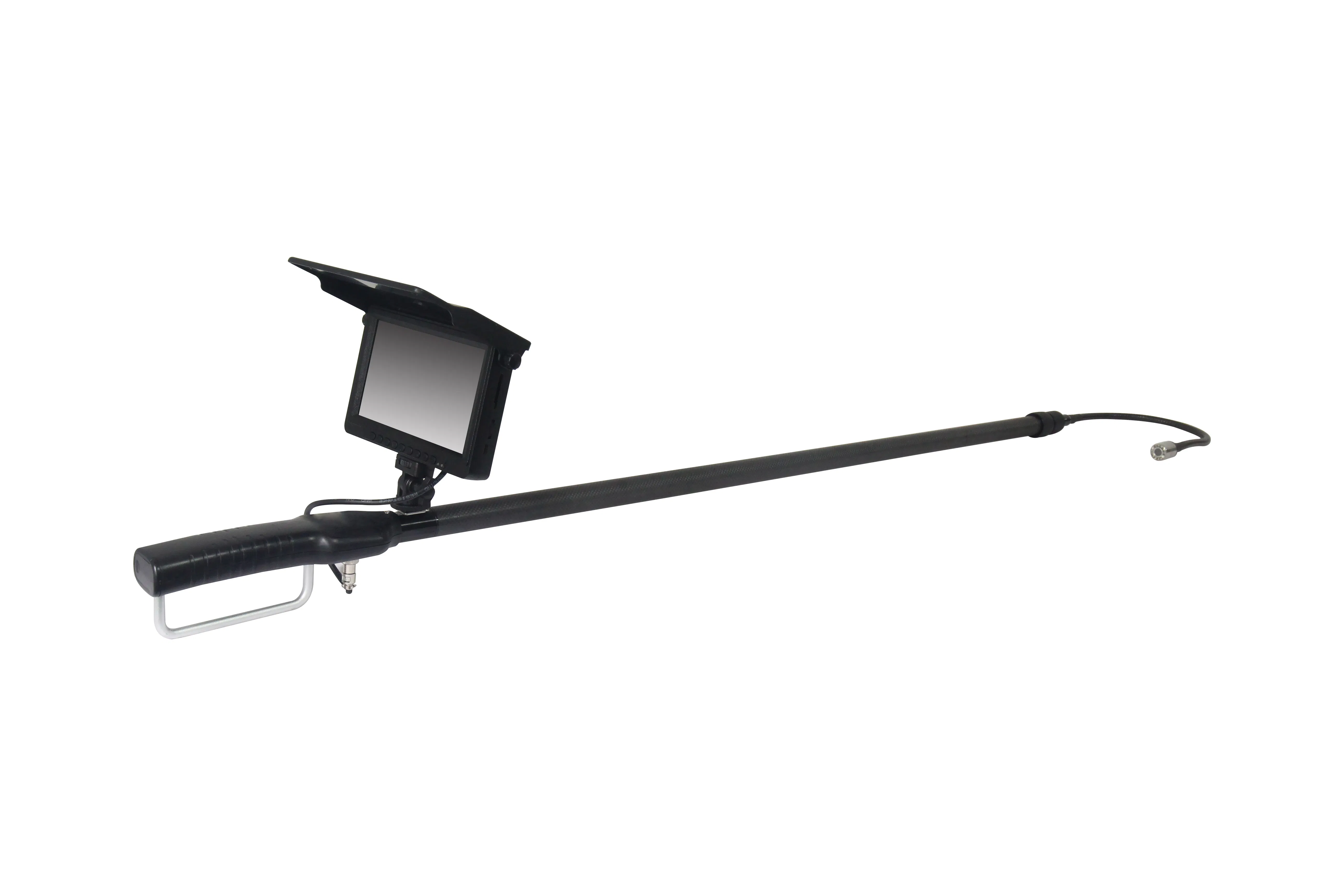

Handheld Telescopic Camera

SPECIFICATION: Carbon Fibre Universal Wheel 1080P HD Mini Under Car Inspection Camera DVR System with 5m Telescopic Pole

CAMERA SPECIFICATIONS
Camera SizeΦ23mm * 510mm(L)
Housing MaterialStainless steel
Sensor Size1/4 inch
Total PixelsPAL: 720*576; NTSC: 720*480
View Range120°
Illumination12PCS white LEDs
Waterproof LevelIP68
Operating Temp-10°C to +50°C
TELESCOPIC POLE
Pole MaterialCarbon fiber
Joints3 joints
Min Length1080mm
Max Length2850mm
Total Length3600mm

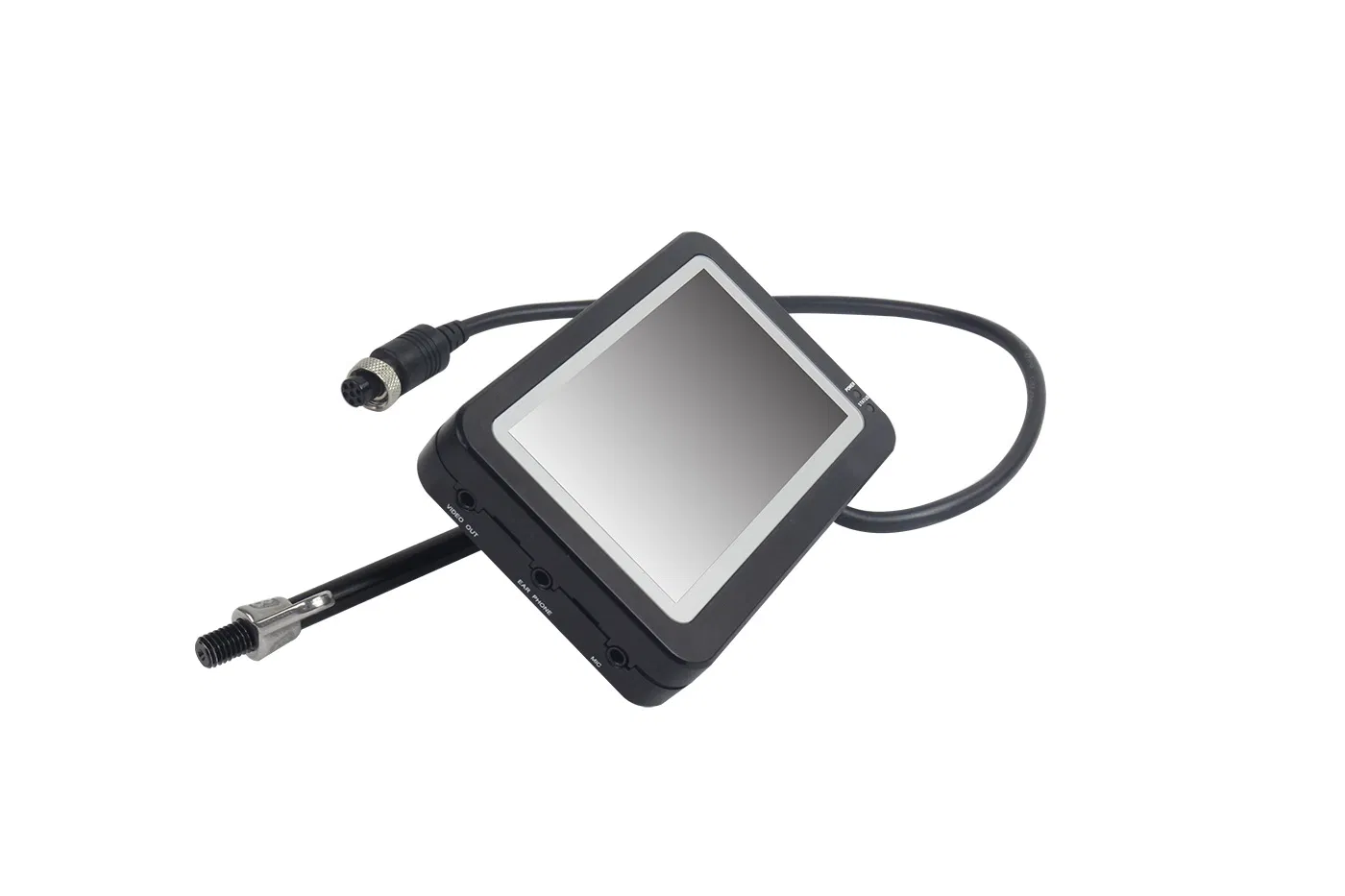

MONITOR & CONTROL BOX
Monitor Size4.3 inch TFT color monitor
Pixels480(RGB)X272
Storage MediumSD card (max 32G)
Movie FormatAVI
FeaturesPicture Snap, Movie Record, Audio Record
BATTERY & ACCESSORIES

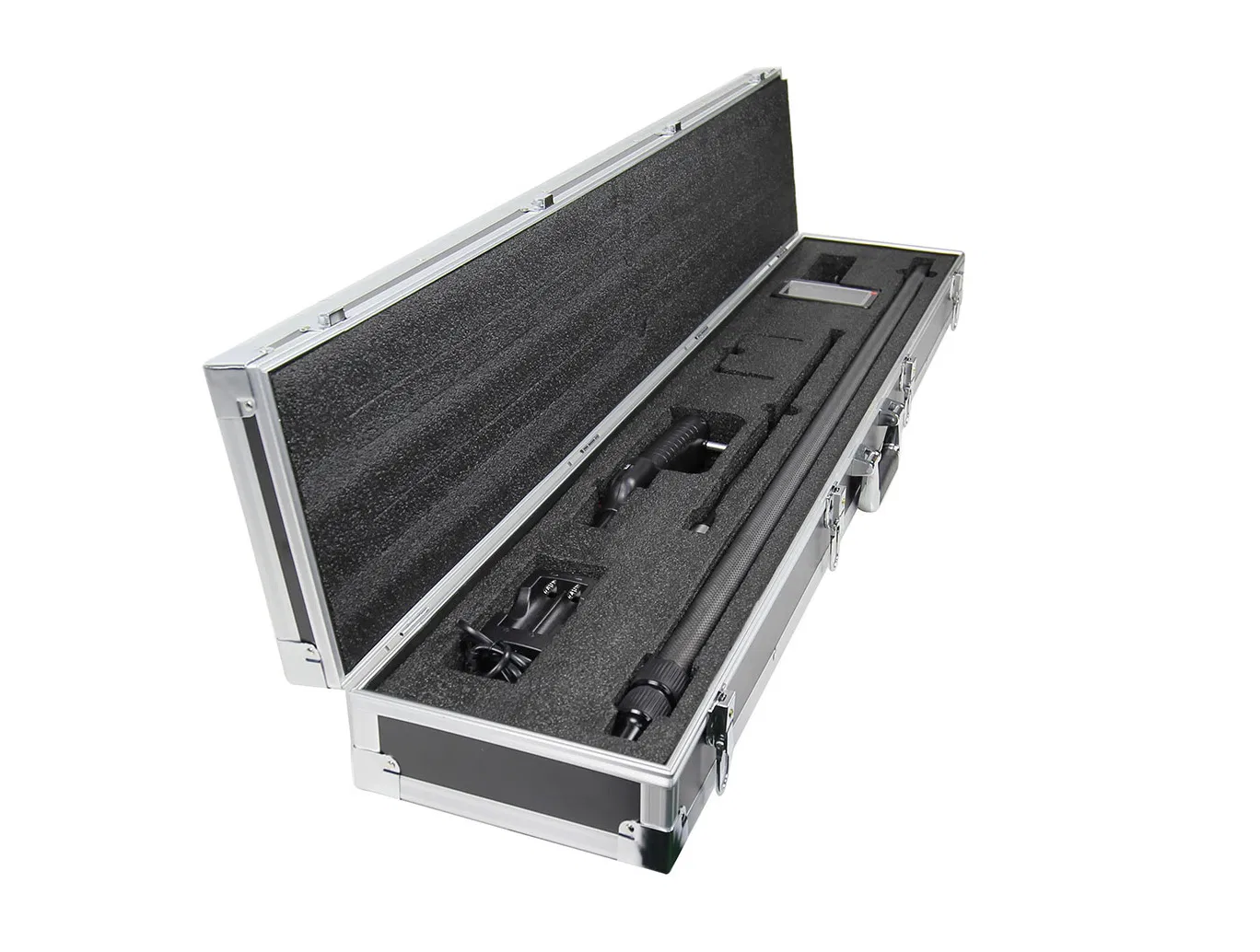

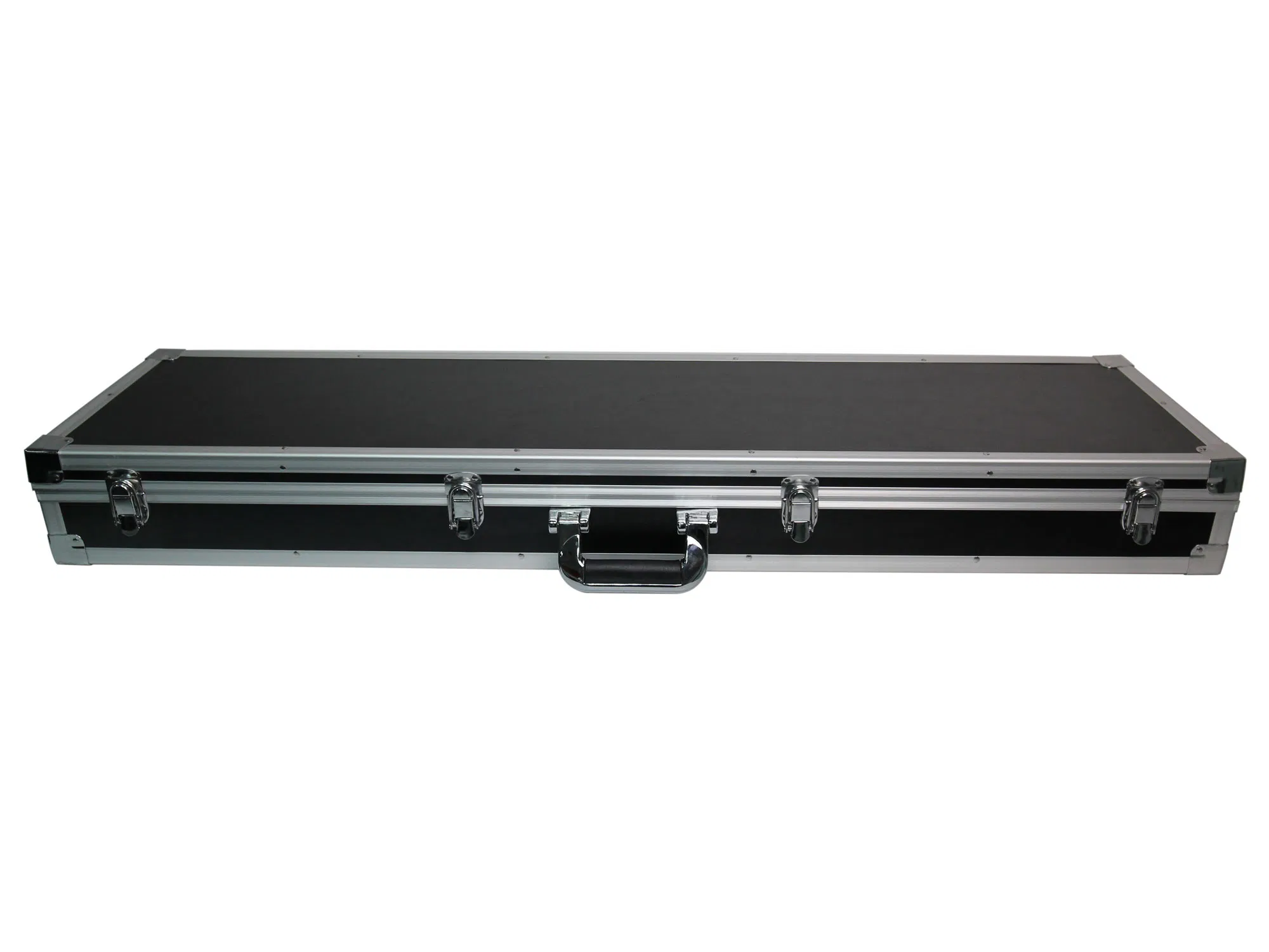

Battery12V 5200MAH Li-ion ChargerAC100-240V CaseFire board & Aluminum
Work Time>260 minutes Plug2.1m Case Size1150*140*270mm
Key Advantages
✔ Direct manufacturer
✔ Customized development
✔ 16x patents
✔ 9 years OEM&ODM experience
✔ ISO9001 & CE & FCC Certified
✔ Affordable Price
Applications
Versatile Usage: Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Cooling Lines, Attics, Wells, Underwater, Maintenance of Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
Frequently Asked Questions
1. What is the maximum length of the telescopic pole?
The telescopic pole features a 3-joint design with a total extended length of up to 3.6 meters (3600mm).
2. Is the inspection camera waterproof?
Yes, the camera head is rated IP68 waterproof, making it suitable for underwater inspections and wet environments like sewers and tanks.
3. How long does the battery last on a single charge?
The system is equipped with a high-capacity 5200MAH Li-ion battery that provides over 260 minutes of continuous operation.
4. Can I record videos and take photos during inspection?
Absolutely. The control box supports both picture snapping and movie recording in AVI format, saving directly to an SD card (up to 32GB).
5. What materials are used for the camera and pole?
The camera housing is made of durable stainless steel, and the telescopic pole is constructed from lightweight, high-strength carbon fiber.
6. What is the view angle and illumination of the camera?
The camera provides a wide 120° view range and is equipped with 12 high-intensity white LEDs for clear visibility in dark spaces.
