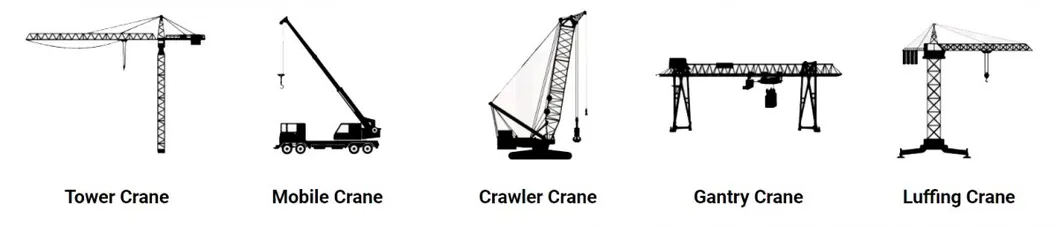

Wireless Waterproof Crane Camera for Tower /Beam /Bridge /Gantry /Jib /Crawler /Mobile /Truck Crane

1 / 5

Wireless Waterproof Crane Camera for Tower /Beam /Bridge /Gantry /Jib /Crawler /Mobile /Truck Crane

Customization:	Available
Warranty:	1 Years
Applicable Model:	Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine, Crane

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.HDWS-1024SHD672M-30W

Shell MaterialABS Plastic

Definition1080P

FunctionNight Vision, Waterproof, Dustproof

Waterproof GradeIP69K

LCD Display10.1 Inch IPS Screen

Optical Zoom30X

Receiving DistanceOpen Within 200m

Operating VoltageDC8-32V

Anti-Vibration5G

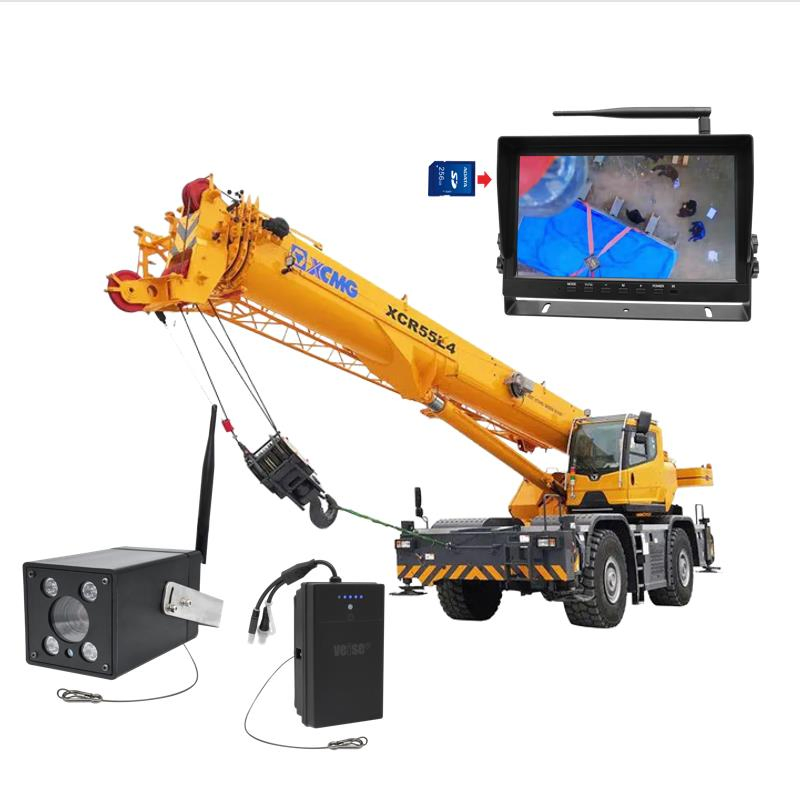

🛡️ Wireless Waterproof Crane Camera System

How does the crane camera increase safety?

✅ REDUCING THE HAZARDS: The operator can now see and hear what is going on at the crane block.

✅ REDUCE IMPACTS & COLLISIONS: Allow the operator to respond to adjustments to avoid accidents.

✅ IMPROVED COMMUNICATION: Better coordination with riggers and signallers.

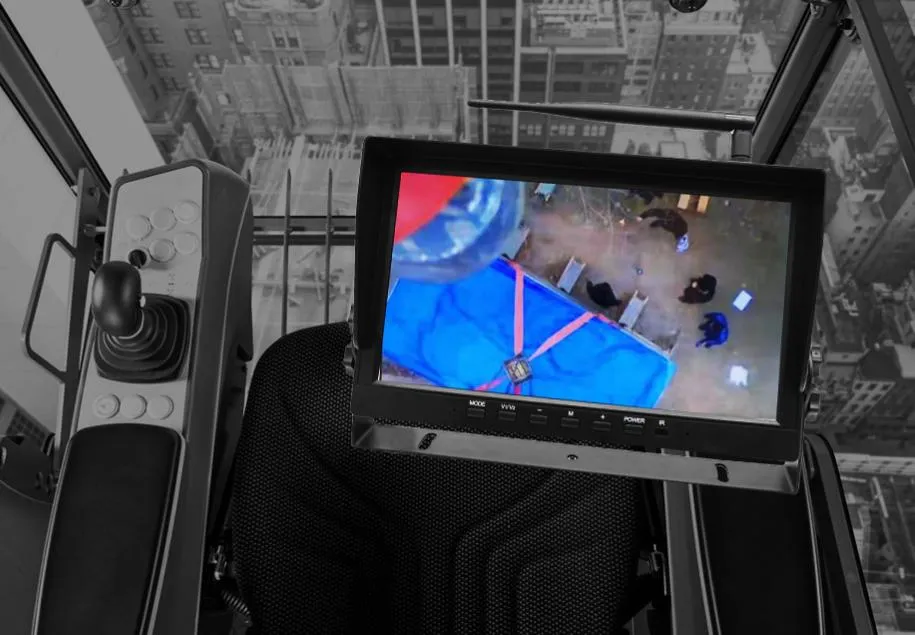

✅ REDUCING BLIND LIFT: Live video footage provides a clear view below the hook and around the load.

⚙️ Technical Details

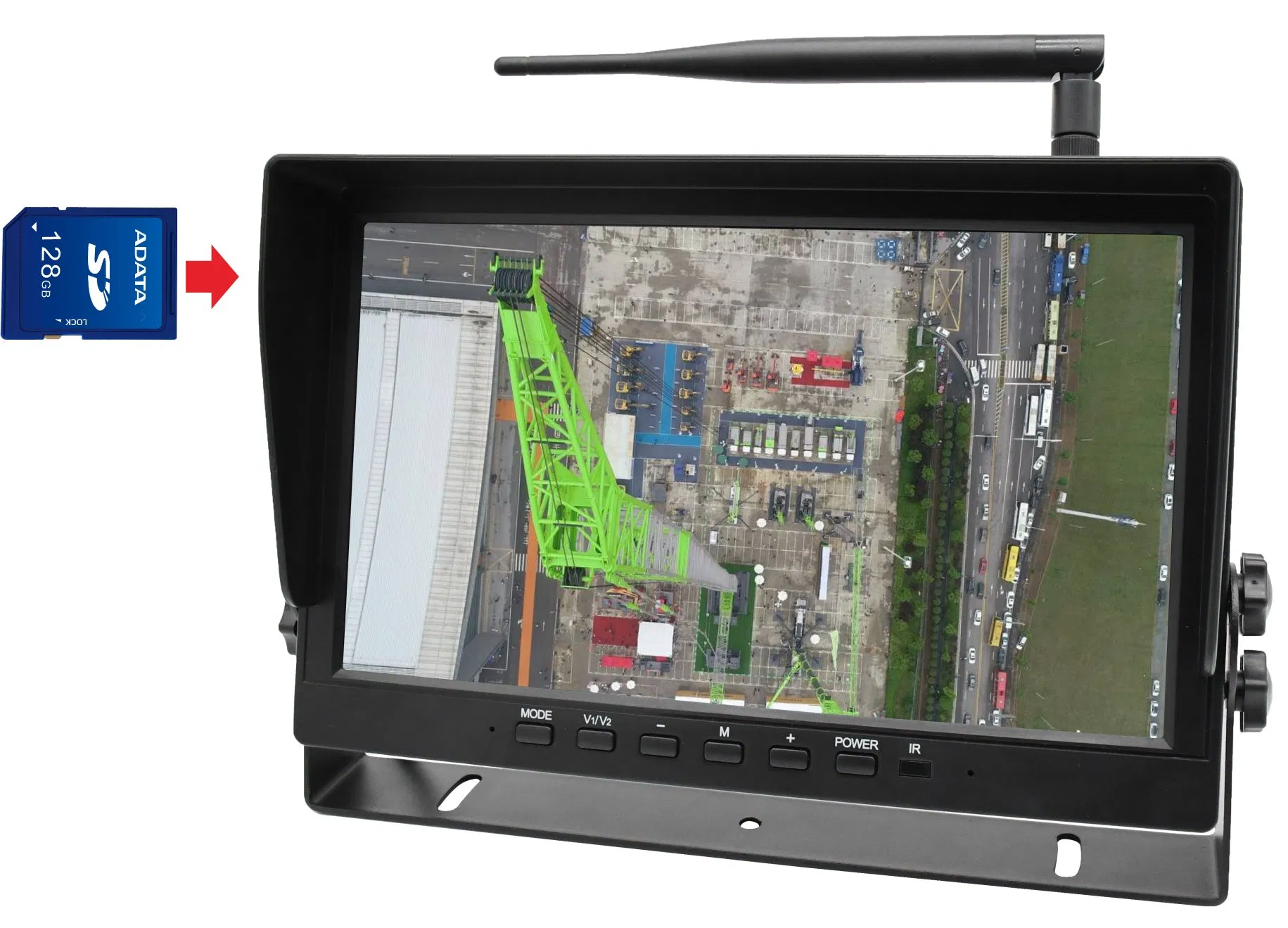

1080P Wireless Monitor (MWHD-1024SHD)
Color LCD Display	10.1 inch IPS Screen
Picture Mode	Single / Dual / Three / Four-screen
Recording Function	Maximum 128GB SD card
Receiving Sensitivity	≤-86 dB
Brightness	600 cd/m2
Operating Voltage	DC8-32V

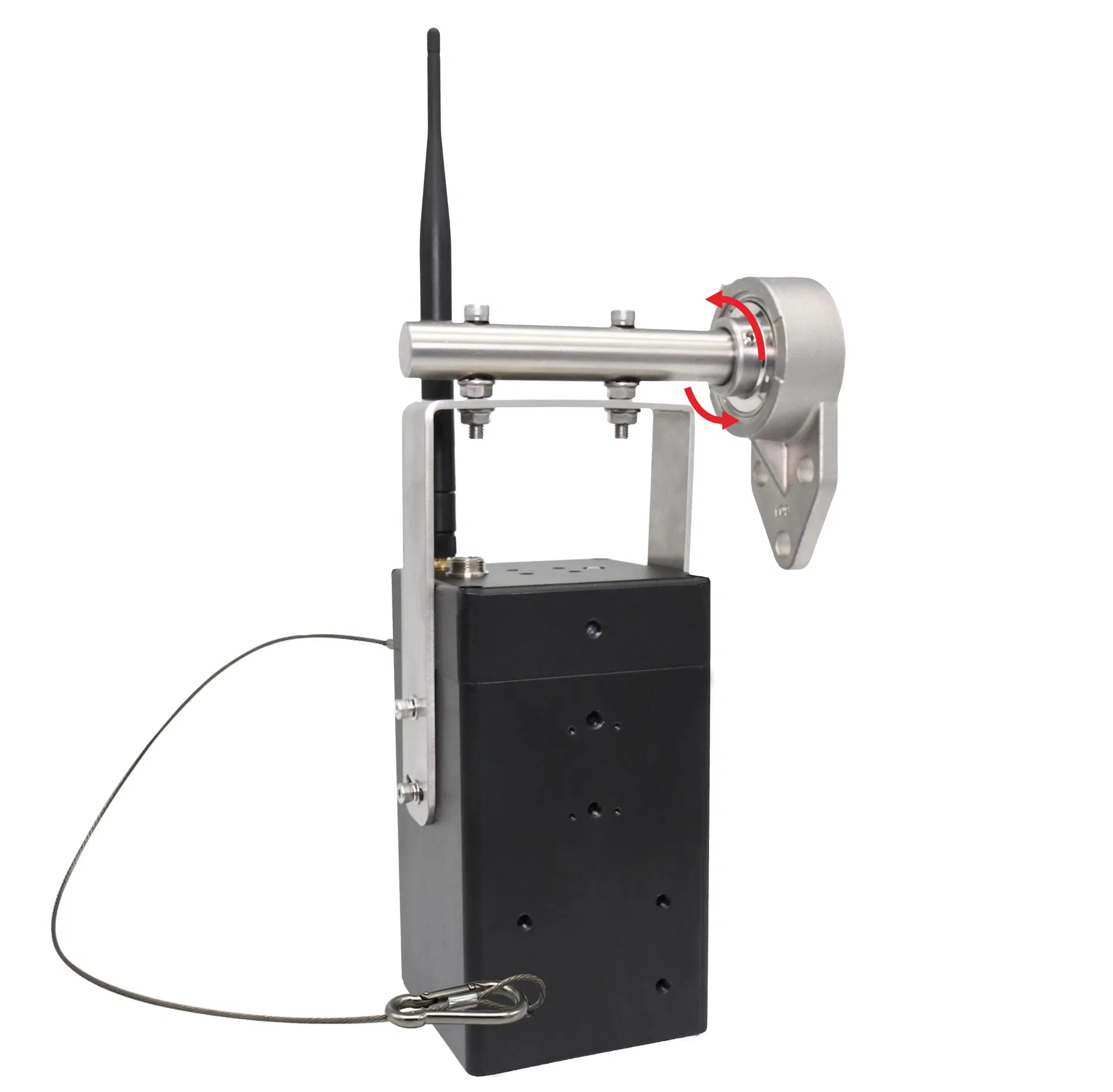

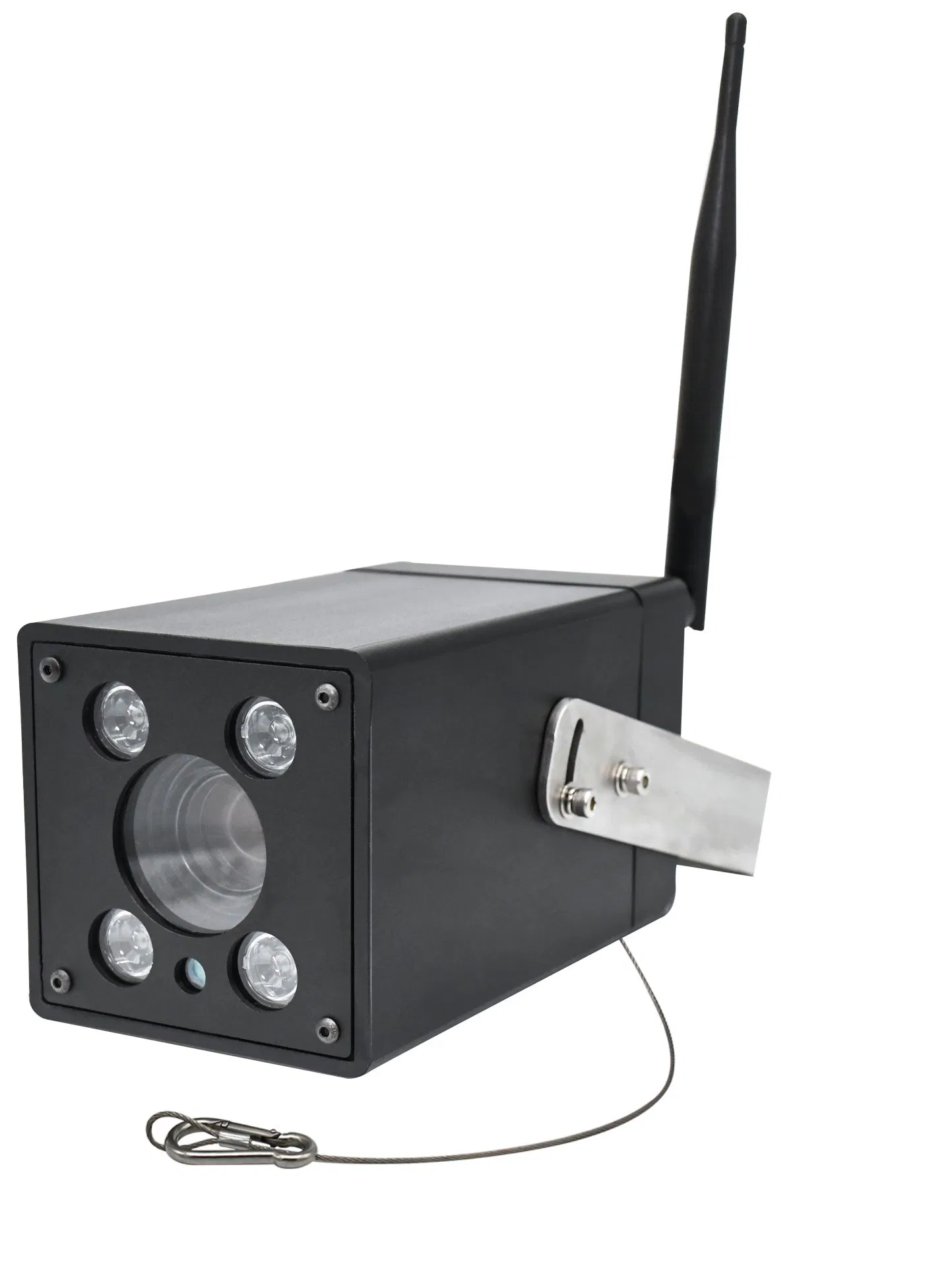

1080P Digital Wireless 30x Zoom Camera (CWHD-672M)
Optical Zoom	30x
Focal Length	5.35~96.3mm
Horizontal Viewing Angle	64.1~3.6 degrees
Infrared Distance	50 meters (4 high-power IR lights)
Waterproof Level	IP69K

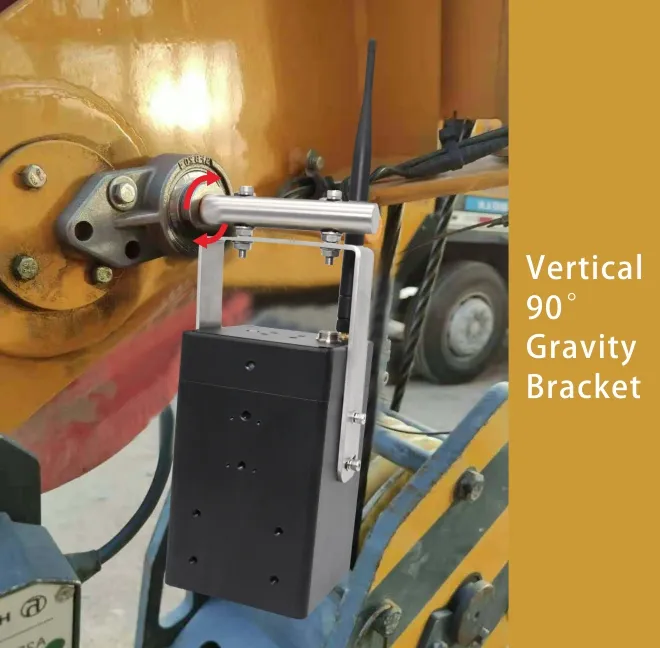

Material	Aluminum alloy, anti-wire rope buckle design

Mobile Rechargeable Power Supply
Product Capacity	30000maH
USB Input	12V/1.5A (Fast charge support)
DC Output	DC12V/0.8A
Charge Cycles	>800 times
Strong Magnetic Attraction	Built-in 11 strong magnets (Pull > 20kg)
Waterproof Level	IP67

📸 Detailed Product Views

30X Optical Zoom | Max 300m Wireless Transmission | Compact Design | Perfect Fit for Any Crane

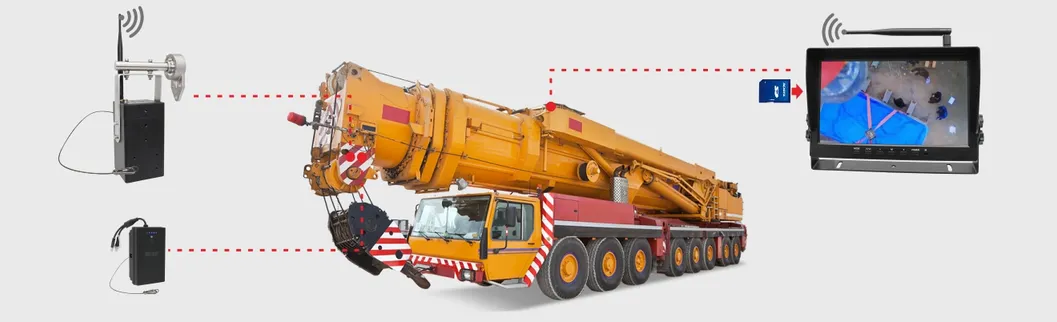

🏗️ Application & Quality Control

R & D Excellence

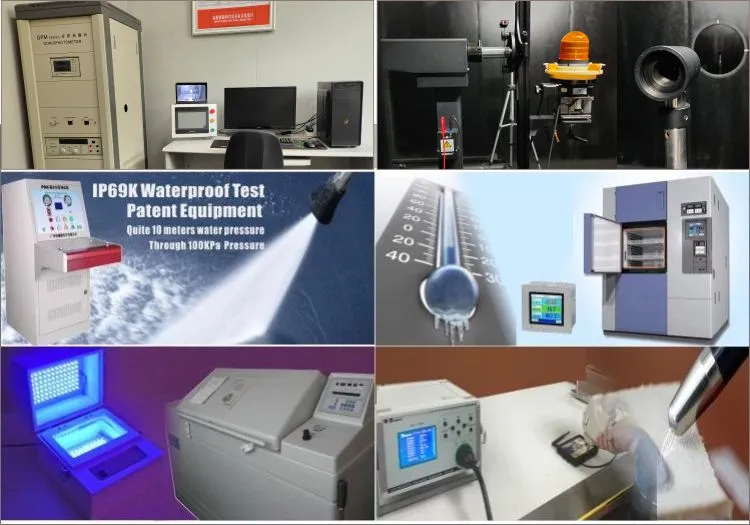

Precision Testing

📜 Certifications & Global Presence

Smart ERP Management

Frequently Asked Questions

What is the maximum wireless transmission distance?

The system supports a receiving distance of up to 200 meters in open areas for the monitor and up to 100 meters for the camera transmission.

Is the camera suitable for extreme weather conditions?

Yes, the camera is IP69K waterproof and features a rugged aluminum alloy case, making it dustproof and shockproof for heavy-duty crane environments.

How powerful is the optical zoom?

The camera features a 30X optical zoom with a focal length of 5.35-96.3mm, allowing operators to see distant loads with high clarity.

Does the system support night vision?

Yes, it has built-in 4 high-power infrared lights that provide clear night vision up to 50 meters, with IR-CUT automatic switching.

What is the battery capacity of the mobile power supply?

The mobile rechargeable power supply has a large capacity of 30,000mAh and supports fast charging.

Can the monitor display multiple cameras at once?

Yes, the 10.1-inch monitor supports single, dual, three, and four-screen display modes for comprehensive monitoring.
