6km Laser Rangefinder Coastal Defense 2-Axis Real-Time Video Zoom Infrared Thermal Imaging Camera

1 / 4

6km Laser Rangefinder Coastal Defense 2-Axis Real-Time Video Zoom Infrared Thermal Imaging Camera

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CQ-ZT1C90TA

Type

Video Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

540tvl

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Sensor Size

1/3 inch

Thermal Focal Length

25-75mm

Visible Focal Length

4.3-129mm

Laser Rangefinder

6km

Production Capacity

50 Sets/Month

🔍 Product Overview

Air-sealing light weight zoom thermal camera

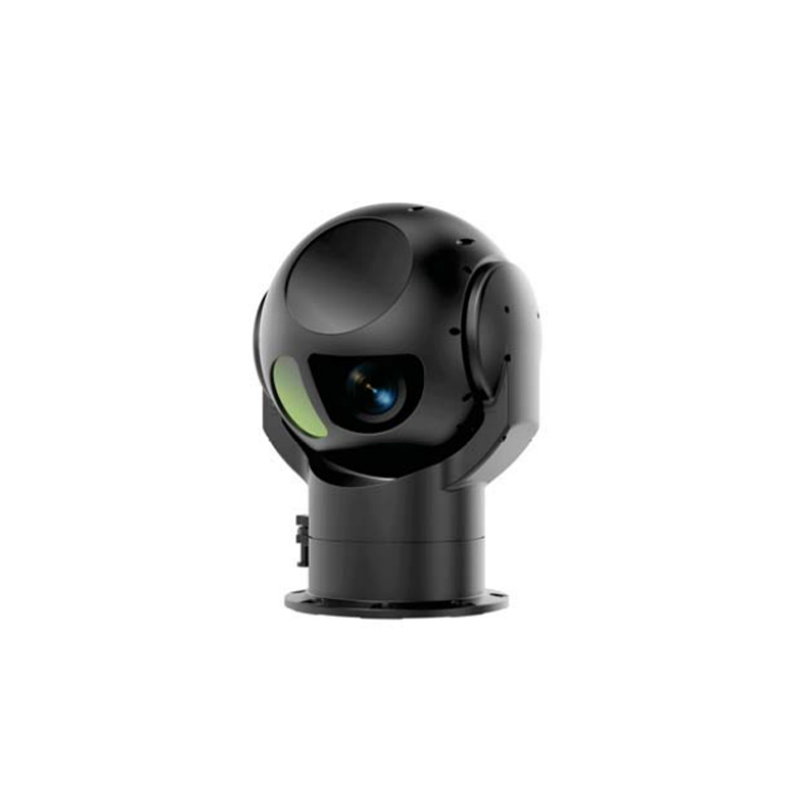

The CQ-ZT1C90TA photoelectric pod consists of an uncooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a two axis servo stabilized platform and an image tracker. It has the characteristics of light weight, high stability accuracy, and high integration, and can be applied to unmanned vehicles, tower complete tasks such as day and night reconnaissance, monitoring, and target positioning of the target area.

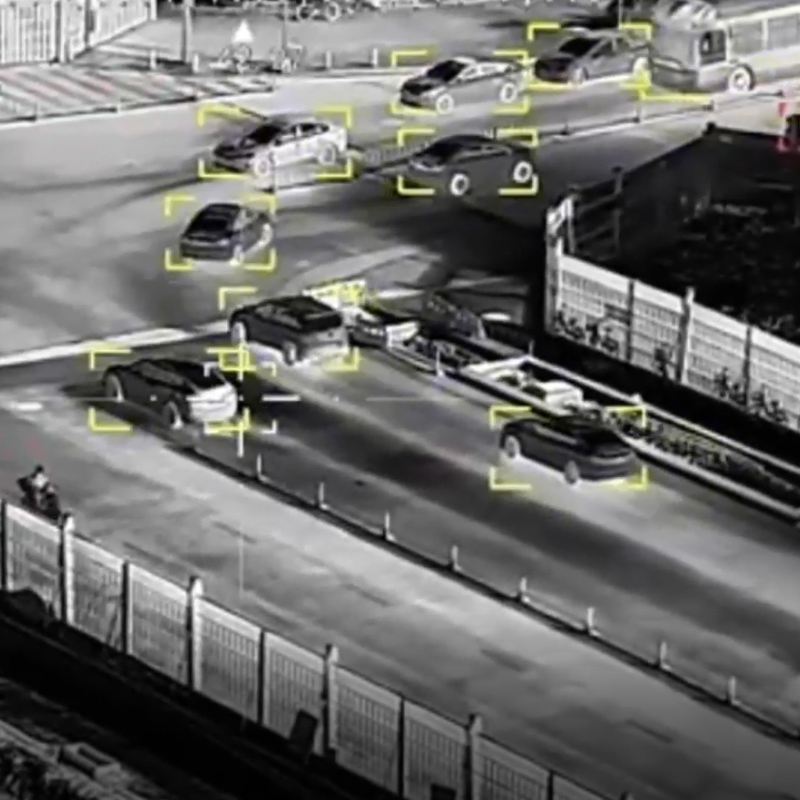

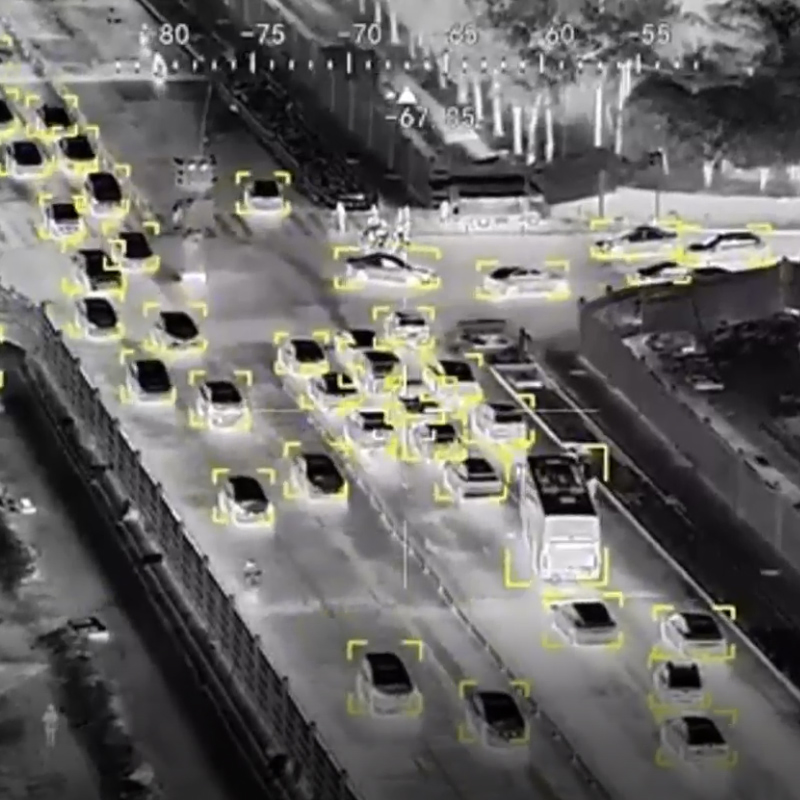

The optoelectronic pod utilizes uncooled infrared thermal imagers and visible light cameras to detect, recognize, and track ground targets throughout the day, and outputs real-time infrared and visible light videos for task execution personnel to view. It is mainly used in air/ground detection, border/coastal defense, and tower monitoring.

⚙️ Technical Specifications

Model		CQ-ZT1C90TA
Thermal Imager	Detector	Uncooled Focal Plane Array
	Spectral Band	8μm~14μm
	Resolution	640×512
	Pixel	12μm
	Focal Length	25mm ~ 75mm
	Digital Zoom	1~4X
Visible Light Camera	Resolution	1920×1080
	Optical Zoom	30X
	Focal Length	4.3mm~129mm
	Focusing Mode	Auto / Manual
	Mini. Illumination	0.01Lux
Laser Rangefinder	Wavelength	1535nm
	Maximum Range	≥6km (visibility ≥15Km)
	Accuracy	≤2m
Servo Platform	Pan / Tilt Range	Pan: 360° continuous; Tilt: -15°~+90°
	Stabilization Precision	≤0.1mrad(1σ)
	Maximum Speed	Pan: ≥60°/s, Tilt: ≥60°/s
	Angular Accuracy	≤0.1°(1σ)
System Spec.	Weight	≤5Kg
	Dimensions	≤190mm×200mm×277mm
	Power Consumption	Stable: ≤40W
Environmental	Operating Temp.	-40ºC~+60ºC
Environmental	Protection Level	Optical compartment air-tightness

❓ Frequently Asked Questions

Q1: What is the effective range of the laser rangefinder? The built-in laser rangefinder has a maximum range of ≥6km under standard visibility conditions (visibility ≥15km) with an accuracy of ≤2m.

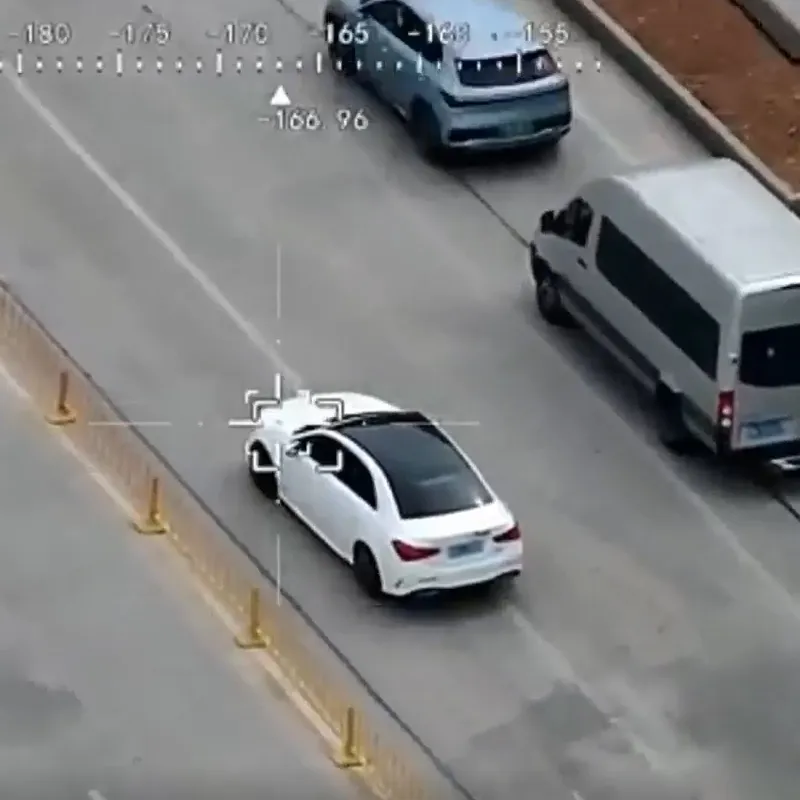

Q2: Does this photoelectric pod support target tracking? Yes, the system includes an image tracker that allows for the automatic tracking of selected targets.

Q3: What are the zoom capabilities of the visible light camera? The visible light camera features a 30X optical zoom and can reach up to 60X through hybrid zoom technology for high-definition monitoring.

Q4: Is the device suitable for use in extreme weather conditions? Absolutely. It is designed with air-tightness protection and operates within a wide temperature range from -40ºC to +60ºC, making it ideal for border and coastal defense.

Q5: What are the primary applications for the CQ-ZT1C90TA? It is primarily used for unmanned vehicles, day and night reconnaissance, ground detection, coastal monitoring, and target positioning.

Q6: How stable is the image during movement? The pod utilizes a high-precision two-axis servo stabilized platform with a stabilization precision of ≤0.1mrad, ensuring steady video output even on moving platforms.
