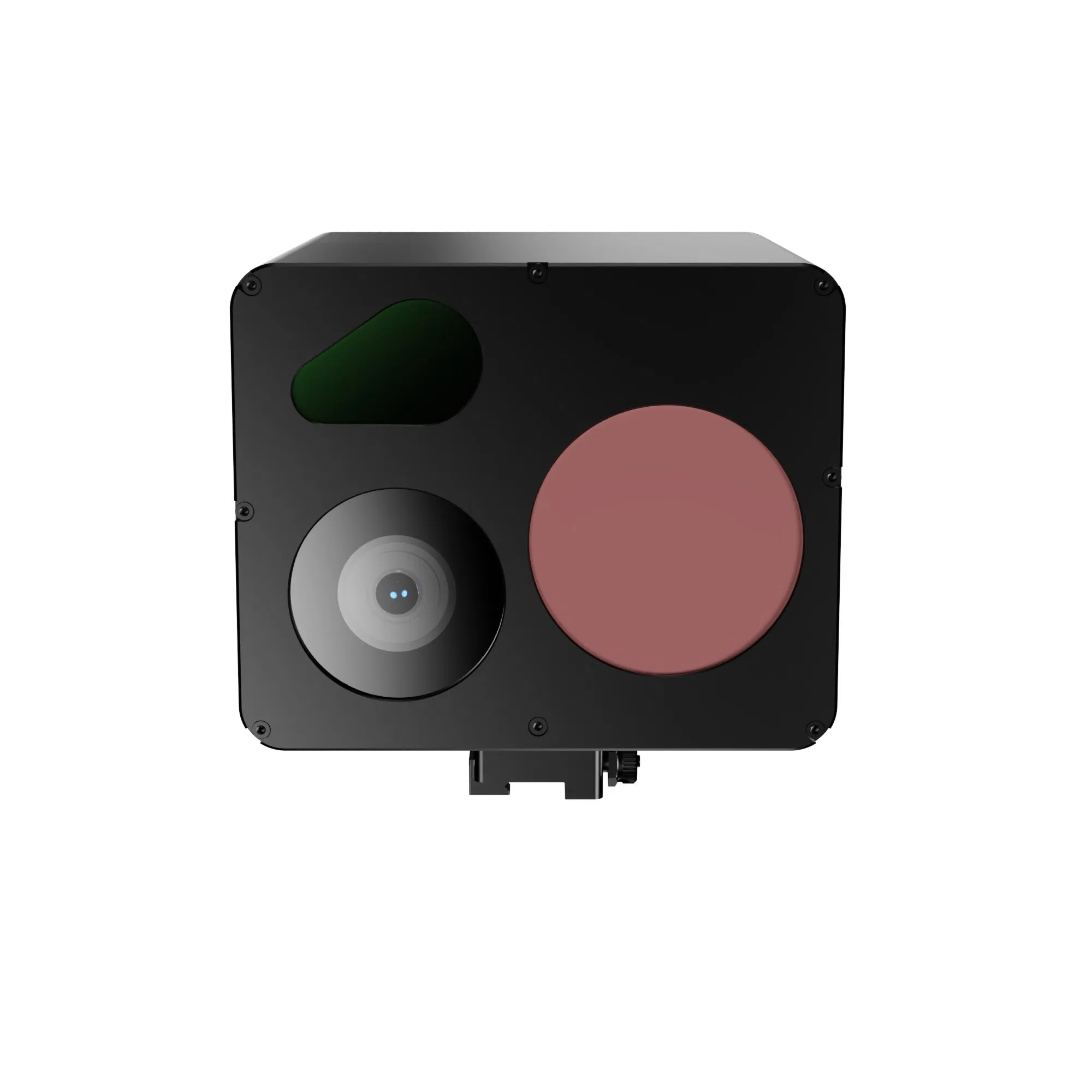

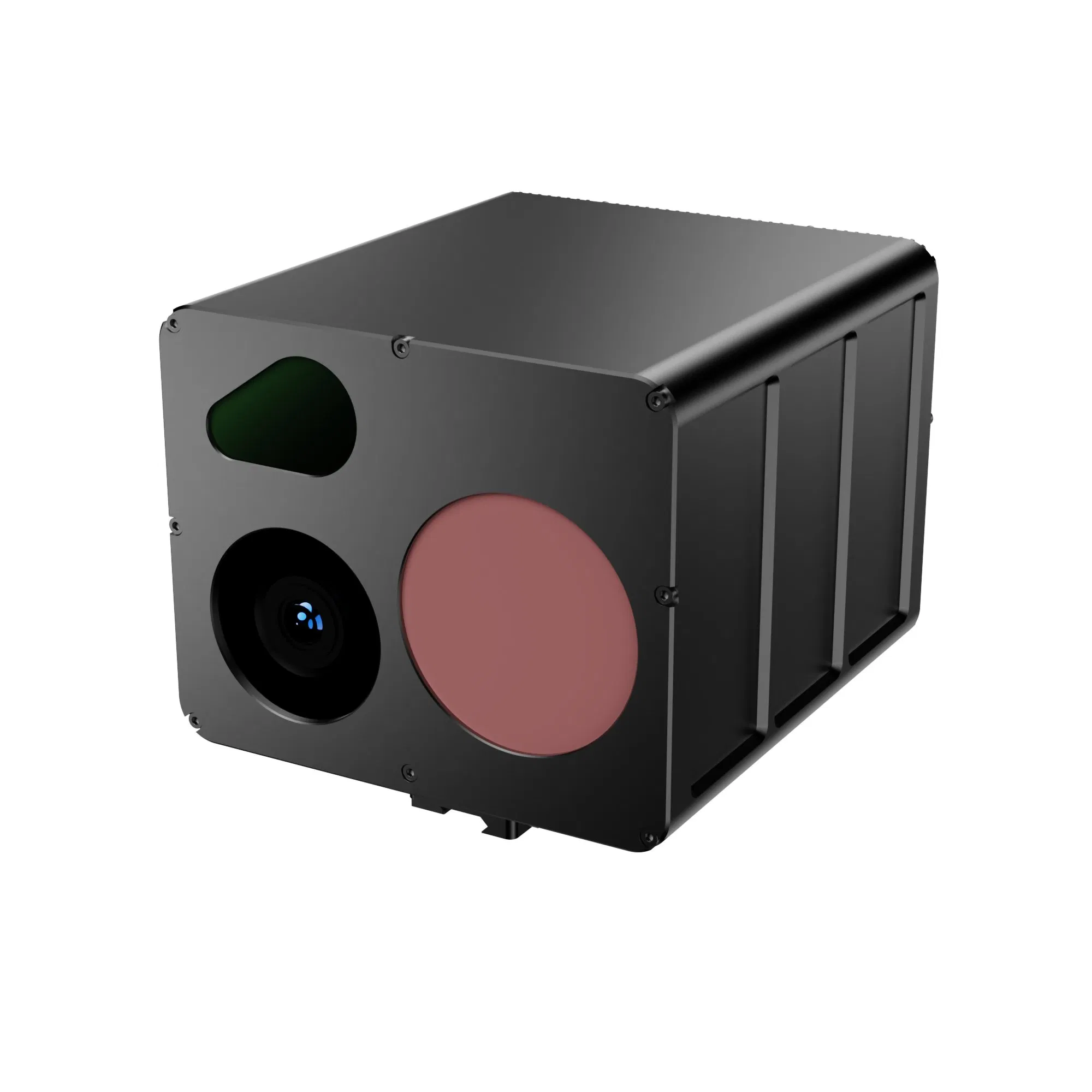

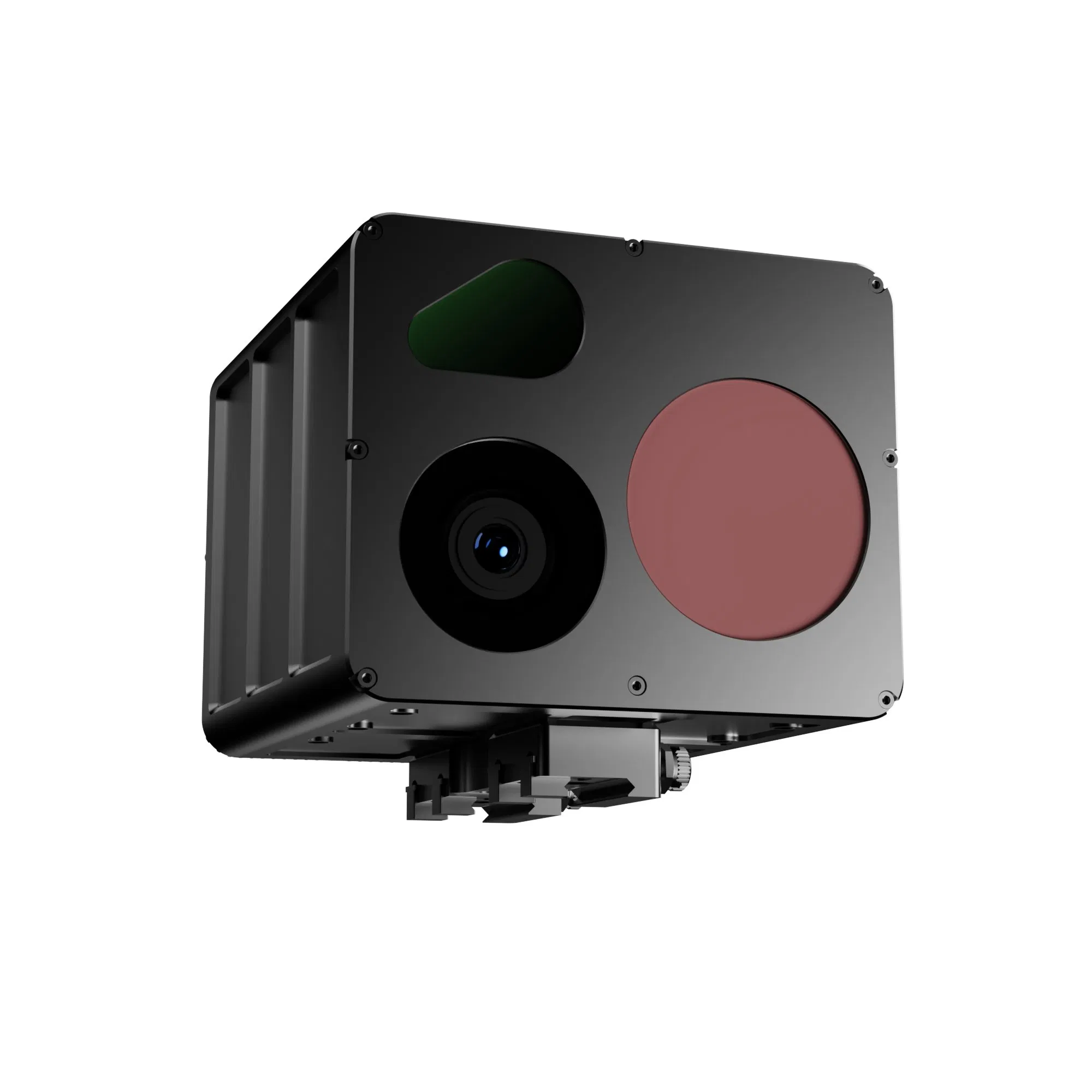

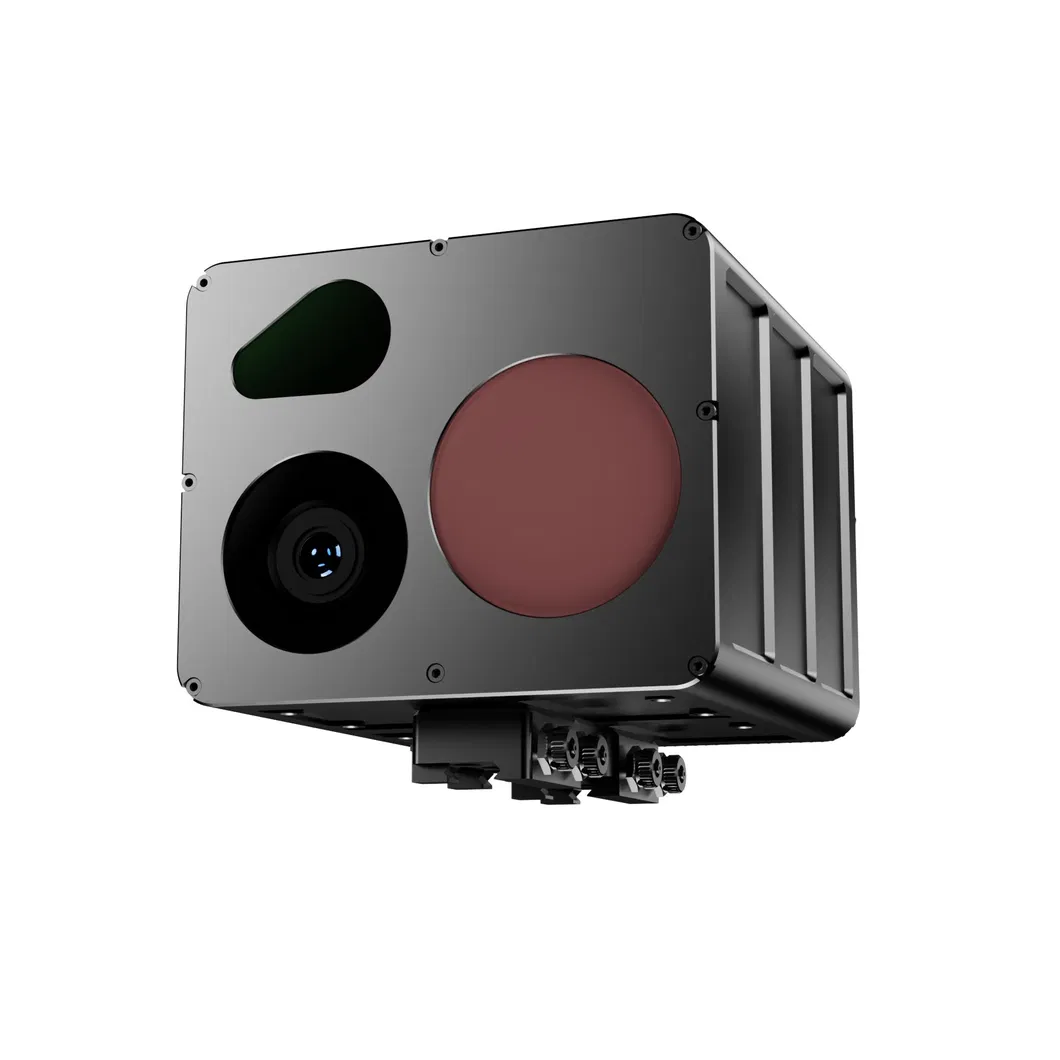

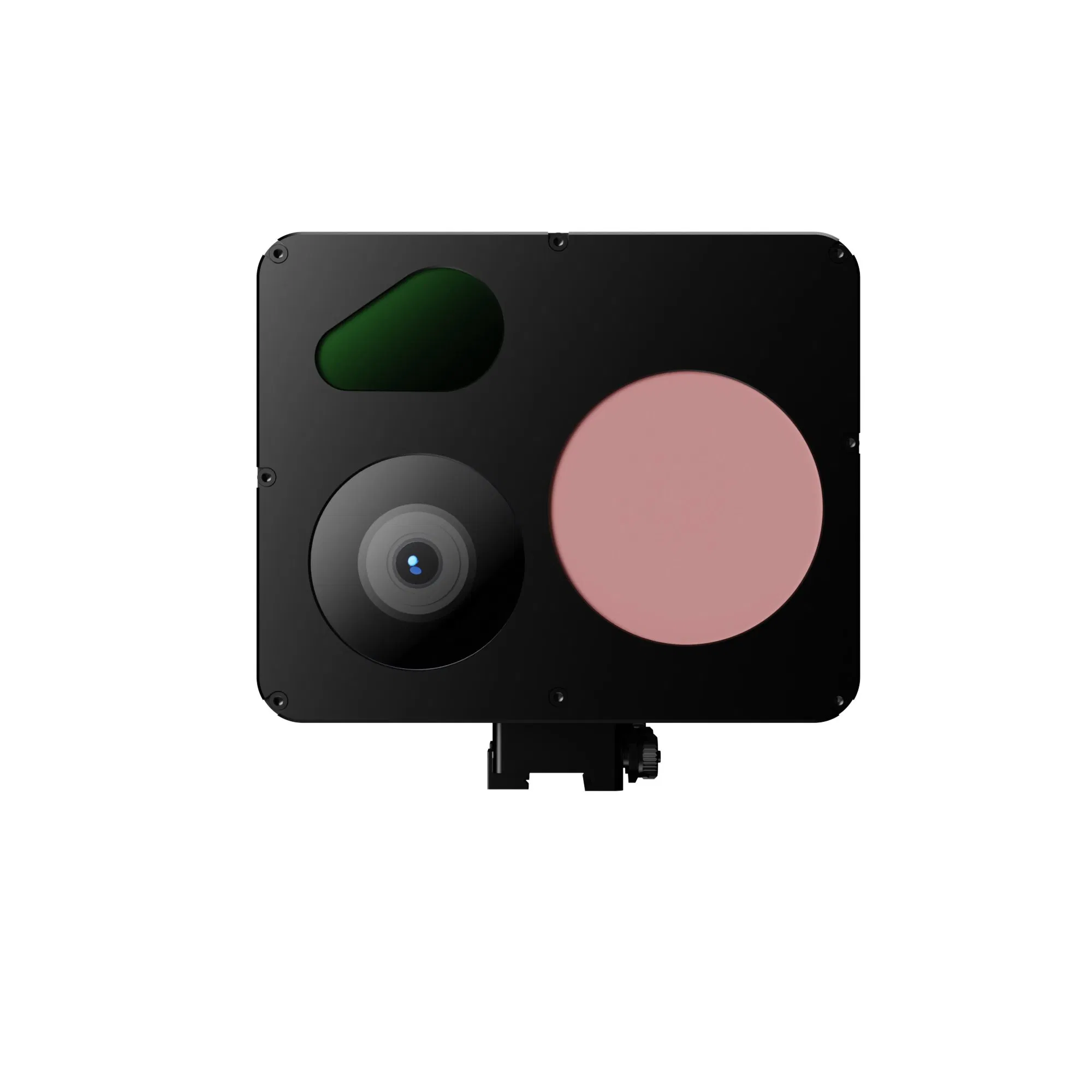

High-Precision Flyir-Qt200t Portable Smart Telescope for Outdoor Adventures

Send Inquiry

Product Description

Basic Specifications

Model NO.

FLYIR-QT200T

Type

IP Camera

Sensor

CCD

HDMI Format

AVI

Horizontal Resolution

650tvl

Kind

Auto Focus, Manual Focus

Certification

ISO9001: 2000

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Sensor Size

1/3 inch

Weight

3.6kg

Power Supply

20~32V

Product Parameters

Visible camera	2M pixel, 30x optical zoom, 60x Hybrid zoom
Visible camera FOV / Focal length	58.1°×32.6° ~ 2.3°×1.3° / 6.5mm ~ 162.5mm
Thermal imaging	640×512, 75mm Focal length, 12μm
Thermal imager FOV	5.9°×4.7°
Laser range	20 ~ 6000m
Control interface	RS422, UDP
Video interface	SDI, 100Mbps network
Local storage	≤128G Micro SD card
Power supply	20 ~ 32V

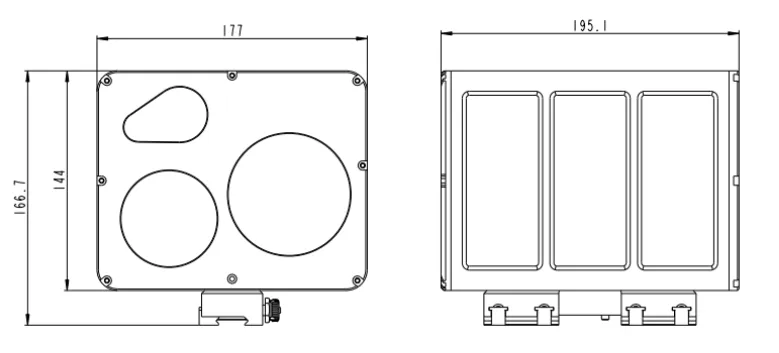

Size	95.1mm×177mm×166.7mm
Key Features	Full-time work, AI recognition, Automatic target tracking, Laser range, Pickup interface

Product Overview

High-Performance Visible Camera Equipped with a 2-megapixel sensor, this camera features a powerful 30x optical zoom and 60x hybrid zoom. Its field of view ranges from a wide 58.1°×32.6° to an exceptionally narrow 2.3°×1.3°, enabling detailed observation of distant targets.
Long-Range Thermal Imager Incorporates a 640×512 resolution thermal detector with a 75mm focal length and 12μm pixel pitch. It provides a narrow 5.9°×4.7° field of view, optimized for detecting and recognizing targets at extreme distances.
Extended-Range Laser Rangefinder The integrated laser system offers a significant measurement range from 20 to 6000 meters, providing essential distance data for long-range engagements.
Advanced AI & Tracking Leverages artificial intelligence for automatic target identification and continuous tracking, designed for full-time, reliable performance in various environments.
Versatile Connectivity Supports command and control via RS422 and UDP protocols. Video is output via both SDI and a 100Mbps network stream, with local storage support up to 128GB.
