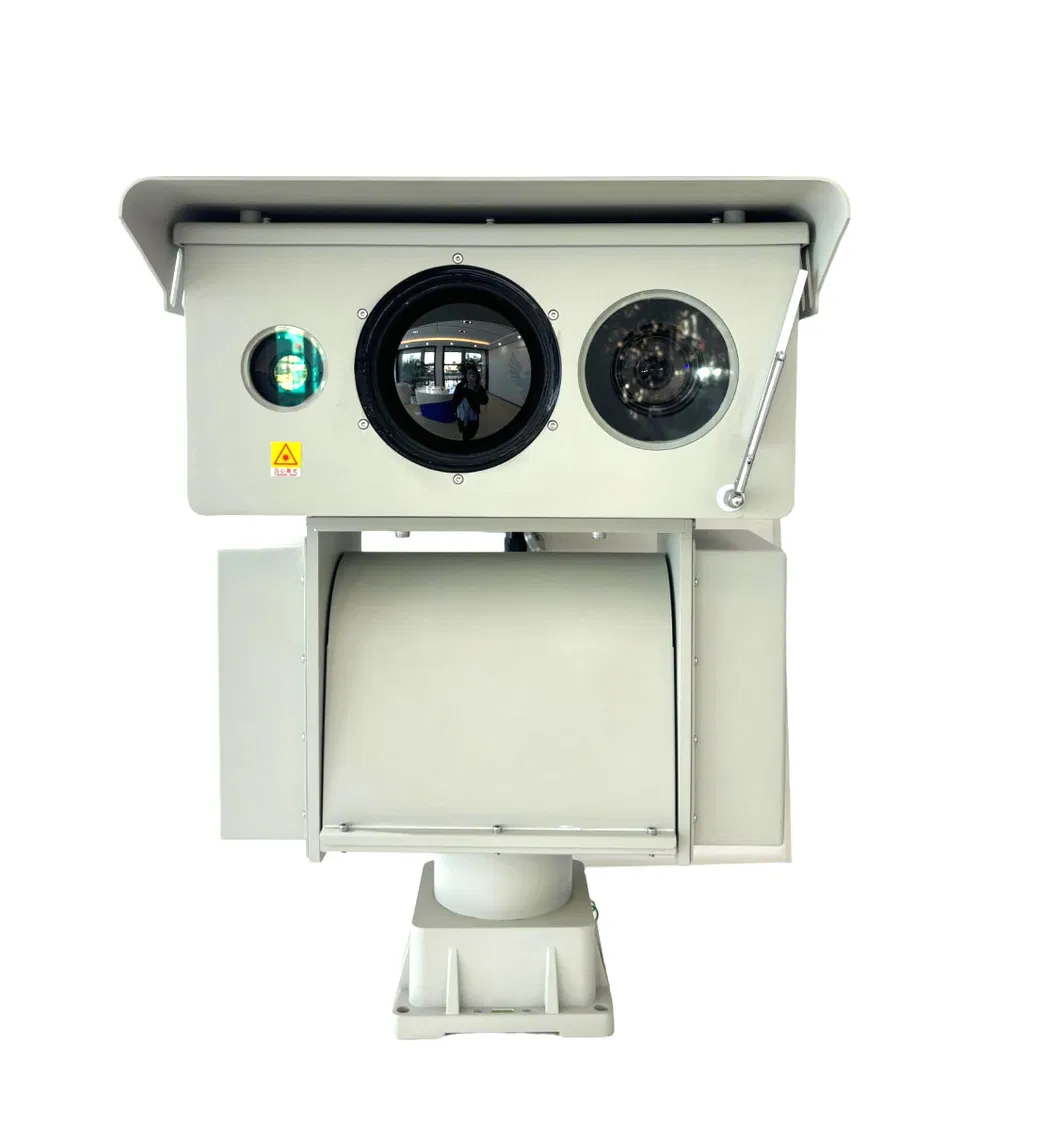

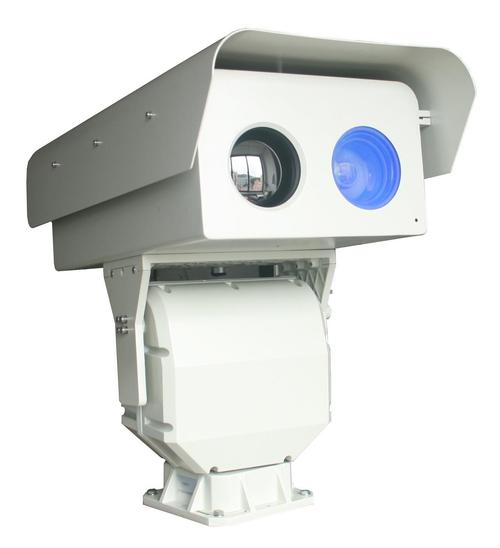

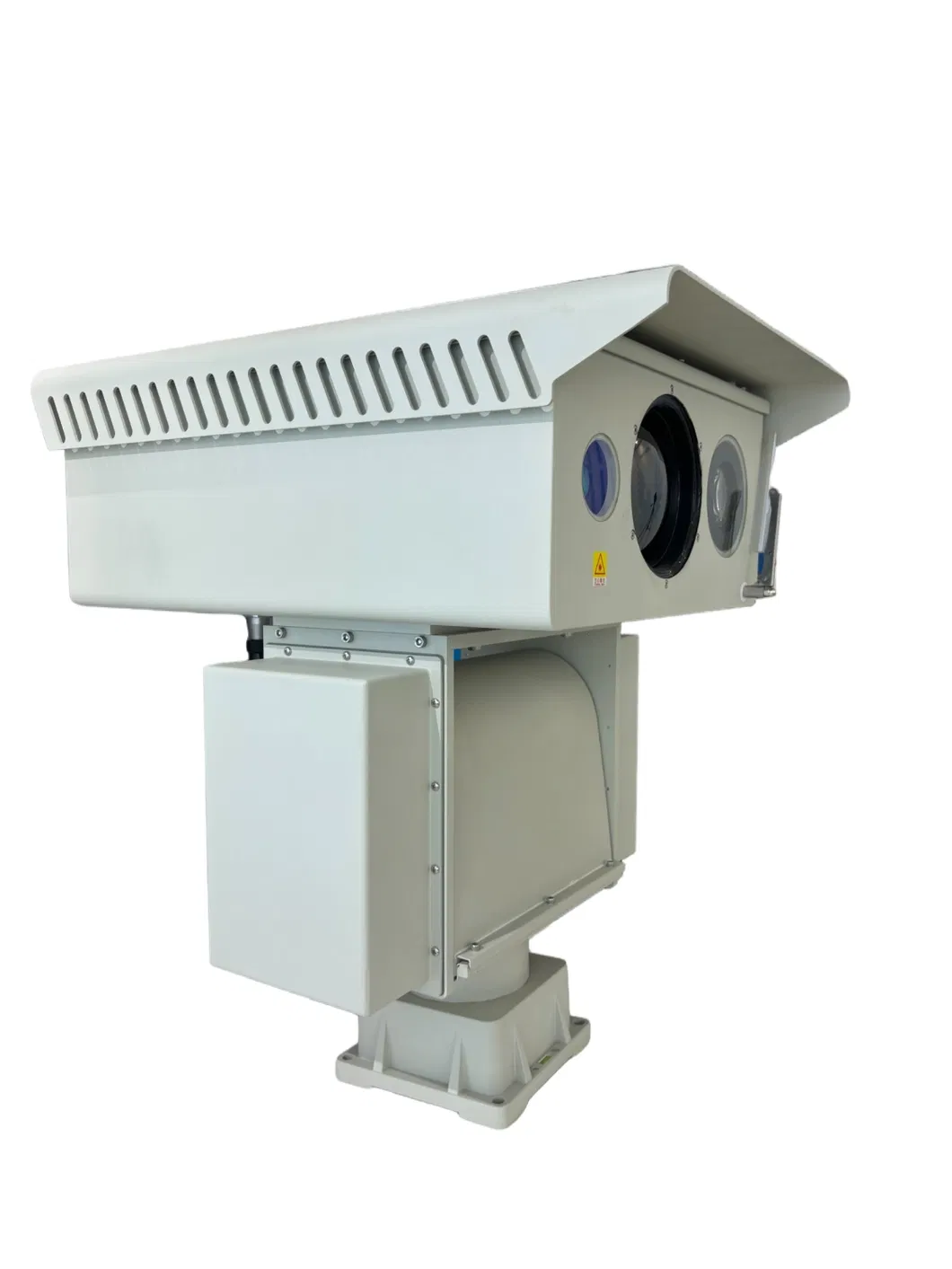

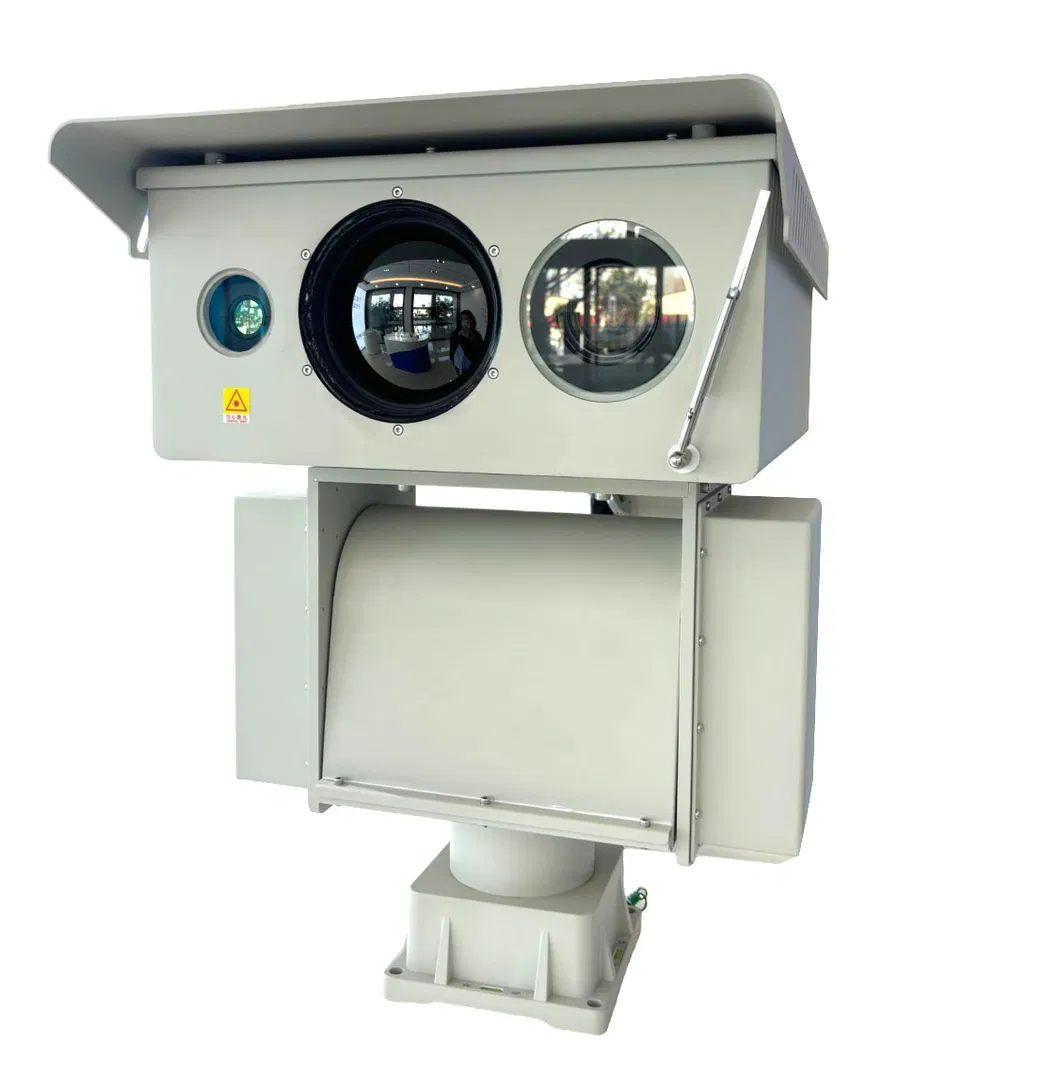

Introducing a revolutionary advancement in fire prevention: the Dual Spectral Thermal Imaging Camera, designed with unmatched precision and efficiency. This cutting-edge device utilizes a sophisticated blend of visible light fireworks recognition and infrared thermal imaging for precise temperature measurement. With its intelligent dual spectrum recognition capabilities, it excels in fire detection and accurate identification.
Seamlessly locate forest fires by utilizing the versatile rotation of its azimuth and elevation angles, facilitated by a robust digital gimbal. The system ensures seamless connectivity through the use of wireless bridges and Beidou satellites, establishing reliable transmission links. This enables the delivery of real-time video images and alert control signals directly to the command center, facilitating comprehensive monitoring, storage, and management.
| Performance Specifications | |
|---|---|
| Farthest Smoke Alarm Distance | 13500M (5 m x 5 m) |
| Fire Point Farthest Alarm Distance | 11000M (2 m x 2 m) |
| Thermal Imaging Detector | Uncooled infrared focal plane array sensor |
| Pixel Resolution | 384x288 |
| Infrared Lens Focal Length | 25-225mm |
| Visible Light Camera | HD 1920x1080, 2 Million Pixels |
| Visible Lens Focal Length | 25~800mm |
| Operating Temperature | -40°C ~ +70°C |
| PTZ Rotation Range | Horizontal 360° continuous, Vertical ±45° |
| Protection Level | IP66 Waterproof |
The system can detect smoke at a distance of up to 13,500 meters (for a 5mx5m target) and fire points up to 11,000 meters (for a 2mx2m target).
Yes, it features an IP66 protection rating and is salt-spray resistant. It operates effectively in temperatures ranging from -40°C to +70°C.

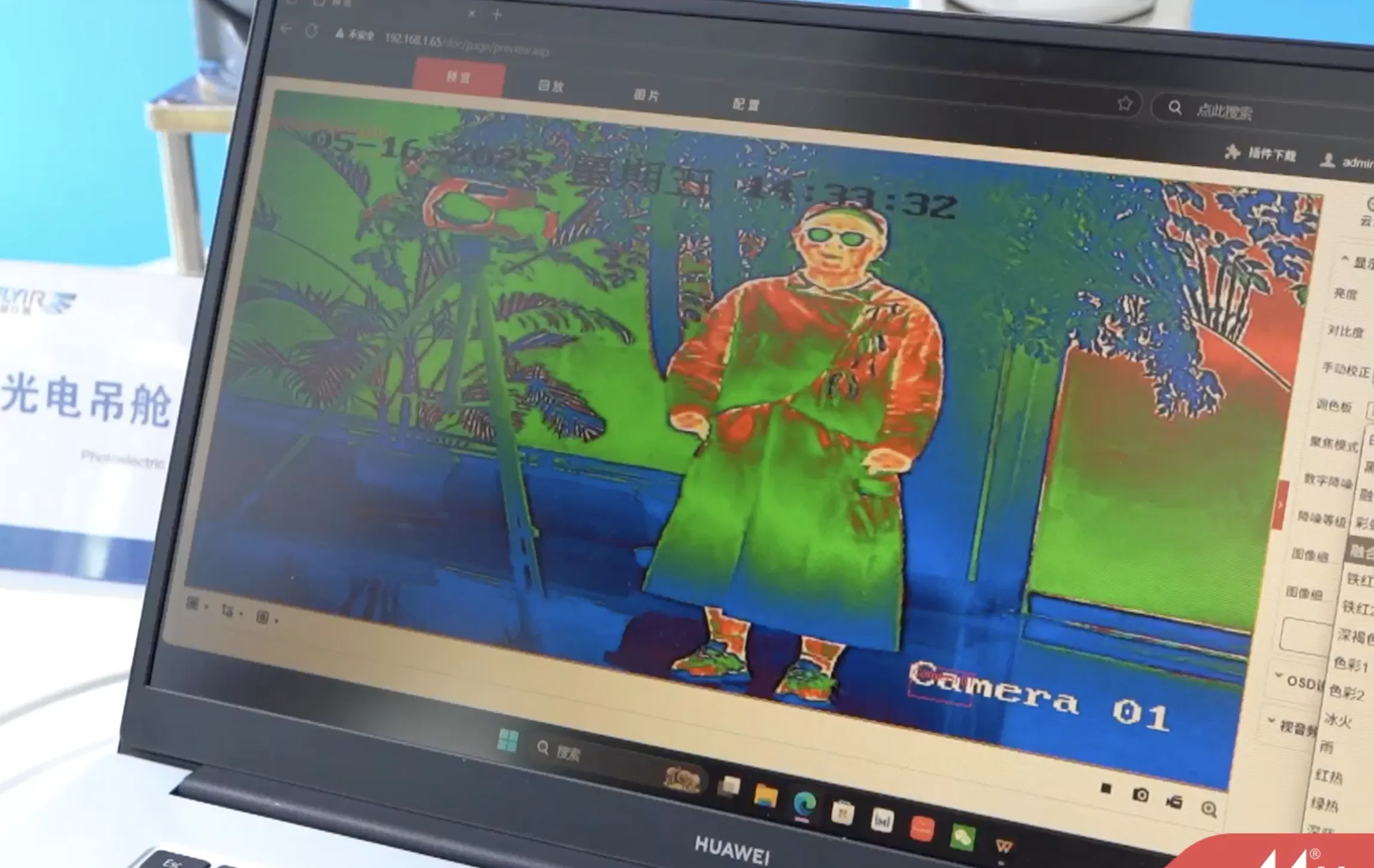

It combines visible light for fireworks recognition with infrared thermal imaging for precise temperature measurement, ensuring accurate fire identification and reducing false alarms.
Yes, the gimbal supports 360° continuous horizontal rotation and an adjustable vertical range of ±45°.
The system establishes reliable transmission links using wireless bridges and Beidou satellites to send real-time video and alerts to the command center.
The visible light system features a High Definition 1920x1080 resolution with a 2 million pixel HD sensor for crystal clear monitoring.
