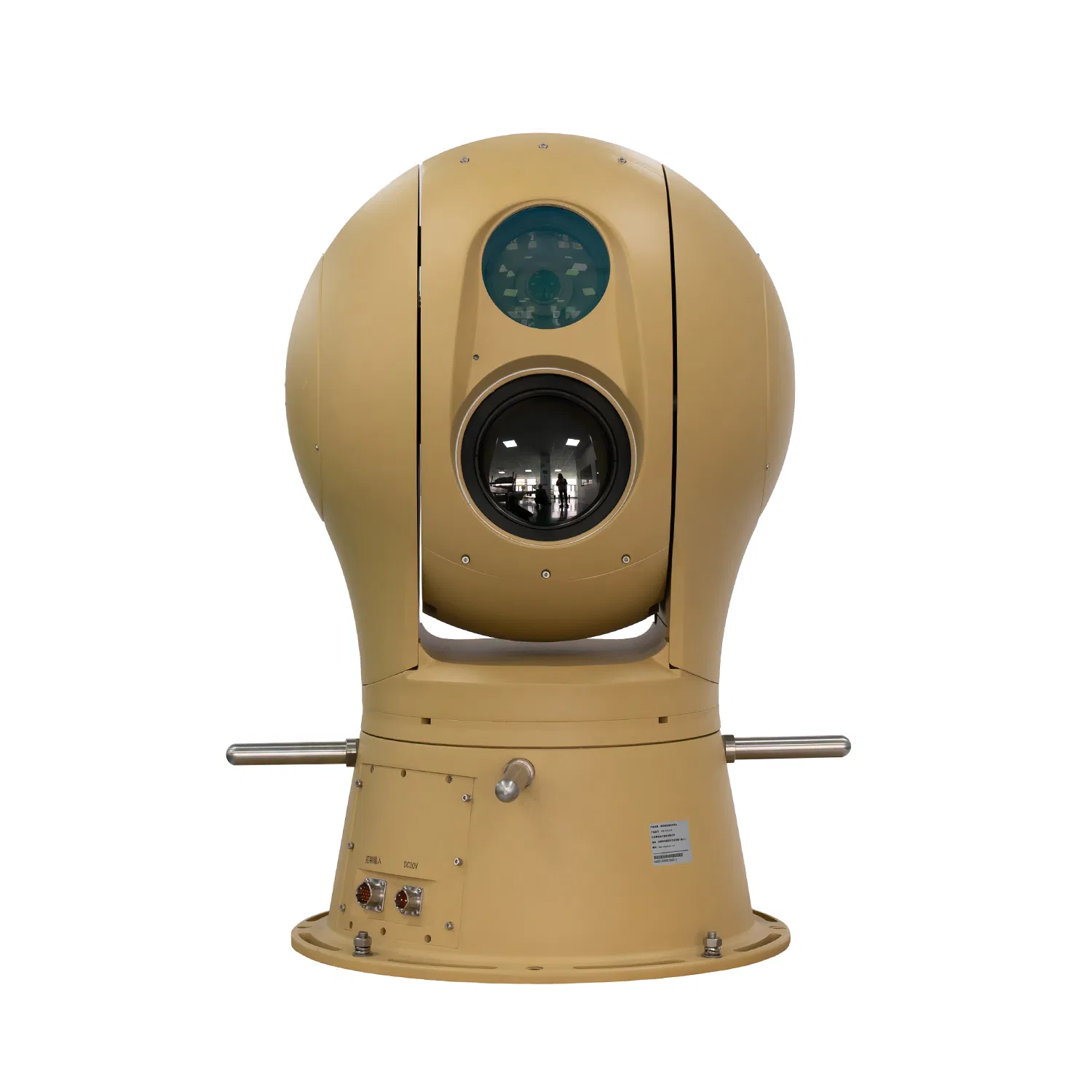

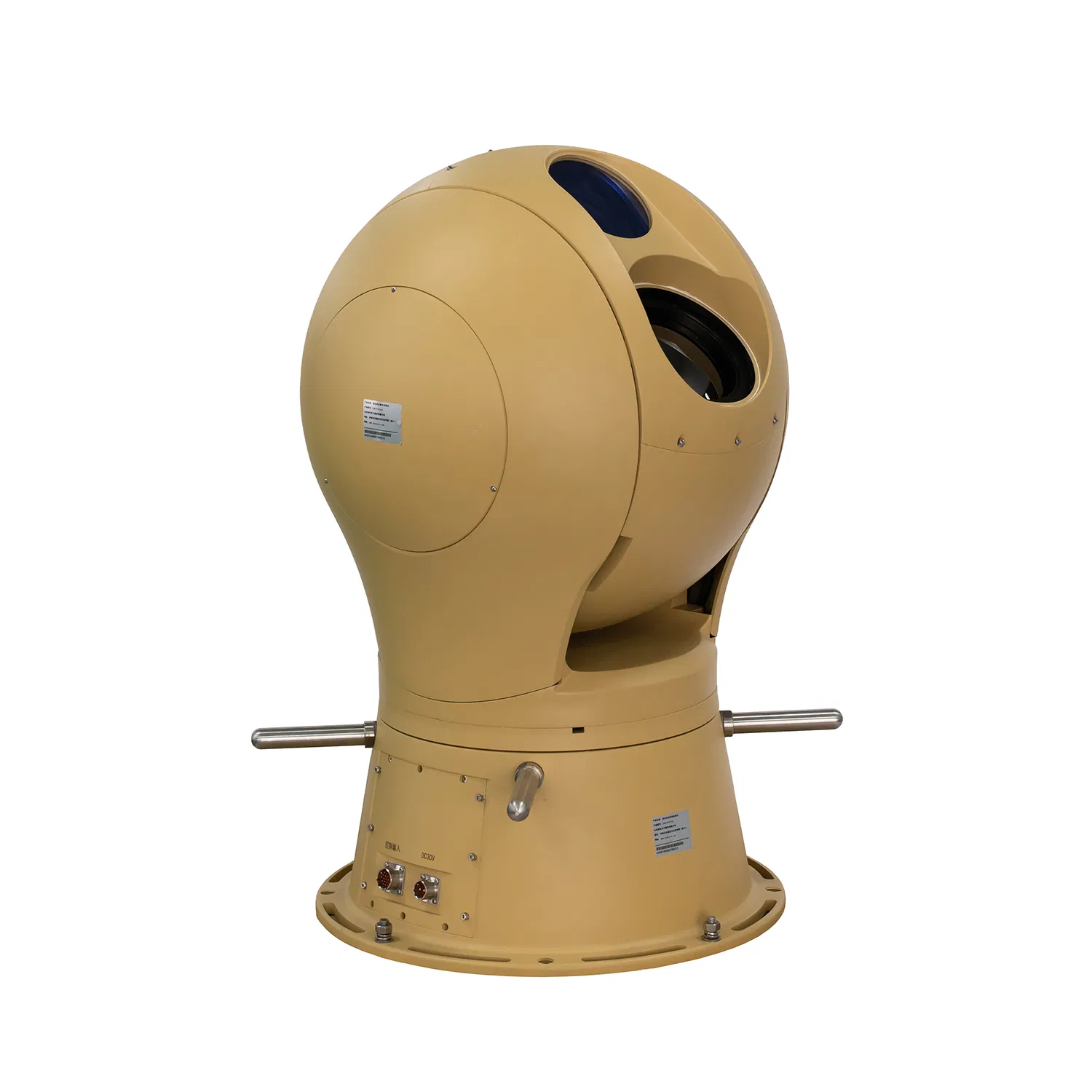

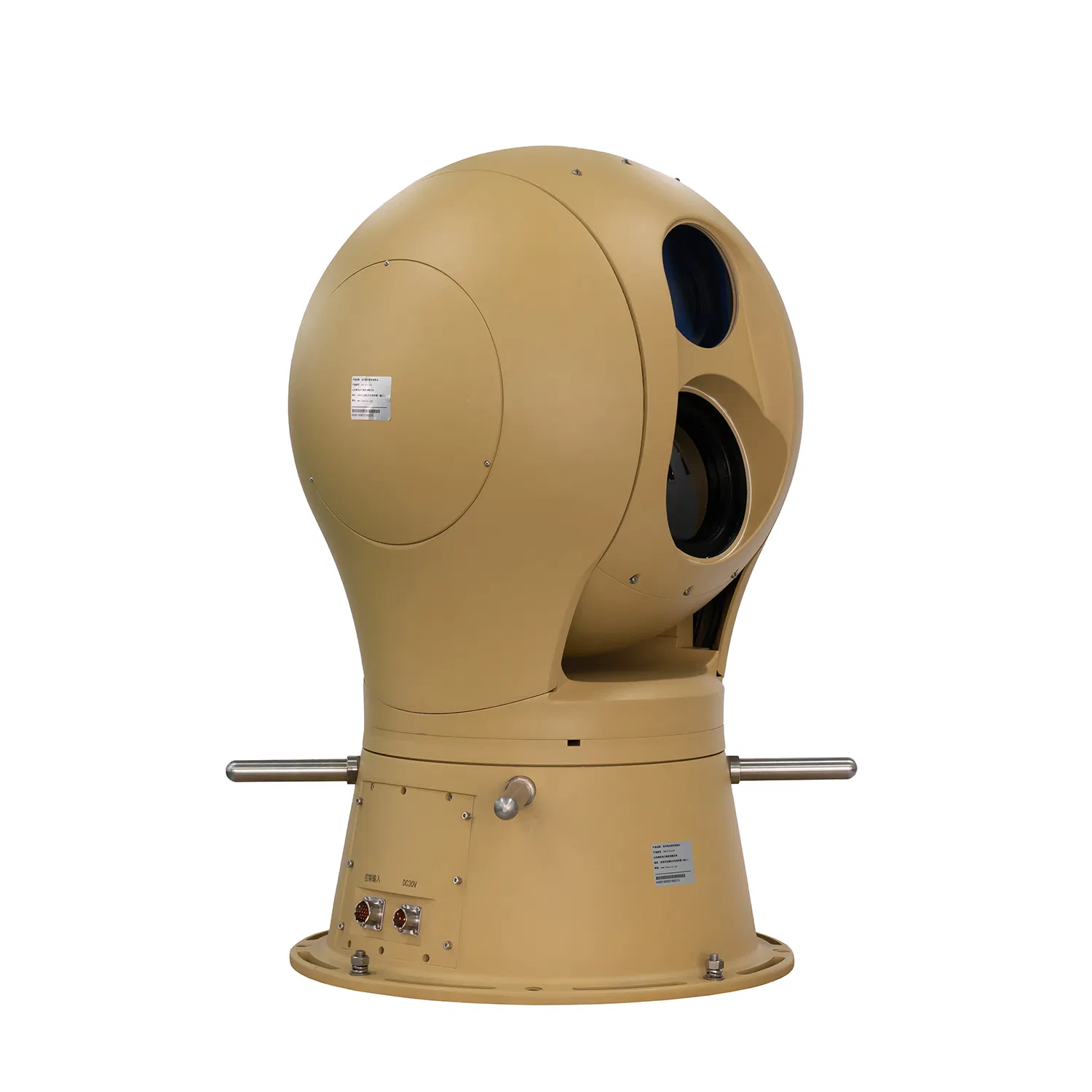

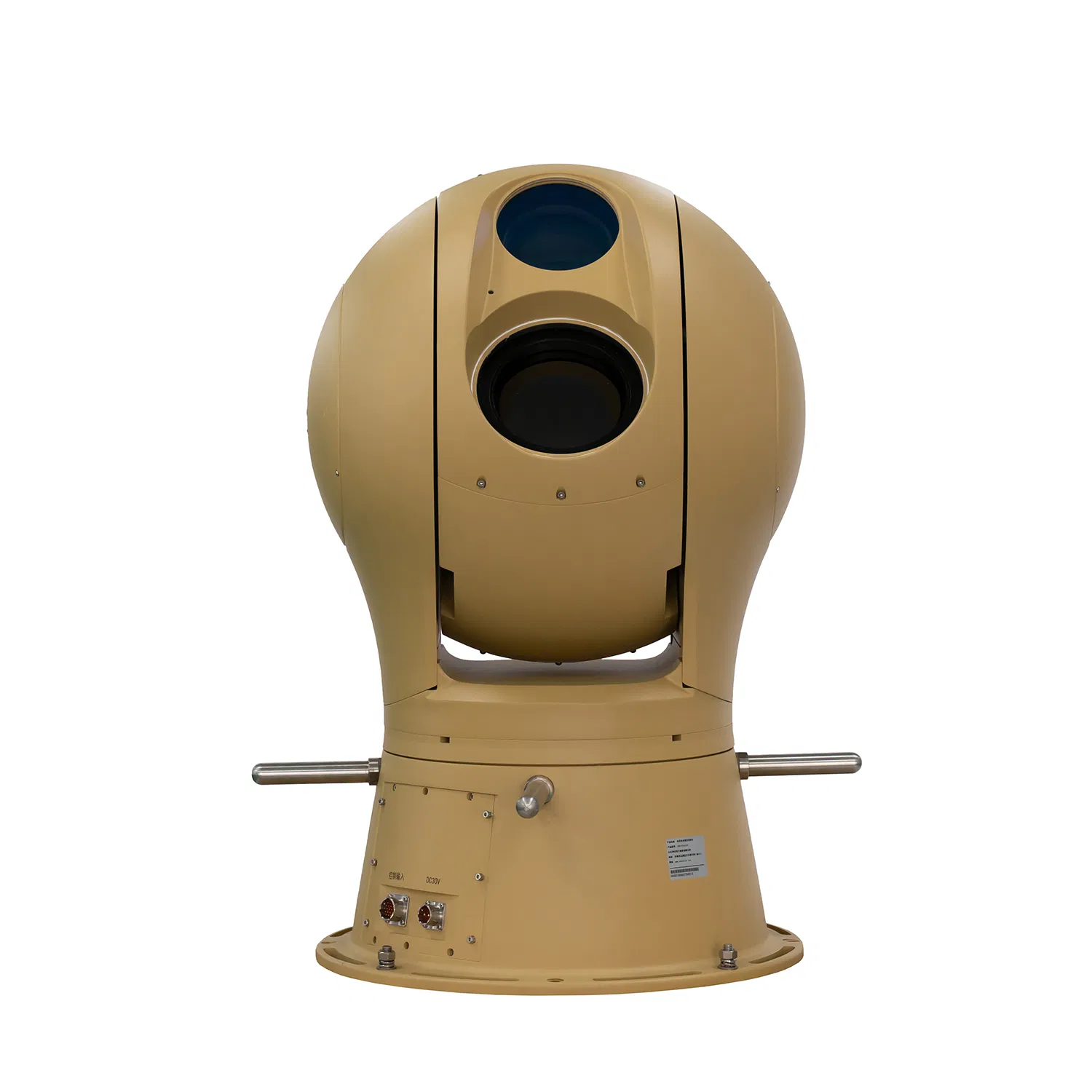

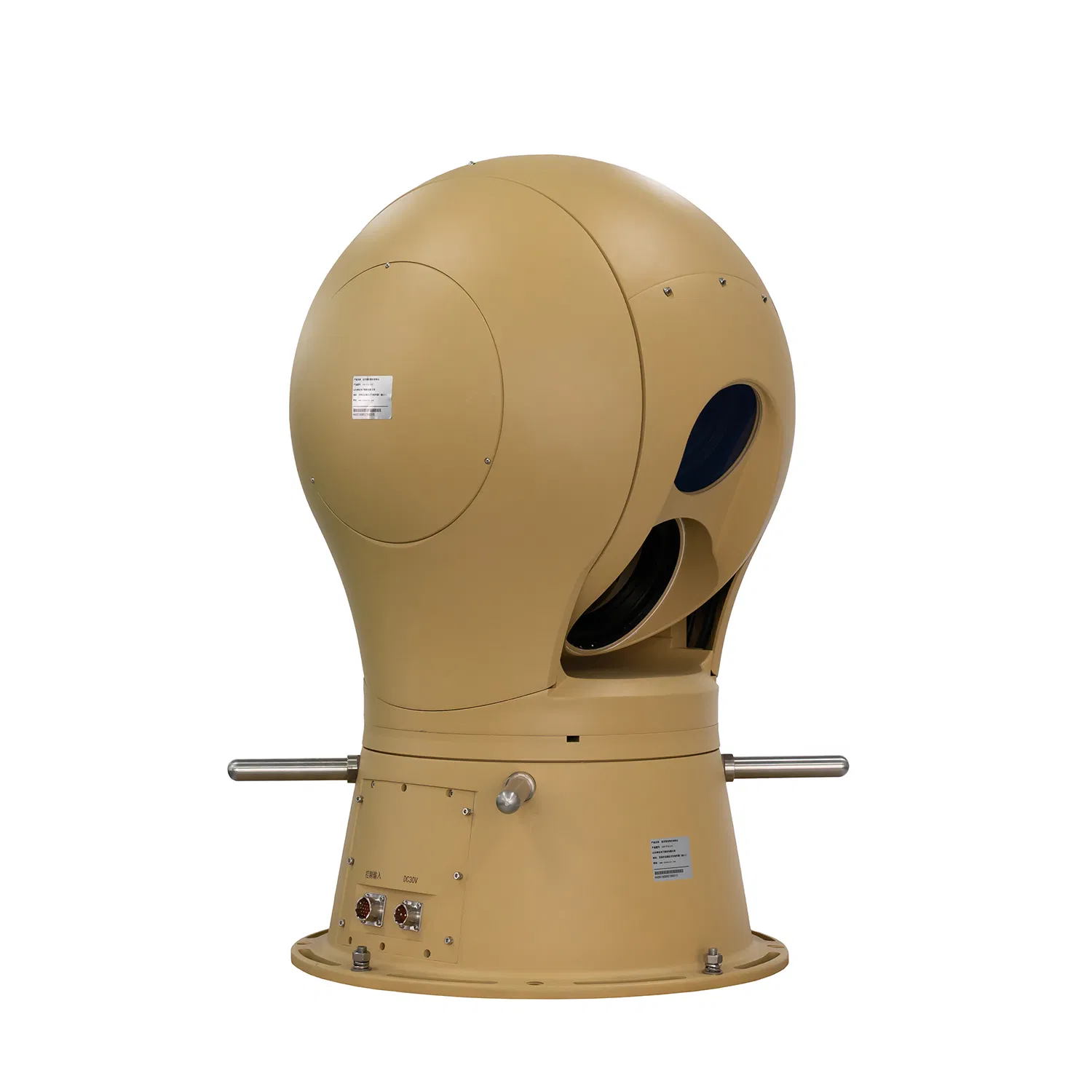

Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
1 / 5
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera
Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera

Made in China Long Range Uav Tracking Turntable Night Vision Cooled Thermal Imaging Eo/IR Camera

Customization: Available
Technology: Electro Optical System
Style: Electro Optical System
Send Inquiry

Product Description

📋
Basic Information
Type
Electro Optical System
Sensor
Cooled Fpa
HDMI Format
1080P
Resolution
1920*1080
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001
Effective Distance
7.7km to Human, 22km to Vehicle
Thermal Lens
35~700mm
Ingress Protection
IP66
Power Consumption
120W
Long Range Tracking Turntable
Night Vision Thermal Camera
✨
Product Features
🛡️
Adopting continuous zoom thermal imaging technology, it has a strong ability to penetrate fog and detect targets at long range, supporting both wide search and close observation.
📷
Day and night 2 megapixels low illuminance color camera, integrated with thermal imaging for continuous 24/7 monitoring.
🎯
Multi-position intelligent identification autofocus technology enables fast and accurate focusing through multiple trigger modes.
⚙️
Online upgrade function for front-end equipment control software via network, facilitating easy post-maintenance.
🔄
Universal variable speed PTZ with self-test and remote restart functions, achieving all-round blind-free monitoring and high-precision positioning.
💎
Professional industrial design shell: light, strong, anti-high-temperature, corrosion-resistant, and waterproof (anti-acid-rain).
📊
Technical Specifications
Operating Distance Auto tracking 2-3km (UAV size 30mm*20mm)
Visible light 5000~8000m to see human.
Thermal Imaging Object Detection Human: 15.4km Vehicle: 19.5km
Recognition Human: 7km Vehicle: 12km
Identification Human: 4km Vehicle: 8.4km
HD Lens Specs 12.5~750mm, 60X optical zoom, Auto Aperture
Camera Sensor Type 1/1.8" Progressive Scan CMOS, 2.1MP
Infrared Lens Focal length 35~700mm, 20× optical zooming
Detector Effective pixels 640×512, Spectral range: 3.7~4.8μm
Pan-tilt Range & Speed Horizontal 360° continuous, Pitch -45°~+45°, Speed up to 80°/s
Environment Protection IP66, Working Temp: -25ºC~+55ºC
Physical Dimension 600×600×937mm, Weight: ≤140kg

Note: The monitoring distance is affected by different attenuation coefficients; the specific situation depends on the scene.

🤝
Our Services
Warranty
Standard one year, extended options available.
Tech Support
Life-long professional technical assistance.
OEM
We accept OEM requests.
Customization
Fully customized product solutions.
Frequently Asked Questions
What is the maximum detection distance of this EO/IR system?
The system can detect humans at up to 15.4km and vehicles at up to 19.5km using thermal imaging. For visible light, humans are detectable between 5000m to 8000m.
Is this camera suitable for harsh outdoor environments?
Yes, the device features an IP66 ingress protection rating and is built with a high-strength aluminum alloy shell, making it waterproof, anti-corrosion, and anti-acid-rain.
Does the system support automatic tracking?
Yes, it includes a tracking module with centroid/template matching algorithms. It can track targets like UAVs (30mm*20mm) at a distance of 2-3km.
What are the optical zoom capabilities for day and night?
The HD visible lens offers a 60X optical zoom (12.5~750mm), while the infrared thermal lens provides a 20X optical zoom (35~700mm).
Can the Pan-Tilt-Zoom (PTZ) unit be controlled precisely?
Absolutely. The PTZ supports 360° continuous horizontal rotation and -45° to +45° pitching with a preset precision of ±0.01°.
What is the power requirement for the whole machine?
The system operates on a 90VAC~305VAC to DC30V waterproof power supply, with a total power consumption of ≤250W.
