Surveillance Security Optical Thermal Imaging Cameras Long Range PTZ Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Box Camera

Send Inquiry

Product Description

📋

Basic Info

Model NO.

HP-TVC6307-2132

Type

IP Camera

Sensor

CMOS

HDMI Format

480P

Horizontal Resolution

650tvl

Kind

Manual Focus Lens

Certification

CE, FCC, RoHS

Feature

Waterproof / Weatherproof, High Definition

Effective Distance

≧30m

Sensor Size

1/3 inch

Remote Control

With Remote Control

Origin

China

HS Code

8501109101

📷

Product Description

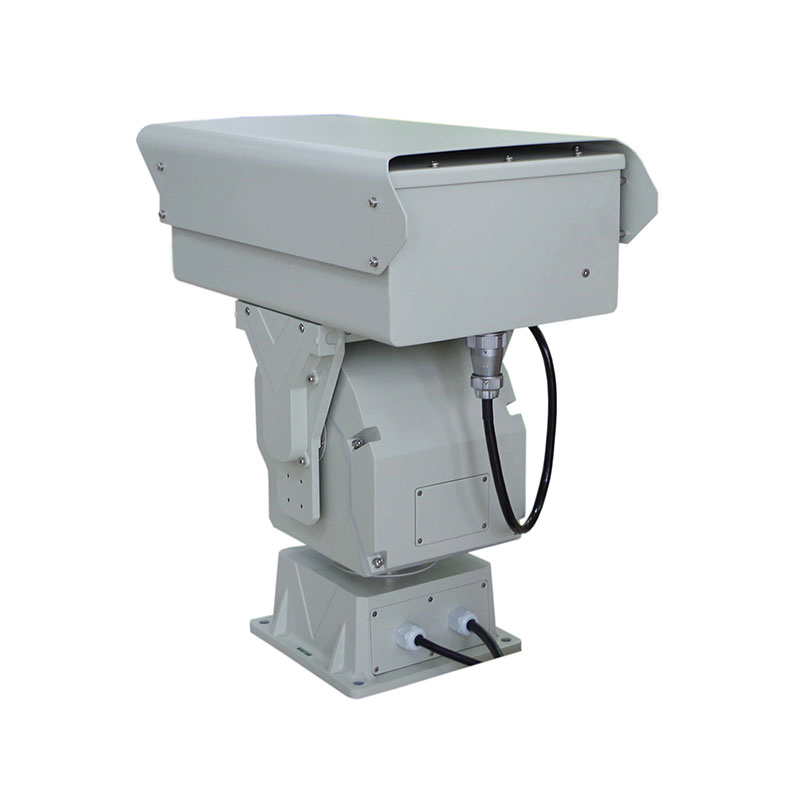

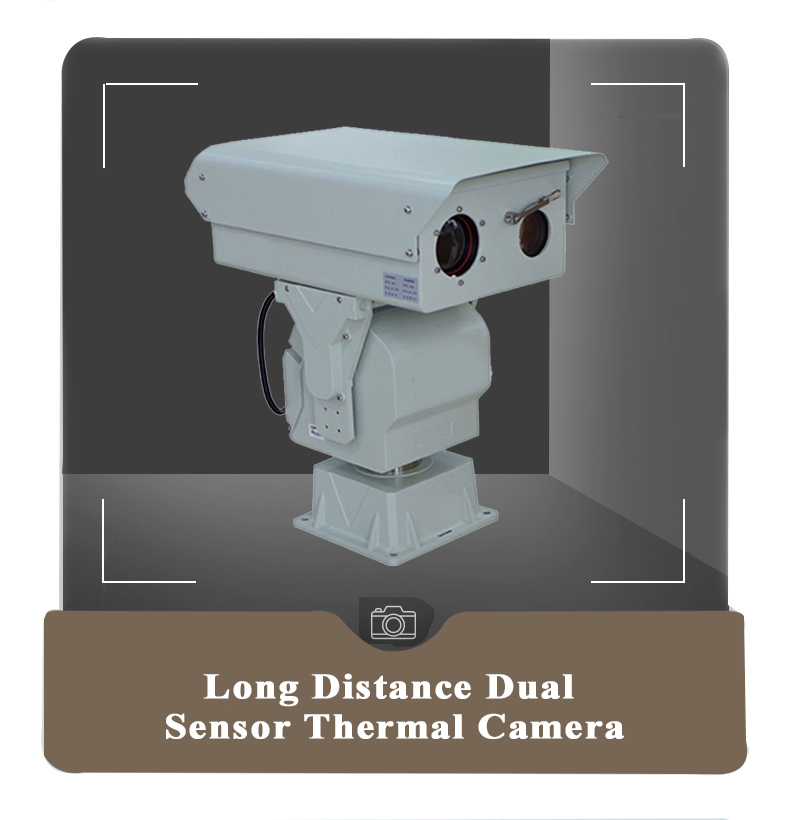

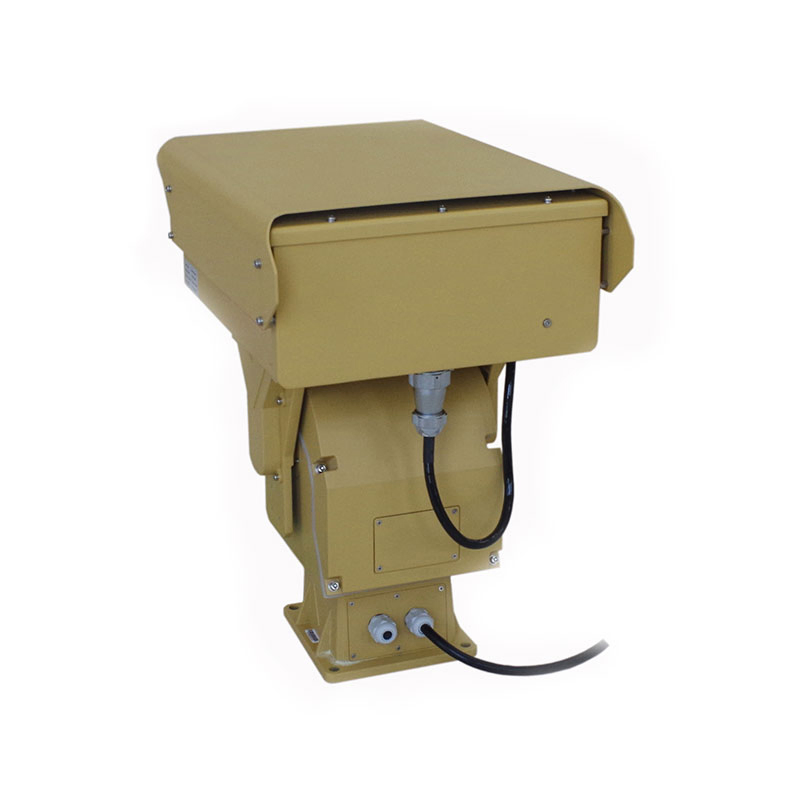

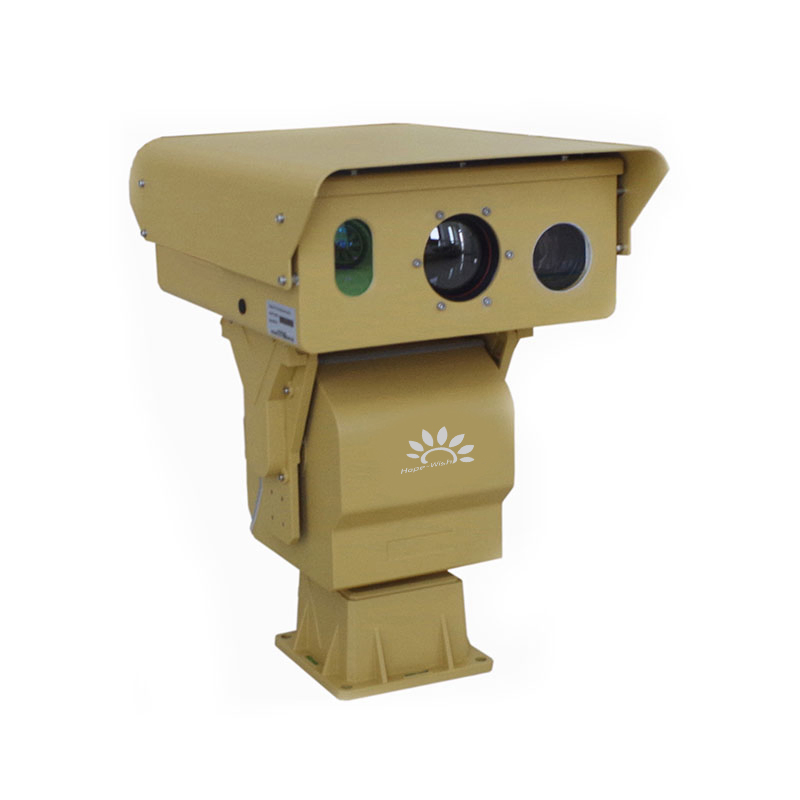

HP-TVC6307-2132 Long Distance Dual Sensor Thermal Camera

⭐ Key Benefits:

Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design for stable and smooth zooming.
Excellent non-uniform image correction technology with superior image uniformity and dynamic range.
SDE image detail enhancement technology for smooth and noiseless imaging with multiple pseudo-color modes.

🔎 Overview:

Integrates infrared thermal imaging, HD visible imaging, video coding, and PTZ control.
Visible imaging features a full HD low illumination CMOS sensor with 30x continuous zoom.
Latest generation VOx detectors with sensitivity (NETD) up to 50mk for delicate picture quality in fog, rain, or snow.

⚙️

Product Parameters

Specifications	Details
Detection Capabilities
Detection Range	Vehicle: 6.5km, Human: 2.5km
Identification Range	Vehicle: 1.8km, Human: 700m
Thermal Camera System
Sensor	5th generation FPA VOx uncooled detector
Resolution	640512 (Optional 384288)
Spectral Range	7.5~14μm
NETD	50mK (@25ºC F1.0)
Focal Length	25mm~75mm, 3X continuous zoom, auto focus
Visible Camera System
Camera Sensor	1/2.8" star level CMOS, 2MP, 1920X1080
Visible Lens	8mm~320mm, 2MP electric focus
PTZ & Housing
Load Capacity	30kg
Range/Speed	Pan: 360° (0.01~60°/S), Tilt: +45°~-45° (0.01~30°/S)
Ingress Protection	IP66

🌐

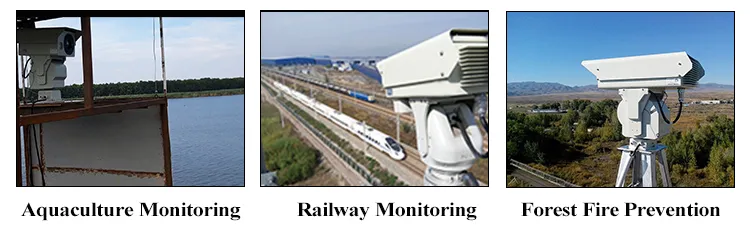

Applications

Seaport and airport monitoring

Water system monitoring

Base security monitoring

Oilfield & oil depot security

Fire source prevention

Border and coastal defense

Urban security & anti-UAV

Highways and railways monitoring

🖼️

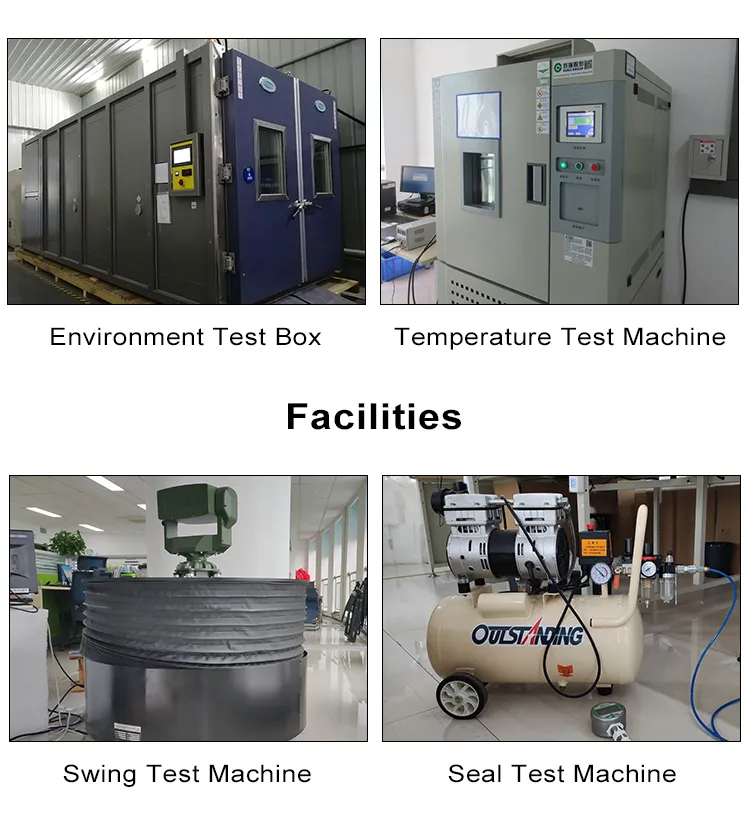

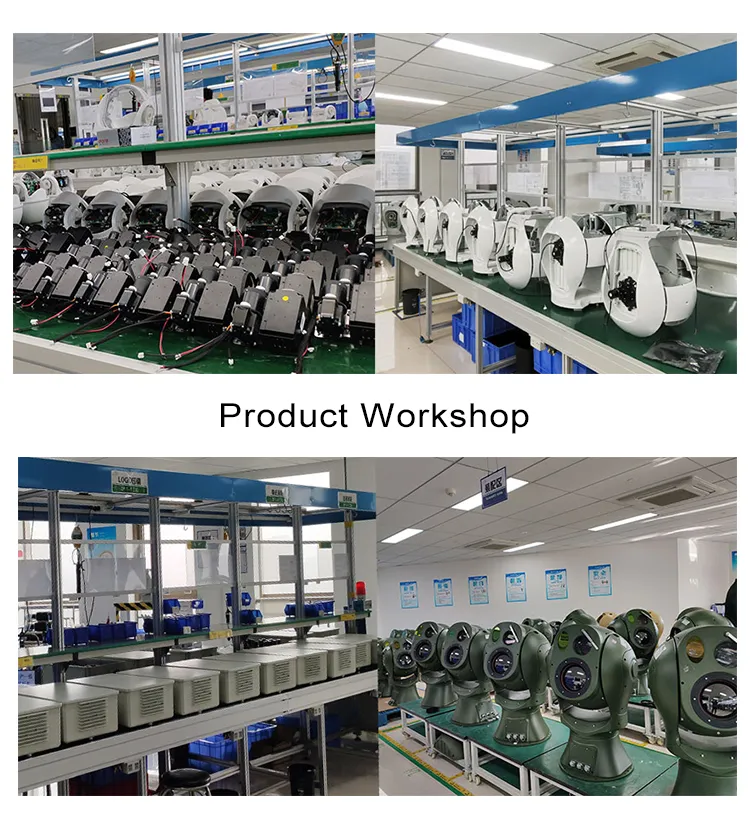

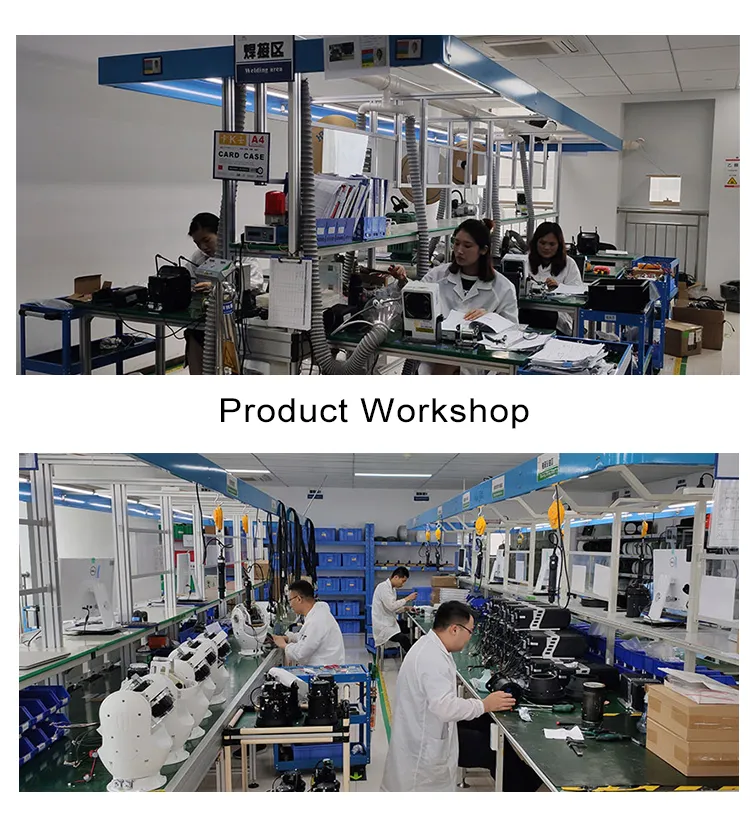

Product Gallery & Certifications

❓

Frequently Asked Questions

What is the maximum detection range of this camera?

The HP-TVC6307-2132 can detect vehicles up to 6.5km away and humans up to 2.5km away, depending on environmental conditions.

Does the camera perform well in harsh weather like fog or snow?

Yes, it uses VOx uncooled detectors with high sensitivity (NETD 50mk) and SDE image enhancement technology, which significantly improves visibility in fog, rain, and snow.

Is the PTZ system durable for coastal environments?

Absolutely. The housing is made of high-strength aluminum alloy with a PTA three-resistance coating, specifically designed for seawater corrosion resistance and waterproof sealing (IP66).

Can I control the zoom and focus remotely?

Yes, the system supports electrical zoom and both manual and auto-focus for both the thermal and visible light camera systems via the network interface.

What power supply is required for this camera?

The system operates on AC/DC24V and includes anti-reverse connection protection and built-in lightning protection (up to 4000V for power).

Does it support integration with other security systems?

Yes, it supports standard protocols including TCP/IP, HTTP, RTSP, and Onvif, making it compatible with most modern NVR and VMS platforms.
