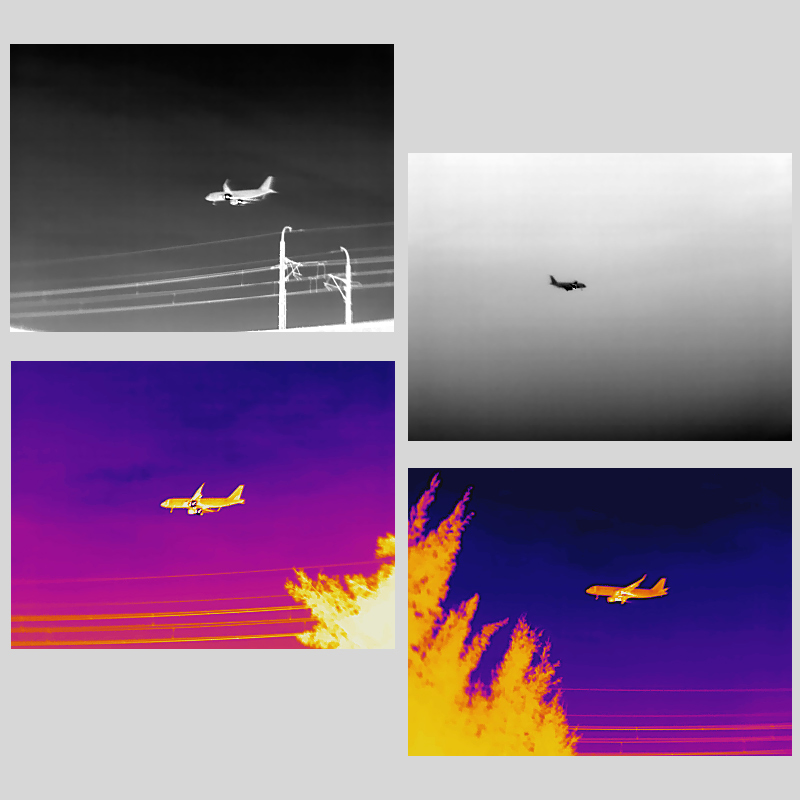

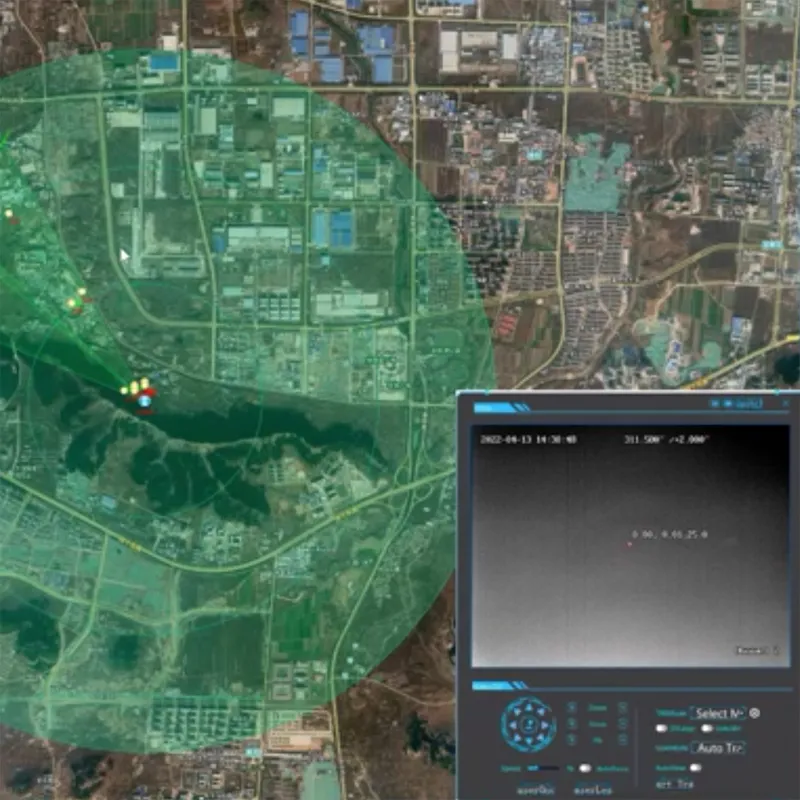

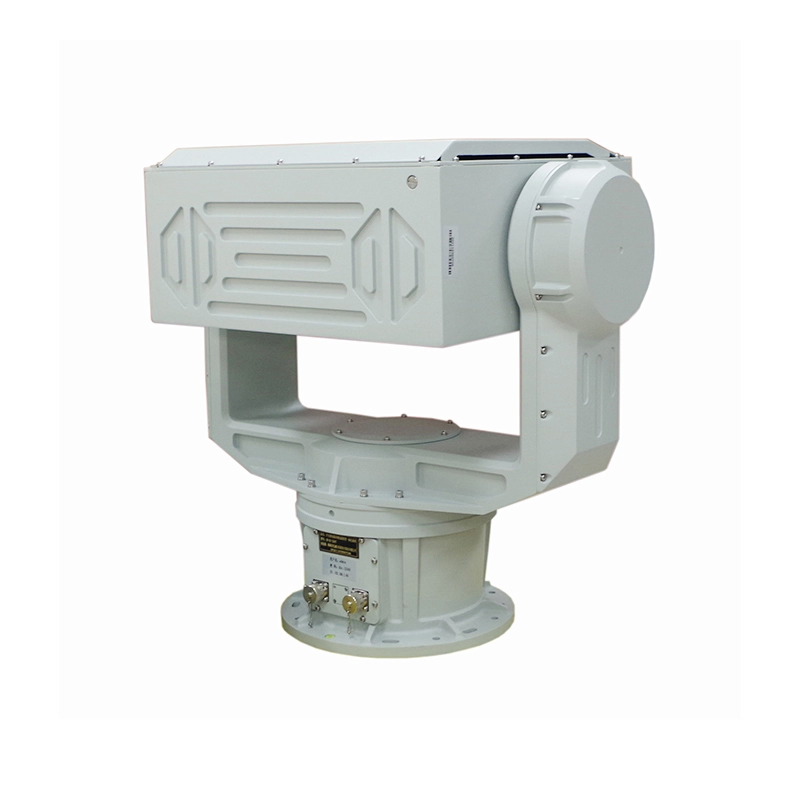

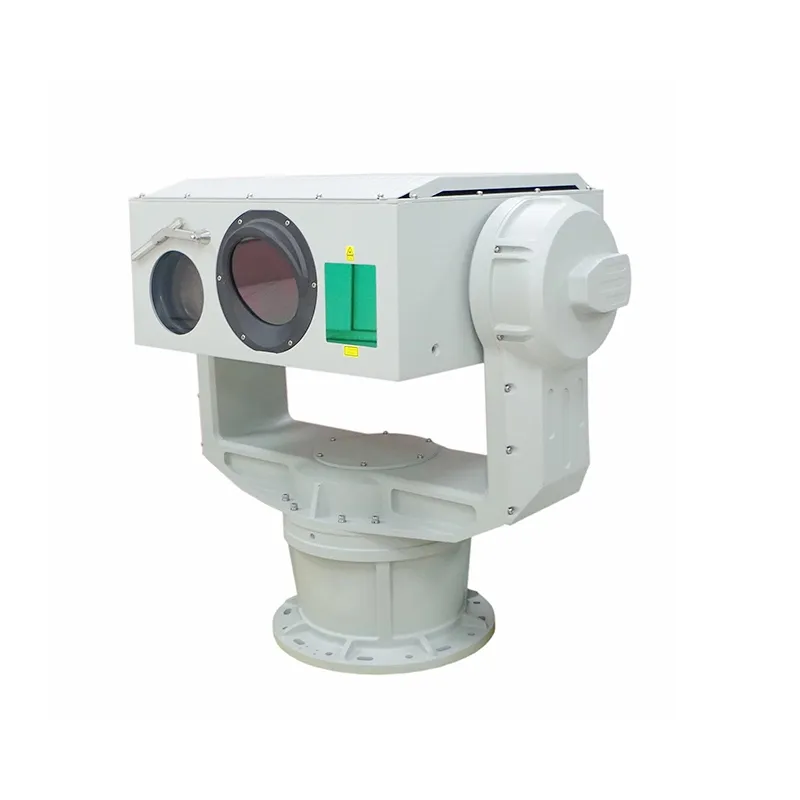

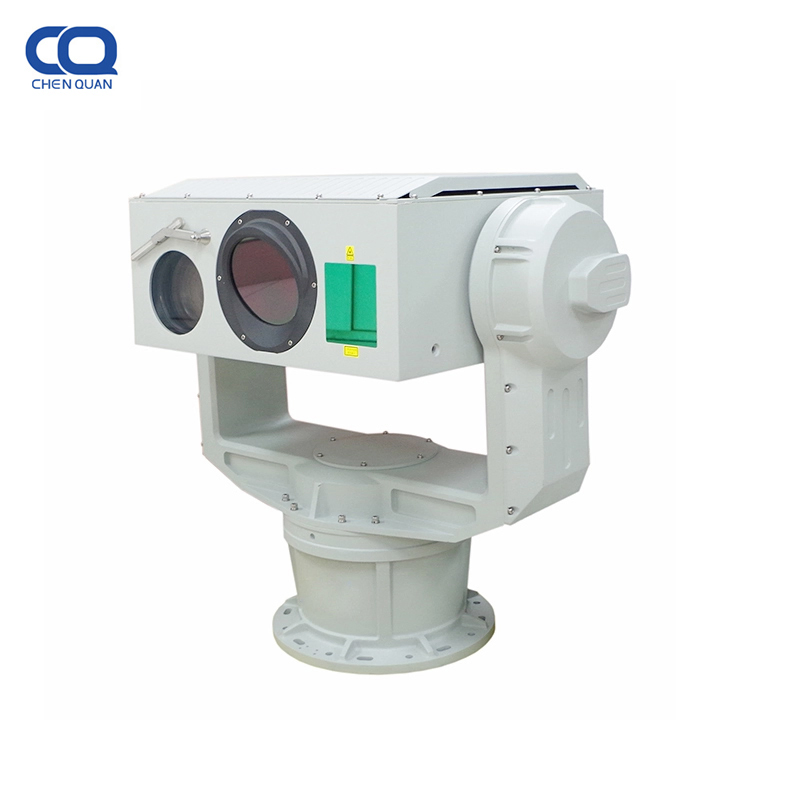

The Air Surveillance Camera integrates HD visible light camera, thermal camera, laser ranging finder, automatic tracking, gyro stabilization (optional), intelligent analysis, and precise electronic control. It is designed for air target video acquisition, target warning, radar linkage, and other specialized applications, ensuring all-weather and full-dimensional discovery.
Constructed with super strong aluminum alloy, the shell offers superior wind resistance and stability. Rated at IP66 with a C5-M level salt-spray protection design, it guarantees long-term stable operation even in the harshest maritime environments.

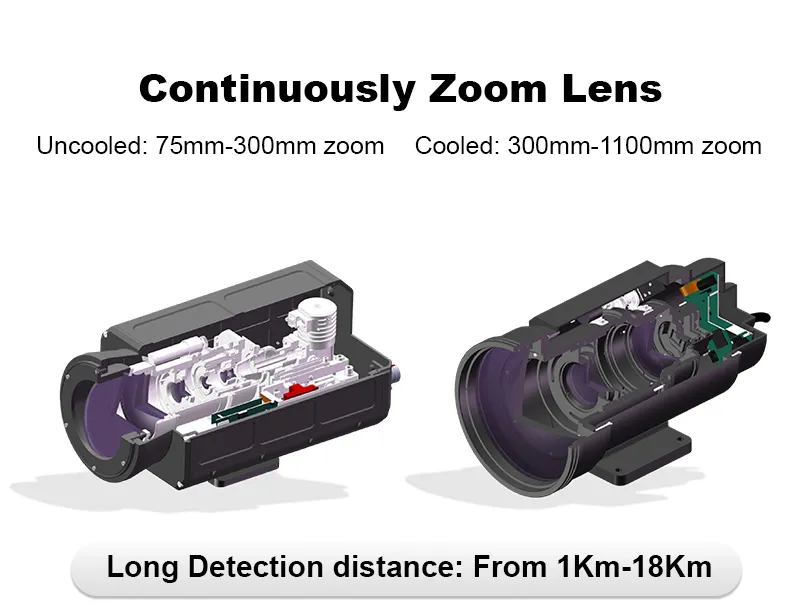

| Thermal Imaging Options | |||
|---|---|---|---|
| 22-230mm LWIR | 30-300mm LWIR | 15-300mm MWIR | 22-450mm MWIR |
| 30-660mm MWIR | 40-800mm MWIR | 90-1100mm MWIR | - |

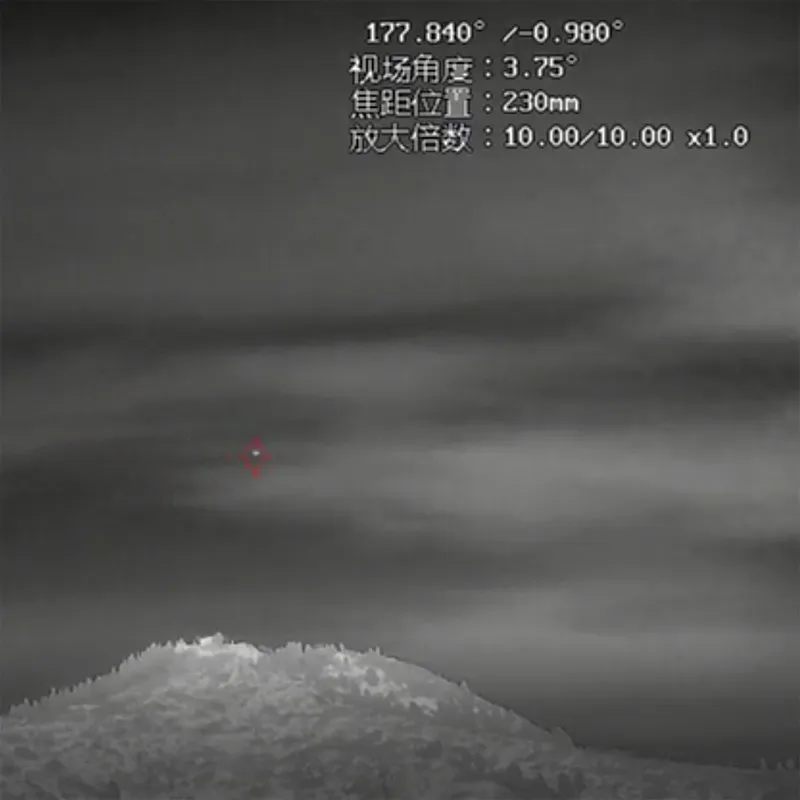

| DRI Effective Distance (Vehicle 2.3x2.3m) | |
|---|---|
| Detection | 18km |
| Recognition | 4.8km |
| Identification | 2.5km |
| Sensor Details | |
|---|---|

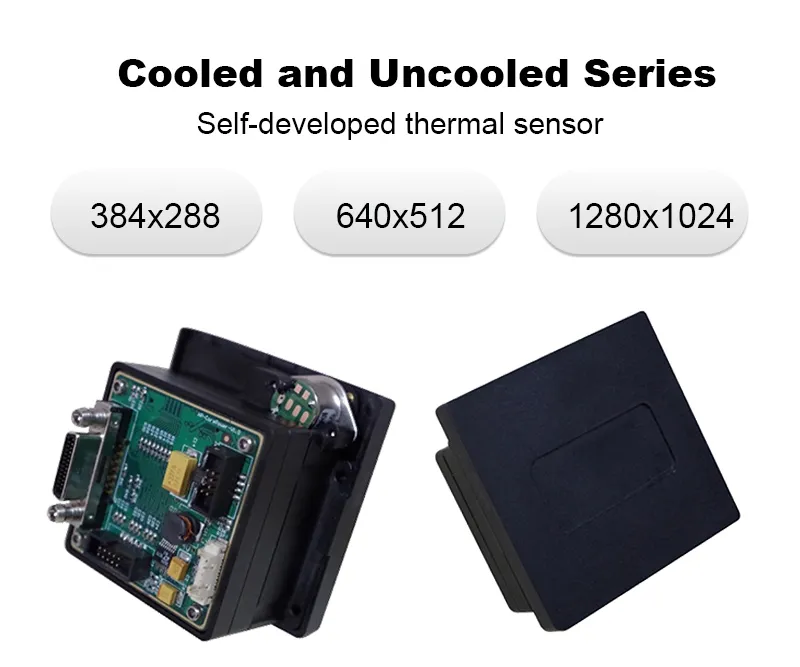

| Thermal Sensor | 5th generation uncooled FPA sensor, 640x512, 12μm |
| Visible Camera | 1/1.8'' Star Level CMOS, 1920x1080 |
| Rotation Range | Pan: 0~360°, Tilt: -90~+90° |
| Ingress Protection | IP66, Salt-spray PH 6.5~7.2 |
