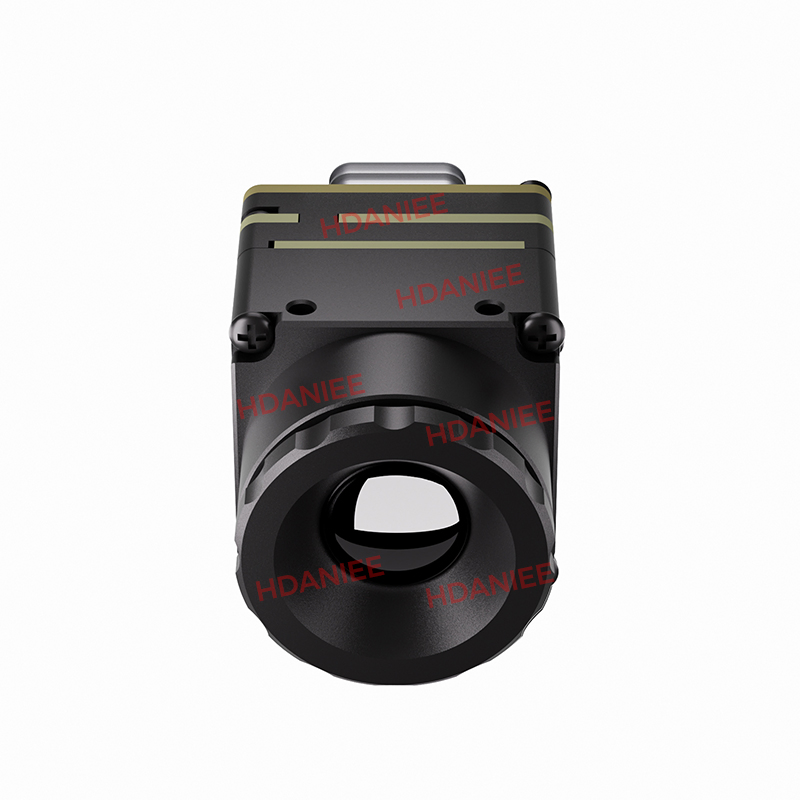

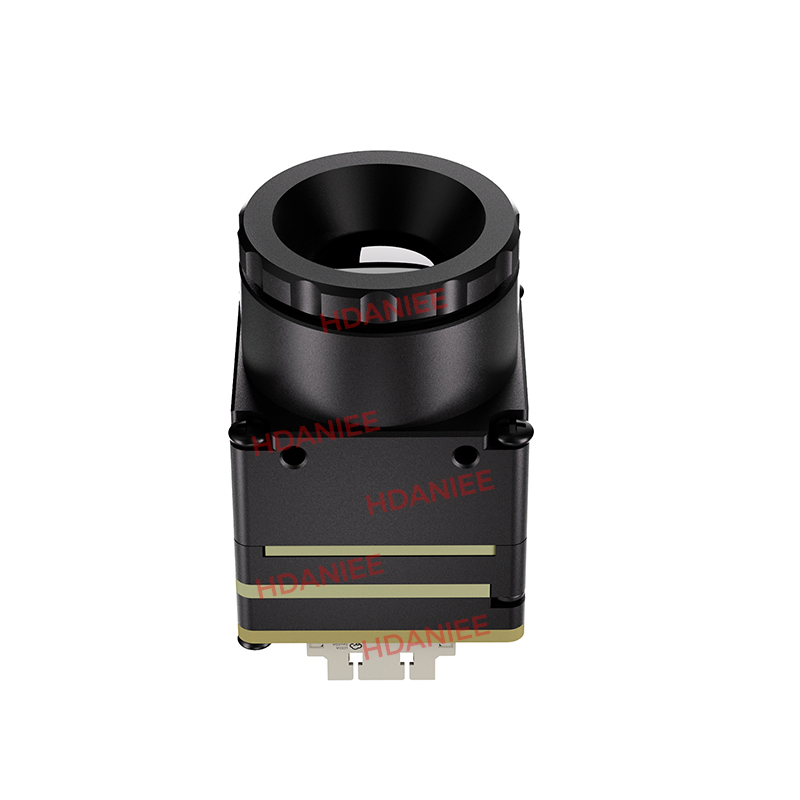

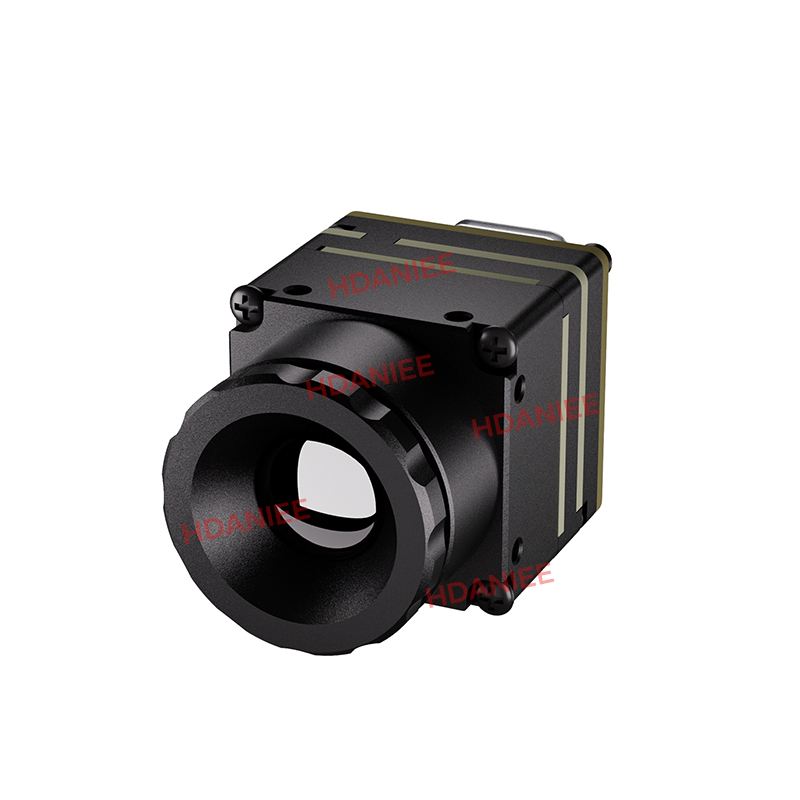

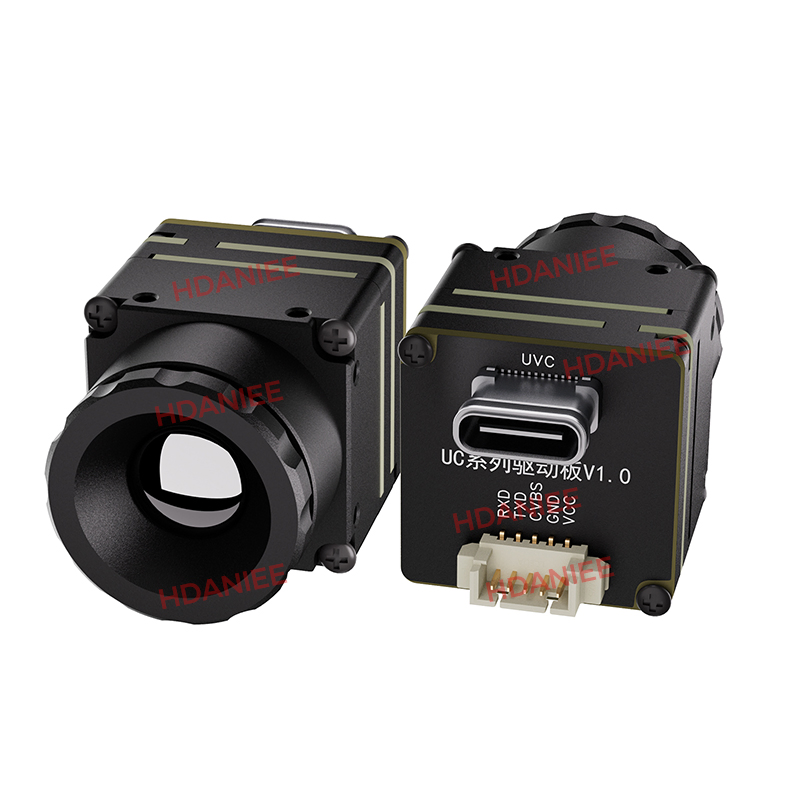

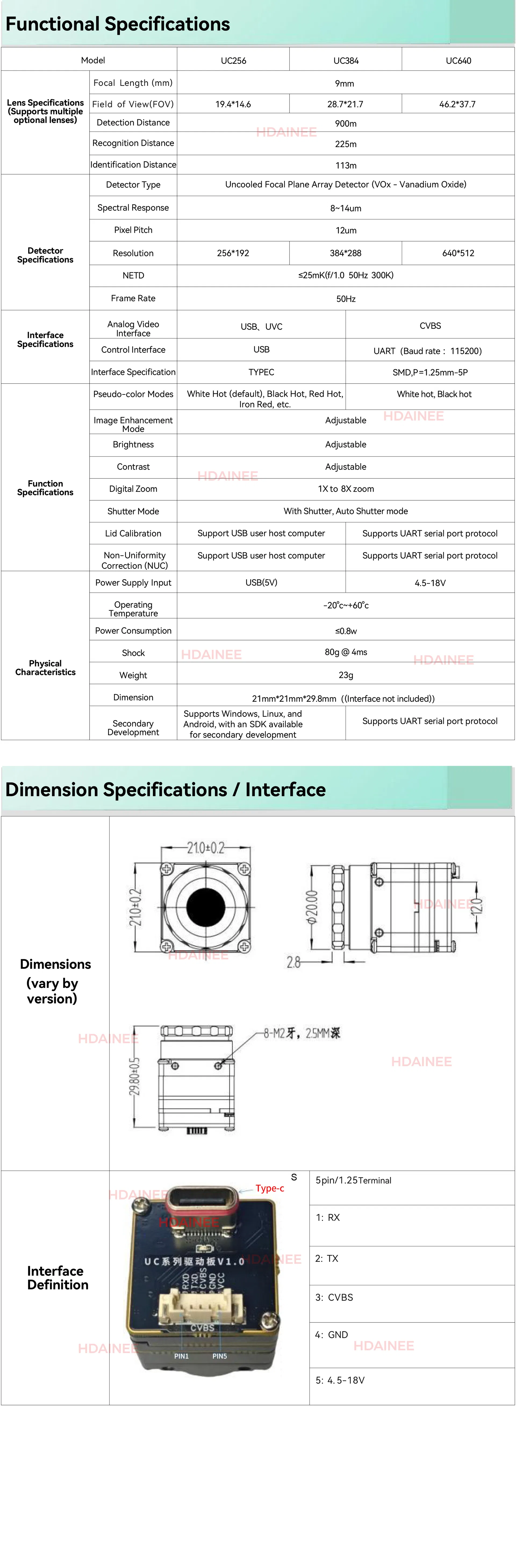

The UC Series thermal imaging camera modules (UC256 / UC384 / UC640) feature high-performance uncooled VOx focal plane detectors with spectral response of 8–14μm and 12μm pixel pitch. Designed for versatility, the series offers multiple resolution options: 256×192, 384×288, and 640×512 arrays, with NETD ≤25mK (f/1.0, 50Hz, 300K). Each model supports adjustable brightness, contrast, and image enhancement. Interface options include USB/UVC and CVBS with UART control. With a standard 9mm lens and varying field of view options, these modules are suitable for thermal surveillance, target detection (up to 900m range), and industrial imaging applications.

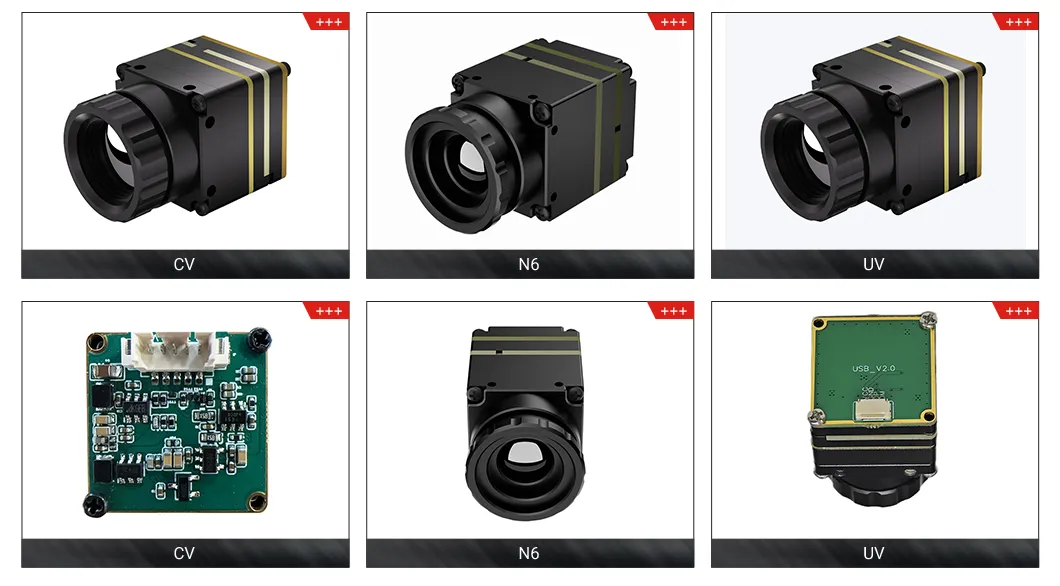

Our main products cover a comprehensive range, including HD infrared detector cores, temperature measurement thermal imaging modules, and lightweight modules specifically designed for drones. The product resolution spans from 256X192 to 1280X1024, with a pixel pitch as low as 12μm. We fully adopt shutter-less imaging technology to ensure smooth and stable image output.
❓
Frequently Asked Questions
Q1: What are the available resolutions for the UC series?
The series offers three resolution options: 256×192, 384×288, and 640×512 arrays.
Q2: Which interfaces are supported by these modules?

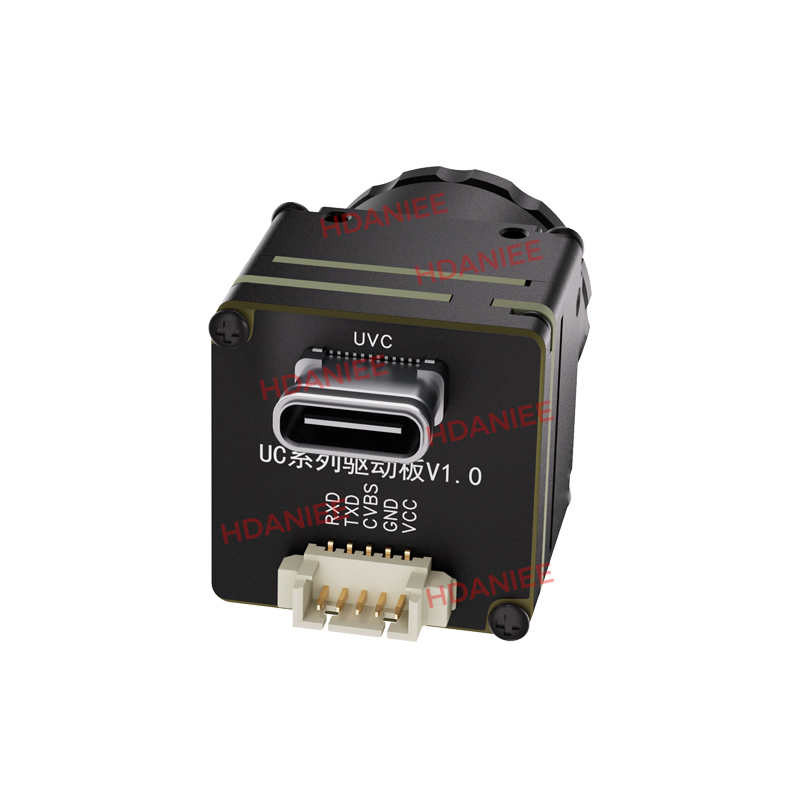

The modules support multiple interface options including USB/UVC and CVBS with UART control for easy integration.
Q3: What is the thermal sensitivity (NETD) of the detectors?
The uncooled VOx detectors feature high sensitivity with a NETD ≤25mK (at f/1.0, 50Hz, 300K).
Q4: Can these modules be used for drone integration?
Yes, the lightweight design and compact size (21mm*21mm) make them ideal for industrial-grade drones in search and rescue or patrol missions.
Q5: What is the detection range for the UC series?
Depending on the lens and environment, these modules can support target detection at ranges up to 900 meters.
Q6: What spectral range do the cameras operate in?
The UC series operates in the long-wave infrared spectral response range of 8–14μm.
