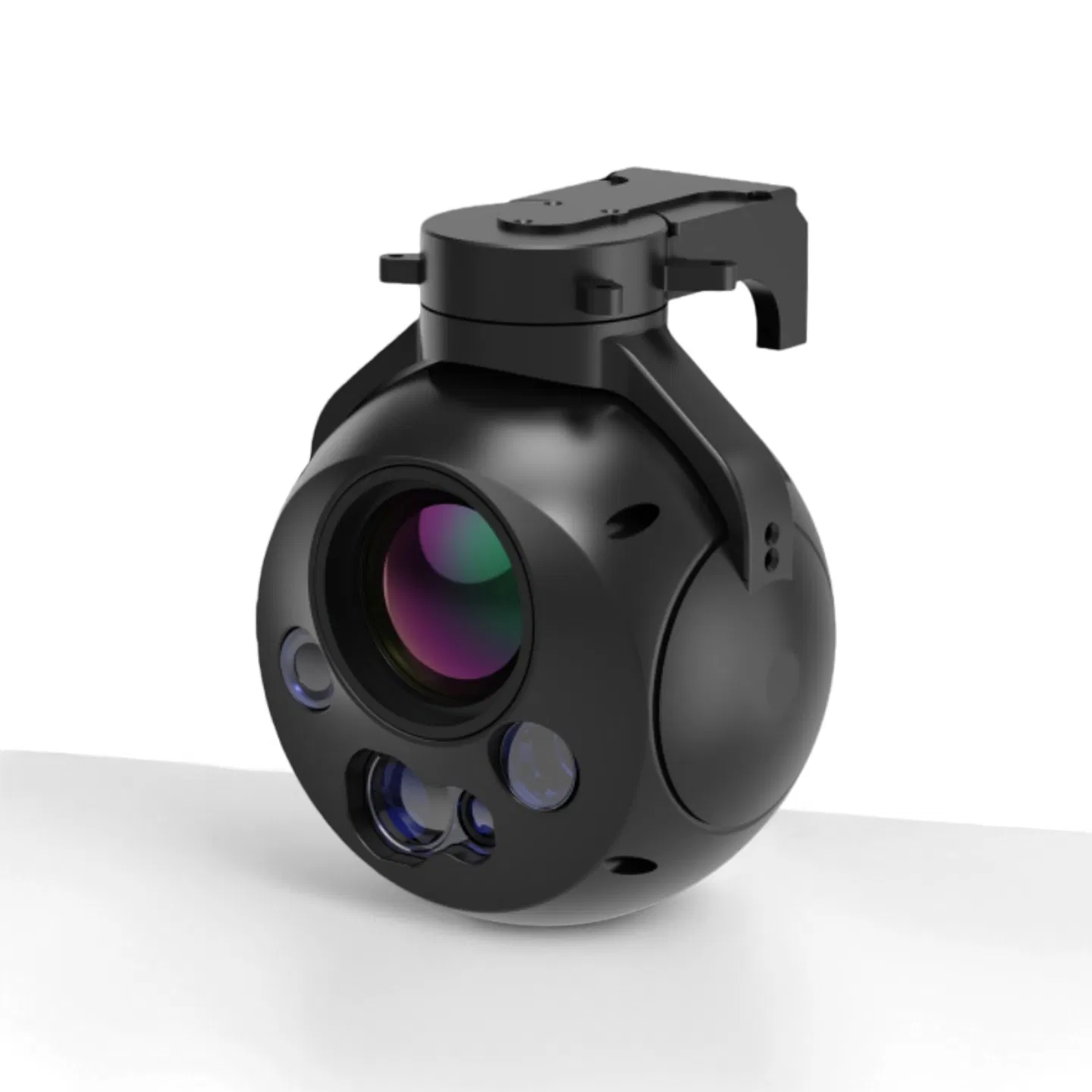

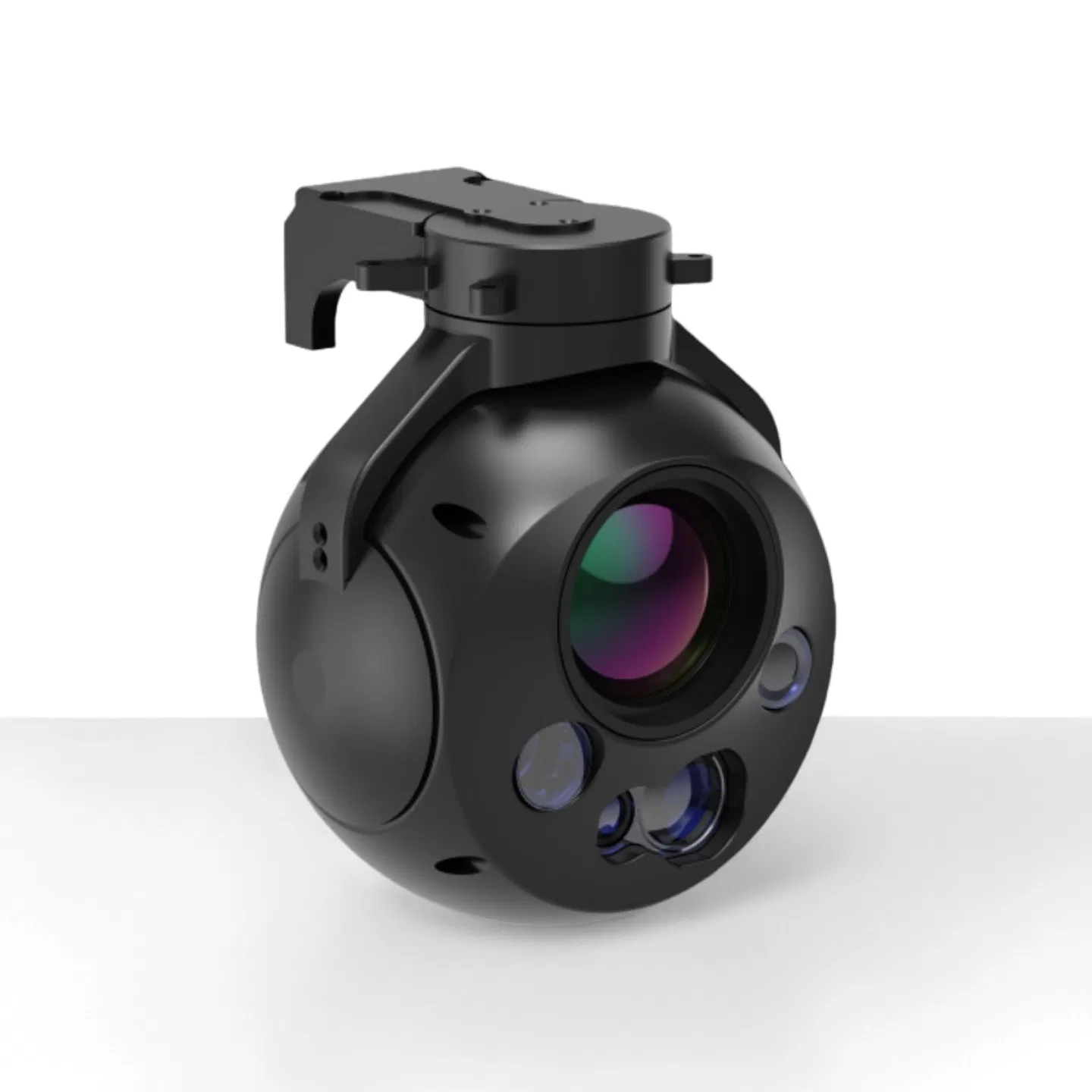

| Model NO. | LM120-4 Electro-Optical Gimbal Pod |
| Type | IP Camera |
| Sensor | CMOS |
| HDMI Format | 1080P |
| Resolution | 540tvl |
| Focus Kind | Manual Focus Lens |
| Certification | CCC, EMI/EMC, ISO9001: 2000 |
| Feature | Waterproof, High Definition, Mini Size |
| Effective Distance | ≧30m |
| Heading Range | -145°~+145° |
| Pitch Range | -110°~+40° |
| Power Interface | DC12V~28V |
| Operating Temp | -40℃~+60 ℃ |
| Stabilization | 0.1mrad (1σ,1°/2Hz) |
The airborne guidance pod is an essential equipment in modern warfare that guides guided weapon systems to carry out precise strikes on targets by capturing, identifying, and tracking them. It improves strike capability, self-disturbance rejection, and identification in complex environments. Applications include battlefield reconnaissance, border patrol, search and rescue.

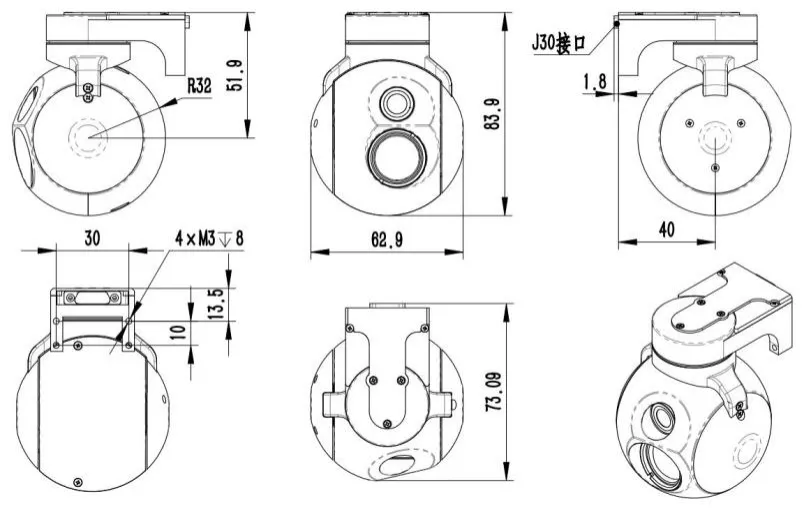

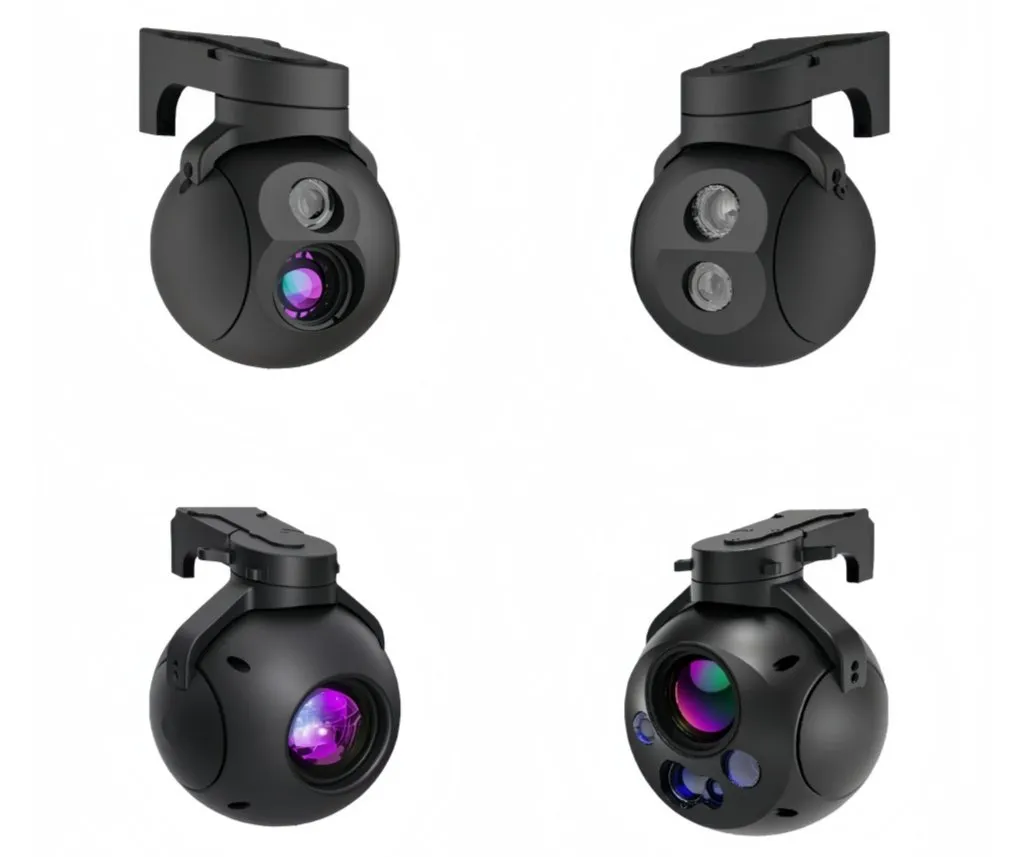

LM80-2-1: Features dual-light (visible + infrared) for day-night reconnaissance. Weight < 260g.

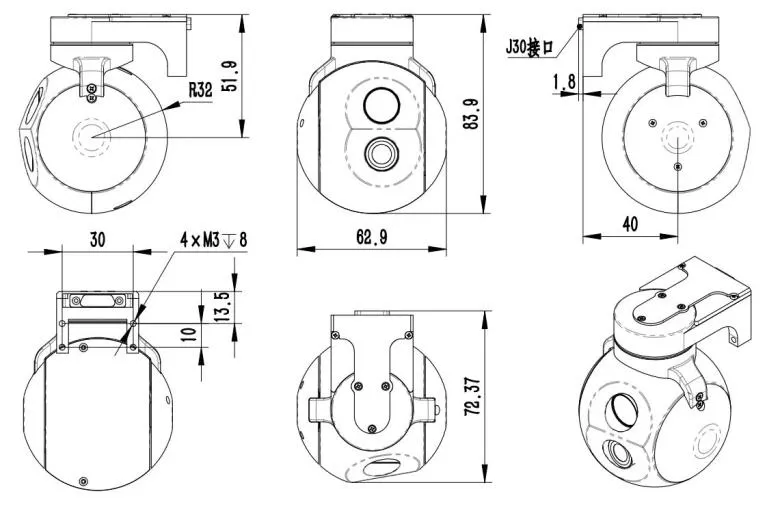

LM80-2-2: Dual visible light imaging for reconnaissance at various distances. Weight < 240g.
LM110-1-35 / LM120-1-40: Fixed focus infrared imaging with image compression. Weight 380-460g.

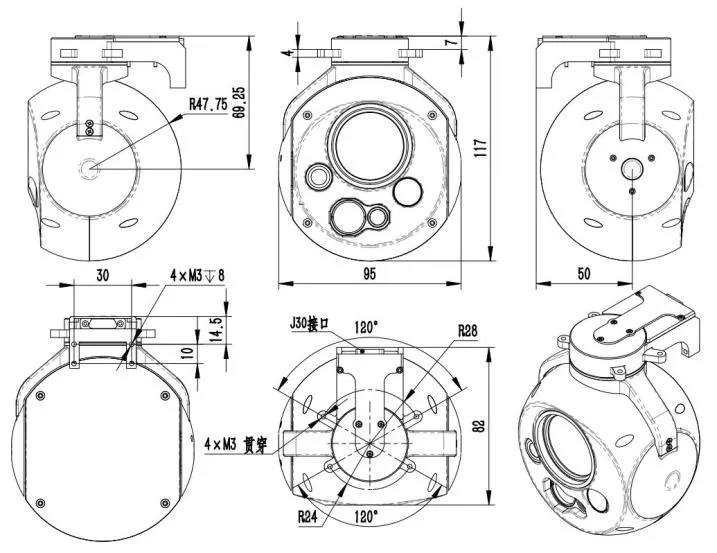

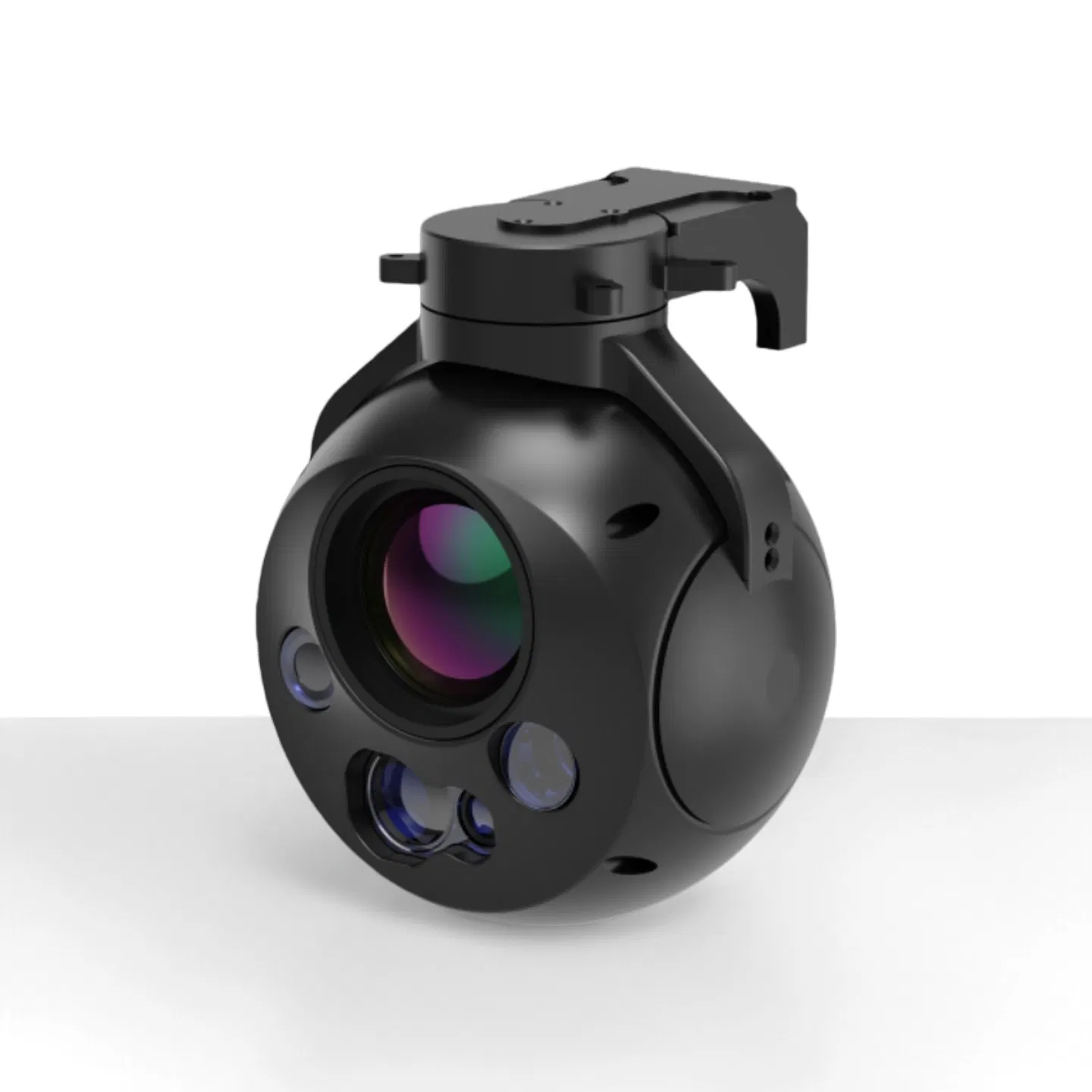

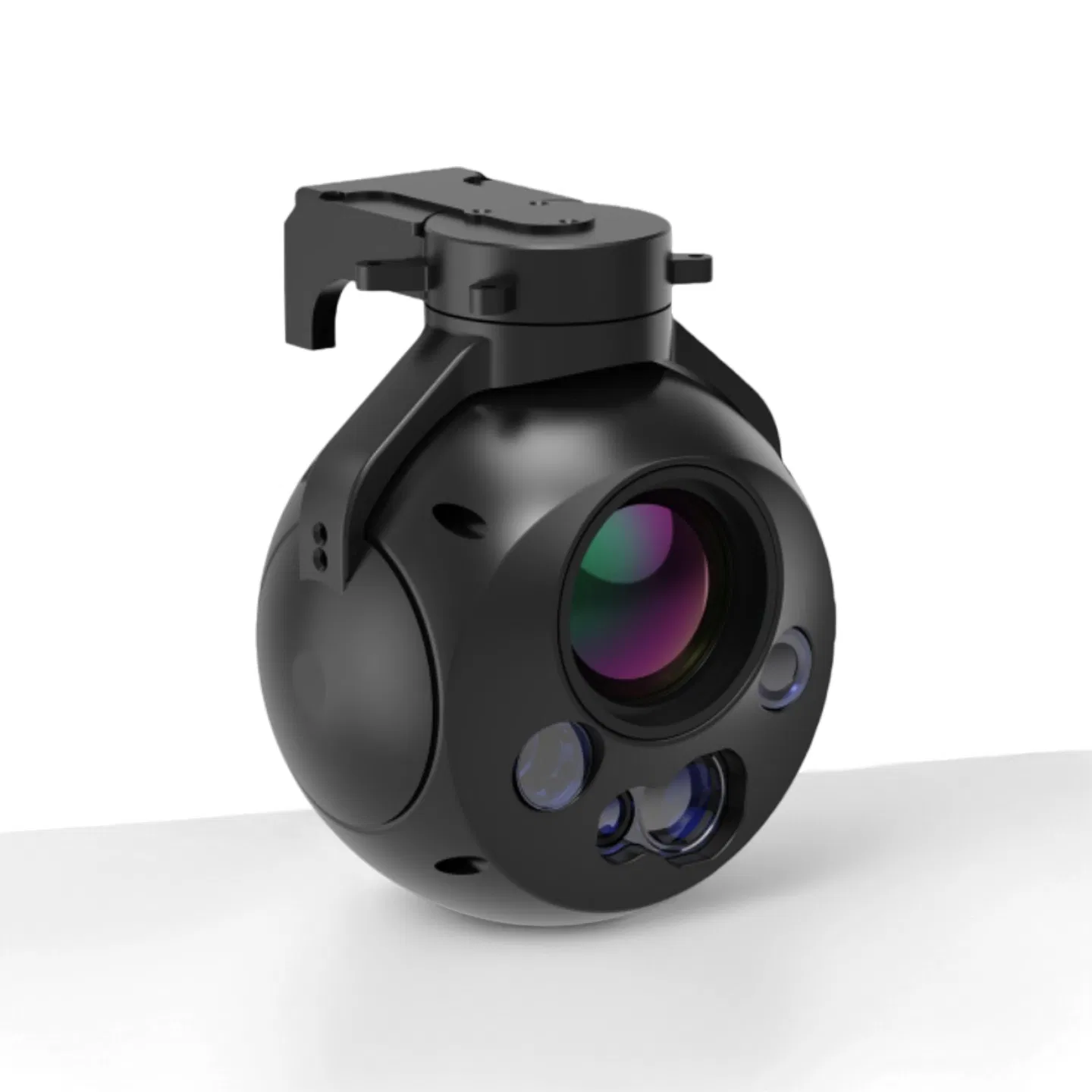

LM120-4: Quad-light combination (dual visible, infrared, laser). Weight < 500g. Metal-encased for EMC.
| AI Recognition | Supported |

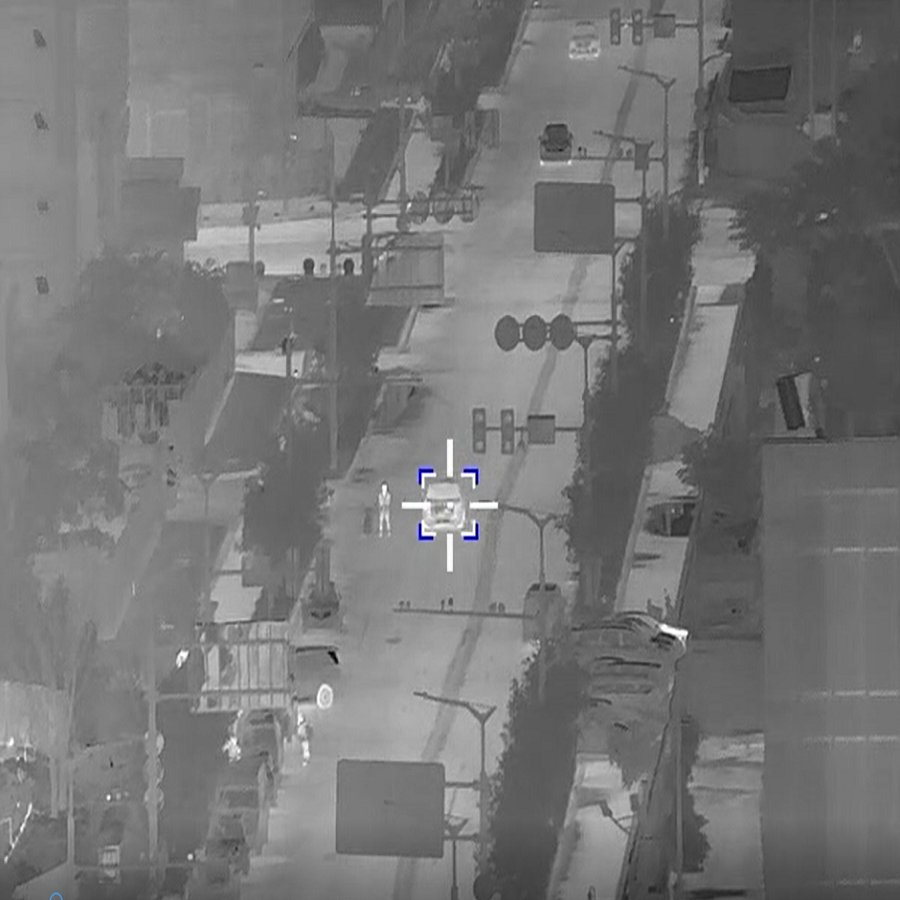

| Tracking Function | Supported |
| Max Angular Velocity | ≥100°/s |
| Tracking Speed | ≥40°/s |
| Angular Accuracy | ≤ 0.3°(RMS) |
| Control Interface | RS232/RS422/UART (Optional) |
| Video Interface | Fast Ethernet |
| Shock Resistance | ≥120g 10ms / ≥200g 6ms |
| Power Consumption | Avg ≤ 10W, Max ≤ 20W |
Established in 2018, our enterprise focuses on core technologies: unmanned equipment detection, multispectral image processing, and high-precision servo control. We provide intelligent sensing solutions for smart energy and defense modernization.
Package Size: 50.00cm * 50.00cm * 50.00cm
Gross Weight: 10.000kg
Lead Time: 45 days for standard orders; bulk orders negotiable.
