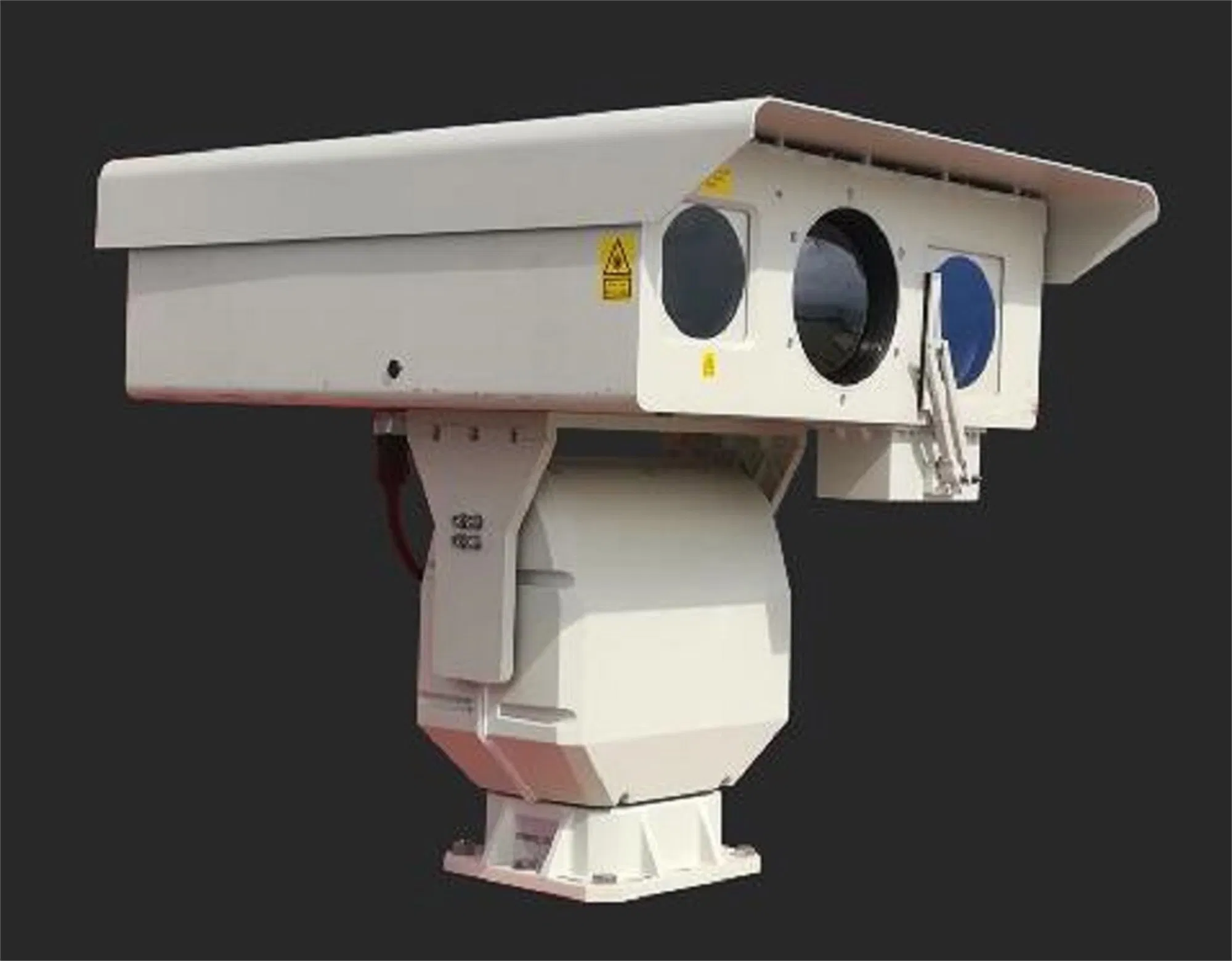

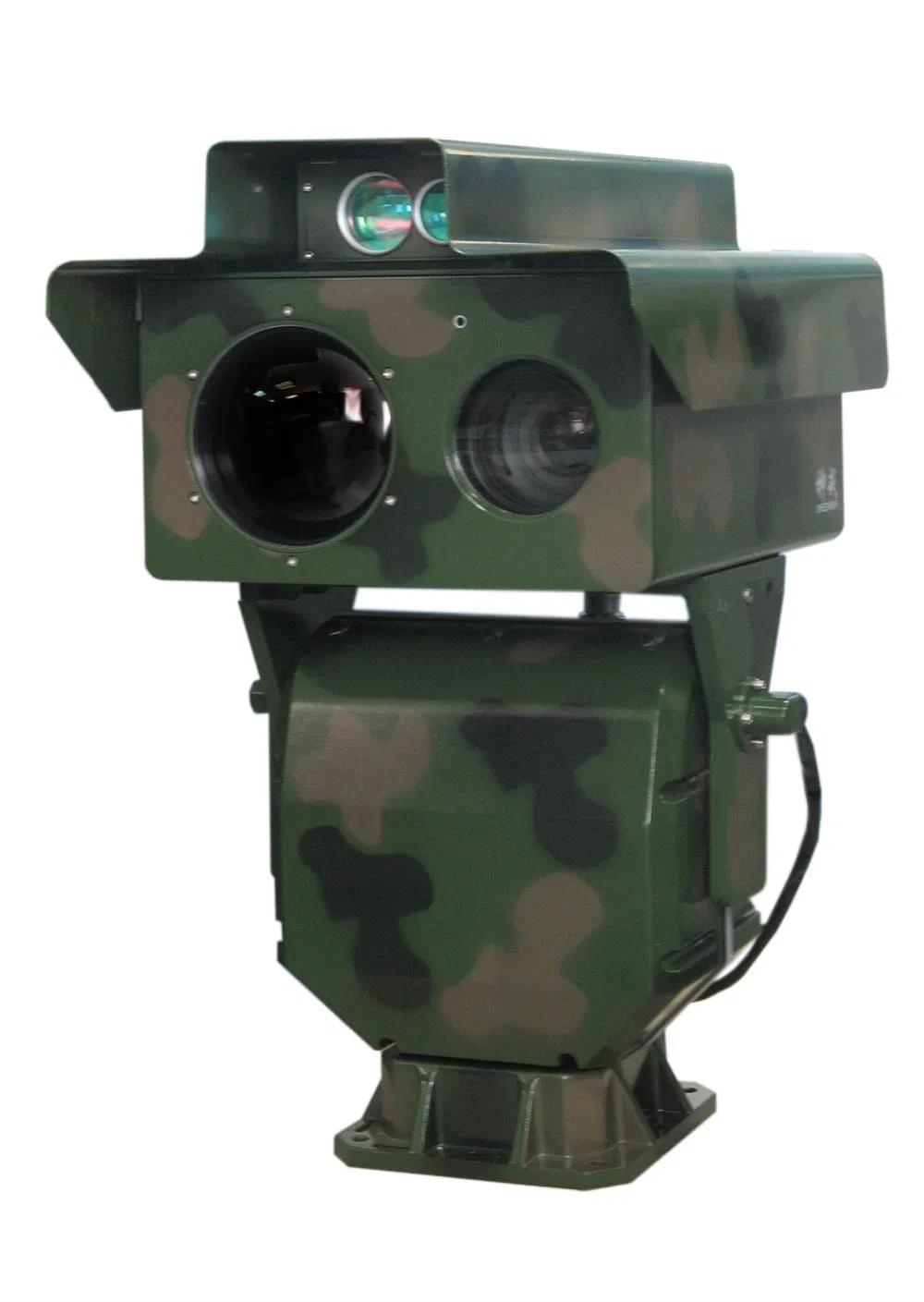

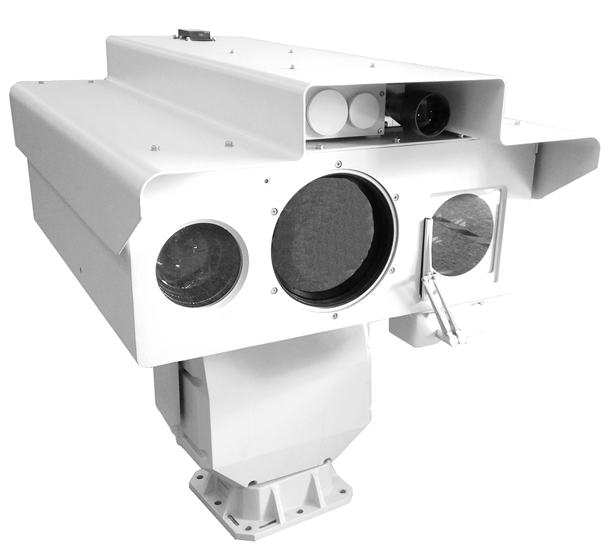

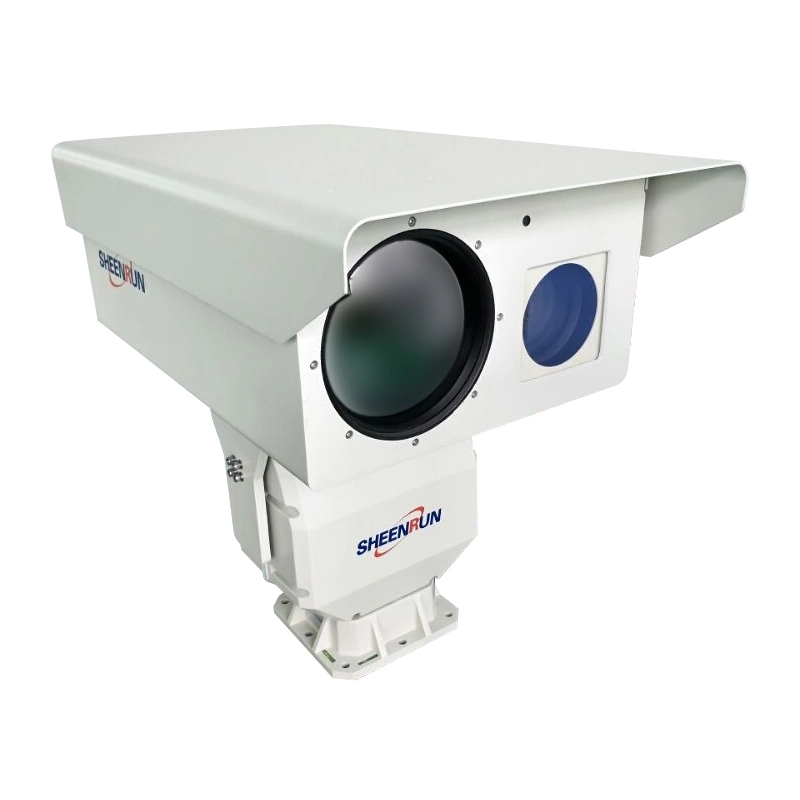

Multi-Sensor Wireless Surveillance HD IP Long Range Daynight Uncooled Digital Thermal Night Vision Imager Imaging CCTV Video Infrared Camera

1 / 5

Multi-Sensor Wireless Surveillance HD IP Long Range Daynight Uncooled Digital Thermal Night Vision Imager Imaging CCTV Video Infrared Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	PTZ Thermal Camera

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

HLV3020TIR185R

Type

Thermal Camera

Sensor

Thermal Detector

HDMI Format

1080P

Horizontal Resolution

640*512

Kind

Autofocus Lens

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof, High Definition, Mini Size

Effective Distance

11.8km to Vehicle

Day Camera Lens

12.5~750mm

Thermal Lens

36-180mm

Zoom

5X Zoom

✨ Key Features

Continuous Zooming: High-clarity thermal imaging technology for large area searching and long-distance objective recognition.

High Sensitivity: Infrared detector with temperature sensitivity of 50mK for precise detection.

Dual Monitoring: 2 megapixels low illuminance color camera for continuous day and night surveillance.

Smart Functions: Supports auto focus, 3D locating, and frame selection magnification for easier operation.

Durable Build: Professionally designed shell that is anti-corrosion, waterproof, and anti-acid rain.

📊 Technical Data

Category	Parameter	Specifications
Distance	CCTV Camera	5000m
Distance	Thermal (Vehicle)	Detection: 11880m / Identification: 1440m
HD Lens	Focal Length	12.5~750mm
HD Lens	FOV	0.5°~28.7°
Thermal Detector	Detector Type	Uncooled microbolometer focal plane array (VOX)
Thermal Detector	Effective Pixels	324×256
Pan-tilt	Rotation	Horizontal 360° continuous, Pitching -60°~+20°
Pan-tilt	Load Capacity	50kg (top load)
Environment	Protection Grade	IP66

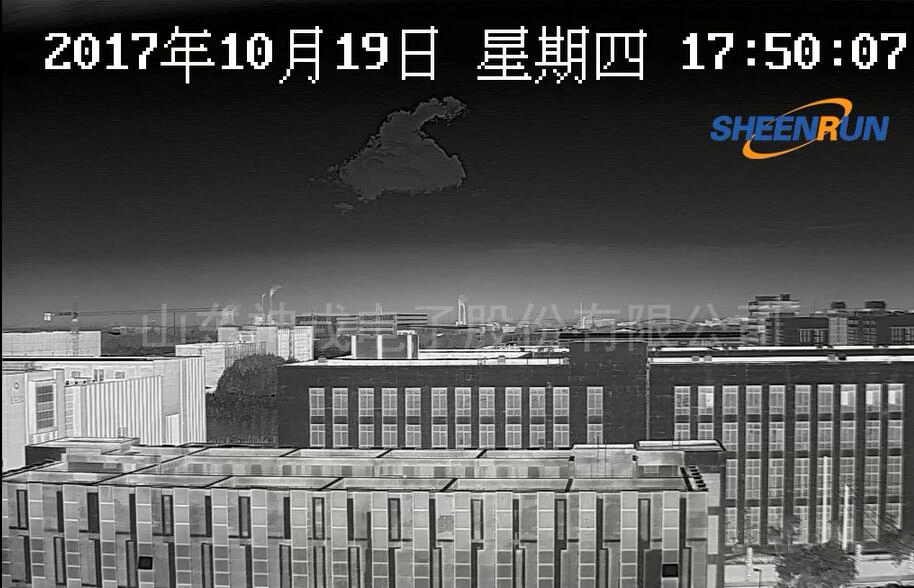

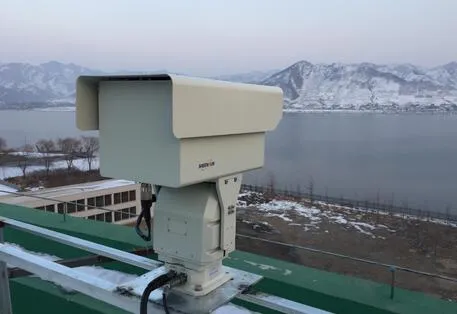

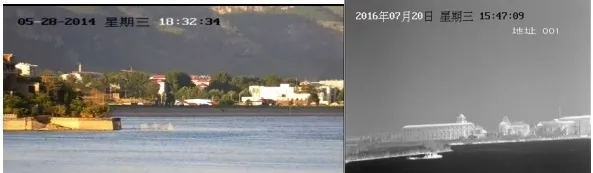

🖼️ Demo Effect

❓ Frequently Asked Questions

What is the maximum detection range of this camera?

This thermal camera can detect vehicles at a distance of up to 11.8km and humans up to 4.3km.

Does the camera support automatic focusing?

Yes, it features an autofocus lens that supports multiple focusing modes and triggering modes for both the day and thermal cameras.

Is this device suitable for extreme weather conditions?

Absolutely. It is designed with an IP66 protection grade, making it waterproof, anti-corrosion, and capable of operating in temperatures ranging from -25ºC to +55ºC.

What imaging sensors are used in this model?

It utilizes an uncooled microbolometer focal plane array (VOX) thermal detector and a 1/2'' Progressive Scan CMOS for high-definition day imaging.

Can the camera track movement?

The system includes a high-precision pan-tilt unit with 360° continuous horizontal rotation and 3D locating functions to assist in tracking and centering objectives.
